ROOFULL External CD/DVD Drive (Model ECD829-Y) Instruction Manual

1. Pengenalan dan Lebihview

The ROOFULL ECD829-Y is a versatile external CD/DVD drive designed for modern computers lacking built-in optical drives. This device functions as both a reader and a writer, allowing you to play movies, music, install software, burn data to discs, and rip audio/video content. Its compact and portable design, coupled with dual USB-A and USB-C connectivity, ensures broad compatibility and ease of use across various operating systems.

Image 1.1: The ROOFULL ECD829-Y External CD/DVD Drive, showcasing its sleek design and a disc being inserted into the tray.

2. Ciri-ciri Produk

• Multi-functional Capability: Reads and writes CD-ROM, CD-R/RW, CD+R/RW, DVD-ROM, DVD±R/RW, DVD-RAM, and dual-layer DVD±R DL. (Note: Blu-ray and 4K discs are not supported.)
• Pemindahan Data Berkelajuan Tinggi: Features upgraded USB 3.0 technology for data transfers up to 5 Gbps, significantly faster than USB 2.0. Max read/write speeds of DVD 8X and CD 24X.
• Kesambungan Dwi: Equipped with both USB-A and USB-C connectors for broad compatibility with various devices without needing additional adapters.
• Pasang dan Main: No manual driver installation required for most operating systems.
• Reka Bentuk Mudah Alih: Lightweight and ultra-slim with a built-in data cable that tucks neatly into the bottom of the drive for easy transport and storage.
• Prestasi Boleh Dipercayai: Engineered for stable operation, enhanced error correction, and minimal noise.

Image 2.1: Close-up of the ROOFULL drive's dual USB 3.0 and USB-C connector, emphasizing its plug-and-play convenience.

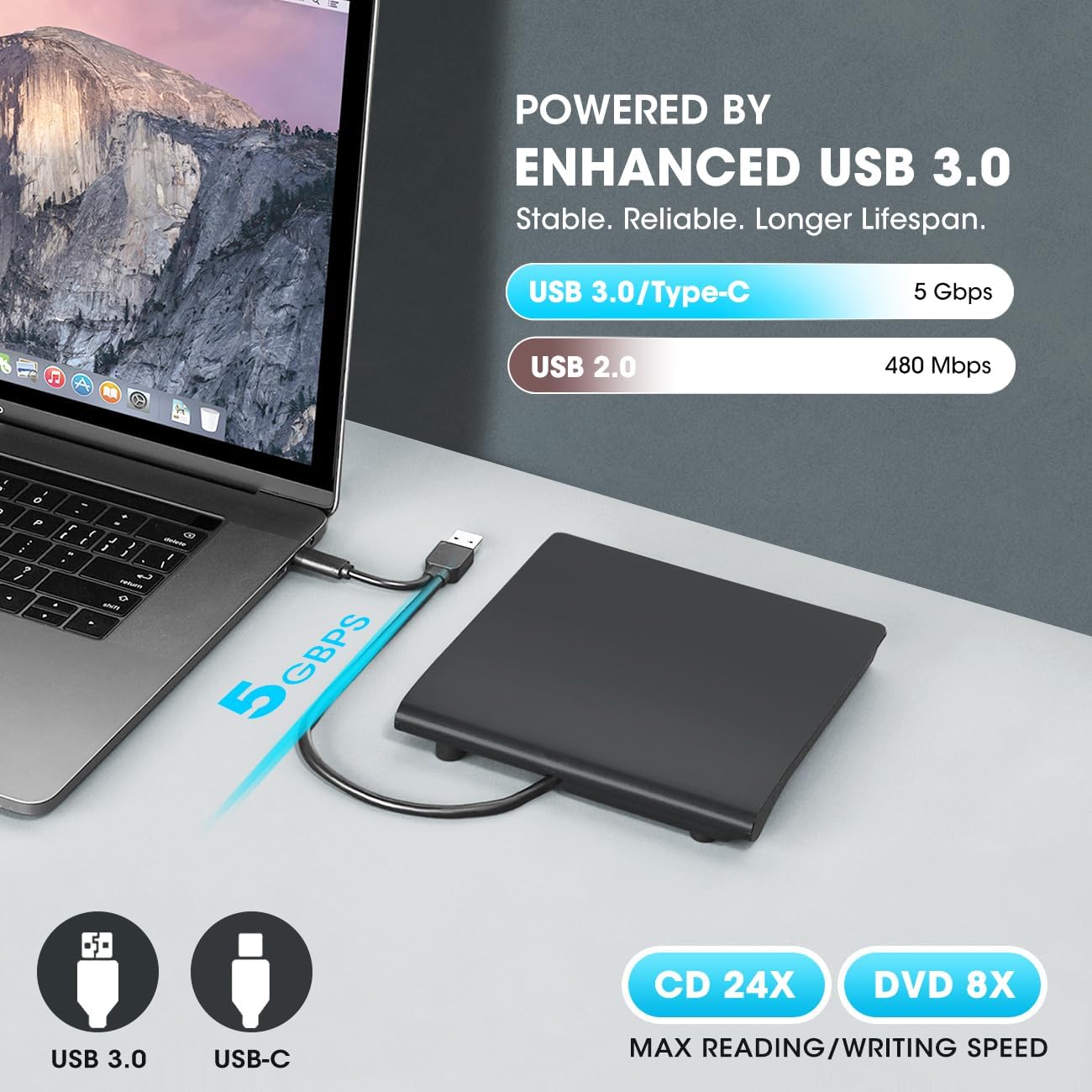

Image 2.2: The drive connected to a laptop, visually representing the 5 Gbps data transfer speed of USB 3.0 compared to USB 2.0.

3. Kandungan Pakej

• ROOFULL External CD/DVD Drive (Model ECD829-Y)
• Integrated USB 3.0 & USB-C Data Cable
• Manual Pengguna (dokumen ini)

4. Persediaan

1. Sambungkan Drive: Locate the integrated USB cable tucked into the bottom of the drive. Connect the appropriate end (USB-A or USB-C) to an available USB port on your computer.
2. Bekalan Kuasa: The drive is typically powered directly via the USB connection. For desktop PCs, it is recommended to use a rear USB port on the motherboard to ensure sufficient power supply.
3. Pengecaman Automatik: The drive should be automatically recognized by your operating system (Windows, Mac, Linux) without the need for manual driver installation.
4. Mac Specific Note: On Mac, the disc drive icon will appear on the desktop after a disc is inserted and successfully read.

Image 4.1: The underside of the drive showing the integrated USB 3.0 and USB-C cable neatly stored in its compartment.

5. Arahan Operasi

5.1 Playing/Reading Discs

1. Buka Dulang Cakera: Tekan butang lenting di bahagian hadapan pemacu untuk membuka dulang cakera.
2. Masukkan Cakera: Carefully place your CD or DVD onto the tray, ensuring it is centered on the spindle.
3. Tutup Dulang: Tolak dulang kembali ke dalam pemacu dengan lembut sehingga ia berbunyi klik tertutup.
4. Akses Kandungan: Your computer should recognize the disc. Use your preferred media player software (e.g., VLC Media Player, Windows Media Player, iTunes) to play movies, music, or access data files.

5.2 Burning/Writing Discs

1. Insert Blank Disc: Follow steps 1-3 from "5.1 Playing/Reading Discs" using a blank CD-R/RW or DVD±R/RW.
2. Use Burning Software: Utilize compatible burning software (e.g., Nero, Roxio, Windows built-in burning utility) to select the files you wish to burn and initiate the writing process.
3. Pantau Kemajuan: The drive's indicator light will typically show activity during the burning process. Avoid interrupting the process to prevent disc corruption.

5.3 Ejecting Discs (Mac Specific)

Due to macOS limitations, the tray cannot be opened via the physical button after playing or burning a disc. To eject a disc on a Mac:

• Right-click the desktop icon for the drive and select "Eject."
• Secara alternatif, pergi ke "File" > "Eject" from the menu bar in Finder or your media player.

5.4 DVD Region Codes

DVDs are often region-coded, meaning they will only play on DVD drives that use the same region country codes. For example, if you are in the U.S. or Canada (Region 1), you need to set the DVD drive Region Code to #1 to play Region 1 DVDs. CD's are not region coded. Note that external optical drives typically allow changing the region code only a limited number of times (e.g., 4-5 times).

Image 5.1: Visual representation of DVD region codes and their corresponding geographical areas.

6. Keserasian

6.1 Compatible Operating Systems:

• Windows 11 / 10 / 8.1 / 7 / Vista / XP / 98 / SE / ME / 2000
• Linux
• macOS 10.16 or later (including Apple MacBook, MacBook Pro, MacBook Air, Mac Studio/Pro with M1/2/3 chip)

6.2 Incompatible Devices/Formats:

• Chromebook
• Smartphones, TVs, iPads, iPhones, Projectors
• Trucks, Cars
• Beberapa model Surface
• Blu-ray / 4K discs

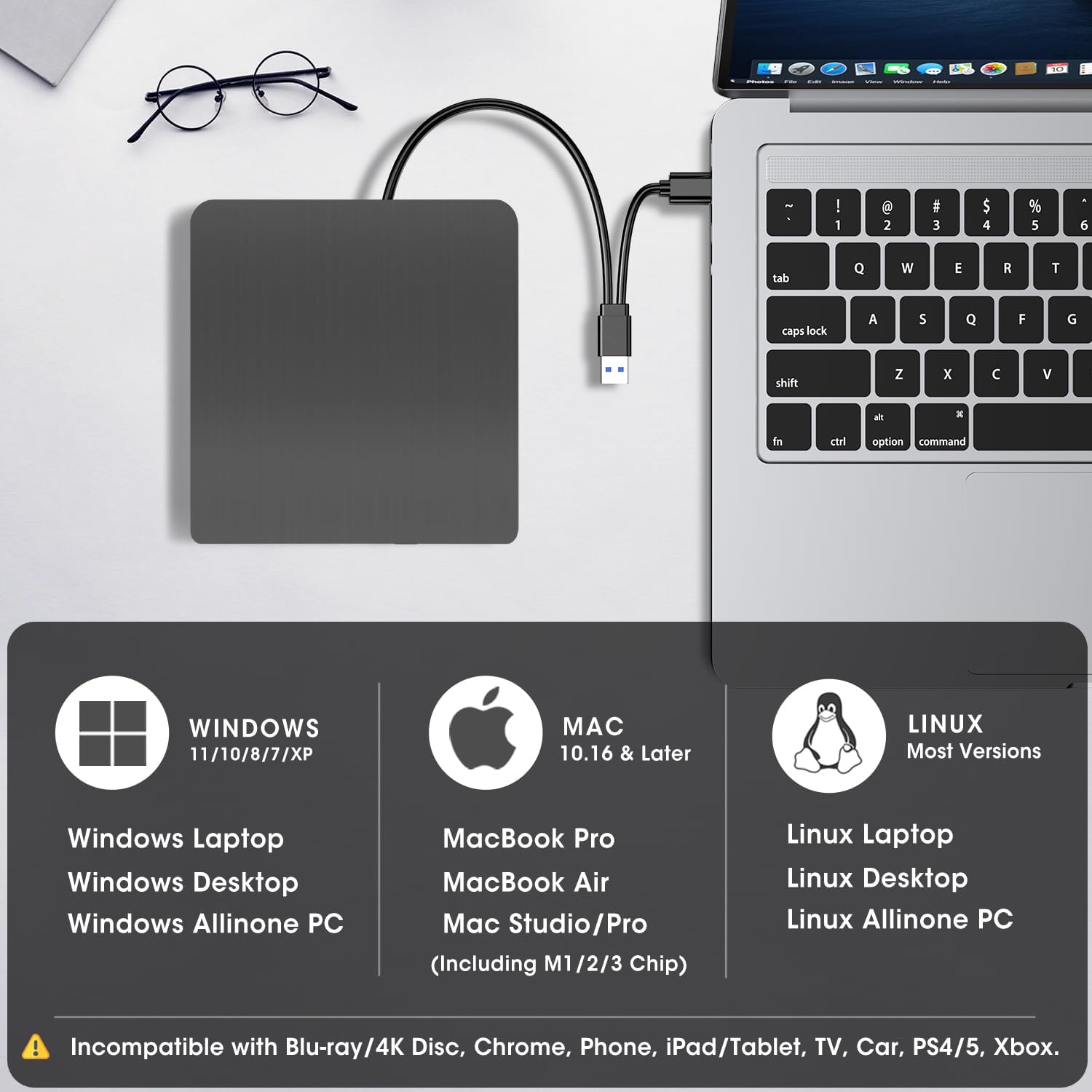

Image 6.1: A visual guide to the drive's compatibility with various operating systems and devices, clearly listing unsupported platforms.

7. Penyelenggaraan

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan bahagian luar pemacu. Jangan gunakan pembersih cecair atau bahan kasar.
• Penjagaan Cakera: Sentiasa kendalikan cakera pada bahagian tepinya untuk mengelakkan cap jari dan calar. Simpan cakera dalam bekas pelindung apabila tidak digunakan.
• Storan: When not in use, store the drive in a cool, dry place, away from direct sunlight and extreme temperatures. Utilize the built-in cable storage to prevent damage to the cable.
• Avoid Magnetic Objects: Do not keep the machine near strong magnetic objects, as this can interfere with its operation.
• Kestabilan: Place the machine on a stable, flat surface during operation to ensure proper disc reading and writing.

8. Penyelesaian masalah

• Pemanduan Tidak Dikenali:
  • Ensure the USB cable is securely connected to both the drive and your computer.
  • Try connecting to a different USB port. For desktop PCs, use a rear USB port directly on the motherboard.
  • Mulakan semula komputer anda.
• Disc Not Reading/Writing:
  • Periksa sama ada cakera bersih dan bebas daripada calar atau kerosakan.
  • Ensure the disc type is supported by the drive (e.g., not Blu-ray/4K).
  • Verify that you have appropriate media player or burning software installed and updated.
  • For DVDs, check the region code settings on your computer.
• Disc Not Ejecting (Windows/Linux): Press the eject button on the drive. If it doesn't work, try ejecting through your operating system's file explorer (right-click the drive icon and select "Eject").
• Disc Not Ejecting (Mac): Right-click the drive icon on your desktop and select "Eject," or go to "File" > "Eject" from the menu bar. The physical button may not function after media playback/burning on macOS.
• Kuasa tidak mencukupi: If the drive is not functioning correctly or intermittently, it may not be receiving enough power. Try connecting it to a different USB port, especially a powered USB hub if available, or a rear USB port on a desktop PC.

9. Spesifikasi

10. Waranti dan Sokongan

ROOFULL is committed to providing quality products and customer satisfaction. Every drive undergoes strict testing processes before shipment. We offer up to 2 years of after-sales service untuk produk ini.

If you encounter any issues or require technical assistance, please do not hesitate to reach out to ROOFULL customer support. We are here to help with troubleshooting or device replacement to ensure your satisfaction.

For support, please visit the official ROOFULL store on Amazon or contact us directly through the platform where you purchased the product.
