1. Pengenalan
This manual provides essential information for the safe and efficient operation, installation, and maintenance of your Godrej 1.5 Ton 5 Star Inverter Split AC, model GSC 18 GIA 5 AWOG. Please read this manual thoroughly before using the appliance and retain it for future reference.
Langkah-langkah Keselamatan
- Always ensure the AC is installed by a qualified technician.
- Jangan cuba membaiki atau mengubah suai unit ini sendiri. Hubungi kakitangan servis yang dibenarkan.
- Pastikan bekalan kuasa sepadan dengan spesifikasi unit.
- Keep the indoor and outdoor units clear of obstructions.
- Jangan masukkan jari atau objek ke dalam saluran masuk/keluar udara.
2. Komponen yang Disertakan
The following items are typically included with your Godrej Split AC unit:
- 1 Unit Dalaman
- 1 Unit Luar
- Inter Connecting Pipe
- 1 Alat Kawalan Jauh
- Manual Pengguna
- 1 Kad Waranti
3. Produk Lebihview
Familiarize yourself with the main components of your Godrej Split AC.

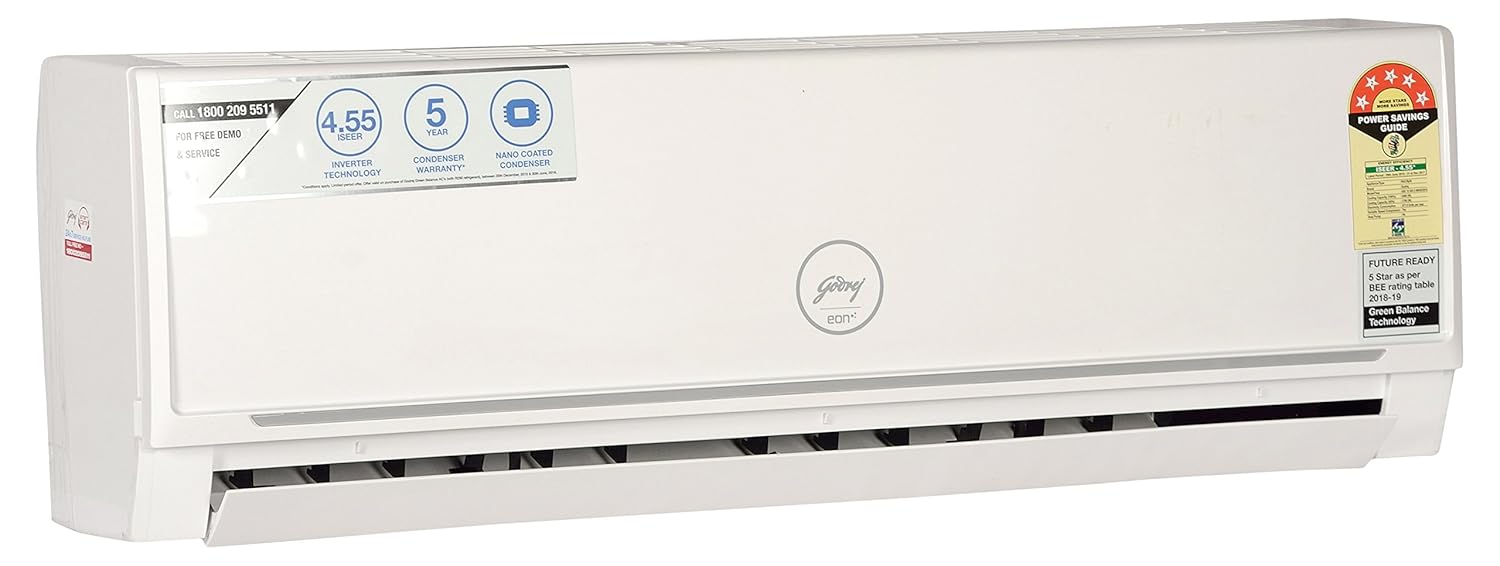

Rajah 3.1: Indoor Unit. This unit is installed inside the room and is responsible for circulating cool air.
Rajah 3.2: Outdoor Unit. This unit houses the compressor and condenser, expelling heat outside.
Rajah 3.3: Remote Control. Used to operate the AC unit and select various modes and settings.
Rajah 3.4: Interconnecting Pipes. These copper pipes connect the indoor and outdoor units, allowing refrigerant flow.
Rajah 3.5: Energy Efficiency Label. Displays the energy rating (5 Star) and other efficiency details of the AC unit.
4. Persediaan dan Pemasangan
The installation of this split air conditioner requires specialized tools and knowledge. It is strongly recommended that you arrange for professional installation by an authorized Godrej service technician. Improper installation can lead to electric shock, fire, water leakage, and damage to the unit.
Langkah Pemasangan Utama (Lebihview for reference):
- Pemilihan Tapak: Choose appropriate locations for both indoor and outdoor units, considering air circulation, drainage, and structural support.
- Pemasangan: Securely mount the indoor unit on the wall and the outdoor unit on a stable surface or wall bracket.
- Sambungan Paip: Connect the refrigerant pipes between the indoor and outdoor units, ensuring proper insulation and leak-free joints.
- Pendawaian elektrik: Connect the power supply and communication cables according to the wiring diagram provided in the detailed installation manual.
- Saliran: Install the drain pipe for the indoor unit to ensure proper condensate removal.
- Vacuuming and Gas Charging: Evacuate air from the refrigerant lines and charge with the correct amount of refrigerant if necessary.
- Larian Ujian: Perform a test run to verify proper operation and check for any abnormalities.
5. Arahan Operasi
Your Godrej Inverter Split AC offers various modes and features for optimal comfort. Use the remote control (Figure 3.3) to operate the unit.
Fungsi Kawalan Jauh:
- ARAHAN: Cycles through operating modes: Cool, Dry, Fan, Auto, Heat (if applicable).
- TEMP ▲/▼: Melaraskan suhu yang dikehendaki.
- PEMINAT: Memilih kelajuan kipas (Rendah, Sederhana, Tinggi, Auto).
- HAYUN: Controls the vertical louver movement for air direction.
- TIDUR: Mengaktifkan mod tidur untuk operasi senyap dan penjimatan tenaga semasa tidur.
- PEMASA: Sets the ON/OFF timer for automatic operation.
- ECO: Engages energy-saving mode.
- TURBO: Menyediakan penyejukan atau pemanasan yang cepat.
- DISPLAY: Togol paparan pada unit dalaman.
- BLOW: Activates the anti-mildew function (dries the indoor coil).
- KUNCI: Mengunci butang alat kawalan jauh untuk mengelakkan perubahan yang tidak disengajakan.
- SENYAP: Reduces noise levels for quieter operation.
Mod Pengendalian:
- Mod Sejuk: Provides cooling. Set desired temperature and fan speed.
- Mod Kering: Mengurangkan kelembapan di dalam bilik.
- Mod Kipas: Mengedarkan udara tanpa penyejukan atau pemanasan.
- Mod Auto: The AC automatically selects the appropriate mode (Cool, Fan) based on the room temperature.
- Mod tidur: Gradually adjusts temperature and fan speed for comfortable sleep and energy efficiency.
- Mod Turbo: For quick cooling, the unit operates at maximum fan speed and cooling capacity.
- Mod Eko: Optimizes operation for energy savings.
6. Penyelenggaraan
Regular maintenance ensures optimal performance and longevity of your AC unit.
Pembersihan Penapis:
The air filters in the indoor unit should be cleaned regularly (every 2-4 weeks, depending on usage and air quality).
- Turn off the AC unit and disconnect power.
- Buka panel hadapan unit dalaman.
- Keluarkan penapis udara.
- Bersihkan penapis dengan pembersih vakum atau basuh dengan air suam dan detergen lembut.
- Rinse thoroughly and allow them to dry completely in a shaded area before reinstalling.
- Tutup panel hadapan.
Penyelenggaraan Unit Luaran:
- Keep the area around the outdoor unit clear of debris, leaves, and other obstructions.
- Periodically clean the outdoor coil fins with a soft brush or water spray (ensure power is off).
- For detailed cleaning and inspection, it is recommended to schedule professional servicing annually.
7. Penyelesaian masalah
Sebelum menghubungi perkhidmatan, semak isu biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| AC does not start | No power supply; Remote control batteries low; Timer function active. | Check power connection/circuit breaker; Replace remote batteries; Cancel timer setting. |
| Penyejukan yang tidak mencukupi | Dirty air filters; Obstructions near units; Doors/windows open; Temperature setting too high. | Clean air filters; Remove obstructions; Close doors/windows; Lower temperature setting. |
| Bunyi yang tidak biasa | Bahagian longgar; Unit bukan aras; Objek asing dalam kipas. | Periksa bahagian yang longgar; Pastikan unit rata; Hubungi servis jika bunyi bising berterusan. |
| Kebocoran air dari unit dalaman | Paip longkang tersumbat; Pemasangan yang tidak betul. | Clear drain pipe; Contact service for inspection. |
If the problem persists after checking these points, please contact Godrej SmartCare service.
8. Spesifikasi
Key technical specifications for the Godrej 1.5 Ton 5 Star Inverter Split AC (Model GSC 18 GIA 5 AWOG):
- model: GSC 18 GIA 5 AWOG
- kapasiti: 1.5 Tan
- Kecekapan Tenaga: 5 Bintang
- Tahap Bunyi: 40 Decibels (Indoor Unit)
- Jenis Pemasangan: Sistem Perpecahan
- Ciri Khas: Air Purification Filter, Anti Bacterial Filter, Dehumidifier, Dust Filter, Inverter
- warna: putih
- Konsol Kawalan: Alat Kawalan Jauh
- Voltage: 230 Volt
- Bahan: plastik
- Berat Barang: 14 kg 500 g (Indoor Unit)
- Item Dimensions LxWxH (Indoor Unit): 23.2 x 94 x 30 Sentimeter
- Kuasa penyejukan: 5018 Watt
- Nisbah Kecekapan Tenaga Bermusim (SEER): 4.55
9. Waranti dan Sokongan
Your Godrej AC comes with a comprehensive warranty and dedicated customer support.
- Waranti: 1 year on product, 1 year on condenser, 7 years on compressor.
- Pemasangan: Free standard installation is typically included.
For any service requests, installation assistance, or queries, please contact Godrej SmartCare. They offer service centers across India and customer care in multiple languages.
Video: Godrej SmartCare Service. This video highlights the customer service and support provided by Godrej for their appliances.
You can register for service in 30 seconds via the Godrej SmartCare app or website, or call their toll-free number.
Nombor Bebas Tol: 1800 209 5511
Webtapak: godrejsmartcare.com
