M-Wave Bicycle Lift User Manual

pengenalan

Welcome to the user manual for your M-Wave Bicycle Lift. This manual provides essential information for the safe and efficient installation, operation, and maintenance of your bicycle lift. Please read this manual thoroughly before use and retain it for future reference.

The M-Wave Bicycle Lift is designed to provide a space-saving storage solution for bicycles and other heavy items, supporting weights up to 125 lbs (56.7 kg). It is particularly suitable for e-bikes and features a robust pulley system for easy lifting and lowering.

Maklumat Keselamatan

Always prioritize safety when installing and operating the M-Wave Bicycle Lift.

• Ensure the mounting surface (ceiling) is structurally sound and capable of supporting the lift's weight plus the maximum load (125 lbs / 56.7 kg). Consult a professional if unsure.
• Use appropriate mounting hardware for your ceiling type. The included hardware may not be suitable for all surfaces.
• Do not exceed the maximum weight capacity of 125 lbs (56.7 kg). Overloading can cause damage to the lift or injury.
• Keep hands and fingers clear of moving parts, especially during lifting and lowering operations.
• Regularly inspect the ropes, pulleys, and hooks for signs of wear, fraying, or damage. Replace worn components immediately.
• Ensure the locking mechanism engages properly when the load is at the desired height.
• Do not allow children to operate or play near the bicycle lift.
• Install the lift in an area where there is sufficient clearance to avoid accidental contact with the lifted item.
• The hooks are designed with plastic covers for scratch protection; ensure these are intact before use.
• The rope is 6.5mm thick and designed for ceilings up to 13 feet (4 meters) high. Do not extend the rope beyond its intended length.

Kandungan Pakej

Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan.

• 2 x Pulley Assemblies (one with locking mechanism)
• 2 x Lifting Hooks with plastic covers
• 1 x Rope (6.5mm thick, suitable for up to 13 ft / 4m ceiling height)
• 1 x Wall Cleat (for securing excess rope)
• Mounting Hardware (screws, anchors - verify suitability for your ceiling type)

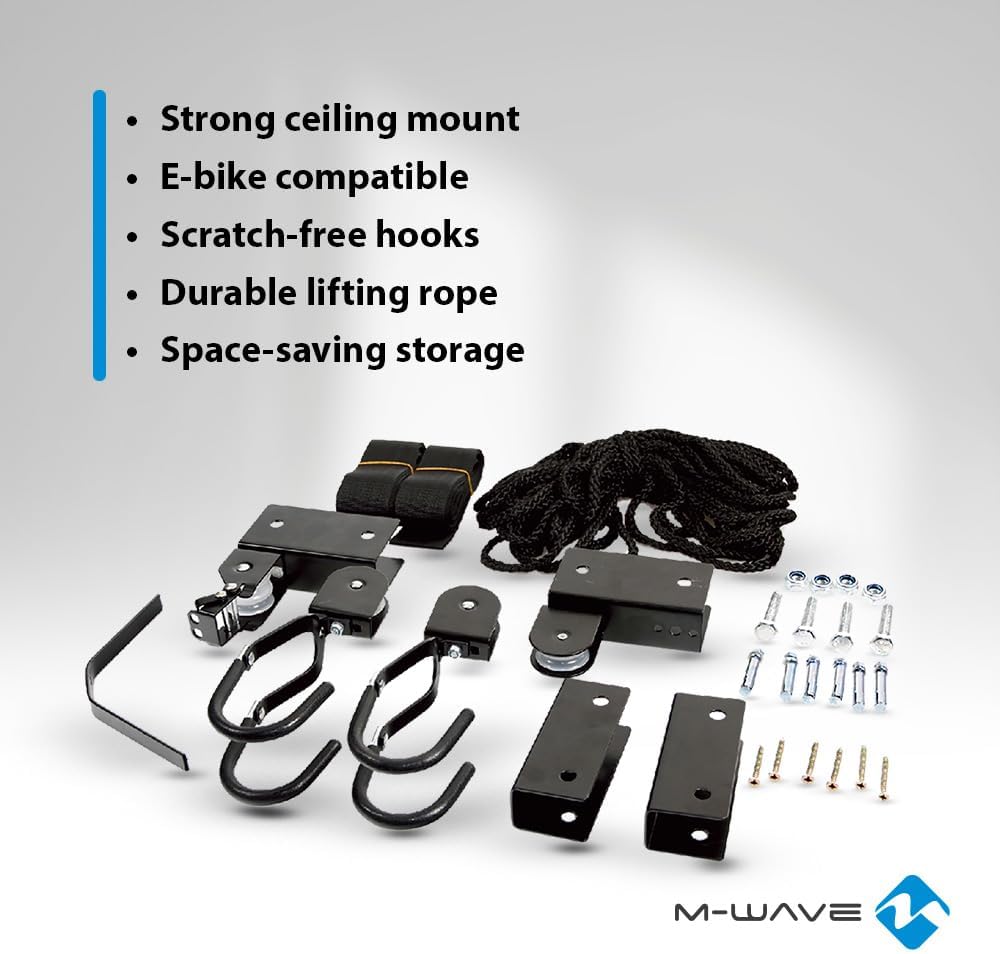

An image showing all the individual components included in the M-Wave Bicycle Lift package, including the pulley assemblies, hooks, rope, and mounting hardware.

Persediaan dan Pemasangan

Alat Diperlukan

• latih tubi
• Drill bits appropriate for mounting hardware and ceiling material
• Pita Pengukur
• Pensel
• Stud Finder (if mounting to ceiling joists)
• Tangga

Langkah Pemasangan

1. Tentukan Lokasi Pemasangan: Choose a ceiling location that can safely support the weight of the lift and the item being stored. Ensure there is enough space to raise and lower the item without obstruction. The two pulley assemblies should be mounted parallel to each other, spaced appropriately for the item you intend to lift (e.g., bicycle handlebars and seat).
2. Tandai Lubang Juruterbang: Hold one pulley assembly against the ceiling at your desired mounting point. Use a pencil to mark the locations for the mounting screws. Repeat for the second pulley assembly, ensuring it is parallel to the first and at the correct distance.
3. Gerudi Lubang Juruterbang: Drill pilot holes at the marked locations. The size of the drill bit should match the recommended size for your mounting hardware and ceiling material.
4. Attach Pulley Assemblies: Securely fasten both pulley assemblies to the ceiling using the provided mounting hardware or appropriate hardware for your ceiling type. Ensure they are firmly attached and do not wobble.
5. Thread the Rope: Identify the pulley assembly with the locking mechanism. This will be the "control" side. Thread one end of the rope through the pulley system, following the diagram in the manual (or typical pulley system threading). The rope should pass through the pulleys on both ceiling-mounted units and then down to the hooks. Ensure the rope is correctly routed through the locking mechanism on the control side. Tie secure knots to attach the hooks to the ends of the rope that will hold the item.
6. Install Wall Cleat: Mount the wall cleat at a convenient height on a nearby wall to secure the excess rope when the item is lifted.

An image showing the M-Wave Bicycle Lift installed on a ceiling, with a bicycle suspended beneath it, demonstrating the typical setup and use.

An image showing the M-Wave Bicycle Lift installed on a ceiling, with a large cargo box suspended beneath it, illustrating its versatility for various heavy items.

An image showing the M-Wave Bicycle Lift installed on a ceiling, with a ladder suspended beneath it, demonstrating its use for long, bulky items.

Arahan Operasi

Lifting an Item

1. Attach Item: Carefully attach the hooks to the item you wish to lift. For bicycles, typically attach one hook to the handlebars and the other to the seat. Ensure the item is balanced.
2. Tarik Tali: Stand near the control side of the lift. Pull the free end of the rope downwards to raise the item. The pulley system will reduce the effort required.
3. Engage Lock: Once the item reaches the desired height, slowly release tension on the rope. The automatic locking mechanism will engage, holding the item securely in place.
4. Secure Excess Rope: Wrap the excess rope around the wall cleat to keep it tidy and prevent accidental lowering.

Lowering an Item

1. Kunci Lepas: Gently pull the rope downwards to slightly lift the item, which will disengage the locking mechanism.
2. Control Descent: Slowly and steadily release the rope, allowing the item to descend. Maintain control of the rope at all times.
3. Detach Item: Once the item is safely on the ground, detach the hooks.

An image of the M-Wave Bicycle Lift showing a maximum height indication of 4 meters (approximately 13 feet), illustrating the maximum ceiling height it can accommodate.

Penyelenggaraan

Regular maintenance ensures the longevity and safe operation of your M-Wave Bicycle Lift.

• Pemeriksaan Tali: Periodically inspect the entire length of the rope for any signs of fraying, cuts, or excessive wear. If the rope shows significant wear, replace it immediately with a high-strength rope of similar diameter (6.5mm).
• Pemeriksaan Takal: Check the pulleys for smooth operation. Ensure they rotate freely and are not obstructed by dirt or debris.
• Pemeriksaan Cangkuk: Verify that the plastic covers on the hooks are intact to prevent scratching your items. Replace hooks if they are bent or damaged.
• Perkakasan Pemasangan: Annually check all mounting screws and anchors to ensure they remain tight and secure. Retighten if necessary.
• Pelinciran: Apply a small amount of silicone spray or light lubricant to the pulley axles if they become stiff. Avoid over-lubrication.
• Pembersihan: Wipe down the metal components with a damp cloth to remove dust and grime. Do not use abrasive cleaners.

Menyelesaikan masalah

Spesifikasi

Waranti dan Sokongan

For warranty information or technical support, please contact M-Wave customer service or refer to the official M-Wave webtapak. Simpan resit pembelian anda sebagai bukti pembelian.

Note: Specific warranty terms may vary by region and retailer. Please consult your point of purchase or the manufacturer's official documentation for detailed warranty information.
