Britax Pinnacle ClickTight Harness-2-Booster Car Seat User Manual

pengenalan

This manual provides essential instructions for the proper installation, use, and maintenance of your Britax Pinnacle ClickTight Harness-2-Booster Car Seat. Please read this manual thoroughly before using the car seat to ensure maximum safety and correct operation. Keep this manual in a safe place for future reference.

Depan view of the Britax Pinnacle ClickTight Harness-2-Booster Car Seat.

Maklumat Keselamatan

Your child's safety is paramount. Always follow all instructions and warnings provided in this manual and on the car seat labels. Improper installation or use can lead to serious injury or death.

• Always secure your child in the car seat according to the weight and height limits for the chosen mode (harness or booster).
• Ensure the car seat is correctly installed in your vehicle using either the vehicle's seat belt with the ClickTight system or the LATCH system (if applicable and within limits).
• Jangan sekali-kali menggunakan tempat duduk kereta yang telah terlibat dalam kemalangan sederhana hingga teruk, walaupun tiada kerosakan yang boleh dilihat.
• The Britax Pinnacle features the patented SafeCell Impact Protection system, including a steel frame, energy-absorbing base, V-shaped tether, and three layers of side impact protection. These features are designed to minimize injury in a collision.

Impact-Stabilizing Steel Frame for enhanced structural integrity.

V-Shaped Tether designed to minimize seat rotation and reduce forward movement.

Impact-Absorbing Base to absorb crash forces.

Ciri-ciri Produk

The Britax Pinnacle ClickTight Harness-2-Booster Car Seat is designed with a range of features to provide safety, comfort, and ease of use.

• Sistem Pemasangan ClickTight: Simplifies car seat installation by making it as easy as buckling a seat belt.
• Cool Flow Ventilated Mesh Fabric: Improves airflow to increase cooling and enhance comfort for your child.
• 9-Position Quick-Adjust Harness & Headrest: Allows for easy adjustment of the harness and headrest height without rethreading, accommodating your growing child.
• 3 Layers of Side Impact Protection: A deep foam-lined shell, head protection, and external cushions shield your child from side-impact forces.
• Pelbagai Posisi Berbaring: Ensures comfort for your child and helps achieve the best installation angle in your vehicle.
• Removable Cup Holders: Two integrated cup holders keep drinks and snacks accessible and are easy to clean.
• Harness-to-Booster Transition: Easily converts from a 5-point harness to a belt-positioning booster as your child grows.

Cool Flow ventilated mesh fabric for enhanced comfort.

9-Position Quick-Adjust Harness & Headrest.

Multiple Recline Positions for comfort and proper vehicle fit.

Two Integrated Cup Holders.

Persediaan dan Pemasangan

The Britax ClickTight Installation System makes securing the car seat in your vehicle straightforward. Always refer to your vehicle's owner's manual for specific car seat installation instructions and locations.

Langkah Pemasangan ClickTight:

1. Open ClickTight: Lift the ClickTight panel to expose the belt path.
2. Thread Seatbelt and Buckle: Route the vehicle's seat belt through the designated belt path and buckle it. Ensure there is no slack in the seat belt.
3. Close ClickTight: Press the ClickTight panel down firmly until it clicks into place. This action automatically tightens the seat belt for a secure installation.
4. Connect Top Tether: Always connect and tighten the top tether strap to the appropriate anchor point in your vehicle.

Visual guide for the ClickTight Installation System.

Panduan Video Pemasangan:

Arahan Operasi

Harness Mode (Forward-Facing)

Use harness mode for children who meet the following criteria:

• Age: 2 years old and up
• Weight: 25 to 90 lbs
• Standing Height: 30 to 58 inches

To secure your child in harness mode:

1. Adjust the headrest and harness straps so the harness straps are at or slightly above your child's shoulders.
2. Place your child in the seat and buckle the harness.
3. Ketatkan abah-abah sehingga ia pas pada badan anak anda, pastikan anda tidak mencubit sebarang kelonggaran pada tulang selangka.

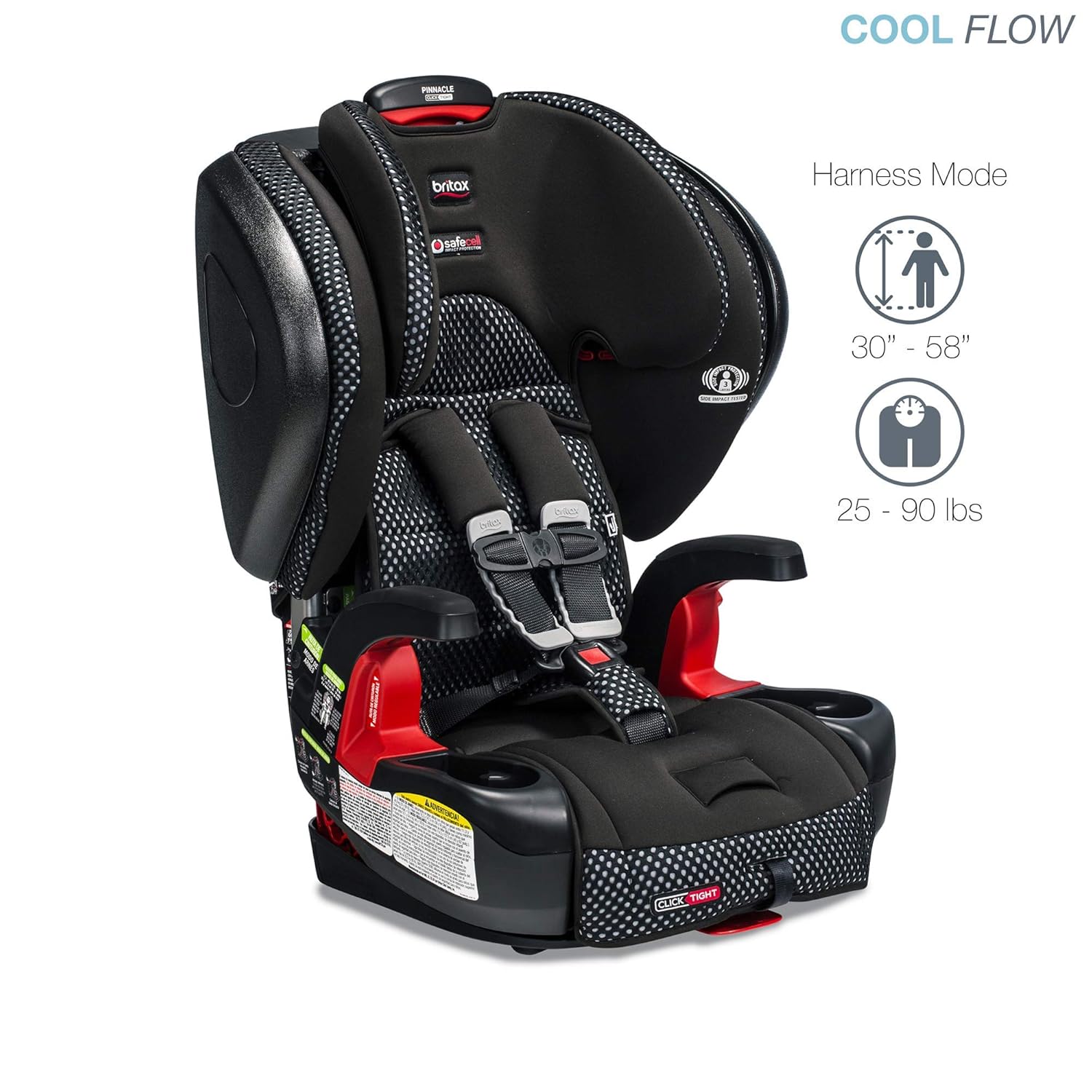

Harness Mode specifications and proper child positioning.

Mod Penggalak

Transition to booster mode when your child meets the following criteria:

• Weight: 40 to 120 lbs
• Standing Height: 45 to 62 inches

To convert to booster mode:

1. Store the 5-point harness straps and buckle according to the instructions in the full user guide.
2. Position the car seat in your vehicle.
3. Route the vehicle's lap and shoulder belt through the car seat's belt guides and buckle it around your child. Ensure the shoulder belt lies flat across the center of your child's shoulder and chest, and the lap belt is low on the hips, touching the thighs.

Booster Mode specifications and proper child positioning.

Transition from Harness-2-Booster.

Penyelenggaraan dan Pembersihan

Regular maintenance and cleaning will help prolong the life of your car seat.

• Fabrik: Refer to the care label on the fabric for specific washing instructions. Typically, fabrics can be machine washed on a gentle cycle with cold water and mild detergent. Air dry.
• Tali Abah-abah: Lap dengan iklanamp cloth. Do not machine wash, bleach, or iron harness straps, as this can weaken them.
• gesper: Clean the buckle by rinsing it with warm water. Do not use soaps or lubricants.
• Bingkai dan Bahagian Plastik: Lap dengan iklanamp kain dan sabun lembut.
• Pemegang Piala: The integrated cup holders are removable for easy cleaning.

Menyelesaikan masalah

If you encounter issues with your Britax Pinnacle car seat, consider the following common solutions:

• Difficulty Tightening Harness: Ensure the harness straps are not twisted or obstructed. Pull the tightening strap smoothly and directly. If the issue persists, consult the full user guide or Britax customer support.
• Car Seat Movement After Installation: After closing the ClickTight panel and connecting the top tether, check for movement at the belt path. The seat should not move more than one inch side-to-side or front-to-back. If it does, re-install the seat, ensuring the vehicle seat belt is fully tightened before closing the ClickTight panel.
• Cushions Detaching: Ensure all cushions are properly reattached and secured according to the manual.

For more detailed troubleshooting or issues not listed here, please refer to the complete user manual or contact Britax customer support.

Spesifikasi

Car seat dimensions.

Waranti dan Sokongan

For information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official Britax website. For customer support, including technical assistance or replacement parts, please contact Britax directly through their webtapak atau talian perkhidmatan pelanggan.

Anda boleh mendapatkan lebih banyak maklumat dan sokongan di Britax Store.
