Frigidaire 5304508016 Refrigerator Crisper Drawer Roller Instruction Manual

pengenalan

This manual provides instructions for the installation, operation, and maintenance of the Frigidaire 5304508016 Refrigerator Crisper Drawer Roller. This component is a genuine Original Equipment Manufacturer (OEM) part designed to ensure proper functionality and fit within compatible Frigidaire refrigerator models. The crisper drawer roller facilitates the smooth movement of the refrigerator's crisper drawer.

Maklumat Keselamatan

Always prioritize safety when working with appliances. Before beginning any installation or maintenance, ensure the refrigerator is disconnected from its power source to prevent electrical shock. Wear work gloves to protect your hands from sharp edges or pinch points during installation.

• Disconnect power to the refrigerator before servicing.
• Wear appropriate personal protective equipment, such as work gloves.
• Jika anda tidak pasti tentang sebarang langkah, rujuk juruteknik bertauliah.

Produk Selesaiview

The Frigidaire 5304508016 Crisper Drawer Roller is a small, wheel-like component that attaches to the crisper drawer in your refrigerator. Its purpose is to allow the drawer to slide in and out smoothly along its tracks. A worn or broken roller can cause the crisper drawer to stick, tilt, or become difficult to operate.

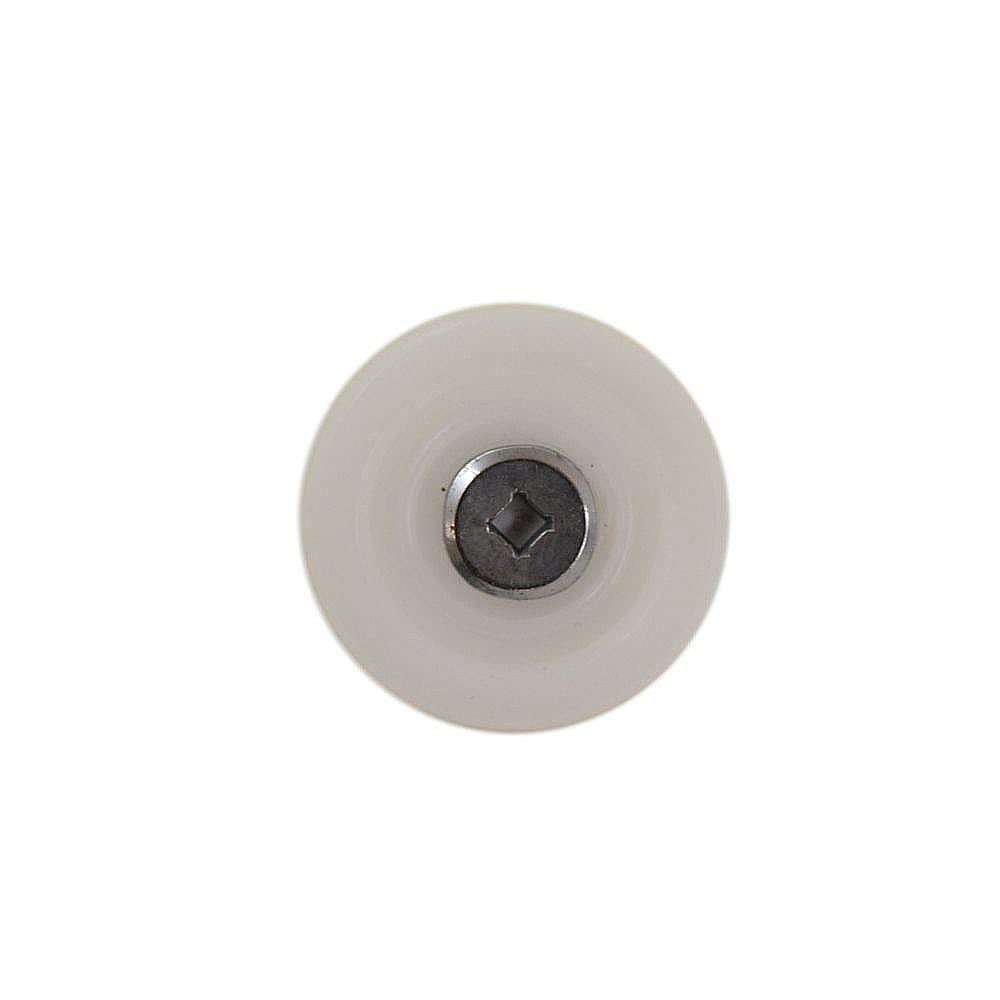

Image: The Frigidaire 5304508016 Refrigerator Crisper Drawer Roller, a small white wheel with a central screw.

Imej: Dari dekat view of the crisper drawer roller, showing the white plastic wheel and the metal screw for attachment.

Keserasian

This crisper drawer roller (Part Number 5304508016) is specifically designed for use in various Frigidaire refrigerator models. It is crucial to verify compatibility with your specific refrigerator model before purchasing and installing this part. Many replacement parts may appear similar but are not interchangeable.

Image: A graphic emphasizing the importance of checking your refrigerator's model number for part compatibility.

Compatible models include, but are not limited to:

• FRFN2823AS0, FRFN2823AS1, FRFN2823AS2, FRFN2823AS3, FRFN2823AS4
• FPBG2277RF9, FPBS2778UF1, FPBG2277RF7, 25370347410, FPBG2277RF6, 25370347411
• 20462151B, FGHB2866PPHA, FPBS2778UF8, FPBS2778UF9, FPBS2778UF6, FPBS2778UF7, FPBS2778UF4, FPBS2778UF5
• 2537034241D, FPBS2778UF3, 90462157B, 2537034241E, FGHN2868TF5, 2537034241F, FGHN2868TF6
• 2537034241G, 2537034241H, FGHN2868TF8, FGHG2368TF5, FGHN2868TF1, 2537034241J, FGHG2368TF6
• FGHN2868TF2, FGHB2868TE4, FGHN2868TF3, FGHB2868TE5, FGHG2368TF8

Pemasangan (Persediaan)

Replacing a crisper drawer roller typically involves removing the old, damaged roller and securing the new one in its place. The exact procedure may vary slightly depending on your refrigerator model.

1. Sediakan untuk Pemasangan:
   • Putuskan sambungan peti sejuk dari salur keluar elektrik.
   • Empty the crisper drawer and remove it from the refrigerator.
   • Place the crisper drawer on a clean, stable surface.
2. Remove the Old Roller:
   • Locate the damaged roller on the crisper drawer or its track.
   • Depending on the design, the roller might be snapped into place, held by a screw, or part of an assembly. Carefully detach or unscrew the old roller.
   • If a screw is present, use an appropriate screwdriver to remove it.
3. Install the New Roller:
   • Align the new Frigidaire 5304508016 roller with the mounting point.
   • If it's a screw-in type, insert the screw through the center of the roller and tighten it securely, but do not overtighten.
   • If it's a snap-in type, press it firmly into place until it clicks.
4. Pasang semula dan Uji:
   • Carefully reinsert the crisper drawer into its designated tracks within the refrigerator.
   • Slide the drawer in and out several times to ensure the new roller allows for smooth, unobstructed movement.
   • Reconnect the refrigerator to the electrical outlet.

Important: Always wear work gloves during this process to protect your hands.

Operasi

The crisper drawer roller operates passively, facilitating the smooth gliding of the crisper drawer. Once installed correctly, the roller requires no direct user interaction for its function. Simply open and close your crisper drawer as usual, and the roller will ensure it moves freely along its designated path.

Penyelenggaraan

Regular maintenance of the crisper drawer roller can extend its lifespan and ensure continued smooth operation.

• Pembersihan: Periodically remove the crisper drawer and inspect the rollers and tracks. Clean any accumulated food debris, dust, or spills that might impede the roller's movement. Use a mild soap and water solution, then rinse and dry thoroughly.
• Pemeriksaan: Check the roller for signs of wear, cracks, or damage. Ensure it spins freely and is securely attached. If the roller appears damaged or worn, consider replacing it to prevent further issues with the crisper drawer.

Menyelesaikan masalah

If you experience issues with your crisper drawer after installing the new roller, consider the following:

• Drawer is Sticking or Not Moving Smoothly:
  • Ensure the roller is correctly installed and securely fastened.
  • Check the crisper drawer tracks for any obstructions or damage.
  • Verify that the crisper drawer itself is not warped or damaged.
  • Confirm that the correct roller part was used for your specific refrigerator model.
• Roller Appears Loose:
  • Tighten the screw holding the roller, if applicable. Do not overtighten.
  • If the roller is a snap-in type, ensure it is fully seated in its mounting point.

If problems persist, consult your refrigerator's main instruction manual or contact Frigidaire customer support.

Spesifikasi

Image: The crisper drawer roller shown alongside a tape measure, indicating its approximate dimensions.

Waranti dan Sokongan

As a genuine Original Equipment Manufacturer (OEM) part, this roller is typically covered under the warranty of the original appliance or a specific parts warranty provided by Frigidaire. Please refer to your refrigerator's original warranty documentation or contact Frigidaire customer support for specific warranty details and assistance.

For further support or to verify compatibility, you may contact Frigidaire directly or the retailer from whom the part was purchased.
