Manual Pengguna

1. Pengenalan

Thank you for choosing the Windhager TVH Telescopic Insect Screen Door. This manual provides detailed instructions for the proper setup, operation, and maintenance of your new insect screen. Designed for ease of installation and effective insect protection, this screen features four overlapping fiberglass panels and a telescopic design for adaptable fitting.

Please read this manual thoroughly before installation and use to ensure optimal performance and longevity of the product.

Rajah 1.1: The Windhager TVH Telescopic Insect Screen Door in Anthracite color, showing its full vertical panel design.

2. Arahan Keselamatan

Sentiasa patuhi langkah keselamatan berikut untuk mengelakkan kecederaan atau kerosakan pada produk:

• Jauhkan semua bahan pembungkusan dari kanak-kanak.
• Ensure the installation area is clear of obstructions and hazards.
• Use appropriate tools for installation as specified.
• Do not apply excessive force during installation or operation.
• This product is designed for insect protection; it is not a security barrier for children or pets.
• Regularly inspect the screen for any damage and address it promptly.

3. Komponen Produk

The Windhager TVH Telescopic Insect Screen Door typically includes the following components:

• Four (4) overlapping fiberglass panels.
• Telescopic top rail for adjustable width.
• Bottom weight rails (81g each) for fiberglass panels.
• PVC clips for adhesive or screw mounting.
• Adhesive strips (if included for adhesive mounting).
• Screws (if included for screw mounting).

Rajah 3.1: Terperinci view of the screen's components, including the adjustable top rail (1), fiberglass panels (2), and bottom weight rails (3).

Rajah 3.2: Close-up of the telescopic top rail, illustrating how the panels are suspended and adjusted.

4. Persediaan dan Pemasangan

The Windhager TVH Telescopic Insect Screen Door is designed for drill-free and saw-free mounting, making it ideal for rented accommodation. It requires a minimum mounting depth of 17 mm.

4.1. Persediaan

• Unpack all components and verify against the component list.
• Clean the door frame surface where the screen will be mounted. Ensure it is dry and free of dust or grease.
• Measure the width and height of your door frame opening to confirm compatibility. The screen is telescopic and adjustable.

Rajah 4.1: The insect screen installed on a door frame, demonstrating its seamless integration and the benefit of drill-free mounting.

4.2. Pilihan Pemasangan

The screen can be mounted using either adhesive strips or screws, depending on your preference and the surface type.

4.2.1. Adhesive Mounting (Recommended for rented accommodation)

1. Attach the adhesive strips to the back of the PVC clips.
2. Position the PVC clips along the top of the door frame, ensuring they are evenly spaced and aligned.
3. Press firmly to secure the clips to the door frame. Allow the adhesive to set for the recommended time (refer to adhesive instructions if provided separately).
4. Carefully hang the telescopic top rail of the insect screen onto the installed PVC clips.

4.2.2. Screw Mounting

1. Position the PVC clips along the top of the door frame. Mark the screw holes.
2. Drill pilot holes if necessary, according to the screw size.
3. Secure the PVC clips to the door frame using the provided screws.
4. Carefully hang the telescopic top rail of the insect screen onto the installed PVC clips.

4.3. Adjusting Screen Length and Width

• The top rail is telescopic. Adjust its width by sliding the sections until it fits snugly within your door frame.
• The fiberglass panels can be cut to the desired length if your door height is less than 120 cm. Measure carefully before cutting.
• Once the panels are at the correct length, attach the pre-assembled weight rails to the bottom of each fiberglass panel. These weights ensure the screen hangs straight and closes effectively.

Rajah 4.2: Illustration of the screen's telescopic nature and how it can be adjusted to fit various door or window frame widths.

5. Arahan Operasi

The Windhager TVH Telescopic Insect Screen Door is designed for simple, everyday use.

• To pass through the screen, simply push the overlapping fiberglass panels aside. The weight rails at the bottom will help the panels return to their original position after you pass.
• The overlapping design ensures continuous insect protection even when passing through.
• The screen can be easily pushed aside or worked in as needed.

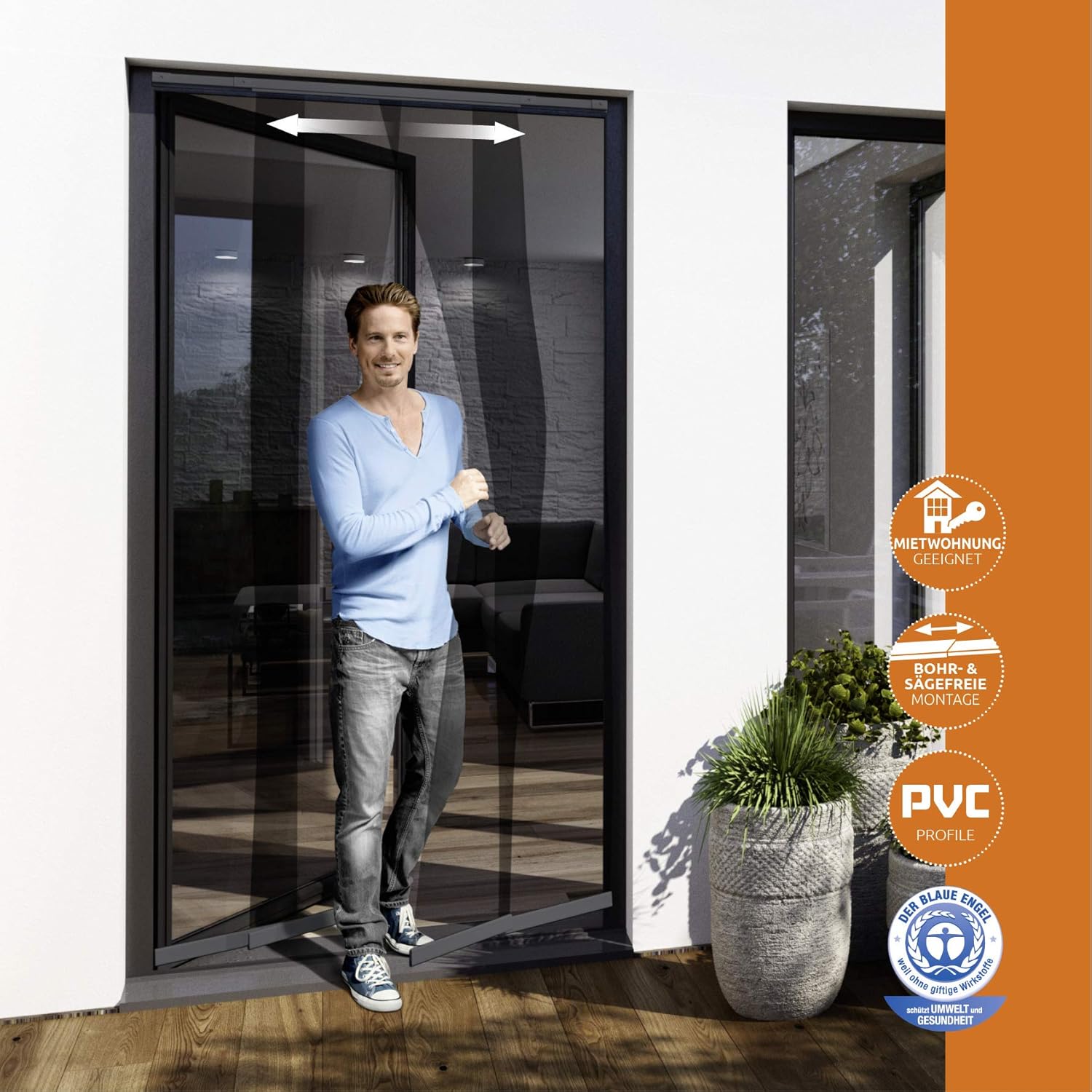

Rajah 5.1: Demonstrating the ease of passage through the insect screen, which automatically closes behind the user.

6. Penyelenggaraan dan Penjagaan

Regular cleaning and proper storage will extend the life of your insect screen.

6.1. Cleaning the Fabric

• The fiberglass fabric can be cleaned. It is recommended to clean it at +30 °C.
• Use a mild detergent and soft cloth or sponge. Do not use abrasive cleaners or harsh chemicals.
• Rinse thoroughly with clean water and allow to air dry completely before re-installing or storing.

6.2. Penyimpanan Bermusim

According to the season, the screen can be easily removed and stored.

• To remove, simply unhook the telescopic top rail from the PVC clips.
• Clean the fabric as described above.
• Roll or fold the screen neatly and store it in a dry, clean place away from direct sunlight and extreme temperatures.

7. Penyelesaian masalah

If you encounter any issues with your Windhager TVH Telescopic Insect Screen Door, please refer to the following common solutions:

8. Spesifikasi Teknikal

9. Waranti dan Sokongan

For information regarding warranty coverage or technical support, please refer to the product packaging or contact Windhager customer service directly. Contact details can typically be found on the manufacturer's official website or on the purchase receipt.

Webtapak: www.windhager.eu (Please note: This is a general link and may not lead directly to support for this specific product. Check your product's packaging for precise contact information.)
