Scheppach TPX710 Electric Pruner and Hedge Trimmer

1. Pengenalan dan Selesai Produkview

The Scheppach TPX710 is a versatile 710W electric multi-function tool designed for efficient garden maintenance. This combined device serves as both an electric pruner and a hedge trimmer, making it ideal for various tasks from cutting hedges to pruning branches at height.

Ciri-ciri utama termasuk:

• Powerful 710W Electric Motor: Menyediakan ample power for demanding cutting tasks.
• Two-in-One Functionality: Easily switch between hedge trimmer and pruner attachments.
• Extendable Telescopic Pole: Adjustable from 2 to 2.6 meters, allowing a working height of up to 4.5 meters.
• Oregon Pruner Blade: Equipped with a 205 mm Oregon blade for effective branch cutting.
• Hedge Trimmer with 410 mm Cutting Length: Designed for precise and efficient hedge trimming.
• Quick-Change Mechanism: Facilitates fast and easy attachment changes.
• Includes Carrying Strap: For comfortable and balanced operation.

Figure 1.1: The Scheppach TPX710 multi-function tool, showing the telescopic pole, hedge trimmer attachment, and pruner attachment.

2. Arahan Keselamatan

Always prioritize safety when operating power tools. Read and understand all safety warnings and instructions before use. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.

2.1 Amaran Keselamatan Am

• Keselamatan Kawasan Kerja: Pastikan kawasan kerja bersih dan terang. Kawasan bersepah atau gelap mengundang kemalangan. Jangan kendalikan alatan kuasa dalam atmosfera yang mudah meletup, seperti di hadapan cecair mudah terbakar, gas atau habuk.
• Keselamatan Elektrik: Palam alat kuasa mesti sepadan dengan alur keluar. Jangan sekali-kali mengubah suai palam dalam apa jua cara. Jangan dedahkan alatan kuasa kepada hujan atau keadaan basah. Air yang memasuki alat kuasa akan meningkatkan risiko kejutan elektrik.
• Keselamatan Diri: Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and sturdy footwear. Do not overreach. Keep proper footing and balance at all times.
• Penggunaan dan Penjagaan Alat: Jangan paksa alat kuasa. Gunakan alat kuasa yang betul untuk aplikasi anda. Putuskan sambungan palam daripada sumber kuasa sebelum membuat sebarang pelarasan, menukar aksesori atau menyimpan alatan kuasa.

2.2 Specific Safety for Pruners and Hedge Trimmers

• Sebelum Operasi: Inspect the tool for any damage or loose parts. Ensure all attachments are securely fastened. Clear the work area of any debris, wires, or hidden obstacles.
• Semasa Operasi: Maintain a firm grip on the tool. Be aware of the extended reach of the telescopic pole. Avoid cutting near power lines or other electrical installations. Do not operate the tool while standing on a ladder or unstable surface.
• Chain Saw Specifics: Ensure the chain is properly tensioned and lubricated before each use. Be aware of kickback potential when using the pruner attachment.
• Hedge Trimmer Specifics: Be cautious of hidden wires or foreign objects within hedges. Keep hands and body away from the cutting blades.

3. Kandungan Pakej

Upon unpacking, ensure all components are present and undamaged. The standard package for the Scheppach TPX710 includes:

• 1 x Scheppach TPX710 Electric Multi-function Tool (main unit with telescopic pole)
• 1 x Hedge Trimmer Attachment (with 410 mm cutting length)
• 1 x Pruner Attachment (with 205 mm Oregon blade)
• 1 x Tali Pembawa
• 1 x Manual Pengguna (dokumen ini)

If any parts are missing or damaged, contact your retailer or Scheppach customer service immediately.

4. Persediaan dan Pemasangan

The Scheppach TPX710 is designed for quick and easy assembly. Follow these steps to prepare your tool for use.

4.1 Attaching the Desired Head

1. Ensure the main unit is disconnected from the power supply.
2. Align the chosen attachment (hedge trimmer or pruner) with the connection point on the telescopic pole.
3. Push the attachment firmly onto the pole until the quick-release mechanism clicks into place, securing it.
4. Verify that the attachment is securely fastened by gently pulling on it.

4.2 Adjusting the Telescopic Pole Length

The telescopic pole allows for adjustable length to reach different heights.

1. Locate the locking collar or quick-release lever on the telescopic pole.
2. Loosen the collar or open the lever to unlock the pole extension.
3. Extend or retract the pole to the desired length (between 2 and 2.6 meters).
4. Securely tighten the collar or close the lever to lock the pole in position. Ensure it is firmly locked before use.

4.3 Memasang Tali Pembawa

The carrying strap helps distribute the tool's weight and improve handling, especially during extended use.

1. Locate the attachment points for the strap on the main unit.
2. Thread the strap through the attachment points and secure the buckles.
3. Adjust the strap length to a comfortable position that allows for balanced operation and reduces strain.

5. Arahan Operasi

Before operating, ensure you have read and understood all safety instructions. Always wear appropriate PPE.

5.1 Operasi Am

• Sambungan Kuasa: Connect the tool's power cord to a suitable electrical outlet. Ensure the voltage sepadan dengan keperluan alat tersebut.
• Memulakan Alat: Press and hold the safety switch (if present) and then press the power trigger to start the motor.
• Menghentikan Alat: Lepaskan pencetus kuasa untuk menghentikan motor.

5.2 Using the Hedge Trimmer Attachment

The hedge trimmer is designed for shaping and trimming hedges and shrubs.

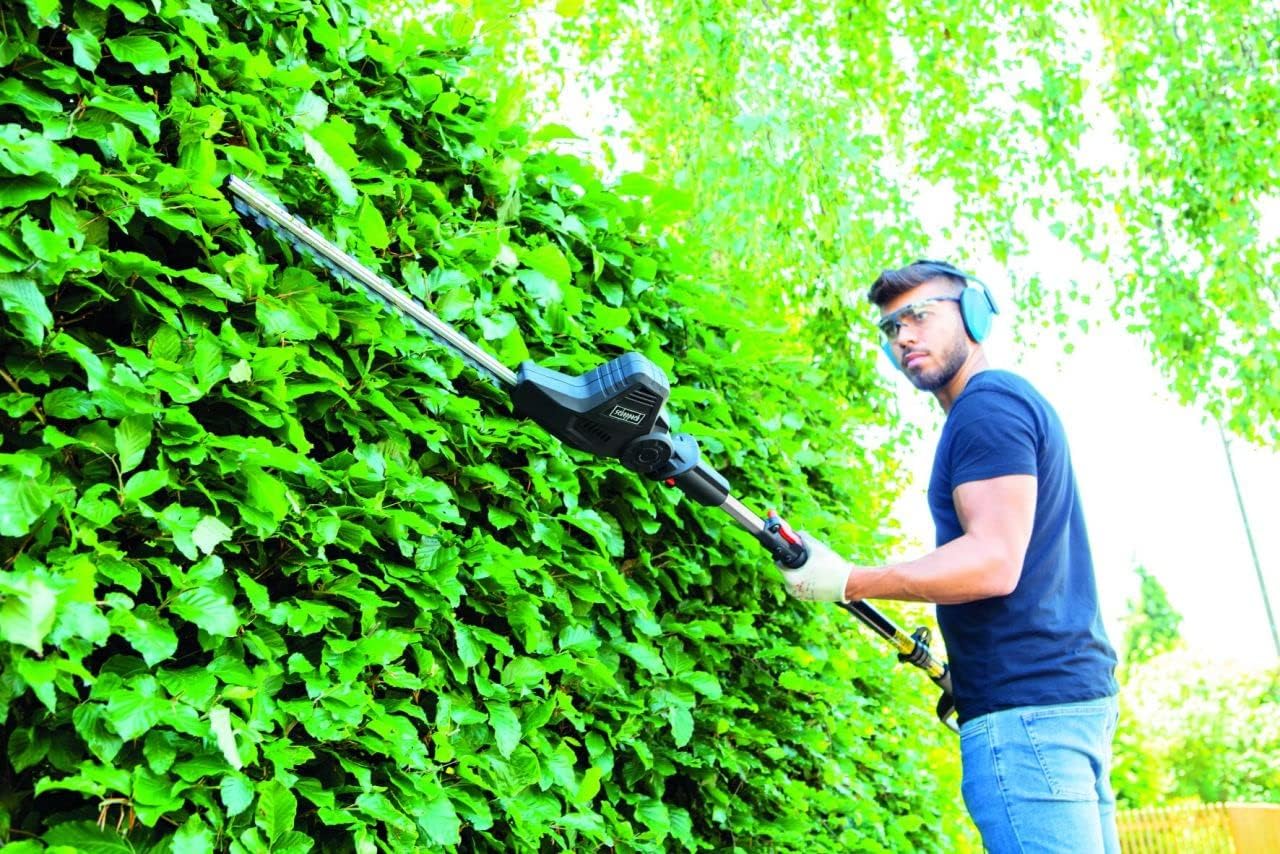

Figure 5.1: User demonstrating the Scheppach TPX710 hedge trimmer in use.

• Blade Angle Adjustment: The hedge trimmer head can be angled for ergonomic cutting of hedge tops and sides. Adjust the angle using the pivot mechanism and lock it securely.
• Teknik Memotong: Move the hedge trimmer smoothly along the hedge, using a sweeping motion. For best results, cut small amounts at a time. Avoid forcing the blades through thick branches.
• Diameter Keratan Maksimum: The hedge trimmer is suitable for branches up to approximately 15-20 mm in diameter. For thicker branches, use the pruner attachment.

Figure 5.2: The hedge trimmer attachment with its adjustable cutting angles.

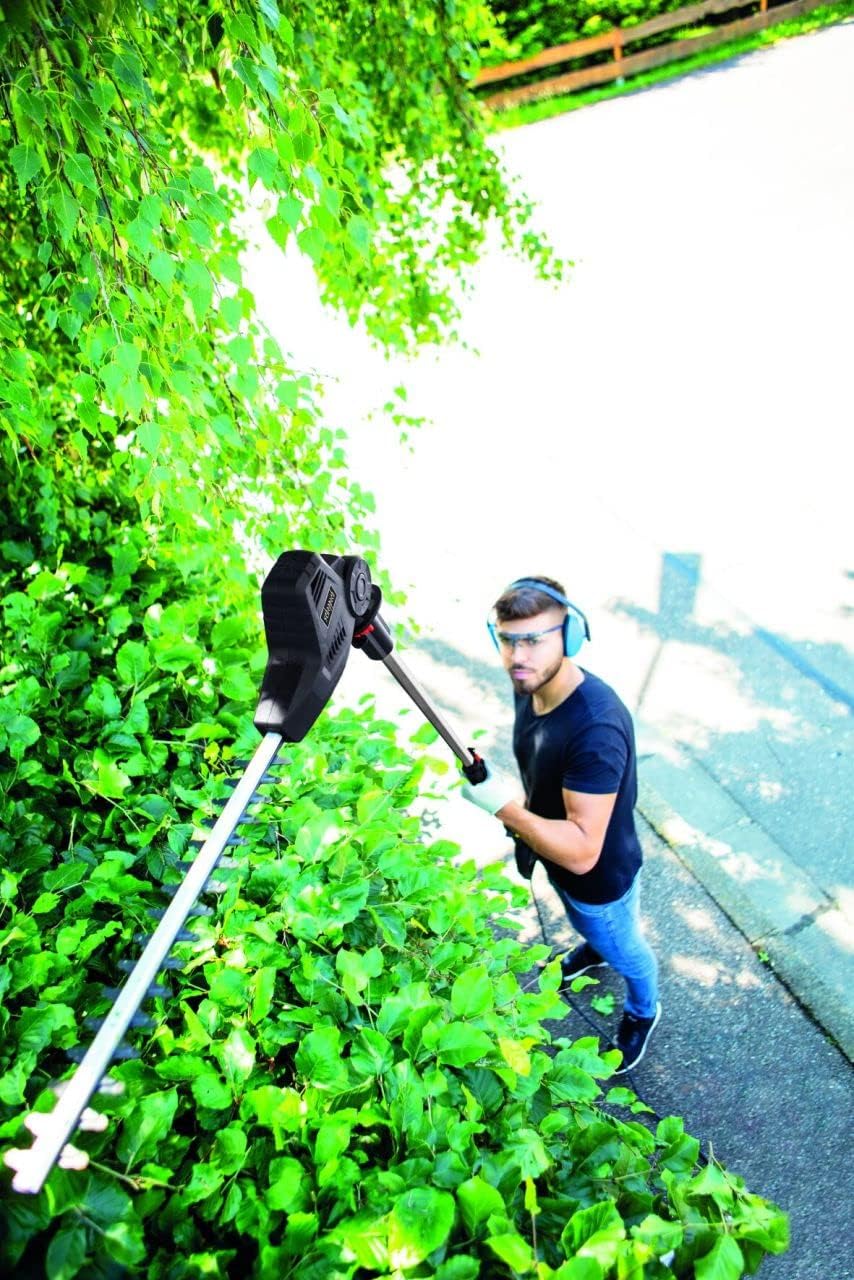

Figure 5.3: Using the extended pole for trimming high hedges.

5.3 Using the Pruner Attachment

The pruner attachment is designed for cutting thicker branches that are out of reach.

• Pelinciran rantai: Before each use, ensure the chain is adequately lubricated. Refer to the maintenance section for details on adding chain oil.
• Teknik Memotong: Position the pruner blade firmly against the branch to be cut. Allow the saw to do the work; do not apply excessive pressure. Make sure the branch is stable and will not fall onto you or others.
• Pencegahan Sogokan: Be aware of kickback, which can occur if the tip of the guide bar touches an object or if the wood closes in and pinches the saw chain in the cut. Maintain a firm grip and proper stance.
• Diameter Keratan Maksimum: The pruner is capable of cutting branches up to approximately 205 mm in diameter, depending on wood type and condition.

6. Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your Scheppach TPX710. Always disconnect the tool from the power supply before performing any maintenance.

6.1 Pembersihan

• After each use, clean the cutting blades of the hedge trimmer and the chain/guide bar of the pruner. Remove sap, debris, and dirt using a stiff brush or cloth.
• Wipe down the main unit and telescopic pole with a damp kain. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.

6.2 Pelinciran

• Bilah Pemangkas Pagar: Apply a light machine oil or blade lubricant to the hedge trimmer blades after cleaning to prevent rust and ensure smooth operation.
• Pruner Chain: The pruner chain requires regular lubrication. Fill the oil reservoir (if present) with appropriate chain oil. If no reservoir, apply chain oil directly to the chain and guide bar before and during extended use.

6.3 Blade/Chain Sharpening and Replacement

• Bilah Pemangkas Pagar: Dull blades can reduce cutting efficiency and strain the motor. Sharpen the blades periodically using a fine-toothed file or a specialized blade sharpener. If blades are severely damaged, they should be replaced by a qualified technician.
• Pruner Chain: A sharp chain is crucial for safe and effective cutting. Sharpen the chain teeth regularly with a round file of the correct size. Replace the chain if it is damaged, stretched, or cannot be sharpened effectively. Ensure the chain tension is correct after any maintenance.

6.4 Penyimpanan

• Store the tool in a dry, secure place, out of reach of children and away from direct sunlight or extreme temperatures.
• Ensure the blades and chain are clean and lightly oiled before storage.
• Use blade covers for the hedge trimmer and chain cover for the pruner to prevent accidental injury and protect the cutting edges.

7. Penyelesaian masalah

This section addresses common issues you might encounter with your Scheppach TPX710. For problems not listed here, contact customer support.

8. Spesifikasi Teknikal

The following table provides the technical specifications for the Scheppach TPX710 multi-function tool.

9. Waranti dan Sokongan

For detailed information regarding the product warranty, please refer to the warranty card included with your purchase or visit the official Scheppach website. The warranty typically covers manufacturing defects under normal use conditions.

If you encounter any issues that cannot be resolved using the troubleshooting guide, or require spare parts, please contact Scheppach customer service or your authorized dealer. When contacting support, please have your product model number (TPX710) and serial number (if applicable) ready.

Note: Information regarding spare parts availability was not provided in the product specifications. Please contact Scheppach directly for details.
