1. Arahan Keselamatan Penting
Sentiasa baca dan fahami semua amaran keselamatan, arahan, ilustrasi dan spesifikasi yang disediakan dengan alat kuasa ini. Kegagalan mematuhi semua arahan yang disenaraikan di bawah boleh mengakibatkan renjatan elektrik, kebakaran dan/atau kecederaan serius.
- Keselamatan Kawasan Kerja: Pastikan kawasan kerja anda bersih dan terang. Kawasan bersepah atau gelap mengundang kemalangan. Jangan kendalikan alatan kuasa dalam atmosfera yang mudah meletup, seperti di hadapan cecair mudah terbakar, gas atau habuk.
- Keselamatan Elektrik: Palam alat kuasa mesti sepadan dengan alur keluar. Jangan sekali-kali mengubah suai palam dalam apa jua cara. Jangan dedahkan alatan kuasa kepada hujan atau keadaan basah. Air yang memasuki alat kuasa akan meningkatkan risiko kejutan elektrik.
- Keselamatan Diri: Always wear appropriate personal protective equipment (PPE) including safety glasses, hearing protection, and a dust mask when operating the tool. Dress properly; do not wear loose clothing or jewelry. Keep hair, clothing, and gloves away from moving parts.
- Penggunaan dan Penjagaan Alat: Jangan paksa alat kuasa. Gunakan alat kuasa yang betul untuk aplikasi anda. Putuskan sambungan palam daripada sumber kuasa sebelum membuat sebarang pelarasan, menukar aksesori atau menyimpan alatan kuasa.
- Penyelenggaraan: Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use.
2. Produk Lebihview
The FERM CTM1017 Combi Tool is a versatile 160W multi-tool designed for a wide range of precision tasks including polishing, engraving, trimming, and cutting. It features a compact design, variable speed control, and a flexible shaft for enhanced precision and comfort.
2.1. Komponen dan Ciri
- Motor 160W: Menyediakan ampkuasa untuk pelbagai aplikasi.
- Aci Fleksibel: Allows for detailed work and improved maneuverability in tight spaces.
- Pendirian boleh laras: For stable and convenient operation.
- Kunci Spindle: Facilitates quick and easy accessory changes.
- Kawalan Kelajuan Boleh Ubah: Enables precise speed adjustment for different materials and tasks.
- 40 Aksesori: A comprehensive set of accessories for diverse applications.
- Sarung Penyimpanan: For organized and protective storage of the tool and accessories.
- Kabel Kuasa 3m: Provides extended reach and freedom of movement.
2.2. Termasuk dalam Kotak
The FERM CTM1017 Combi Tool package includes:
- FERM CTM1017 Combi Tool
- Aci Fleksibel
- Pendirian Boleh Laras
- 40 Aksesori
- Sarung Penyimpanan
Figure 2.1: Complete FERM CTM1017 Combi Tool kit, including the main unit, flexible shaft, adjustable stand, and various accessories, all neatly arranged.
Rajah 2.2: Terperinci view of the FERM CTM1017 Combi Tool's main body, highlighting its ergonomic design and control buttons.
3. Persediaan
Before operating your FERM CTM1017 Combi Tool, ensure it is properly set up and all components are securely attached.
3.1. Attaching the Flexible Shaft
- Pastikan alat dicabut dari sumber kuasa.
- Unscrew the collet nut from the main tool's spindle.
- Insert the flexible shaft's drive end into the tool's spindle.
- Securely tighten the flexible shaft's coupling nut onto the tool's spindle.
- Insert the desired accessory into the collet of the flexible shaft and tighten the collet nut using the provided wrench.
Figure 3.1: Illustration of how to correctly attach the flexible shaft to the main body of the combi tool, ensuring a secure connection.
3.2. Assembling the Adjustable Stand
- Assemble the stand components as per the diagram in the packaging.
- Secure the stand to a stable workbench or surface using the clamp.
- Hang the main tool unit from the hook on the adjustable stand. This allows the flexible shaft to hang freely for comfortable operation.
Figure 3.2: The combi tool suspended from its adjustable stand, demonstrating the setup for using the flexible shaft.
4. Arahan Operasi
The FERM CTM1017 Combi Tool offers variable speed control for optimal performance across different materials and tasks.
4.1. Powering On and Speed Adjustment
- Ensure the tool is securely set up and the desired accessory is installed.
- Plug the tool into a suitable power outlet (240V, 50Hz).
- Hidupkan alat menggunakan suis kuasa.
- Adjust the speed using the variable speed dial. Start with a lower speed for delicate work or softer materials, and increase as needed for harder materials or more aggressive tasks.
4.2. Petua Penggunaan Umum
- Pemilihan Aksesori: Always choose the correct accessory for the specific task (e.g., grinding stones for metal, polishing felts for shine, cutting discs for thin materials).
- Tekanan ringan: Apply light, consistent pressure. Allowing the tool to do the work will prevent overheating and extend accessory life.
- Keserasian Bahan: Test on a scrap piece of material first to determine the optimal speed and accessory.
- Pengudaraan: Ensure adequate ventilation in your workspace, especially when generating dust or fumes.

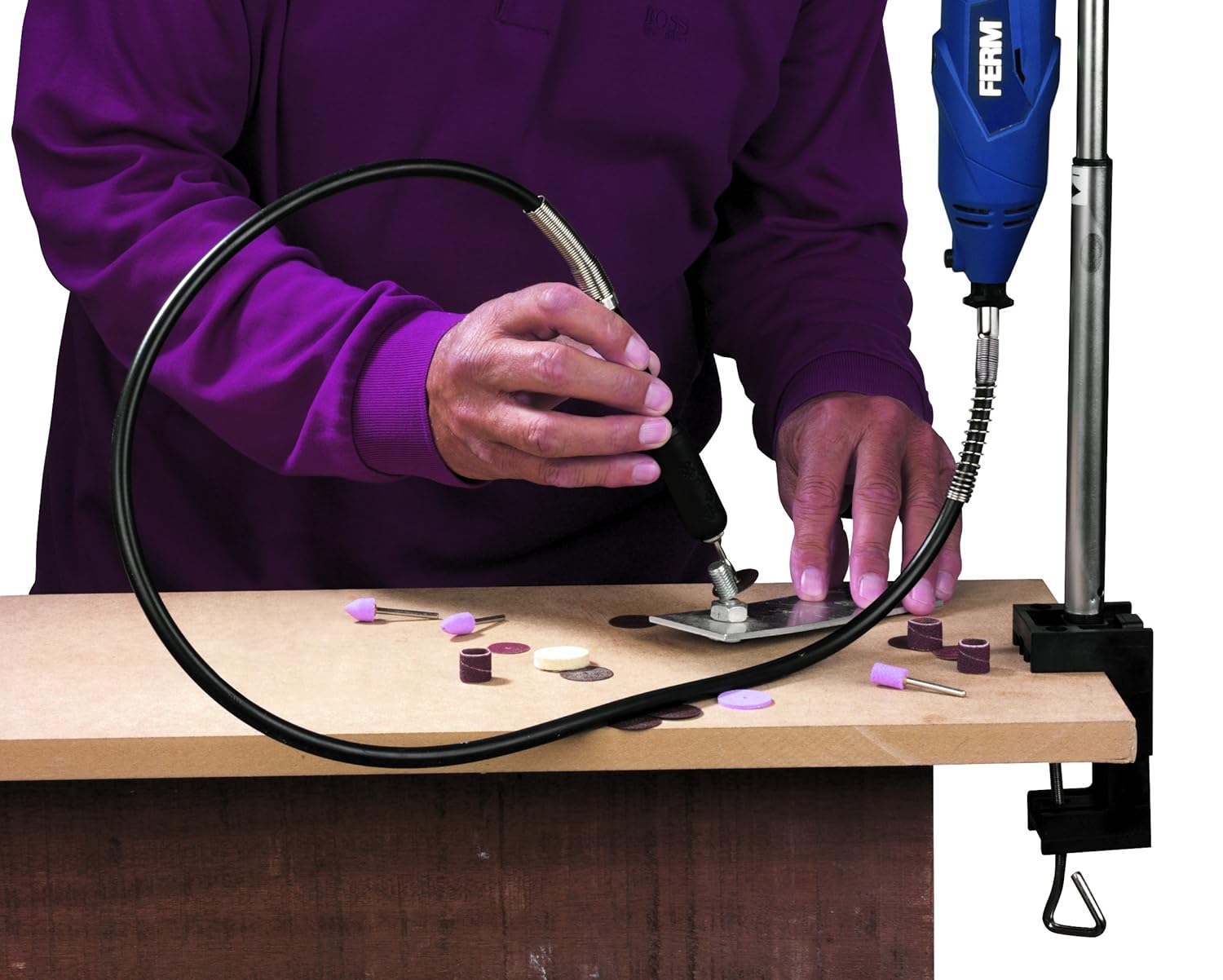

Figure 4.1: An individual demonstrating the use of the combi tool with its flexible shaft for precision work on a flat surface.
Figure 4.2: A close-up shot showing the tool in action, performing a detailed task on a piece of wood with various accessories nearby.
5. Penyelenggaraan
Regular maintenance ensures the longevity and optimal performance of your FERM CTM1017 Combi Tool.
5.1. Pembersihan
- Sentiasa cabut plag alat sebelum membersihkan.
- Lap bahagian luar alat dengan kain bersih,amp kain. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.
- Gunakan udara termampat untuk membersihkan habuk dan serpihan daripada bukaan pengudaraan.
- Clean accessories after each use to maintain their effectiveness.
5.2. Penyimpanan
When not in use, store the tool and its accessories in the provided storage case in a dry, secure location, out of reach of children.
Figure 5.1: The combi tool and its full set of accessories neatly organized within the durable storage case, ready for transport or storage.
6. Penyelesaian masalah
This section addresses common issues you might encounter with your FERM CTM1017 Combi Tool.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Alat tidak bermula | No power supply; Faulty power cord/plug; Power switch off | Check power outlet; Inspect cord/plug for damage; Ensure power switch is ON |
| Getaran / bunyi yang berlebihan | Accessory not properly seated; Damaged accessory; Flexible shaft issue | Re-seat accessory; Replace damaged accessory; Inspect flexible shaft for kinks or damage |
| Accessories break easily | Incorrect accessory for material; Excessive pressure; Overheating | Use appropriate accessory; Apply lighter pressure; Allow tool to cool down |
| Alat terlalu panas | Blocked ventilation; Continuous heavy use; Overloading | Clear ventilation slots; Allow tool to rest; Do not overload the tool |
Jika masalah berterusan selepas mencuba penyelesaian ini, sila hubungi sokongan pelanggan.
7. Spesifikasi
Key technical specifications for the FERM CTM1017 Combi Tool:
| Spesifikasi | Nilai |
|---|---|
| Nombor Model | CTM1017 |
| Jenama | Ferm |
| Voltage | 240 Volt |
| Wattage | 160 Watt |
| Sumber Kuasa | Elektrik Bertali |
| Berat Barang | 0.67 Kilogram (670 g) |
| Dimensi Produk (L x W x H) | 28 x 20 x 7.8 Sentimeter |
| Ciri Khas | Variable Speed, Compact |
| Penggunaan yang Disyorkan | Engraving, Grinding, Polishing, Trimming, Cutting |
8. Waranti dan Sokongan
For warranty information, service, or technical support, please contact the manufacturer directly. Keep your purchase receipt as proof of purchase for any warranty claims.
Pengeluar: Ferm International
Alamat: Lingenstraat 6, 8028 PM Zwolle, Belanda
Hubungi: +31 38 385 2525
