Kidde P4010DCSCO-W Wire-Free Interconnect Combination Smoke & CO Alarm User Manual

1. Pengenalan

This manual provides essential information for the proper installation, operation, and maintenance of your Kidde P4010DCSCO-W Wire-Free Interconnect Combination Smoke and Carbon Monoxide (CO) Alarm. This device is designed to detect both smoke and carbon monoxide, providing early warning of potential hazards. It features a 10-year sealed-in lithium battery and wire-free interconnectivity with compatible Kidde P4010 Wire-Free models.

Rajah 1: Depan view of the Kidde P4010DCSCO-W Combination Smoke and CO Alarm. This image shows the white, circular alarm unit with the central test/hush button and a speaker grille.

2. Maklumat Keselamatan Penting

Please read and understand all instructions before installing and operating this alarm. Failure to do so may result in property damage, injury, or death. This alarm is not intended to substitute for proper installation, use, and maintenance of fuel-burning appliances, including appropriate ventilation and exhaust systems.

• BAHAYA: This alarm detects carbon monoxide gas, which is an odorless, colorless, and poisonous gas.
• AMARAN: This unit is designed for residential use only.
• PERHATIAN: Do not paint the alarm. Paint can clog the sensing chambers and prevent the unit from operating properly.
• PENTING: The 10-year sealed-in battery is designed to power the alarm for its entire lifespan. Do not attempt to replace the battery.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej anda:

• Kidde P4010DCSCO-W Combination Smoke & CO Alarm
• Pendakap Pemasangan
• Skru dan Penambat Pemasangan
• Manual Pengguna (dokumen ini)

4. Persediaan dan Pemasangan

4.1 Memilih Lokasi

For optimal protection, install smoke alarms in every sleeping room and on every level of your home, including the basement. For CO alarms, install on every level and in a central location outside of each sleeping area. Avoid installing near windows, doors, or forced-air vents, or in extremely dusty, dirty, or greasy areas.

4.2 Memasang Penggera

1. Twist the mounting bracket counter-clockwise to detach it from the alarm unit.
2. Position the mounting bracket on the ceiling or wall at your chosen location. Mark the two mounting holes.
3. Drill holes and insert the plastic anchors (if needed). Secure the mounting bracket with the provided screws.
4. Align the alarm with the mounting bracket and twist clockwise until it clicks into place. This action will activate the sealed-in battery.

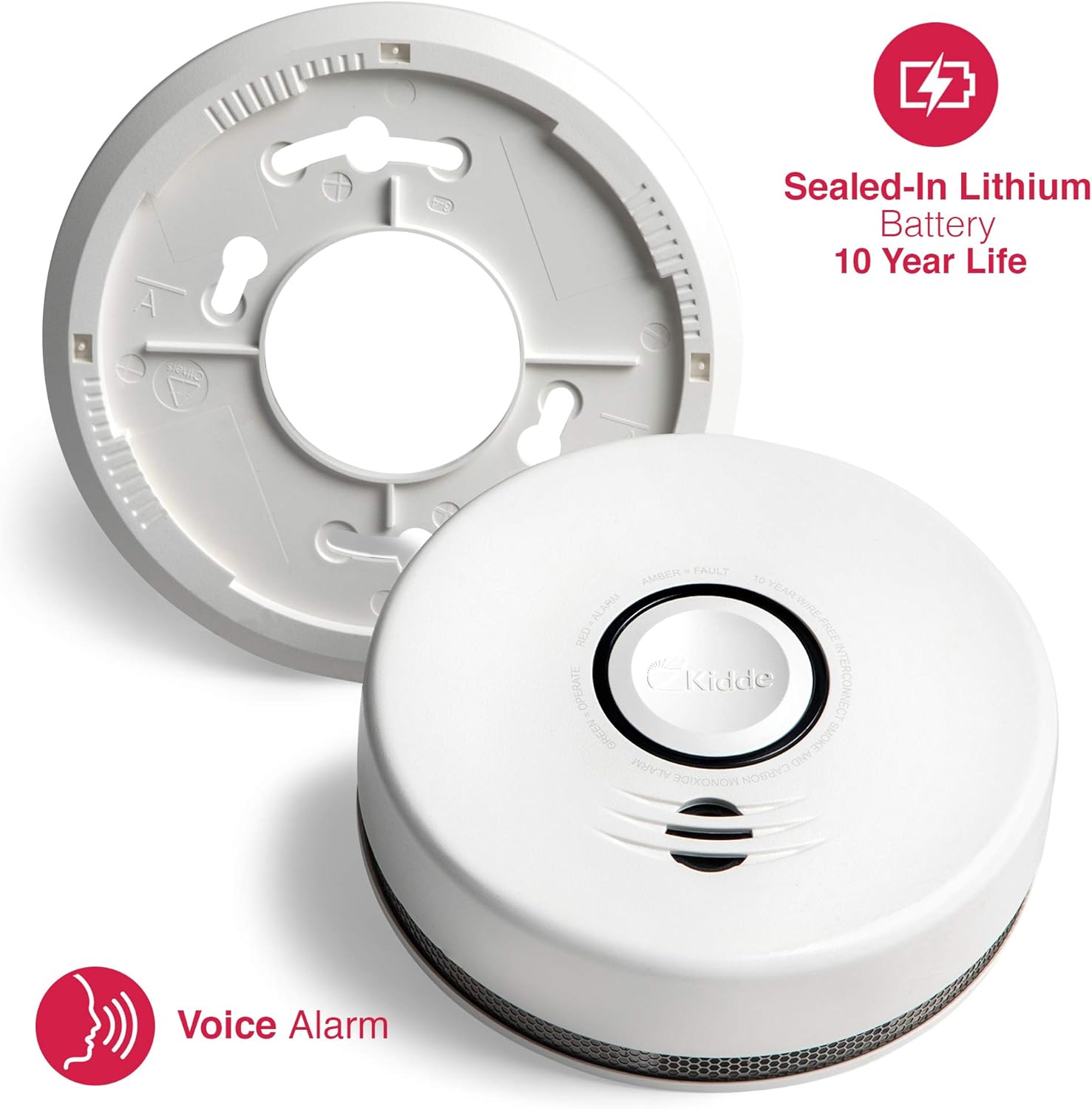

Rajah 2: The Kidde P4010DCSCO-W alarm separated from its mounting plate, highlighting the 10-year sealed-in lithium battery and voice alarm feature. This image illustrates the components involved in mounting.

4.3 Wire-Free Interconnect Setup

The P4010DCSCO-W features supervised wire-free interconnect technology, allowing multiple compatible Kidde P4010 Wire-Free alarms to communicate with each other. When one alarm detects a hazard, all interconnected alarms will sound. Refer to the separate Wire-Free Interconnect Guide for detailed pairing instructions.

Rajah 3: A close-up of the Kidde P4010DCSCO-W alarm, emphasizing its 10-year wire-free interconnect capability. The labels 'RED = ALARM', 'AMBER = FAULT', and 'GREEN = OPERATE' are visible around the central button.

5. Mengendalikan Penggera

5.1 Operasi Biasa

During normal operation, the alarm will emit a short chirp and the green LED will flash approximately every 60 seconds, indicating that the unit is functioning correctly.

5.2 Alarm Conditions and Voice Notifications

The alarm provides distinct audible and voice notifications for different conditions:

• Penggera asap: Three long beeps followed by the voice message "FIRE! FIRE!" The red LED will flash rapidly.
• Penggera Karbon Monoksida: Four quick beeps followed by the voice message "WARNING, CARBON MONOXIDE!" The red LED will flash rapidly.
• Low Battery/End of Life: A single chirp every 60 seconds accompanied by the voice message "REPLACE ALARM." The amber LED will flash.
• Kerosakan/Kerosakan Fungsi: A single chirp every 30 seconds. The amber LED will flash.

5.3 Butang Ujian/Senyap

The large central button on the alarm serves as both a Test button and a Hush button.

• Ujian: Press and hold the button for a few seconds to test the alarm's functions. It will cycle through smoke and CO alarm patterns. Test your alarm weekly.
• Diam: In the event of a nuisance alarm (e.g., from cooking smoke), press the button to temporarily silence the alarm for approximately 10 minutes. The alarm will automatically reset after the hush period if the smoke/CO has cleared.

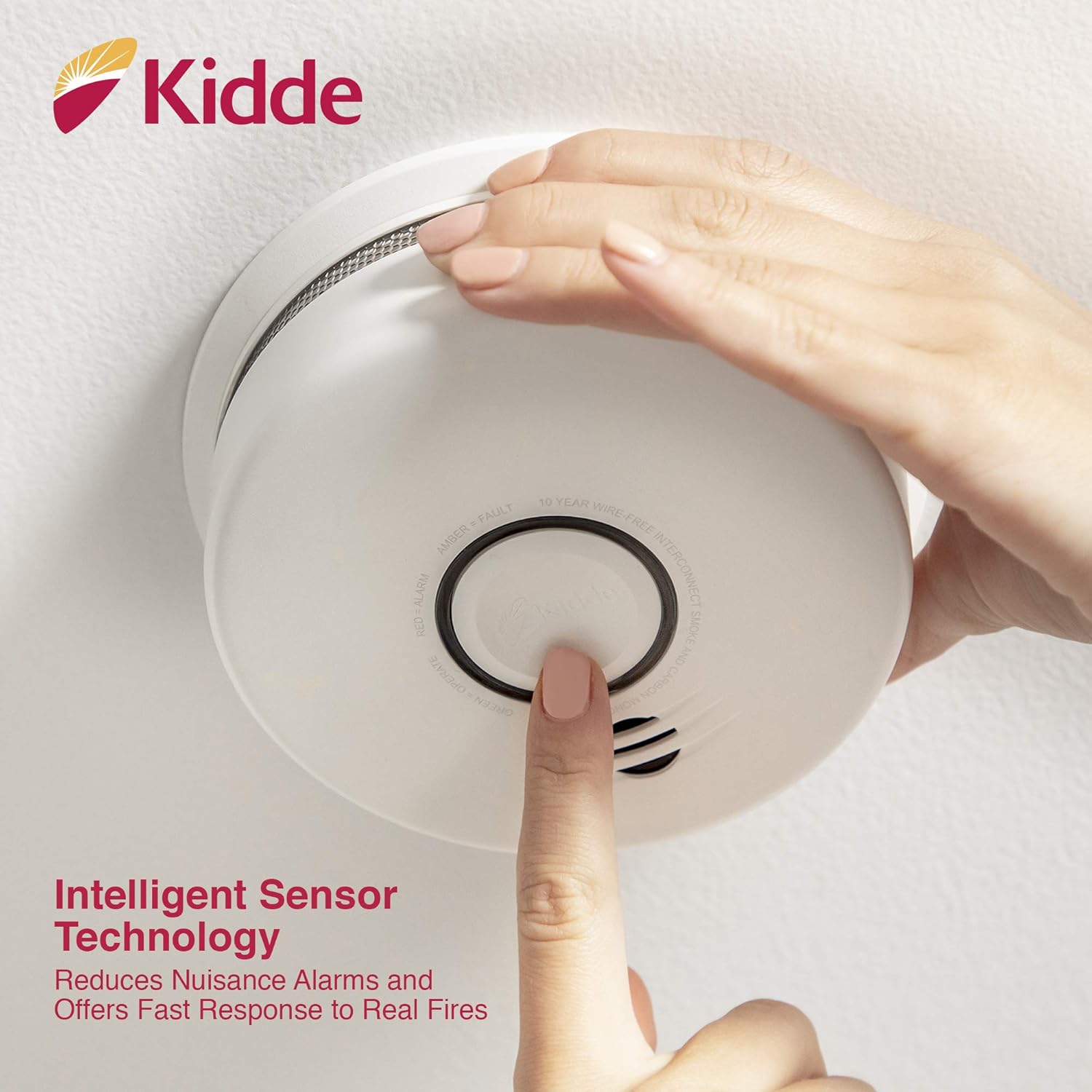

Rajah 4: A hand pressing the central test/hush button on the Kidde P4010DCSCO-W alarm. This action activates the intelligent sensor technology, which helps reduce nuisance alarms.

6. Penyelenggaraan

6.1 Ujian Mingguan

Test your alarm weekly by pressing and holding the Test/Hush button until the alarm sounds. This confirms the unit's electronic circuitry, horn, and battery are working.

6.2 Membersihkan Penggera Anda

Clean your alarm at least once a month to remove dust and dirt. Use a soft brush or a vacuum cleaner with a soft brush attachment to gently clean the exterior of the alarm, especially around the openings. Do not use cleaning solvents or spray cleaners directly on the alarm.

6.3 Maklumat Bateri

This alarm is powered by a sealed-in 10-year lithium battery. The battery is designed to last the entire life of the alarm (10 years from activation). Do not attempt to replace the battery. When the alarm reaches its end-of-life, it will chirp and announce "REPLACE ALARM." At this point, the entire unit must be replaced.

7. Penyelesaian masalah

8. Spesifikasi

• model: P4010DCSCO-W
• Sumber Kuasa: Sealed-in 10-Year Lithium Battery
• Jenis Sensor: Pengionan (Asap), Elektrokimia (CO)
• Output penggera: Audible (85 dB at 10 feet), Visual (LED), Voice Notifications
• Suhu Operasi: 40°F (4.4°C) hingga 100°F (37.8°C)
• Kelembapan Operasi: 10% hingga 95% kelembapan relatif, tidak terkondensasi
• Dimensi: 14.2D x 14.2W x 4.9H Centimetres (approximately 5.59" diameter x 1.91" depth)
• Saling bersambung: Wire-Free Interconnect (compatible with up to 24 Kidde P4010 Wire-Free devices)

Rajah 5: The Kidde P4010DCSCO-W alarm with its approximate dimensions (5.59 inches diameter and 1.91 inches depth) clearly marked, providing a visual reference for its size.

9. Waranti dan Sokongan

Kidde provides a limited warranty for this product. For detailed warranty information, including terms and conditions, please refer to the warranty card included with your product or visit the official Kidde website. For technical support, troubleshooting assistance, or to inquire about replacement parts, please contact Kidde Customer Service:

• Webtapak: www.kidde.com
• telefon: Refer to your product packaging or the Kidde webtapak untuk nombor hubungan serantau.
