1. Pengenalan
This manual provides essential instructions for the safe assembly, operation, maintenance, and troubleshooting of your Craftsman Model 315.243130 Miter Saw. Please read this manual thoroughly before using the tool to ensure proper function and to prevent personal injury or damage to the saw. Keep this manual for future reference.
2. Arahan Keselamatan Am
Always follow basic safety precautions to reduce the risk of fire, electric shock, and personal injury. Familiarize yourself with all warnings and operating instructions.
- Pakai Pelindung Mata: Always wear safety goggles or safety glasses with side shields that comply with current standards.
- Pakai Pelindung Pendengaran: Gunakan penyumbat telinga atau penutup telinga semasa operasi.
- Berpakaian dengan betul: Do not wear loose clothing, gloves, neckties, or jewelry that can get caught in moving parts. Secure long hair.
- Maintain Work Area: Pastikan kawasan kerja bersih, terang dan bebas daripada kekacauan.
- Jauhkan Kanak-kanak: Do not allow children or untrained personnel near the saw during operation.
- Gunakan Bilah yang Betul: Only use blades designed for your miter saw and appropriate for the material being cut.
- Bahan Kerja Selamat: Sentiasa clamp the workpiece firmly to the fence or table before cutting.
- Avoid Forcing Tool: Allow the saw to cut at its own pace. Forcing it can lead to kickback or damage.
- Putuskan Kuasa: Always disconnect the saw from the power source before making adjustments, changing blades, or performing maintenance.
3. Produk Lebihview
This section identifies the main components of your Craftsman 315.243130 Miter Saw.

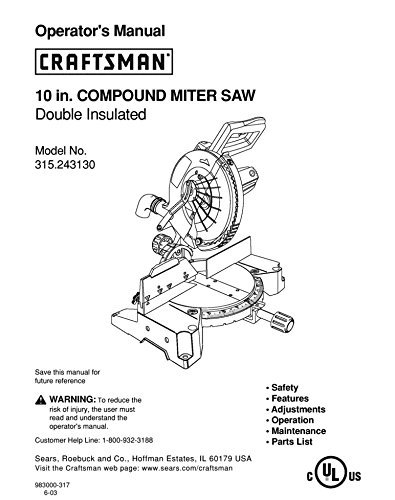

Rajah 1: Berakhirview of the Craftsman 315.243130 Miter Saw. Key components include the blade guard, fence, miter scale, bevel lock, and dust port.
- Perumahan Motor: Contains the motor and drive mechanism.
- Pengawal Bilah: Retracts during cutting and covers the blade when not in use.
- Meja Miter: The rotating base on which the workpiece rests.
- pagar: Memberikan sokongan untuk benda kerja dan memastikan potongan yang tepat.
- Miter Lock Handle: Secures the miter table at the desired angle.
- Bevel Lock Knob: Secures the saw head at the desired bevel angle.
- Pelabuhan Debu: Connects to a dust collection system for a cleaner work environment.
- Suis kuasa: Activates and deactivates the saw.
4. Persediaan dan Pemasangan
Follow these steps to safely set up your miter saw before initial use.
- Membongkar: Keluarkan semua komponen dari pembungkusan dengan berhati-hati. Periksa untuk sebarang kerosakan penghantaran.
- Pemasangan: Securely mount the miter saw to a stable workbench or a compatible miter saw stand using appropriate bolts and washers. Ensure it is level and cannot tip.
- Pemasangan Bilah (jika belum dipasang terlebih dahulu):
- Putuskan kuasa.
- Angkat pelindung bilah bawah.
- Tekan butang kunci gelendong.
- Use the provided wrench to loosen the blade bolt (typically left-hand thread).
- Tanggalkan bebibir luar dan bilah lama.
- Install the new blade with the teeth pointing in the direction of rotation (usually indicated by an arrow on the blade and saw).
- Replace the outer flange and tighten the blade bolt securely.
- Lepaskan kunci gelendong.
- Melaraskan Pagar: Ensure the fence is square to the blade at 90 degrees. Adjust if necessary using a square and the provided adjustment screws.
- Checking Miter and Bevel Stops: Verify that the 0-degree miter and bevel stops are accurate. Calibrate if needed according to the specific instructions in your saw's original manual.
- Pengumpulan habuk: Attach a dust bag or connect a vacuum system to the dust port for efficient chip removal.
5. Arahan Operasi
Understand the basic operations for making various cuts with your miter saw.
5.1. Making a Crosscut (90-degree)
- Ensure the miter table is locked at 0 degrees and the bevel is at 0 degrees.
- Place the workpiece firmly against the fence and flat on the miter table.
- Clamp the workpiece securely to prevent movement during the cut.
- Hold the handle firmly, depress the trigger, and allow the blade to reach full speed.
- Slowly lower the blade through the workpiece.
- Setelah potongan selesai, lepaskan picu dan biarkan bilah berhenti sepenuhnya sebelum mengangkat kepala gergaji.
- Keluarkan bahan kerja.
5.2. Making a Miter Cut
- Longgarkan pemegang kunci miter.
- Rotate the miter table to the desired angle (e.g., 45 degrees).
- Kencangkan pemegang kunci miter dengan selamat.
- Follow steps 2-7 from "Making a Crosscut."
5.3. Making a Bevel Cut
- Longgarkan tombol kunci serong.
- Tilt the saw head to the desired bevel angle (e.g., 45 degrees).
- Ketatkan tombol kunci serong dengan selamat.
- Follow steps 2-7 from "Making a Crosscut."
6. Penyelenggaraan
Regular maintenance ensures the longevity and safe operation of your miter saw. Always disconnect the saw from the power source before performing any maintenance.
- Pembersihan: After each use, clear sawdust and debris from the saw, especially around the blade guard, motor vents, and miter table. Use compressed air or a brush.
- Pemeriksaan Bilah: Regularly inspect the blade for dullness, missing teeth, or cracks. Replace damaged blades immediately.
- Pelinciran: Apply a light coat of machine oil to moving parts, such as the miter detent plate and pivot points, as recommended in the original manual.
- Berus Karbon: Check carbon brushes periodically (refer to the original manual for frequency). Replace them when they are worn down to the wear limit mark.
- Kord Kuasa: Inspect the power cord for damage. Do not use the saw if the cord is frayed or cut.
- Pengikat: Periodically check all nuts, bolts, and screws for tightness. Tighten as needed.
7. Penyelesaian masalah
Bahagian ini menangani isu biasa yang mungkin anda hadapi dengan gergaji mitra anda.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Saw tidak bermula | No power, faulty switch, worn carbon brushes. | Check power connection, test outlet, inspect power cord. If problem persists, consult a qualified technician. |
| Bilah mengikat atau berasap | Dull blade, incorrect blade for material, workpiece not clamped, forcing the cut. | Replace blade, use appropriate blade, secure workpiece firmly, reduce feed rate. |
| Potongan yang tidak tepat | Fence or miter/bevel stops out of adjustment, loose blade. | Calibrate fence and stops, ensure blade is securely tightened. |
| Getaran yang berlebihan | Loose blade, damaged blade, saw not securely mounted. | Check blade tightness, replace damaged blade, ensure saw is firmly mounted. |
If you encounter issues not listed here or if solutions do not resolve the problem, contact Craftsman customer support or a certified service center.
8. Spesifikasi
These are general specifications for the Craftsman 315.243130 Miter Saw. Refer to the original product documentation for precise details.
- Nombor Model: 315.243130
- Diameter Bilah: Typically 10 inches or 12 inches (verify with original manual)
- Motor: Universal motor, 120V AC, 60 Hz (khusus amperage/HP varies)
- Kelajuan Tanpa Beban: Approximately 4,800 RPM (verify with original manual)
- Miter Capacity: 0 to 45 degrees left and right
- Kapasiti Serong: 0 to 45 degrees left (some models may bevel right)
- Berat: Varies by model configuration (refer to original manual)
9. Waranti dan Sokongan Pelanggan
For information regarding your product's warranty, please refer to the original purchase documentation or the official Craftsman website. This manual is a reprint and does not include specific warranty details.
For technical assistance, replacement parts, or service inquiries, please contact Craftsman customer support directly through their official channels.
- rasmi Webtapak: www.tukang.com
- Perkhidmatan Pelanggan: Rujuk kepada webtapak untuk maklumat hubungan semasa.
