Whirlpool FFS9258WSP Washing Machine User Manual

1. Pengenalan

Thank you for choosing a Whirlpool appliance. This user manual provides essential information for the safe and efficient operation, installation, and maintenance of your Whirlpool FFS9258WSP front-load washing machine. Please read these instructions carefully before using the appliance and keep them for future reference.

Your Whirlpool FFS9258WSP washing machine features a 9 kg capacity, a maximum spin speed of 1200 rpm, and an Energy Class B rating. It incorporates advanced technologies such as Teknologi 6th SENSE for optimized resource usage and FreshCare+ to keep your laundry fresh for hours after the cycle ends.

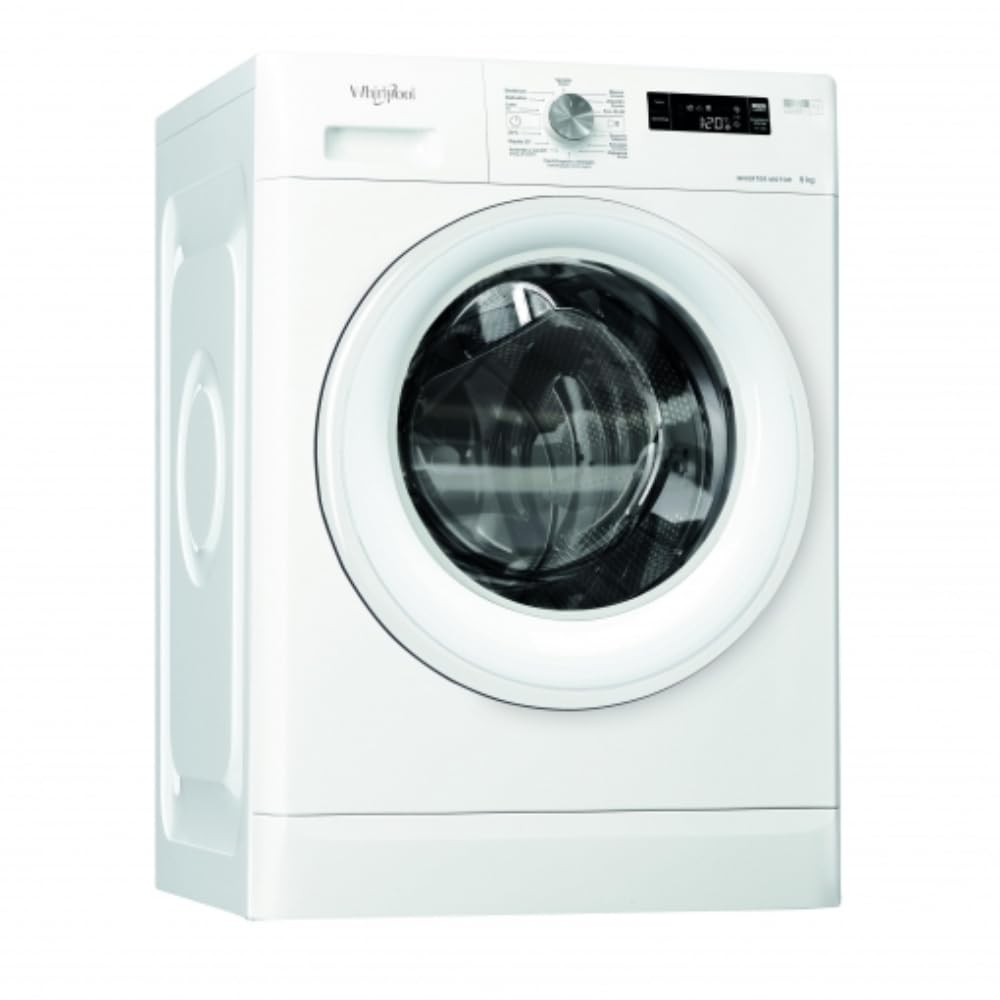

Rajah 1: Depan view of the Whirlpool FFS9258WSP washing machine.

2. Maklumat Keselamatan

Keselamatan Umum:

• Perkakas ini bertujuan untuk kegunaan isi rumah sahaja.
• Do not allow children to play with the appliance. Keep packaging materials away from children.
• Pastikan perkakas diputuskan daripada bekalan kuasa sebelum sebarang pembersihan atau penyelenggaraan.
• Never open the door forcefully.
• Jangan sentuh perkakas dengan tangan atau kaki yang basah.

Keselamatan Pemasangan:

• The appliance must be installed by a qualified technician in accordance with local regulations.
• Remove all transport bolts before use. Failure to do so can cause severe damage.
• Ensure the appliance is level to prevent excessive vibration and noise.
• Connect the water inlet hose to a cold water tap only.
• The electrical supply must match the specifications on the rating plate. Do not use extension cords or multiple adapters.

3. Persediaan dan Pemasangan

3.1 Membongkar

Carefully remove all packaging materials. Ensure that the appliance is not damaged during transport. Locate the 'Tapa vertedora' (pouring lid), if included, and any other accessories.

3.2 Menanggalkan Bolt Pengangkutan

Before using the washing machine, it is crucial to remove the transport bolts located at the rear of the appliance. These bolts secure the drum during transit and must be removed to prevent damage during operation. Use the provided wrench or an appropriate tool to loosen and remove them. Keep the bolts for future transport.

3.3 Kedudukan dan Meratakan

Place the washing machine on a flat, stable floor. Adjust the adjustable feet to ensure the appliance is perfectly level. Use a spirit level to verify. Proper leveling reduces vibration and noise during operation.

3.4 Sambungan Air

Connect the water inlet hose to a cold water tap with a 3/4" thread. Ensure the connection is tight to prevent leaks. Do not reuse old hoses.

3.5 Sambungan Saliran

The drain hose can be connected to a standpipe (minimum height 60 cm, maximum 100 cm) or hooked over the edge of a sink. Ensure the hose is not kinked or obstructed.

3.6 Sambungan Elektrik

Plug the power cord into a grounded electrical outlet. The voltage and frequency must match the appliance's specifications (220-240 V, 50 Hz). The appliance requires a dedicated circuit with a minimum current rating of 10 A.

3.7 Penggunaan Pertama

Before washing clothes for the first time, run an empty wash cycle (e.g., a short cotton cycle at 60°C) without detergent to clean the drum and remove any manufacturing residues.

4. Arahan Operasi

4.1 Panel Kawalan Selesaiview

The control panel features a central rotary knob for program selection, buttons for additional options, and an LCD display showing cycle information, remaining time, and selected settings.

4.2 Memuatkan Dobi

Open the door and load laundry into the drum, ensuring not to exceed the maximum 9 kg capacity. Close the door firmly.

4.3 Dispenser Detergen

The washing machine is equipped with a 3-way detergent dispenser tray. Add detergent to the main wash compartment, fabric softener to its designated compartment, and pre-wash detergent (if applicable) to the pre-wash compartment. Refer to detergent packaging for recommended dosages.

4.4 Pemilihan Program

Turn the rotary knob to select one of the 13 available wash programs:

• Cottons 20°C, 40°C, 60°C: For cotton garments.
• Delicate/Silk: For delicate fabrics and silk items.
• Eko: Program cekap tenaga.
• Campurkan: Untuk beban campuran kapas dan sintetik.
• Cepat 30°C: A fast wash for lightly soiled items.
• Bilas & Putar: For rinsing and spinning items separately.
• Putar/Toskan: For draining water and spinning laundry.
• Sukan: Untuk pakaian sukan.
• Sintetik: Untuk fabrik sintetik.
• bulu: For wool garments, suitable for machine wash wool.

4.5 Melaraskan Tetapan

After selecting a program, you can adjust the temperature and spin speed using the corresponding buttons. The LCD display will show the selected values. You can also set a delay timer if desired.

4.6 Ciri Istimewa

• 6th SENSE Technology: This technology automatically detects the load size and fabric type, adjusting water, temperature, and motor torque to optimize resources and ensure excellent washing results.
• FreshCare+: This feature keeps your clothes fresh for up to 6 hours after the cycle ends by gently tumbling the drum and introducing steam, preventing odors and reducing wrinkles.
• Kunci Kanak-kanak: Activate the child lock to prevent accidental changes to settings during a cycle. Refer to the control panel diagram for activation instructions.

4.7 Memulakan dan Menamatkan Kitaran

Press the Start/Pause button to begin the selected wash cycle. The remaining time will be displayed. To pause a cycle, press the Start/Pause button again. At the end of the cycle, an audible signal may sound, and the display will indicate completion. The door will unlock after a short delay.

5. Penyelenggaraan dan Penjagaan

Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum mesin basuh anda.

5.1 Membersihkan Bahagian Luar

Lap permukaan luar dengan lembut, damp kain. Jangan gunakan pembersih atau pelarut yang melelas.

5.2 Membersihkan Dispenser Detergen

Periodically remove the detergent dispenser drawer and rinse it under running water to remove any detergent or softener residue. Clean the housing of the dispenser with a brush.

5.3 Membersihkan Penapis

The filter, usually located at the bottom front of the machine, should be cleaned regularly (e.g., every few months) to prevent blockages. Place a shallow container beneath the filter to catch any residual water. Unscrew the filter, remove any lint or foreign objects, and rinse it thoroughly before reinserting.

5.4 Pembersihan Drum

Run a maintenance wash cycle (e.g., a hot cotton cycle with a descaling agent or a specific drum cleaning product) periodically to prevent odor buildup and maintain drum hygiene.

5.5 Penjagaan Kedap Pintu

After each wash, wipe the door seal dry to prevent mold and mildew growth. Leave the door slightly ajar when not in use to allow air circulation.

6. Penyelesaian masalah

If you encounter an issue, consult this section before contacting service.

Problem: The washing machine does not start.

• Pastikan kord kuasa dipasang dengan selamat.
• Periksa sama ada pintu ditutup sepenuhnya.
• Verify that the water tap is open.
• Ensure a program has been selected and the Start/Pause button pressed.
• Periksa pemutus litar isi rumah anda.

Problem: Water is not draining.

• Periksa sama ada hos saliran berkedut atau tersumbat.
• Clean the filter (refer to Section 5.3).

Masalah: Getaran atau bunyi bising yang berlebihan.

• Pastikan semua bolt pengangkutan telah ditanggalkan (rujuk Bahagian 3.2).
• Verify that the appliance is level and the feet are properly adjusted.
• Check if the load is unbalanced. Redistribute laundry in the drum.

Problem: Detergent residues in the dispenser.

• Clean the detergent dispenser (refer to Section 5.2).
• Pastikan tekanan air mencukupi.

For error codes displayed on the LCD, consult the full Whirlpool service manual or contact customer support.

7. Spesifikasi

Apa yang ada dalam kotak: Tapa vertedora (Pouring lid)

8. Waranti

Your Whirlpool FFS9258WSP washing machine is covered by a manufacturer's warranty. The terms and conditions of the warranty may vary by region. Please refer to the warranty card provided with your appliance or visit the official Whirlpool weblaman web untuk maklumat terperinci mengenai perlindungan waranti, tempoh dan prosedur tuntutan.

Simpan bukti pembelian anda (resit atau invois) kerana ia akan diperlukan untuk sebarang tuntutan jaminan.

9. Sokongan

For technical assistance, spare parts, or further information regarding your Whirlpool FFS9258WSP washing machine, please contact Whirlpool Customer Service.

You can typically find contact details (phone numbers, email, or online support portals) on the official Whirlpool website for your country or region. When contacting support, please have your appliance's model number (FFS9258WSP) and serial number ready, as this will help them assist you more efficiently.
