ORNO CR-236/B Infrared Motion Sensor User Manual

1. Pengenalan dan Selesai Produkview

The ORNO CR-236/B Infrared Motion Sensor is an advanced motion detector designed for automatic control of lighting systems. Utilizing passive infrared (PIR) technology, it detects heat radiation from moving objects within its detection zone, activating connected lights. Its robust IP65 rating makes it suitable for outdoor installations, providing reliable performance in various weather conditions. This sensor is compatible with a wide range of lighting, including modern LED lamps, and features adjustable settings for light sensitivity (LUX) and detection duration (TIME) to suit specific environmental needs.

Rajah 1.1: Depan view of the ORNO CR-236/B Infrared Motion Sensor, showcasing its black housing and white detection lens.

2. Ciri-ciri Produk

• Serasi LED: Low minimum load allows seamless connection to any LED lamp.
• Protection Class IP65: High protection against weather influences, making it ideal for outdoor use.
• lebar Viewsudut: 180-degree detection angle ensures comprehensive coverage.
• Adjustable Detection: Mechanical height and side adjustment for precise area targeting.
• Penjimatan Tenaga: Built-in photo-optical sensor conserves power by deactivating lights during daylight hours.
• Penukaran Automatik: Designed for automatic activation and deactivation of lights, lamps, and LEDs based on infrared motion detection and adjustable ambient brightness.

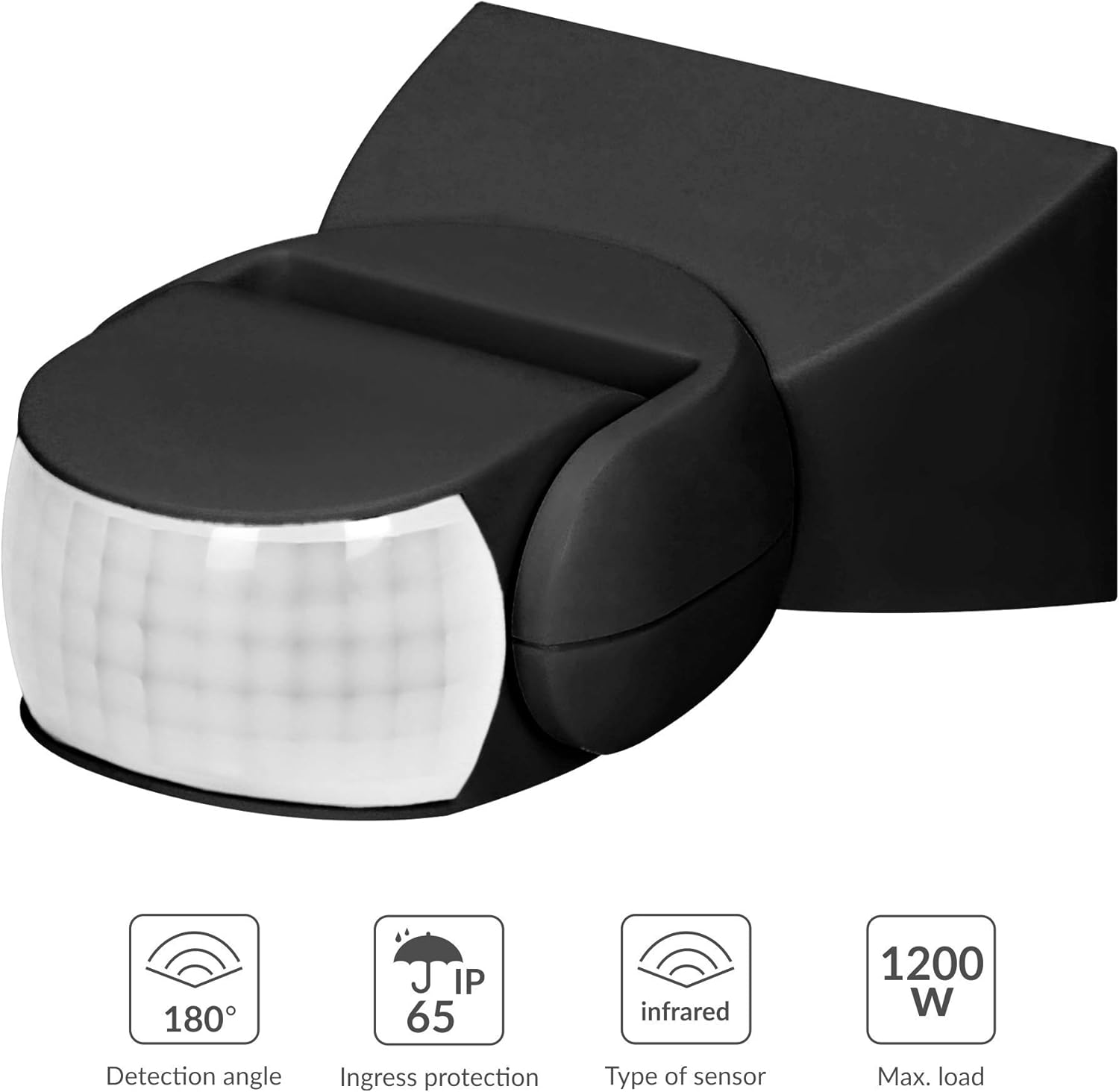

Figure 2.1: Visual representation of key features including 180° detection angle, IP65 ingress protection, infrared sensor type, and 1200W maximum load capacity.

3. Arahan Keselamatan

Sila baca arahan keselamatan ini dengan teliti sebelum pemasangan dan operasi. Kegagalan mematuhi arahan ini boleh mengakibatkan renjatan elektrik, kebakaran atau kecederaan serius.

• Keselamatan Elektrik: Installation must be performed by a qualified electrician in accordance with local electrical codes and regulations. Always disconnect power at the main circuit breaker before performing any installation or maintenance.
• Voltage: Pastikan bekalan voltage matches the sensor's rated voltage (230V).
• Kapasiti Muatan: Do not exceed the maximum load capacity of 1200W. Overloading can cause damage to the sensor and connected devices, and poses a fire hazard.
• Penggunaan Luaran: While the sensor is IP65 rated for outdoor use, ensure all connections are properly sealed and protected from direct water ingress during installation.
• Pemasangan: Mount the sensor securely on a stable surface to prevent accidental dislodgement.
• Kanak-kanak dan Haiwan Kesayangan: Jauhkan peranti daripada kanak-kanak dan haiwan peliharaan.
• kerosakan: Do not use the device if it appears damaged in any way. Contact customer support for assistance.

4. Persediaan dan Pemasangan

Proper installation is crucial for optimal performance and safety. The ORNO CR-236/B is designed for wall mounting.

4.1 Dimensi Produk

Before selecting a mounting location, consider the sensor's dimensions to ensure adequate space and proper positioning for optimal detection.

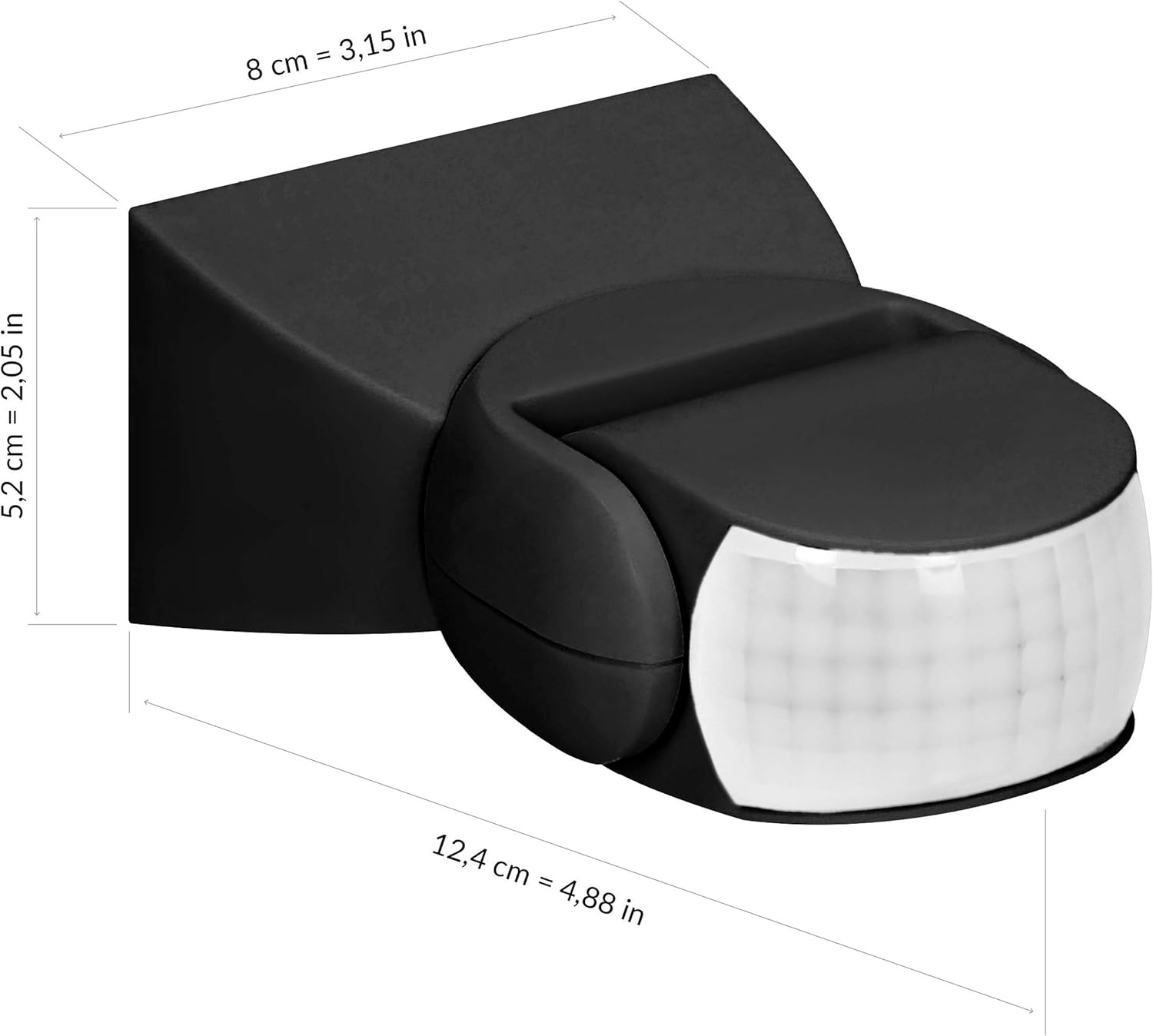

Figure 4.1: Dimensions of the ORNO CR-236/B motion sensor: Length approx. 12.4 cm (4.88 in), Width approx. 8 cm (3.15 in), Height approx. 5.2 cm (2.05 in).

4.2 Memasang Penderia

Choose a stable wall surface for mounting. The sensor should be positioned at an appropriate height (typically 1.8m to 2.5m) to maximize its 180-degree detection range and avoid obstructions.

1. Disconnect power to the installation area at the main circuit breaker.
2. Carefully open the sensor housing to access the mounting holes and wiring terminals.
3. Mark the drilling points on the wall using the sensor's base as a template.
4. Drill holes and insert appropriate wall plugs (if necessary).
5. Secure the sensor base to the wall using screws.

Rajah 4.2: View of the sensor's base, highlighting the mounting points and sealed cable entry for secure installation.

4.3 Pendawaian Elektrik

Ensure power is disconnected before proceeding with wiring. Refer to the wiring diagram provided inside the sensor's housing or in the full manual for specific connections. Typically, connections include Live (L), Neutral (N), and Switched Live (L') to the light fixture.

1. Route the electrical cables through the designated cable entry points on the sensor base.
2. Connect the Live (L), Neutral (N), and Switched Live (L') wires to the corresponding terminals within the sensor's wiring compartment. Ensure all connections are secure.
3. Carefully close the wiring compartment cover, ensuring no wires are pinched and the seal is intact to maintain IP65 rating.
4. Pulihkan kuasa pada pemutus litar utama.

Figure 4.3: The internal wiring compartment of the sensor, showing the terminal block for electrical connections.

5. Arahan Operasi

The ORNO CR-236/B motion sensor features two adjustable dials for customizing its operation: LUX and TIME.

5.1 Adjusting LUX (Light Sensitivity)

The LUX dial controls the ambient light level at which the sensor will activate. This allows the sensor to only turn on lights when it's dark enough.

• Turn the dial towards the simbol matahari (high LUX) for activation during both day and night (sensor will activate regardless of ambient light).
• Turn the dial towards the moon symbol (low LUX) for activation only when it is dark (e.g., at dusk or night).

5.2 Adjusting TIME (Detection Duration)

The TIME dial sets how long the connected light will remain on after motion is detected and no further motion is sensed. The range is typically from 10 seconds to 15 minutes.

• Turn the dial towards the penetapan minimum (e.g., 10s) for shorter illumination periods.
• Turn the dial towards the tetapan maksimum (e.g., 15min) for longer illumination periods.

Rajah 5.1: Belakang view of the sensor, illustrating the adjustable LUX (light sensitivity) and TIME (detection duration) dials.

5.3 Mod Ujian

After installation, it is recommended to perform a test to ensure the sensor is functioning correctly and the detection area is optimized.

• Set the LUX dial to the maximum (sun symbol) and the TIME dial to the minimum (e.g., 10s).
• Walk through the desired detection area. The light should turn on when motion is detected and turn off after the set minimum time.
• Adjust the sensor's physical angle (vertical and horizontal adjustment) to fine-tune the detection zone.
• Once satisfied with the detection area, set the LUX and TIME dials to your preferred operational settings.

6. Penyelenggaraan

The ORNO CR-236/B motion sensor requires minimal maintenance to ensure long-term performance.

• Pembersihan: Lap kanta dan perumah sensor secara berkala dengan kain lembutamp cloth to remove dust, dirt, or debris that may obstruct detection. Do not use abrasive cleaners or solvents.
• Pemeriksaan: Annually inspect the wiring and mounting for any signs of wear, corrosion, or loosening. Ensure all seals remain intact, especially for outdoor installations.
• Kitaran Kuasa: If the sensor behaves erratically, try disconnecting power for a few minutes at the circuit breaker and then restoring it.

7. Penyelesaian masalah

Rujuk jadual di bawah untuk isu biasa dan kemungkinan penyelesaiannya.

8. Spesifikasi Teknikal

9. Waranti dan Sokongan

This product is covered by a standard manufacturer's warranty. For specific warranty terms and conditions, please refer to the documentation included with your purchase or contact the retailer.

For technical support, troubleshooting assistance beyond this manual, or warranty claims, please contact ORNO customer service or your point of purchase. Please have your product model number (OR-CR-236) and purchase details ready when contacting support.

Untuk maklumat lanjut, anda boleh layari pejabat Orno webtapak.
