Powell Chadwick Hall Tree, Cherry - Instruction Manual

pengenalan

Terima kasih kerana membeliasing the Powell Chadwick Hall Tree. This manual provides essential information for safe assembly, operation, and maintenance of your new furniture. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

The Chadwick Hall Tree is designed to enhance your entryway or hall with its classic style and practical features. It includes a top shelf, four mounted hooks, and a hinged storage seat, all finished in a rich cherry tone. The storage seat is equipped with child-safe hinges for added safety.

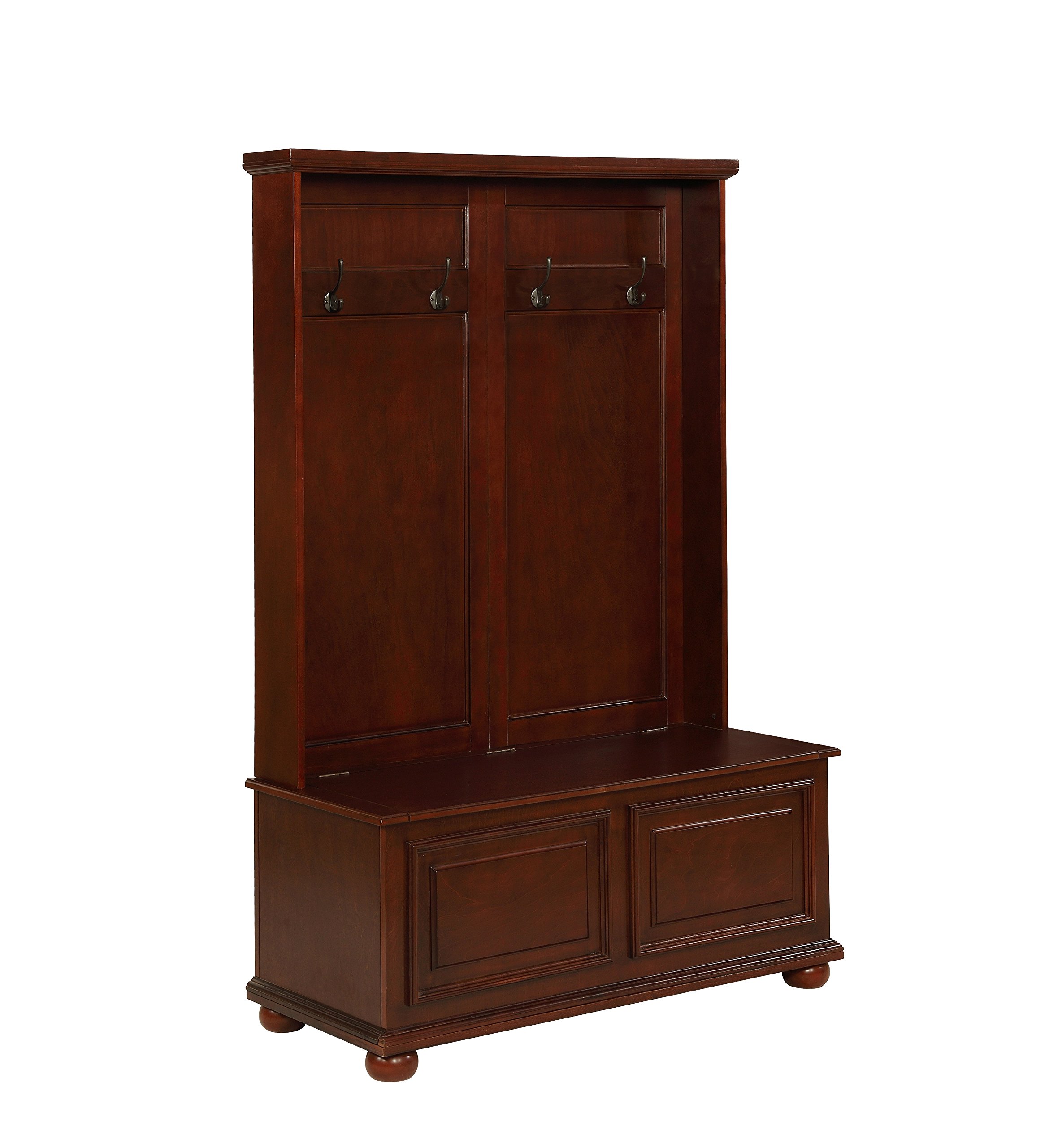

Image: The Powell Chadwick Hall Tree in Cherry finish, showcasing reka bentuk dan fungsinya.

Maklumat Keselamatan

AMARAN: Produk ini boleh mendedahkan anda kepada bahan kimia termasuk habuk kayu, yang diketahui oleh Negeri California boleh menyebabkan kanser. Untuk maklumat lanjut pergi ke www.P65Warnings.ca.gov.

To ensure safe use of this product, please observe the following:

• Jangan ketatkan bolt sepenuhnya sehingga semua bolt berbaris sepenuhnya dan dimasukkan ke dalam lubang/nat.
• Jangan terlalu mengetatkan skru dan baut untuk mengelakkan pelucutan.
• Always use hand tools to assemble this product. Do not use power tools.
• The storage seat lid is equipped with non-slam child-safe hinges to prevent sudden closing and potential injury.
• The unit includes breath holes within the storage compartment for safety.
• Install the anti-tipping hardware as instructed to prevent the unit from tipping over, which can cause serious injury.
• Jangan benarkan kanak-kanak memanjat atau menggantung pada laci, pintu atau rak.
• Do not remove or disable the power interlock system.

Ciri-ciri Produk

• Dimensi: Fully assembled size is 40.47 inches (W) x 18 inches (D) x 64 inches (H).
• Reka bentuk: Features recessed back panel details for a seamless blend of style and function.
• Cangkuk: Four mountable double hook coat hangers, each with a weight limit of 7 pounds, ideal for coats, hoodies, and hats.
• Selesai: Rich cherry tone suitable for entryways, mudrooms, or hallways.
• Storage Seat: Lid equipped with non-slam child-safe hinges for safety. Seat height is 18 inches with a weight limit of 275 pounds.
• Storan Tersembunyi: Ample hidden storage space underneath the seat, with dimensions of 34.5 inches (W) x 13 inches (D) x 12 inches (H).

Image: The Chadwick Hall Tree with its storage seat lid open, revealing the internal storage compartment.

Senarai Bahagian

Before assembly, ensure all parts and hardware are present. Refer to the exploded diagram below for identification.

Image: Exploded diagram showing all individual components of the Hall Tree with letter labels.

Senarai perkakasan:

Arahan Perhimpunan

Some assembly is required. Please follow these steps carefully. It is recommended to have two people for certain steps.

Step 1: Assemble the Back Panel Support

Attach the back panel support (M) to the side panels (J) using bolts (H5) and cam locks (H2). Secure with the Allen wrench (H12).

Image: Detailed diagram for assembling the back panel support in Step 1.

Step 2: Connect Side and Front Panels

Connect the side panels (J, I) and front panel (G) to the base using cam bolts (H1) and cam locks (H2). Ensure all connections are snug but do not overtighten.

Image: Diagram illustrating the connection of side and front panels to the base in Step 2.

Step 3: Attach the Top Panel of the Storage Bench

Secure the top panel (K) to the assembled base using cam bolts (H3) and cam locks (H2). Use wood dowels (H1) for alignment. Cover exposed cam locks with plastic caps (H13).

Image: Diagram showing how to attach the storage bench top panel in Step 3.

Step 4: Install Bun Feet

Attach the bun feet (L) to the bottom of the storage bench (J, I, G, K).

Image: Diagram for installing the bun feet to the base of the hall tree in Step 4.

Step 5: Attach Hooks to Back Panels

Secure the hooks (H10) to the back panels (B and C) using hook screws (H11) and Phillips head screws (H14).

Image: Diagram showing the attachment of hooks to the back panels in Step 5.

Langkah 6: Sambungkan Panel Belakang

Join the two back panels (B and C) together using wood dowels (H1).

Image: Diagram for connecting the two back panels in Step 6.

Step 7: Attach Side Supports to Back Panels

Attach the side supports (D and E) to the assembled back panels using screws (H4) and the Allen wrench (H12).

Image: Diagram showing the attachment of side supports to the back panels in Step 7.

Langkah 8: Lampirkan Panel Atas

Secure the top panel (A) to the upper back assembly using wood dowels (H1), cam locks (H2), cam bolts (H3), long screws (H6), and plastic caps (H13). Use the Allen wrench (H12) as needed.

Image: Diagram for attaching the top panel to the upper back assembly in Step 8.

Step 9: Attach Back Panel (F)

Attach the back panel (F) to the upper back assembly using wood dowels (H1), cam locks (H2), cam bolts (H3), and plastic caps (H13). Use the Allen wrench (H12) as needed.

Image: Diagram for attaching the back panel (F) to the upper back assembly in Step 9.

Step 10: Connect Upper and Lower Sections

Carefully place the assembled upper section onto the storage bench. Secure them together using wood dowels (H1), screws (H4), and the Allen wrench (H12).

Image: Diagram showing the connection of the upper and lower sections of the hall tree in Step 10.

Step 11: Install Storage Seat Hinges

Attach the left hinge (H7) and right hinge (H8) to the storage seat lid and the storage bench using small screws (H9) and Phillips head screws (H14). Ensure the hinges operate smoothly for the non-slam feature.

Image: Diagram for installing the storage seat hinges in Step 11.

Anti-Tipping Hardware Installation

IMPORTANT: For your safety, to prevent the danger of this unit tipping over, it is important that the wall anchor is properly attached.

Step 1: Prepare Wall Anchor

Put wall anchor (C) into the wall and attach mounting bracket (B) to the wall with long screw (E). Ensure the wall anchor is properly secured.

Image: Diagram showing the installation of the wall anchor and mounting bracket.

Step 2: Attach Mounting Bracket to Hall Tree

Attach mounting bracket (B) to the back of the hall tree with short screw (D).

Image: Diagram showing the attachment of the mounting bracket to the back of the hall tree.

Step 3: Secure Hall Tree to Wall

Slide the strap (A) through the mounting brackets and pull to tighten the Hall Tree snug against the wall.

Image: Diagram illustrating how to secure the hall tree to the wall using the anti-tipping strap.

Arahan Operasi

The Powell Chadwick Hall Tree is designed for straightforward use:

• Cangkuk Kot: Use the four double hooks to hang coats, jackets, hats, scarves, and bags. Ensure items do not exceed the 7-pound weight limit per hook.
• Rak Atas: The top shelf provides additional space for decorative items or small storage bins.
• Bangku Penyimpanan: The hinged seat opens to reveal a spacious storage compartment. Lift the seat gently; the safety hinges will prevent it from slamming shut. Close the lid gently to engage the non-slam mechanism.
• Tempat duduk: The bench seat can support up to 275 pounds, providing a convenient spot for sitting while putting on or taking off shoes.

Image: The Chadwick Hall Tree in a home setting, demonstrating its use for hanging items and providing seating.

Penyelenggaraan

To maintain the beauty and longevity of your Chadwick Hall Tree, follow these simple care instructions:

• Pembersihan: Lap permukaan dengan lembut, damp kain. Elakkan daripada menggunakan bahan kimia yang keras, pembersih yang melelas, atau pengilat yang boleh merosakkan kemasan.
• Berhabuk: Lap habuk dengan kain kering dan lembut secara berkala.
• Tumpahan: Toskan tumpahan serta-merta dengan kain bersih dan kering.
• Perkakasan: Periodically check all bolts and screws to ensure they are tight. Re-tighten if necessary, but do not overtighten.
• Cahaya matahari: Elakkan pendedahan berpanjangan kepada cahaya matahari langsung, yang boleh menyebabkan pudar atau perubahan warna pada kemasan kayu.
• Kelembapan: Kekalkan tahap kelembapan yang konsisten di rumah anda untuk mengelakkan kayu daripada mengembang atau mengecut, yang boleh menyebabkan retakan atau melengkung.

Menyelesaikan masalah

If you encounter any issues with your Hall Tree, consider the following common solutions:

• Unit goyah: Ensure all assembly bolts and screws are securely tightened. Check that the unit is placed on a level surface.
• Storage Lid Not Closing Smoothly: Verify that the safety hinges are correctly installed and free from obstruction. Do not force the lid.
• Bahagian yang hilang: If any parts were missing upon delivery, please contact customer support with your model number and a description of the missing items.
• Bahagian yang Rosak: If any components arrived damaged, contact customer support for assistance.

Spesifikasi

Image: Detailed diagram showing the dimensions of the Chadwick Hall Tree.

Waranti dan Sokongan

For warranty information or customer support, please refer to the documentation included with your purchase or visit the official Powell Furniture website. If you require replacement parts or further assistance, please have your model number (15A7058) and ASIN (B07587B2GX) ready when contacting support.
