pengenalan
Welcome to the MIFA A1 Portable Bluetooth Speaker user manual. This guide provides detailed instructions for setting up, operating, maintaining, and troubleshooting your new speaker. The MIFA A1 is designed for portability and durability, featuring IP56 dustproof and water-resistant capabilities, a 12-hour playtime, and enhanced sound.
The MIFA A1 Portable Bluetooth Speaker.
Kandungan Pakej
Sila semak pakej untuk item berikut:
- 1 × A1 Bluetooth Speaker
- 1 × Kabel USB Mikro
- 1 × 3.5 mm Audio Cable
- 1 × Tali boleh tanggal
- 1 × Manual Pengguna
The MIFA A1 package contents.
Produk Selesaiview
Komponen dan Kawalan Pembesar Suara
Familiarize yourself with the speaker's layout and functions:

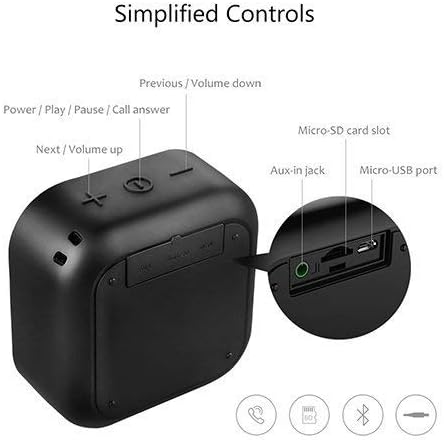

Berakhirview of MIFA A1 controls and ports.
- Power / Play / Pause / Call Answer Button: Mengawal kuasa, main balik muzik dan pengurusan panggilan.
- Next / Volume Up Button (+): Meningkatkan kelantangan dan melangkau ke trek seterusnya.
- Previous / Volume Down Button (-): Decreases volume and goes to the previous track.
- Slot Kad Micro-SD: For playing music directly from a Micro-SD card.
- Aux-in Jack: Untuk sambungan audio berwayar menggunakan kabel audio 3.5mm.
- Port USB Mikro: Untuk mengecas pembesar suara.
Ciri-ciri Utama
- Superior Loud Sound: 5W driver & Class-G double charge pump audio power amplifier delivers high-quality DSP 3D stereo sound & enhanced bass; supports TWS, allowing you to enjoy true wireless stereo (right + left channels) by connecting two A1 speakers.
- IP56 Dust-Proof & Water-Resistant: Features woven fabric housing; great looking while shock-resistant; allows outlasting all of your adventures.
- Hayat Bateri yang Panjang: Built-in 1200 mAh rechargeable lithium polymer battery plays up to 12 hours at 70% volume on a full charge; recharge in just 3 hours with the included Micro USB cable.
- Teknologi Bluetooth 4.2: Easy to pair with any Bluetooth-enabled device; auto-reconnects to the last-used device within up to 33 feet; 3.5mm AUX and Micro-SD capability offers more audio options; built-in microphone for hands-free calls.
- Super Portable: Mini size for take-anywhere convenience; slips into a bag or a coat pocket easily; offers a strap to hang from a backpack; 3.3 × 1.8 × 3.4 in; 6.2 oz.

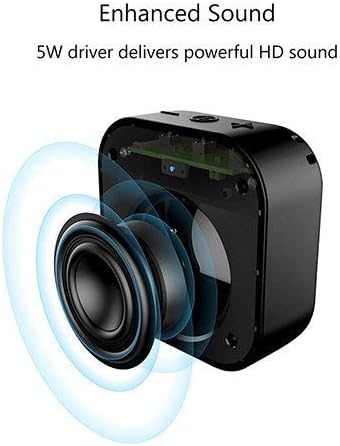

The 5W driver delivers powerful HD sound.
Persediaan
Mengecas Speaker
The MIFA A1 speaker comes with a built-in 1200 mAh rechargeable lithium polymer battery.
- Connect the Micro USB cable to the speaker's Micro-USB port and the other end to a USB power adapter (not included) or a computer's USB port.
- Lampu penunjuk pengecasan akan menyala.
- Pengecasan penuh mengambil masa kira-kira 3 jam.
- Once fully charged, the speaker provides up to 12 hours of playtime at 70% volume.
Enjoy up to 12 hours of playtime.
Menghidupkan/Mematikan
- Untuk menghidupkan kuasa, tekan dan tahan butang Kuasa sehingga anda mendengar gesaan yang boleh didengar.
- Untuk mematikan kuasa, tekan dan tahan butang Kuasa sekali lagi sehingga pembesar suara dimatikan.
Operasi
Berpasangan Bluetooth
- Pastikan pembesar suara dihidupkan dan dalam mod berpasangan Bluetooth (ditunjukkan oleh LED berkelip).
- Pada peranti anda (telefon pintar, tablet, komputer riba), dayakan Bluetooth dan cari peranti yang tersedia.
- Select "MIFA A1" from the list of devices.
- Once paired, the speaker will provide an audible confirmation, and the LED indicator will become solid.
- The speaker will automatically reconnect to the last-used device within a range of up to 33 feet (10 meters).
Memainkan Audio
Mod Bluetooth
Selepas pemasangan berjaya, audio daripada peranti anda yang disambungkan akan dimainkan melalui pembesar suara.
- Press the Power button to Play/Pause music.
- Press the '+' button to increase volume. Press and hold '+' to skip to the next track.
- Press the '-' button to decrease volume. Press and hold '-' to go to the previous track.
Mod AUX-in
Use the included 3.5mm audio cable to connect the speaker to any device with a 3.5mm audio output. The speaker will automatically switch to AUX mode.
Micro-SD Card Playback
Insert a Micro-SD card (up to 32GB, not included) loaded with audio files into the Micro-SD card slot. The speaker will automatically begin playing music from the card.
Panggilan Bebas Tangan
When connected via Bluetooth, the built-in microphone allows for hands-free calls.
- Press the Power button to answer an incoming call.
- Press the Power button again to end a call.
- Tekan dan tahan butang Kuasa untuk menolak panggilan masuk.
True Wireless Stereo (TWS) Pairing (for two A1 speakers)
If you have two MIFA A1 speakers, you can pair them together for a true wireless stereo experience (left and right channels).
- Pastikan kedua-dua pembesar suara dimatikan.
- Menghidupkan kedua-dua pembesar suara.
- On one speaker (this will be the master), double-press the Power button. It will search for the other speaker.
- Once connected, both speakers will provide an audible confirmation, and the master speaker's LED will flash slowly, while the slave speaker's LED will be solid.
- Connect your device via Bluetooth to the master speaker.
- Audio kini akan dimainkan dalam stereo melalui kedua-dua pembesar suara.
Penyelenggaraan
Pembersihan
Untuk membersihkan pembesar suara, gunakan alat lembut, damp kain. Jangan gunakan bahan kimia yang keras atau pembersih yang kasar.
Rintangan Air dan Debu (IP56)
The MIFA A1 is IP56 rated, meaning it is protected against dust ingress and powerful water jets.
While it can withstand splashes and rain, it is bukan designed to be submerged in water. Ensure all port covers are securely closed before exposing the speaker to water or dust.
This video demonstrates the MIFA A1's robust IP56 rating, showcasing its ability to withstand exposure to wet mud and water jets without affecting performance. It highlights the speaker's durability for outdoor and adventurous use.
The MIFA A1 speaker is built with an IP56 dust-proof and water-resistant fabric and TPU housing.
Menyelesaikan masalah
Isu dan Penyelesaian Biasa
| Masalah | Penyelesaian |
|---|---|
| Speaker tidak dihidupkan | Ensure the battery is charged. Connect to a power source using the Micro USB cable. |
| Tidak boleh berpasangan melalui Bluetooth | Ensure the speaker is in pairing mode. Check if Bluetooth is enabled on your device. Move the speaker closer to your device. Disconnect from other Bluetooth devices. |
| Tiada bunyi | Check volume levels on both the speaker and your connected device. Ensure the correct input mode (Bluetooth, AUX, Micro-SD) is selected. |
| Kualiti bunyi yang lemah / Herotan | Move the speaker closer to your device to improve Bluetooth signal. Reduce volume if distortion occurs at maximum levels. Ensure the speaker is on a stable surface. |
| Gandingan TWS gagal | Ensure both speakers are MIFA A1 models. Power off both speakers and try the TWS pairing process again. |
Spesifikasi
Butiran Teknikal
| Ciri | Perincian |
|---|---|
| Nama Model | A1 |
| Kuasa Output Maksimum Pembesar Suara | 5 Watt |
| Teknologi Ketersambungan | Bluetooth 4.2 |
| Teknologi Komunikasi Tanpa Wayar | Bluetooth |
| Julat Bluetooth | 10 Meter (33 Kaki) |
| Hayat Bateri | 12 Jam (pada volum 70%) |
| Kapasiti Bateri | 1200 mAh |
| Masa Mengecas | 3 Jam |
| Tahap Ketahanan Air | IP56 (Dustproof & Water-Resistant) |
| Dimensi Produk | 3.4"D x 3.3"W x 1.8"H |
| Berat Barang | 6.2 auns (175 Gram) |
| bahan | Plastic, Metal, Fabric |
| Komponen yang Disertakan | 1 × A1 Bluetooth Speaker, 1 × Micro USB Cable, 1 × 3.5 mm Audio Cable, 1 × Detachable Strap, 1 × User Manual |
Waranti dan Sokongan
Maklumat Waranti
Please refer to the warranty card included with your purchase for detailed warranty terms and conditions.
Sokongan Pelanggan
For further assistance or support, please visit the official MIFA website or contact MIFA customer service.
You can also refer to the official user manual PDF for more details: Muat turun Manual Pengguna (PDF)
