Go Power! GP-800HD 800 Watt Modified Sine Wave Power Inverter Instruction Manual

1. Pengenalan

The Go Power! GP-800HD heavy-duty modified sine wave inverter is a versatile and economical solution designed for your mid-range power needs. It efficiently converts 12V DC battery power to 110V AC household power, making it ideal for powering various appliances. This manual provides essential information for safe installation, operation, and maintenance of your inverter.

2. Apa yang ada di dalam Kotak

• Go Power! GP-800HD Heavy-Duty Modified Sine Wave Inverter - 800 Watt / 12V
• Two 10-foot cables (#4 AWG) with pre-lugged ends
• Arahan Pemasangan
• Class T slow blow 110 amp inverter fuse (pre-installed or included for protection)

3. Produk Lebihview

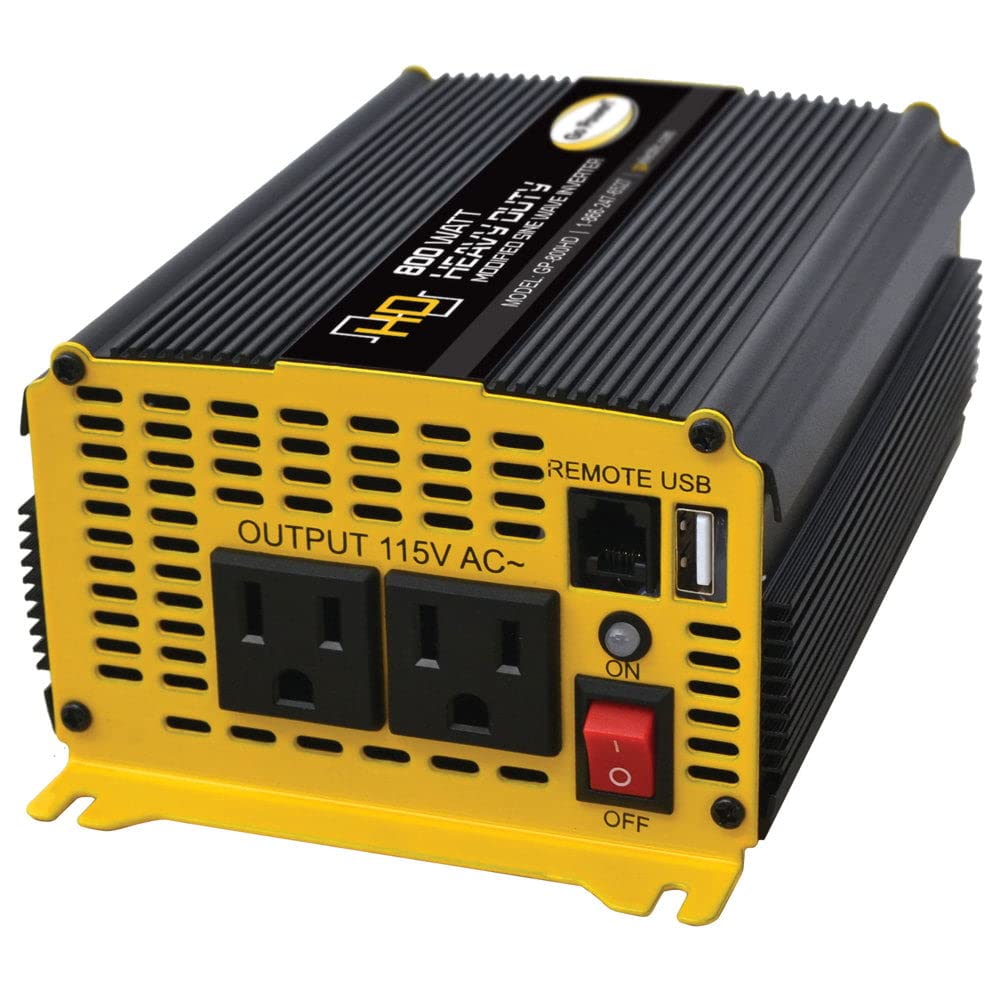

Gambar 3.1: Panel Depan
The front panel features two 110V AC outlets, USB ports for charging smaller devices, and a main ON/OFF power switch for easy control.

Gambar 3.2: Panel Belakang
The rear panel includes the 12V DC input terminals (positive and negative) for battery connection and a cooling fan to maintain optimal operating temperature.

Rajah 3.3: Sisi View
The side of the inverter features heat sink fins, crucial for dissipating heat and ensuring the unit's longevity and stable performance.

4. Persediaan

4.1 Langkah Keselamatan

• Pastikan inverter dipasang di kawasan yang mempunyai pengudaraan yang baik, jauh daripada cahaya matahari langsung, sumber haba dan bahan mudah terbakar.
• Jangan dedahkan inverter kepada air atau kelembapan berlebihan.
• Always connect the inverter to a 12V DC battery system.
• Sahkan bahawa jumlah wattage of all connected appliances does not exceed the inverter's 800W continuous output.

4.2 Menyambung ke Bateri

1. Pastikan suis kuasa inverter berada dalam kedudukan OFF.
2. Connect the red (#4 AWG) cable to the positive (+) terminal of the inverter and then to the positive (+) terminal of your 12V battery.
3. Connect the black (#4 AWG) cable to the negative (-) terminal of the inverter and then to the negative (-) terminal of your 12V battery.
4. Tighten all connections securely to prevent loose contacts and potential arcing.

4.3 Memasang Penyongsang

The GP-800HD is designed for compact installation. Choose a flat, stable surface for mounting. Ensure there is adequate clearance around the unit for proper ventilation, especially around the cooling fan. Secure the inverter using appropriate fasteners (not included) through its mounting brackets.

5. Arahan Operasi

5.1 Menghidupkan/Mematikan

• After connecting the inverter to the battery, press the ON/OFF switch on the front panel to power on the unit. An indicator light will illuminate.
• To power off, press the ON/OFF switch again. It is recommended to turn off the inverter when not in use to conserve battery power.

5.2 Menyambungkan Peralatan AC

• Plug your 110V AC appliances directly into the two AC outlets on the front panel.
• Ensure the total power consumption of all connected AC devices does not exceed 800 watts. The inverter has a 1600W surge capacity for brief power spikes.
• This is a modified sine wave inverter, suitable for most common electronics and appliances like lights, drills, and blenders. Some sensitive electronics may require a pure sine wave inverter.

5.3 Menyambung Peranti USB

• Connect your USB-powered devices (e.g., smartphones, tablets) to the available USB ports on the front panel.
• The USB ports provide convenient charging for small electronic devices.

6. Penyelenggaraan

• Pembersihan: Keep the inverter clean and free from dust and debris. Use a dry cloth to wipe the exterior. Ensure the cooling fan vents are unobstructed.
• Pemeriksaan Sambungan: Periodically inspect all battery and inverter connections to ensure they are tight and free from corrosion.
• Penggantian fius: The inverter is protected by a Class T slow blow 110 amp fuse. If the inverter stops working due to an overload, the fuse may need replacement. Consult a qualified technician for fuse replacement.
• Storan: Jika menyimpan inverter untuk tempoh yang lama, cabutnya daripada bateri dan simpan di tempat yang sejuk dan kering.

7. Penyelesaian masalah

8. Spesifikasi

9. Waranti dan Sokongan

For warranty information and technical support, please refer to the documentation included with your purchase or contact Go Power! directly. Protection plans may be available for extended coverage. Please retain your proof of purchase for any warranty claims.
