Manual Pengguna Perakam Video Rangkaian PoE 32-Saluran Hikvision DS-7732NI-K4/16P

1. Pengenalan

This manual provides detailed instructions for the installation, operation, and maintenance of your Hikvision DS-7732NI-K4/16P 32-Channel PoE Network Video Recorder (NVR). This NVR supports up to 32 channels, with 16 Power over Ethernet (PoE) ports, 4K (8-Megapixel) resolution recording, USB backup, and ONVIF compatibility. Please read this manual thoroughly before use to ensure proper functionality and safety.

2. Maklumat Keselamatan

• Ensure the NVR is placed on a stable, level surface to prevent accidental falls.
• Jangan dedahkan peranti kepada air atau lembapan.
• Gunakan hanya penyesuai kuasa yang dibekalkan bersama peranti.
• Elakkan menyekat bukaan pengudaraan untuk mengelakkan terlalu panas.
• Rujuk semua servis kepada kakitangan yang berkelayakan.

3. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej:

• Hikvision DS-7732NI-K4/16P NVR Unit
• Penyesuai Kuasa dan Kord Kuasa
• Tetikus USB
• Kabel HDMI
• Kabel Ethernet
• Alat Kawalan Jauh
• Quick Start Guide / Instruction Manual
• HDD Mounting Screws (if applicable)

4. Persediaan

4.1 Sambungan Fizikal

1. Sambung Monitor: Sambungkan monitor ke NVR menggunakan port HDMI atau VGA.
2. Sambung Tetikus: Plug the USB mouse into one of the USB ports on the NVR.
3. Sambungan Rangkaian: Connect the NVR to your network router using an Ethernet cable.
4. Sambungan Kamera: Connect your PoE IP cameras to the available PoE ports on the NVR. For third-party cameras, ensure they are ONVIF compatible.
5. Hidupkan kuasa: Connect the power adapter to the NVR and then plug it into a power outlet. The NVR will power on automatically.

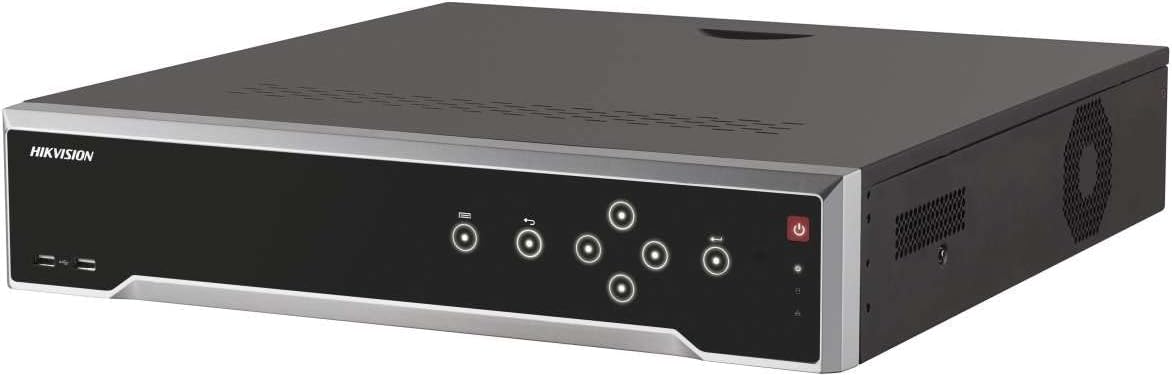

Imej 1: Depan view of the Hikvision DS-7732NI-K4/16P NVR unit, showing the power button, status indicators, and USB ports.

4.2 Initial Configuration (Adding a Third-Party Camera)

1. Ensure the camera is physically connected to the NVR via an Ethernet cable and the connection is secure.
2. On the NVR's display screen, once an image is shown, click the "Add Camera" icon (small circle with a plus sign) on the bottom bar.
3. In the Protocol section at the top left, select "ONVIF."
4. Click "Search." Once the connected device appears on the screen, select it and click "Add all."
5. After completing the setup, click "Go back." You should now see the newly added camera's live feed on the display.

5. Arahan Operasi

5.1 Rakaman

The NVR automatically records footage from connected cameras to the installed hard drive. It supports 4K (8-Megapixel) resolution for high-quality video capture. Ensure a compatible hard drive (up to 24TB) is installed for continuous recording.

5.2 Main semula

Akses foo yang dirakamtage through the NVR's user interface. Use the mouse to navigate the timeline and select specific dates and times for playback. The system allows for fast-forward, rewind, and frame-by-frame review.

5.3 USB Backup

To back up important footage, insert a USB storage device into one of the NVR's USB ports. Navigate to the backup menu in the system settings, select the desired footage, and initiate the backup process. Ensure the USB device has sufficient storage capacity.

5.4 ONVIF Compatibility

The NVR is compatible with ONVIF (Open Network Video Interface Forum) standard cameras, allowing for integration with a wide range of third-party IP cameras. This ensures flexibility in expanding your surveillance system.

6. Penyelenggaraan

• Regularly check for firmware updates to ensure optimal performance and security.
• Keep the NVR and cameras clean, free from dust and debris.
• Ensure adequate ventilation around the NVR to prevent overheating.
• Semula secara berkalaview dirakam footage and system logs for any anomalies.

7. Penyelesaian masalah

7.1 No Video Signal from Camera

• Check all cable connections (Ethernet, power) to the camera and NVR.
• Verify the camera is powered on and its status indicator is active.
• Ensure the camera's IP address and network settings are correctly configured and compatible with the NVR.
• If it's a third-party camera, confirm ONVIF compatibility and proper integration steps (refer to Section 4.2).

7.2 NVR Not Recording

• Check if a hard drive is installed and properly recognized by the NVR.
• Verify recording schedules and settings in the NVR's configuration menu.
• Ensure the hard drive has sufficient free space.

8. Spesifikasi

9. Waranti dan Sokongan

This Hikvision product comes with a two-year warranty against factory defects. For technical support or warranty claims, please contact your authorized Hikvision dealer or visit the official Hikvision support webtapak.
