Manual Pengguna Suis Matriks HDMI Monoprice Blackbird 4K 8x8

1. Pengenalan

The Monoprice Blackbird 4K 8x8 HDMI Matrix Switch is designed to independently distribute any of eight HDMI inputs to any of eight displays. This device supports advanced video and audio technologies, including 4K@60Hz 4:4:4, HDR, and 18Gbps bandwidth, ensuring high-quality signal transmission. It offers versatile control options via front panel, IR remote, RS232, and a web-based GUI for seamless integration into various setups.

Ciri-ciri Utama:

• Independently distributes any of eight HDMI sources to any of eight HDMI displays.
• Supports video resolutions up to 4K@60Hz 4:4:4, including 1080p 3D video.
• Fully compliant with HDMI 2.0 and HDCP 2.2 standards.
• Features 18Gbps maximum bandwidth.
• Includes eight digital coaxial S/PDIF outputs for audio extraction.
• Multiple control methods: Front panel buttons, IR remote control, RS232, and TCP/IP (web-based GUI).
• Front panel LCD screen displays real-time connection status.
• DIP switches for manual EDID management.

2. Maklumat Keselamatan

Please read this entire manual before operating this device, paying extra attention to these safety warnings and guidelines. Keep this manual for future reference.

• Jangan biarkan alat ini terkena air atau lembapan.
• Jangan letakkan objek berat pada peranti.
• Do not attempt to open, service, or modify this device. There are no user-serviceable parts inside.
• Use only the provided power adapter. Using an unauthorized power supply may damage the device and void the warranty.
• Pastikan pengudaraan yang betul di sekeliling unit untuk mengelakkan terlalu panas.
• Putuskan sambungan kuasa semasa ribut petir atau apabila tidak digunakan untuk tempoh yang lama.

3. Kandungan Pakej

Please ensure you have all the following items before proceeding with the installation:

• 1x Monoprice Blackbird 4K 8x8 HDMI Matrix Switch
• Alat kawalan jauh IR 1x
• 1x IR Receiver Extender Cable
• 1x Kabel RS232
• 1x Penyesuai Kuasa 24V DC
• 2x Mounting Ears (Brackets)
• 1x Manual Pengguna (dokumen ini)

Figure 3.1: Package Contents. This image displays the main unit, an IR remote control, an IR receiver cable, an RS232 cable, a power adapter, and mounting brackets.

4. Rajah Produk

4.1 Panel Depan

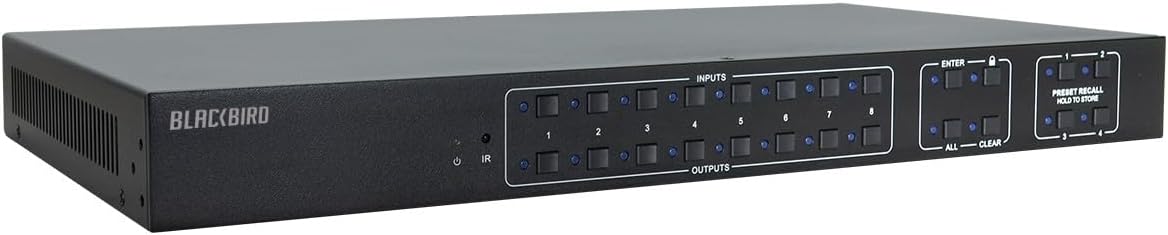

Figure 4.1: Front Panel Layout. The front panel features power indicator, IR receiver, input and output selection buttons (1-8), ENTER, ALL, CLEAR buttons, and preset recall/store buttons.

• LED kuasa: Menunjukkan status kuasa.
• Penerima IR: For receiving signals from the IR remote control.
• INPUTS Buttons (1-8): Selects the desired HDMI input source.
• OUTPUTS Buttons (1-8): Selects the desired HDMI output display.
• Butang ENTER: Mengesahkan pemilihan.
• ALL Button: Routes the selected input to all outputs.
• Butang CLEAR: Clears current selection.
• PRESET RECALL/HOLD TO STORE Buttons (1-4): Recalls or stores routing presets.

4.2 Panel Belakang

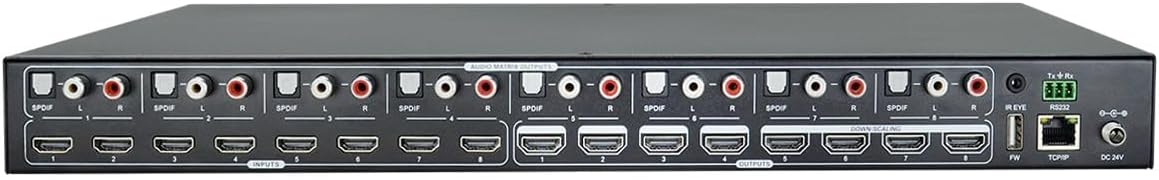

Figure 4.2: Rear Panel Layout. The rear panel includes eight HDMI inputs, eight HDMI outputs, eight SPDIF audio outputs, RS232 port, TCP/IP port, IR EYE port, and DC 24V power input.

• HDMI INPUTS (1-8): Connect your HDMI source devices (e.g., Blu-ray player, game console).
• HDMI OUTPUTS (1-8): Connect your HDMI displays (e.g., TV, projector).
• SPDIF Outputs (1-8): Digital coaxial audio outputs for each corresponding HDMI output.
• IR EYE: Connect the IR receiver extender cable.
• RS232: Serial port for computer control.
• TCP/IP: Ethernet port for network control via webGUI berasaskan.
• DC 24V: Input kuasa untuk penyesuai kuasa yang disertakan.
• EDID DIP Switches: For manual EDID configuration.

5. Persediaan

5.1 Arahan Sambungan

1. Ensure all devices (sources, displays, and the matrix switch) are powered off before making connections.
2. Connect your HDMI source devices (e.g., Blu-ray players, media streamers, game consoles) to the HDMI INPUT ports (1-8) on the rear panel of the matrix switch using high-quality HDMI cables.
3. Connect your HDMI displays (e.g., TVs, projectors) to the HDMI OUTPUT ports (1-8) on the rear panel of the matrix switch using high-quality HDMI cables.
4. If desired, connect audio receivers or sound systems to the corresponding SPDIF Outputs (1-8) using coaxial audio cables.
5. For IR remote control, connect the IR Receiver Extender Cable to the IR EYE port. Position the IR receiver in a location where it can receive signals from the remote.
6. For RS232 control, connect a computer or control system to the RS232 port using the provided RS232 cable.
7. For TCP/IP control, connect an Ethernet cable from your network router or switch to the TCP/IP port.
8. Connect the DC 24V Power Adapter to the DC 24V input port on the matrix switch, then plug the adapter into a power outlet.

5.2 Kuasa Awal Hidup

After all connections are made, power on your displays first, then your HDMI source devices, and finally the Monoprice Blackbird 4K 8x8 HDMI Matrix Switch. The front panel LCD will display the current routing status.

6. Operasi

6.1 Front Panel Control

To route an input to an output using the front panel:

1. Tekan yang dikehendaki OUTPUT button (1-8) for the display you wish to control.
2. Tekan yang dikehendaki INPUT button (1-8) for the source you want to display.
3. Tekan ke MASUK button to confirm the routing.

To route one input to all outputs, select the desired INPUT butang, kemudian tekan SEMUA button, and finally MASUK.

6.2 Kawalan Jauh IR

The included IR remote control mirrors the functionality of the front panel buttons. Point the remote towards the IR receiver on the front panel or the connected IR Eye extender to control the matrix switch.

6.3 Kawalan RS232

The RS232 port allows for control via a computer or third-party control system. Refer to the detailed RS232 command set documentation (typically available on the Monoprice product page) for specific commands and protocols.

6.4 TCP/IP (Web-based GUI) Control

The matrix switch features a built-in web server for control via a web browser. Connect the switch to your network via the TCP/IP port. Obtain the IP address of the device (refer to the network settings or use a network scanner if DHCP is enabled). Enter the IP address into your web browser to access the GUI and manage routing, EDID, and other settings.

6.5 Pengurusan EDID

The matrix switch supports EDID management to ensure compatibility between sources and displays. DIP switches on the rear panel allow for manual configuration of EDID settings. Consult the full manual or product page for specific EDID modes and their corresponding DIP switch settings.

7. Penyelesaian masalah

8. Spesifikasi

9. Penyelenggaraan

The Monoprice Blackbird 4K 8x8 HDMI Matrix Switch requires minimal maintenance. To ensure optimal performance and longevity:

• Pembersihan: Use a soft, dry cloth to clean the exterior of the unit. Do not use liquid cleaners or aerosol cleaners.
• Pengudaraan: Pastikan bukaan pengudaraan tidak tersumbat. Jangan letakkan unit di ruang tertutup tanpa aliran udara yang mencukupi.
• Storan: Jika menyimpan unit untuk tempoh yang lama, putuskan sambungannya daripada kuasa dan simpan di tempat yang sejuk dan kering jauh daripada cahaya matahari langsung dan suhu yang melampau.

10. Waranti dan Sokongan

Monoprice stands behind its products. For warranty information, technical support, or customer service inquiries, please visit the official Monoprice website or contact their customer support team directly. Please have your product model number (124180) and purchase details ready when contacting support.

For the most up-to-date information and resources, please visit: www.monoprice.com
