GoolRC T32 RC Drone Instruction Manual

1. Pengenalan

Terima kasih kerana membeliasing the GoolRC T32 RC Drone. This foldable quadcopter features a 720P HD camera, Headless Mode, and 2.4GHz 4-channel control with 6-axis stabilization, making it suitable for beginners. This manual provides essential information for safe operation, setup, maintenance, and troubleshooting.

Ciri-ciri Utama:

• Foldable arm design for portability.
• WiFi FPV transmission system with 720P HD camera for photos and videos.
• 2.4G 4CH transmitter and App control with G-sensor function.
• 6-axis flight control system for stable flight.
• Advanced barometer for automatic altitude hold, one-key takeoff/landing.
• Headless mode and one-key return function.
• High/low speed modes and 3D flip function.

2. Garis Panduan Keselamatan

Please read and adhere to the following safety instructions to prevent injury or damage to the product.

• The aircraft is not resistant to crashes. Exercise caution during every flight.
• Beginners are advised to practice flying in open, grassy areas to minimize damage from potential crashes.
• If the aircraft is falling, immediately push the throttle stick to its lowest position to prevent motor blockage and potential burnout.
• The mobile phone screen displays real-time imaging scenarios. The phone itself is not included with the product.
• Carefully read all instructions before use. If you are a beginner, seek assistance from an experienced adult.
• This quadcopter is equipped with coreless motors. Continuous operation with different batteries without allowing the motors to cool down is not recommended.

Langkah Berjaga-jaga Keselamatan Bateri:

• Jangan cas bateri secara berlebihan atau nyahcas bateri secara berlebihan.
• Jangan dedahkan bateri kepada suhu tinggi.
• Jangan buang bateri ke dalam api.
• Do not immerse batteries in water.

3. Produk Lebihview

The GoolRC T32 drone is designed for ease of use and portability. It features a compact, foldable design and an integrated camera for aerial photography and video.

Komponen:

• GoolRC T32 Quadcopter
• Kawalan Jauh 2.4GHz
• 3.7V 850mAh LiPo Battery (for drone)
• Kabel Pengecas USB
• Baling-baling ganti
• Manual Pengguna

Dimensi Dron:

• Terbuka: 260 x 260 x 100mm
• Dilipat: 130 x 100 x 75mm
• Berat: 111g

Image: The GoolRC T32 drone showcasing its foldable design and dimensions in both folded and unfolded configurations.

4. Persediaan

4.1 Mengecas Bateri Dron

1. Remove the 3.7V 850mAh LiPo battery from the drone.
2. Sambungkan bateri ke kabel pengecas USB yang disediakan.
3. Pasangkan kabel pengecas USB ke sumber kuasa USB yang sesuai (cth., port USB komputer, penyesuai dinding USB).
4. Charging time is approximately 50 minutes. The indicator light on the charger will typically change or turn off once charging is complete.
5. Once charged, carefully reinsert the battery into the drone, ensuring a secure connection.

4.2 Memasang Bateri Alat Kawalan Jauh

Open the battery compartment on the back of the remote control and insert the required batteries (typically AA, not included), observing correct polarity. Close the compartment securely.

4.3 Memasangkan Dron dan Alat Kawalan Jauh

1. Letakkan drone di permukaan rata dan rata.
2. Turn on the drone. The indicator lights will flash.
3. Hidupkan alat kawalan jauh.
4. Push the left throttle stick (usually the left joystick) fully up, then fully down. The drone's indicator lights will stop flashing and remain solid, indicating successful pairing.

4.4 App Installation and Connection (Optional)

For FPV flight and app control, download the designated GoolRC T32 app from your mobile device's app store. Connect your phone to the drone's Wi-Fi network (usually named GoolRC-T32-XXXX) and then open the app. Note: Some users have reported issues with app functionality or availability.

Image: The GoolRC T32 drone highlighting its WiFi FPV capability and 720P HD camera for real-time video transmission to a mobile device.

5. Arahan Operasi

5.1 Kawalan Asas Penerbangan

• Kayu Joy Kiri (Pendikit/Kuap):
  • Up/Down: Controls altitude (throttle).
  • Left/Right: Controls rotation (yaw).
• Kayu Bedik Kanan (Pitch/Roll):
  • Up/Down: Controls forward/backward movement (pitch).
  • Left/Right: Controls sideward movement (roll).

5.2 Berlepas dan Mendarat Satu Kunci

After pairing, press the One-Key Takeoff/Landing button (refer to your remote control diagram for exact location). The drone will automatically ascend to a certain height or descend and land gently.

5.3 Altitude Hold Function

The built-in barometer allows the drone to maintain a stable altitude automatically. Once the desired height is reached, release the throttle stick, and the drone will hover at that position, providing a stable platform for aerial imaging.

Image: The GoolRC T32 drone demonstrating its altitude hold feature, maintaining a consistent height for stable flight and photography.

5.4 Mod Tanpa Kepala

Activate Headless Mode by pressing the dedicated button on the remote. In this mode, the drone's orientation is irrelevant; it will fly according to the direction of the remote control's right joystick relative to the pilot, simplifying control.

Image: Diagram showing the GoolRC T32 drone operating in Headless Mode, where its flight direction is relative to the pilot's joystick input, regardless of the drone's front.

5.5 One-Key Return

Press the One-Key Return button, and the drone will attempt to fly back towards the remote control's last recorded position. Ensure a clear flight path for this function.

Image: The GoolRC T32 drone initiating a One-Key Return, flying back towards the remote control's position.

5.6 High/Low Speed Switch

The drone offers high and low-speed modes. Use the low-speed mode for indoor flying or for beginners, and switch to high-speed mode for outdoor flights and more dynamic maneuvers.

Image: Visual representation of the GoolRC T32 drone's high/low speed switch function, allowing pilots to select between different flight speeds.

5.7 3D Flips

To perform a 3D flip, ensure the drone is at a sufficient altitude (at least 3 meters). Press the 3D Flip button, then quickly push the right joystick in the desired flip direction (forward, backward, left, or right). The drone will perform a 360-degree flip.

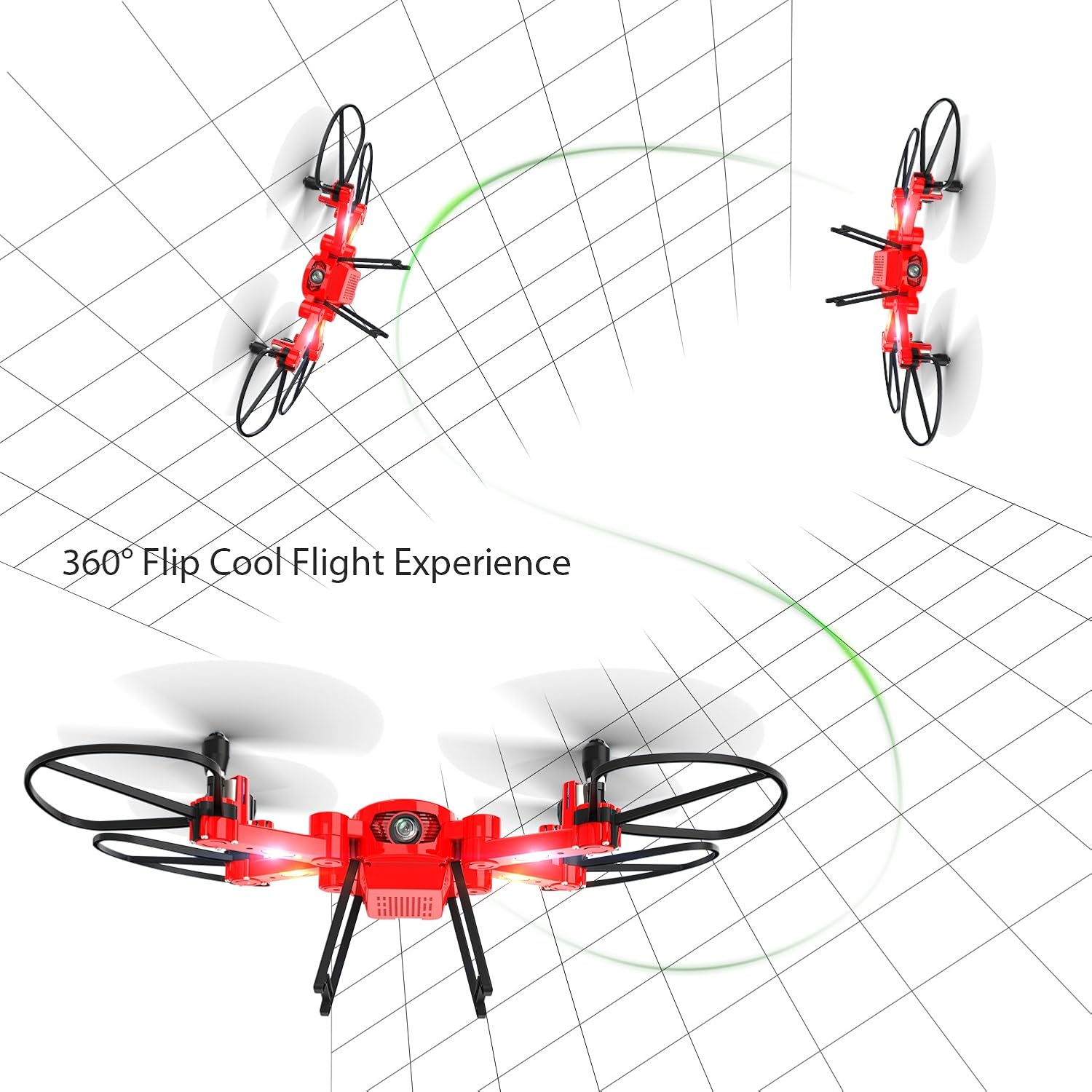

Image: The GoolRC T32 drone executing a 360-degree flip, demonstrating its acrobatic capabilities.

5.8 App Control with Gravity Sensor

When using the mobile app, you can control the drone by tilting your phone, utilizing its built-in gravity sensor. This provides an intuitive alternative control method.

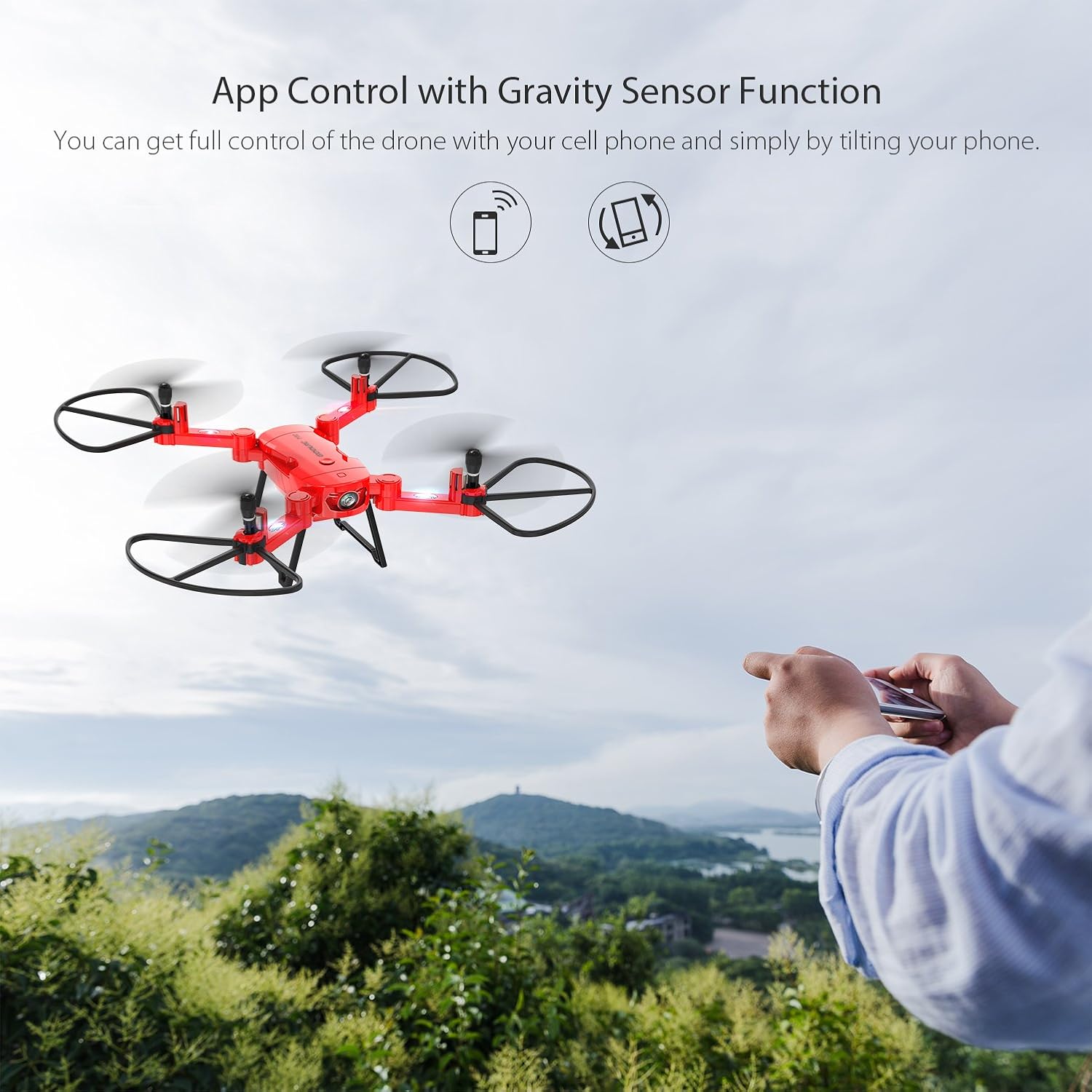

Image: A person controlling the GoolRC T32 drone using a smartphone app with gravity sensor functionality, tilting the phone to direct the drone.

6. Penyelenggaraan

6.1 Pembersihan

Regularly clean the drone with a soft, dry cloth. Avoid using water or solvents that could damage electronic components.

6.2 Pemeriksaan Baling-Baling

Periodically check propellers for damage (cracks, bends). Replace any damaged propellers immediately using the provided spare parts to ensure safe and stable flight.

6.3 Penjagaan dan Penyimpanan Bateri

Follow the battery safety precautions outlined in Section 2. When storing the drone for extended periods, ensure the battery is partially charged (around 50%) and stored in a cool, dry place away from direct sunlight and extreme temperatures. Remove batteries from the remote control if not in use for a long time.

7. Penyelesaian masalah

If you encounter issues with your GoolRC T32 drone, refer to the following common problems and solutions:

8. Spesifikasi

9. Waranti dan Sokongan

For warranty information and customer support, please refer to the documentation provided at the time of purchase or contact your retailer. Specific warranty terms may vary by region and seller.
