1. Pengenalan
Thank you for choosing the Beko DTC36610W Countertop Dishwasher. This manual provides important information regarding the installation, operation, and maintenance of your appliance. Please read this manual thoroughly before using the dishwasher to ensure safe and efficient operation.
1.1. Produk Lebihview
The Beko DTC36610W is a compact countertop dishwasher designed for convenience and efficiency. It features a 6-place setting capacity, multiple wash programs, and a quiet operation level of 49 dB. Its compact design makes it suitable for smaller kitchens or as an additional dishwasher.

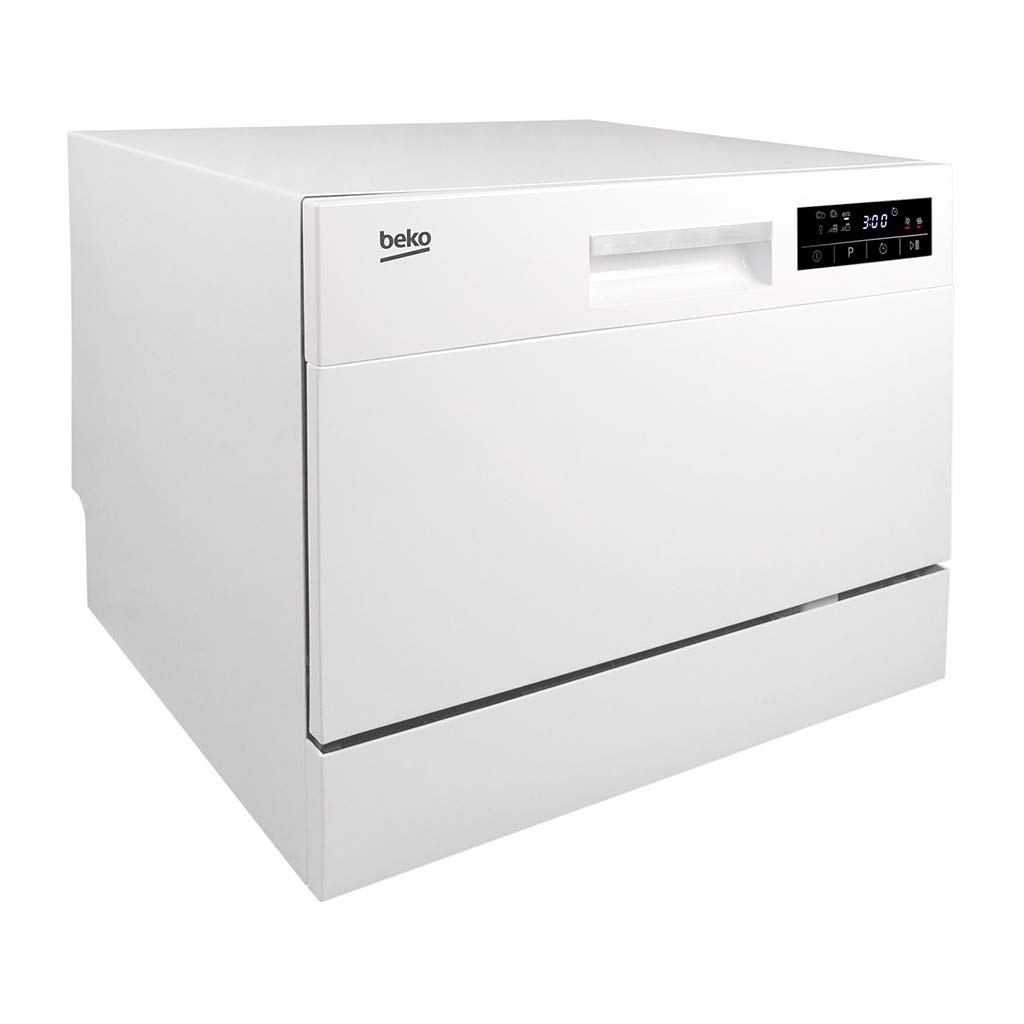

Rajah 1: Depan view of the Beko DTC36610W Countertop Dishwasher. This image shows the compact design and white finish of the appliance.
1.2. Maklumat Keselamatan
- Sentiasa putuskan sambungan perkakas daripada bekalan kuasa sebelum membersihkan atau melakukan penyelenggaraan.
- Jangan kendalikan mesin basuh pinggan mangkuk jika ia rosak atau tidak berfungsi.
- Jauhkan detergen dan bantuan bilas daripada capaian kanak-kanak.
- Pastikan pembumian yang betul untuk mengelakkan kejutan elektrik.
- Do not open the door during operation, especially during the heating cycle, to avoid hot water or steam exposure.
- Perkakas ini bertujuan untuk kegunaan isi rumah sahaja.
2. Persediaan
2.1. Membongkar
Carefully remove all packaging materials. Inspect the dishwasher for any damage that may have occurred during transit. Report any damage to your retailer immediately. Ensure all accessories, such as the cutlery basket and hoses, are present.
2.2. Pemasangan
- penempatan: Place the dishwasher on a stable, level countertop near a water supply, drain, and electrical outlet. Ensure there is adequate space for door opening.
- Sambungan Air: Sambungkan hos salur masuk air ke pili air sejuk dengan benang 3/4 inci. Pastikan sambungan rapat untuk mengelakkan kebocoran.
- Sambungan Saliran: Connect the drain hose to a suitable drain pipe or sink. Ensure the drain hose is not kinked and is positioned to allow proper drainage.
- Sambungan Elektrik: Plug the dishwasher into a grounded 240V electrical outlet. Do not use extension cords or adapters.
2.3. Penggunaan Pertama
Before the first wash cycle, it is recommended to run an empty cycle with a small amount of detergent to clean the interior of the appliance.
3. Arahan Operasi
3.1. Panel Kawalan
The Beko DTC36610W features a touch control panel. Indicators typically include program selection, start/pause, and various status lights (e.g., rinse aid, salt, program progress).
3.2. Memuatkan Pinggan
- Kikis zarah makanan yang besar dari pinggan sebelum dimuatkan.
- Place dishes securely in the basket, ensuring they do not block the spray arms.
- Load larger items towards the back and sides, and smaller items in the cutlery basket.
- Ensure all items are dishwasher-safe.
3.3. Menambah Detergen dan Bantuan Bilas
- Detergen: Add the appropriate amount of dishwasher detergent to the dispenser. Refer to the detergent manufacturer's instructions.
- Bantuan bilas: Fill the rinse aid dispenser when the indicator light illuminates. Rinse aid helps with drying and prevents spots.
3.4. Memilih dan Memulakan Program Pencucian
- Tutup pintu mesin basuh pinggan mangkuk.
- Select the desired wash program using the program selection button. The dishwasher offers 3 cycles/options.
- Tekan butang Mula/Jeda untuk memulakan kitaran.
- Untuk menjeda kitaran, tekan butang Mula/Jeda. Untuk menyambung semula, tekan sekali lagi.
4. Penyelenggaraan
Penyelenggaraan tetap memastikan prestasi optimum dan memanjangkan jangka hayat mesin basuh pinggan mangkuk anda.
4.1. Membersihkan Penapis
- Sistem penapis perlu diperiksa dan dibersihkan secara berkala (contohnya, setiap minggu).
- Twist the cylindrical filter counter-clockwise and remove it.
- Tanggalkan penapis halus dan penapis kasar.
- Bilas semua penapis di bawah air yang mengalir untuk membuang serpihan makanan.
- Reassemble the filters in reverse order, ensuring they are securely in place.
4.2. Membersihkan Lengan Semburan
Check the spray arm nozzles for blockages. If necessary, remove the spray arms and clean the holes with a thin object like a toothpick. Reattach securely.
4.3. Pembersihan Luaran dan Dalaman
- Luaran: Lap permukaan luar dengan iklanamp kain dan detergen lembut. Elakkan pembersih yang kasar.
- Dalaman: Jalankan kitaran pembersihan mesin basuh pinggan mangkuk secara berkala dengan pembersih mesin basuh pinggan mangkuk khusus untuk menghilangkan gris dan kerak kapur.
4.4. Winterization (for non-heated environments)
If the dishwasher is stored in an unheated area during winter, drain all water from the appliance to prevent freezing and damage. Disconnect water supply and drain hoses.
5. Penyelesaian masalah
Sebelum menghubungi perkhidmatan, semulaview isu biasa berikut dan penyelesaiannya:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Mesin pencuci pinggan tidak bermula | Kord kuasa tidak dipasang; pintu tidak ditutup dengan betul; program tidak dipilih. | Periksa sambungan kuasa; pastikan pintu berkunci; pilih program dan tekan Mula. |
| Hidangan tidak bersih | Pemuatan yang tidak betul; lengan semburan tersumbat; detergen yang tidak mencukupi; program yang tidak betul. | Reload dishes correctly; clean spray arm nozzles; use adequate detergent; select a more intensive program. |
| Air tidak mengalir | Penapis tersumbat; hos saliran terpesong; masalah pam saliran. | Clean the filter system; straighten the drain hose; contact service if pump issue persists. |
| Tompok putih di pinggan | Lack of rinse aid; hard water. | Refill rinse aid dispenser; consider using a water softener or adjusting rinse aid dosage. |
6. Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | DTC36610W |
| Jenama | Beko |
| Jenis Pemasangan | Atas meja |
| Tetapan Tempat | 6 |
| Dimensi (L x W x H) | 55 x 50 x 43.8 cm (21.65 x 19.69 x 17.24 inci) |
| Berat badan | 21.5 kg (47.4 lbs) |
| Voltage | 240 Volt |
| Tahap Kebisingan | 49 Desibel |
| Jenis Kawalan | Sentuh |
| bahan | Stainless Steel (interior), White (exterior) |
| Ciri Khas | Padat |
| Bilangan Kitaran | 3 |
7. Waranti dan Sokongan
Specific warranty information for the Beko DTC36610W is not provided in this document. Please refer to the warranty card included with your product or contact Beko customer support for details regarding warranty coverage and service. For technical assistance or spare parts, please contact your local Beko service center.
Nota: Ketersediaan maklumat alat ganti tidak disediakan dalam data produk.
