ROOFULL External CD DVD Drive User Manual

pengenalan

This manual provides comprehensive instructions for the setup, operation, and maintenance of your ROOFULL External CD DVD Drive. Designed for reliable performance and ease of use, this portable optical drive is compatible with a wide range of computers, offering versatile functionality for reading, writing, and ripping various disc formats.

Image: The ROOFULL External CD DVD Drive, neatly stored within its protective carrying case, alongside the included USB 3.0 to USB-C adapter.

Apa yang ada dalam Kotak

• External CD/DVD-RW Drive Player
• USB 3.0 to USB-C Adapter
• Sarung Tangan Hitam

Spesifikasi

Imej: Terperinci view of the drive highlighting its compact dimensions, integrated USB 3.0 data cable (7.87 inches / 20 cm), non-slip rubber pads, eject button, and forced ejection pinhole.

Persediaan

Menyambungkan Pemacu

1. Locate an available USB port on your computer. The drive features a genuine USB 3.0 solution for high-speed data transfer.
2. For computers with standard USB-A ports, plug the drive's USB 3.0 cable directly into the port.
3. For modern laptops with only USB-C ports, use the included USB 3.0 to USB-C adapter. Connect the drive's USB-A plug to the adapter, then plug the adapter into your computer's USB-C port.
4. For desktop PCs, if the drive does not function correctly, connect it to a rear USB port for a more stable power supply.
5. For best performance, ensure your laptop or MacBook is connected to external power when using the drive.

The drive is plug-and-play; no additional driver installation is typically required. It should be automatically recognized by your operating system.

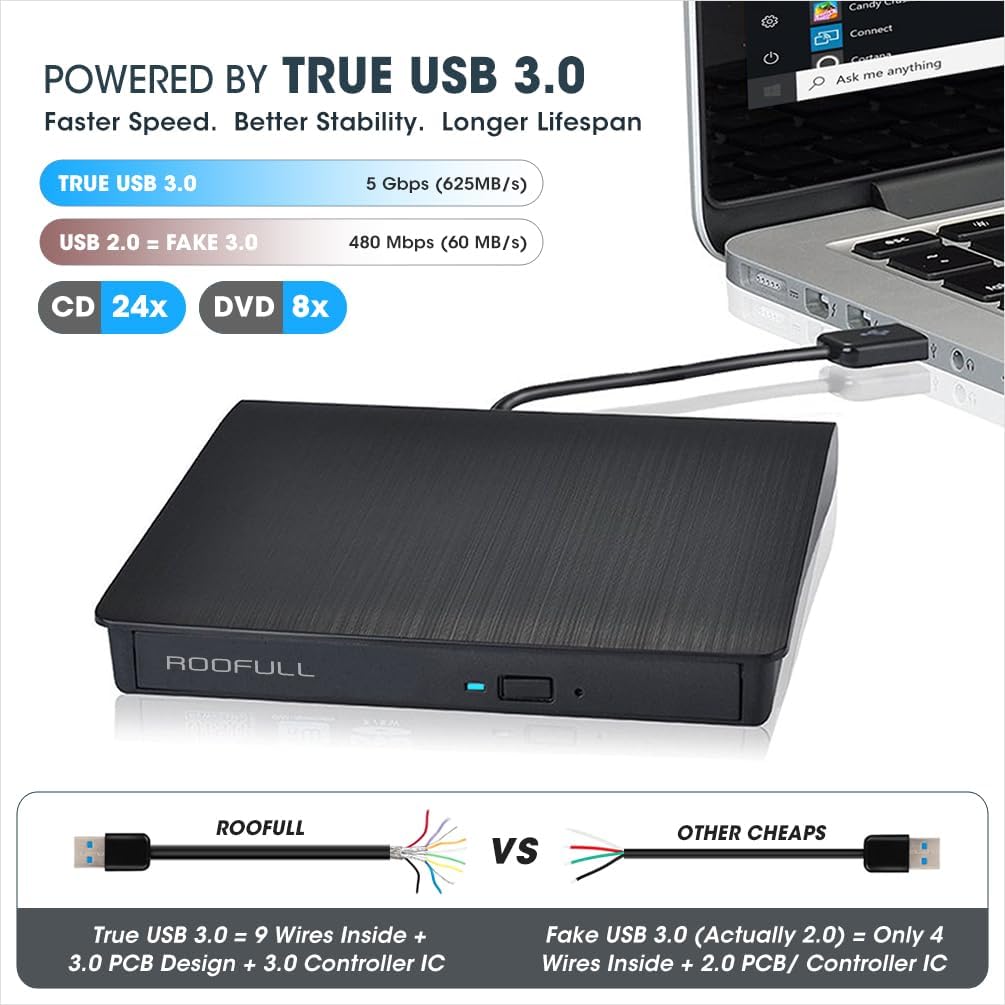

Image: The ROOFULL drive connected to a laptop, illustrating the true USB 3.0 connection for faster and more stable data transfer compared to older USB 2.0 connections.

Image: The external CD/DVD drive connected to a MacBook, with its protective carrying case positioned next to it, demonstrating its portability and ease of use with modern laptops.

Arahan Operasi

Disc Insertion and Ejection

1. Untuk membuka dulang cakera, tekan butang lenting yang terletak di bahagian hadapan pemacu.
2. Carefully place your CD or DVD onto the tray, ensuring it is centered on the spindle.
3. Tolak dulang kembali ke dalam pemacu dengan lembut sehingga ia berbunyi klik tertutup.
4. On Mac systems, once a disc is successfully inserted and read, a drive icon will appear on the desktop.
5. To eject a disc on Mac, right-click the desktop icon of the drive and select "Eject," or go to "File" > "Eject" from the menu in an active application. Due to macOS limitations, the physical eject button on the drive may not function after a disc has been played or burned.

Playing and Burning Discs

This drive functions as a reader, burner, writer, rewriter, recorder, and ripper. While the drive is plug-and-play, you will need compatible software to play or burn discs.

• Bermain Media: Use software like 5KPlayer or VLC Media Player to play movies or music from discs.
• Burning Data: Use burning software to write videos, music, photos, or other data to blank CDs/DVDs.
• Ripping Content: Rip audio CDs or video DVDs to digital files (e.g., MP3, WMA, MP4) for storage on your computer.
• Kegunaan Lain: View photo discs, install software or games, and back up important data.

Image: The drive with an open tray for disc insertion, illustrating its capabilities to read CDs/DVDs, burn CDs/DVDs, and rip digital content. It also highlights USB 3.0 and USB-C adapter compatibility.

Keserasian

Supported Systems and Disc Formats

• Sistem Operasi: Windows (11/10/8.1/7/Vista/XP), Linux, and macOS 10.16 and above.
• Computer Types: Laptops, desktops, and all-in-one computers from major brands like HP, Dell, Lenovo, ASUS, and Apple.
• Disc Formats: CD-ROM, CD-R/RW, CD+R/RW, DVD-ROM, DVD±R/RW, DVD-RAM, DVD±R DL, and VCD.

ketidakserasian

This drive does bukan support the following:

• Blu-ray or 4K discs.
• Chromebooks.
• Phones, iPads, or tablets.
• TVs or cars.
• Gaming consoles (PS4/PS5/Xbox).
• Projectors.
• Some Surface models.

Image: A visual chart detailing the compatibility of the drive with Windows, Mac, and Linux operating systems, and explicitly listing incompatible devices such as Chromebooks, iPads, and Blu-ray discs.

DVD Region Codes

DVDs will only play on DVD drives that use the same region country codes. For example, if you live in the U.S or CA, you are in Region 1. You need to set the DVD drive Region code to #1 to play Region 1 DVDs. CDs are not region coded.

Each external optical drive only allows you to change the region code 4-5 times.

Image: A diagram illustrating the concept of DVD region codes and their importance for disc playback, along with a list of regions and their corresponding countries.

Penyelenggaraan

Penjagaan dan Pembersihan Am

• Keep the drive in its protective carrying case when not in use to shield it from dust, water, and accidental drops.
• Clean the exterior of the drive with a soft, dry cloth. Avoid using harsh chemicals or abrasive materials.
• Jangan cuba membuka pemacu casing or clean internal components, as this may void the warranty and damage the device.
• Handle discs by their edges to prevent fingerprints and scratches, which can affect playback and burning quality.
• Store discs in their cases or sleeves to protect them from dust and damage.

Menyelesaikan masalah

Isu dan Penyelesaian Biasa

• Drive not recognized:
  • Ensure the USB cable is securely connected to both the drive and your computer.
  • Try connecting to a different USB port. For desktop PCs, use a rear USB port for better power supply.
  • If using a USB hub, ensure it is a self-powered hub.
  • Mulakan semula komputer anda.
• Disc not reading/playing:
  • Pastikan cakera bersih dan bebas daripada calar atau calar.
  • Verify that the disc format is supported by the drive (e.g., not Blu-ray or 4K).
  • Confirm you have compatible playback software installed (e.g., VLC Media Player, 5KPlayer).
  • Check DVD region code compatibility if playing a DVD.
• Disc not burning/writing:
  • Ensure you are using a blank, writable CD-R/RW or DVD±R/RW disc.
  • Verify that you have appropriate burning software installed.
  • Check the disc for defects or damage.
  • Ensure your computer has sufficient free disk space for the burning process.
• Mac eject button not working:
  • On macOS, after playing or burning a disc, the physical eject button on the drive may not work. To eject, right-click the drive icon on your desktop and select "Eject," or use the "File" > "Eject" option in relevant applications.
• Prestasi perlahan:
  • Ensure you are connected to a USB 3.0 port for optimal speed.
  • Connect your laptop/MacBook to external power for stable operation.

Waranti dan Sokongan

ROOFULL provides comprehensive after-sales support for this product, including a warranty of up to 2 years. If you encounter any issues or have questions regarding your external CD DVD drive, please do not hesitate to contact our technical support team.

For further assistance, you may also refer to the official User Manual (PDF) available online: Muat turun Manual Pengguna (PDF)
