pengenalan
This instruction manual provides essential information for the safe and efficient installation, operation, and maintenance of your hansgrohe Metropol Basin Tap 110 with Lever Handle and Pop-Up Waste. Please read this manual thoroughly before beginning installation or use, and retain it for future reference.
Maklumat Keselamatan
- Pastikan semua talian bekalan air dimatikan sebelum memulakan pemasangan.
- Pakai peralatan pelindung diri yang sesuai, seperti cermin mata keselamatan dan sarung tangan, semasa pemasangan.
- The operating pressure for this tap is a minimum of 1 bar and a maximum of 10 bar. Do not exceed these limits.
- Lindungi produk daripada fros.
- Pemasangan hendaklah dilakukan oleh profesional yang berkelayakan jika anda tidak pasti tentang sebarang langkah.
Kandungan Pakej
Sahkan bahawa semua komponen hadir sebelum memulakan pemasangan:
- hansgrohe Metropol Basin Tap 110 (Chrome finish)
- Pemegang Tuas
- Pop-Up Waste Kit
- Perkakasan pemasangan
- Hos sambungan
Persediaan dan Pemasangan
This section outlines the general steps for installing your basin tap. Refer to the technical drawing for specific dimensions and connection details.
- Sediakan Kawasan Pemasangan: Pastikan basin or countertop has a single tap hole with a diameter suitable for the tap's base (typically Ø 32mm as indicated in the technical drawing). The maximum deck thickness should not exceed 40mm.
- Connect Supply Hoses: Attach the hot and cold water supply hoses to the tap body. Ensure a secure, watertight connection.
- Pasangkan Paip: Insert the tap into the prepared hole. Secure it from underneath the basin/countertop using the provided mounting hardware (washer, nut). Tighten firmly but do not overtighten.
- Sambungkan Bekalan Air: Connect the supply hoses to your hot and cold water supply lines (G 3/8 connections). Use appropriate sealing materials as required.
- Install Pop-Up Waste: Follow the instructions provided with the pop-up waste kit to install it into the basin drain hole. Connect the pop-up rod to the tap's lever mechanism.
- Ujian untuk Kebocoran: Slowly turn on the main water supply. Check all connections for leaks. Operate the tap and pop-up waste to ensure proper function.
Arahan Operasi
Your hansgrohe Metropol Basin Tap 110 is designed for ease of use and water efficiency.
- Pengaliran Air dan Kawalan Suhu: Pemegang tuil tunggal mengawal kedua-dua aliran air dan suhu.
- Lift the lever to increase water flow.
- Gerakkan tuil ke kiri untuk air panas dan kanan untuk air sejuk.
- The tap delivers a normal spray at a flow rate of 5 liters per minute at 3 bar pressure, optimizing water usage without compromising comfort.
- Pop-Up Waste Operation: The integrated pop-up waste is controlled by a small rod located at the rear of the tap.
- Pull the rod up to close the basin longkang.
- Push the rod down to open the basin longkang.
Video Pengendalian Produk
Video 1: This video demonstrates the operation of hansgrohe plumbing fixtures, including the Metropol 110 basin tap. It shows how to use the lever handle to control water flow and temperature, highlighting the smooth functionality and design.
Penyelenggaraan
Regular cleaning and maintenance will ensure the longevity and optimal performance of your hansgrohe tap.
- Membersihkan Permukaan: Clean the chrome surface with a soft cloth and a mild, non-abrasive cleaning agent. Avoid using cleaners containing alcohol, hydrochloric acid, formic acid, acetic acid, or phosphoric acid, as these can damage the finish. Rinse thoroughly with clean water and dry with a soft cloth.

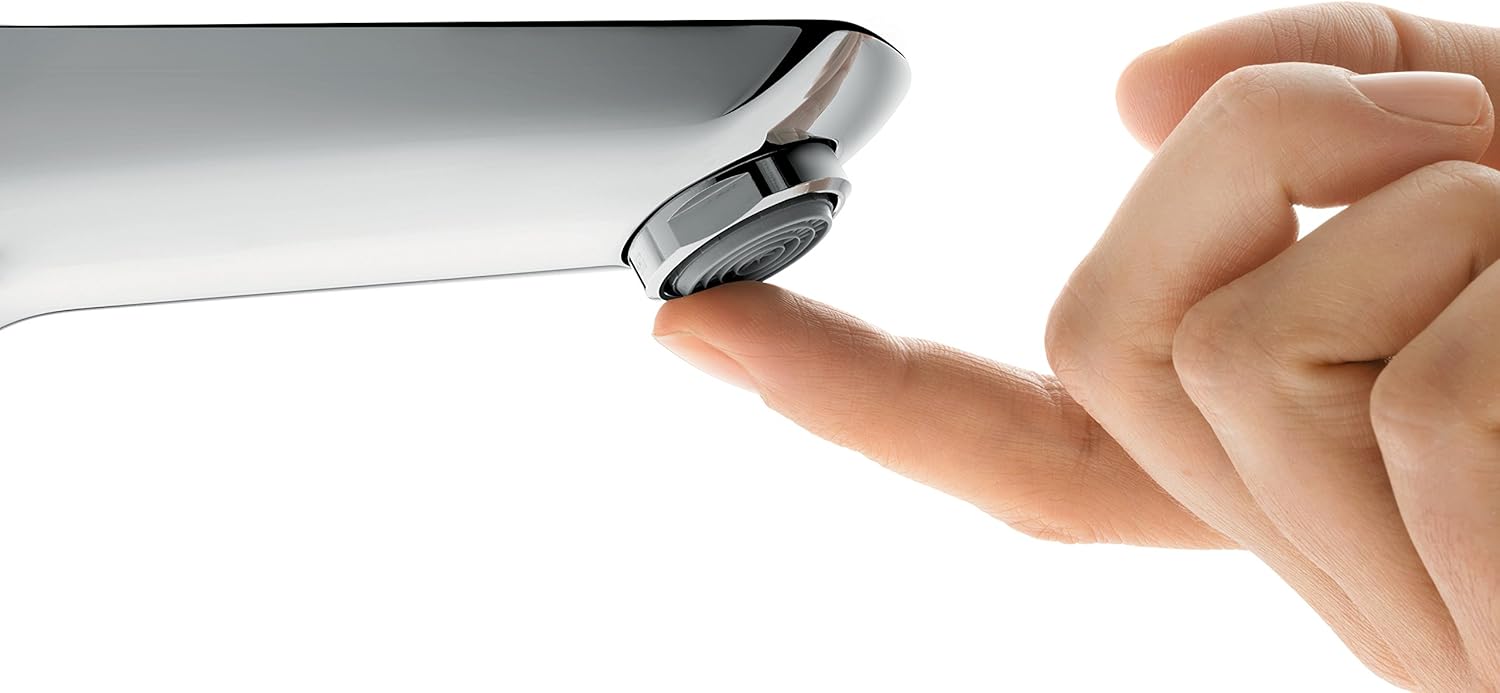

- Teknologi QuickClean: Your tap features hansgrohe QuickClean technology for easy limescale removal. Simply rub your fingers over the silicone nozzles on the aerator to dislodge any limescale deposits. This should be done regularly to maintain optimal spray performance.
Menyelesaikan masalah
If you encounter issues with your tap, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Aliran air rendah | Clogged aerator due to limescale or debris. | Clean the aerator using QuickClean technology (rub silicone nozzles) or unscrew and clean thoroughly. |
| Kebocoran pada sambungan | Sambungan longgar atau pengedap haus. | Check and tighten all water supply connections. Replace seals if necessary. Ensure proper use of sealing tape/compound during installation. |
| Suhu air tidak konsisten | Issues with water heater or supply pressure imbalance. | Verify water heater settings. Check hot and cold water supply pressures. If problem persists, consult a plumber. |
| Pop-up waste not functioning | Rod disconnected or mechanism obstructed. | Check the connection of the pop-up rod to the drain stopper. Clear any obstructions in the drain mechanism. |
If the problem persists after attempting these solutions, please contact hansgrohe customer support or a qualified plumber.
Spesifikasi
- Nama Model: Metropol
- Nombor Model Item: 32506000
- Jenama: hansgrohe
- Jenis Selesai: Chrome
- Bahan: Metal (Handle Material: Ceramic)
- Jenis Pemasangan: Gunung Dek
- Bilangan Pemegang: 1 (Lever Handle)
- Kiraan Lubang: 1
- Spout Height (from deck to aerator): 117 mm
- Jangkauan muncung: 135 mm
- Kadar Aliran Maksimum: 5 Liter Seminit (pada 3 bar)
- Tekanan Operasi: Minimum 1 bar / Maks. 10 bar
- Dimensi Produk: 1.89 x 6.26 x 7.24 inci (lebih kurang 48 x 159 x 184 mm)
- Berat Barang: 4.83 paun (lebih kurang 2.19 kg)
- Ciri Khas: QuickClean technology, Comfort Zone 110
Waranti dan Sokongan
Hansgrohe menyokong kualiti produknya.
- Waranti Produk: This hansgrohe Metropol Basin Tap 110 didatangkan dengan Waranti pengilang selama 5 tahun, meliputi kecacatan bahan dan mutu kerja.
- Ketersediaan Alat Ganti: hansgrohe guarantees the availability of spare parts for 15 tahun after the product has been discontinued.
For warranty claims, technical assistance, or further support, please contact hansgrohe customer service through their official website or the retailer where the product was purchased. Please have your model number (32506000) and proof of purchase ready.
