Nice WalkyKit WL1024 Swing Gate Opener User Manual

pengenalan

This manual provides essential information for the safe and efficient installation, operation, and maintenance of the FAS Nice WalkyKit WL1024 Swing Gate Opener. This solar-powered system is designed for pedestrian gates and other small residential gates, specifically suited for wood or PVC gates up to 6 ft in length.

It is crucial to read this manual completely before beginning any installation or operation procedures. Installation should be performed by a professional and experienced installer due to the advanced technology of Nice Gate Operators.

Maklumat Keselamatan

Always prioritize safety during installation, operation, and maintenance. Failure to follow safety instructions may result in serious injury or damage to property.

• Ensure all power sources are disconnected before performing any maintenance or installation.
• Keep hands, feet, and clothing clear of the gate and operating mechanism during movement.
• Jangan benarkan kanak-kanak bermain atau mengendalikan alat kawalan pembuka pintu pagar.
• Periksa pintu pagar dan pembuka secara berkala untuk tanda-tanda haus, kerosakan atau ketidaksejajaran.
• The system includes an irreversible motor and anti-shear arm with built-in mechanical stop on closure for safety. Ensure proper installation of the entire arm.
• This product is designed for swing gates up to 6 ft. Do not exceed this limit.

Kandungan Pakej

The Nice Walky-Kit WL1024 Swing Gate Opener With Solar Power Kit includes the following components:

• Nice Walky Kit 1024 (WL1024C) with built-in control board
• Penerima
• Nice ON2 Transmitter (Remote Control)
• Nice SYP Solar Panel
• Nice PSY24 24 V Battery box
• Tanda Amaran

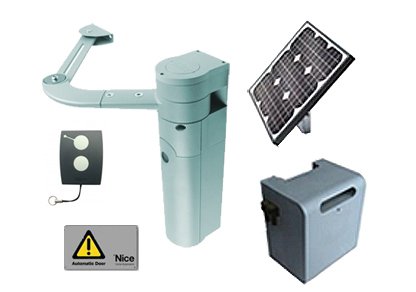

Rajah 1: Berakhirview of the Nice WalkyKit WL1024 Swing Gate Opener components. This image displays the main gate operator unit, a two-button remote control, a solar panel, a 24V battery box, and a warning sign for automatic doors.

Persediaan dan Pemasangan

The installation of the Nice WalkyKit WL1024 requires careful attention to detail and adherence to local electrical codes. It is strongly recommended that installation be carried out by a qualified professional.

Pemeriksaan Prapemasangan:

• Verify that the gate is structurally sound, moves freely, and is properly balanced.
• Ensure the gate dimensions are within the specified limits (up to 6 ft for swing gates).
• Confirm the availability of suitable mounting surfaces for the operator, solar panel, and battery box.
• Consider the path for wiring between components, especially for the solar panel and battery.

Memasang Operator:

1. Position the Walky Pedestrian Swing Gate Operator. Its ultra-compact design is ideal for pedestrian gates and recommended for small posts (width 10 cm).
2. Utilize the articulated arm for installation in specific conditions, such as in the presence of small walls or obstacles adjacent to the post.
3. Securely fasten the operator to the gate post using appropriate hardware (not included).

Sambungan Elektrik:

1. Connect the Nice SYP Solar Panel to the Nice PSY24 24 V Battery box.
2. Connect the battery box to the WL1024C control board.
3. Ensure all connections are secure and protected from environmental elements.
4. The control unit features BlueBUS technology for simplified wiring.

Pengaturcaraan Awal:

1. Refer to the detailed programming instructions for the control unit with BlueBUS technology.
2. Perform self-learning of opening and closing limit positions.
3. Program the pause time as required.
4. Configure pedestrian pass door functionality if desired.
5. Set deceleration on opening and closing for smooth operation.
6. Provision for connection of latest generation resistive sensitive edges is available for enhanced safety.

Arahan Operasi

Once installed and programmed, the Nice WalkyKit WL1024 is designed for convenient and reliable operation.

Menggunakan Pemancar:

• The Nice ON2 Transmitter is used to control the gate. Pressing a button will initiate the gate's movement (open or close).
• The gate can open or close in approximately 7 seconds under optimal installation conditions (with reduced arm and 90-degree opening).

Keluaran Manual:

In case of power failure or for manual operation, the motor can be rapidly released. Consult the specific instructions for the manual release mechanism on the operator unit.

Courtesy Light Function:

The system supports an incorporable flashing LED indicator (WLT, optional) which can function as a courtesy light.

Penyelenggaraan

Regular maintenance ensures the longevity and optimal performance of your gate opener system.

• Bulanan: Inspect the gate for any obstructions, ensure smooth movement, and check all mounting hardware for tightness.
• Suku tahunan: Clean the solar panel surface to ensure maximum charging efficiency. Check battery terminals for corrosion.
• Setiap tahun: Have a qualified technician inspect the entire system, including electrical connections, motor, and mechanical components.
• Keep the area around the gate and operator clear of debris.

Menyelesaikan masalah

This section provides solutions for common issues. For complex problems, contact a qualified technician.

The control unit features automatic fault diagnostics, which can help identify specific issues. Refer to the control unit's LED indicators or display for diagnostic codes.

Spesifikasi

Waranti dan Sokongan

For information regarding product warranty, please refer to the documentation provided with your purchase or contact the manufacturer directly. As per the product description, Nice Gate Operators are technologically advanced and require installation by a professional and experienced installer. For technical support, installation guidance, or troubleshooting beyond this manual, please contact the manufacturer, NICE, or an authorized service provider.

Manufacturer: NICE
