Manual Pengguna Hitch Treler Kelas 1 CURT 11465

1. Pengenalan

This manual provides detailed instructions for the proper installation, operation, and maintenance of your CURT 11465 Class 1 Trailer Hitch. This hitch is designed for select Subaru Impreza models, offering a 1-1/4-inch receiver for various towing applications. Please read this manual thoroughly before installation and use to ensure safe and effective operation.

Image: The CURT 11465 Class 1 Trailer Hitch, highlighting its key features such as vehicle-specific design, industry-leading dual-coat finish, standard hitch receiver, and fully tested design.

2. Maklumat Keselamatan

Always prioritize safety during installation and operation. Failure to follow these guidelines may result in property damage, serious injury, or death.

• Baca Semua Arahan: Ensure you understand all steps before beginning installation.
• Pakai Alat Pelindung: Always wear safety glasses, gloves, and other appropriate personal protective equipment.
• Sokongan Kenderaan: Never work under a vehicle supported only by a jack. Use jack stands or a vehicle lift.
• Had Berat: Do not exceed the lowest-rated towing component's weight capacity, including the hitch, vehicle, and trailer.
• Sambungan yang betul: Always ensure all connections, including safety chains, are properly secured before towing.
• Pemeriksaan Berkala: Periodically inspect the hitch for any signs of wear, damage, or corrosion.

Image: A CURT hitch being tested to SAE J684 specifications, demonstrating the rigorous safety testing process.

3. Senarai Bahagian

Verify that all components are present before beginning installation. If any parts are missing or damaged, contact CURT customer service.

• CURT 11465 Halangan Treler Kelas 1
• Mounting Hardware (bolts, washers, nuts, spacers - specific quantities will vary by vehicle fitment)
• Arahan Pemasangan (dokumen ini)

4. Arahan Pemasangan

This Class 1 hitch is designed for a factory fit on select Subaru Impreza models. Installation typically requires basic hand tools and may be easier with two people.

1. Sediakan Kenderaan: Park the vehicle on a level surface and engage the parking brake. If necessary, raise the vehicle using a lift or jack stands for better access to the undercarriage.
2. Cari Titik Pemasangan: Identify the frame mounting points on your Subaru Impreza. These are typically pre-drilled holes in the vehicle's frame.
3. Muffler Considerations: For some Subaru Impreza models, dropping the muffler may provide easier access to the mounting bolts and allow for proper torqueing. While some installations may be possible without dropping the muffler, it is generally recommended for optimal access and secure fastening.
4. Halangan Kedudukan: Carefully lift the hitch into position, aligning the mounting holes on the hitch with the frame mounting points. This step is often easier with a second person.
5. Pasang Perkakasan: Insert the provided bolts, washers, and nuts through the aligned holes. For the forward-most mounting bolts, spacers may be required. Ensure all hardware is correctly oriented.
6. Ketatkan Perkakasan: Hand-tighten all hardware first. Then, using a torque wrench, tighten all bolts to the specifications provided in your vehicle's service manual or the specific CURT installation sheet included with your hitch.
7. Semakan Akhir: Double-check all connections to ensure they are secure and that the hitch is properly aligned and stable.

Image: Precision fitting and measurement during the design and installation process.

Imej: Belakang view of a vehicle with the CURT hitch properly installed.

5. Arahan Operasi

The CURT 11465 Class 1 Trailer Hitch provides a standard 1-1/4-inch receiver for attaching various towing accessories.

• Saiz Penerima: This hitch features a 1-1/4-inch receiver opening. Ensure all accessories (ball mounts, bike racks, cargo carriers) are compatible with this size.
• Kapasiti Berat: This hitch is rated for 2,000 lbs. Gross Trailer Weight (GTW) and 200 lbs. Tongue Weight (TW). Always adhere to these limits and the lowest rating of any towing component.
• Rantai Keselamatan: Always attach safety chains from the trailer to the designated chain loops on the hitch. Cross the chains under the trailer tongue to prevent the tongue from dropping to the ground if the hitch connection fails.
• Bike Rack Compatibility: This hitch is tidak serasi with vertical hanging bike racks that require bikes to be hung or mounted vertically. It is suitable for standard and tray-style bike racks.

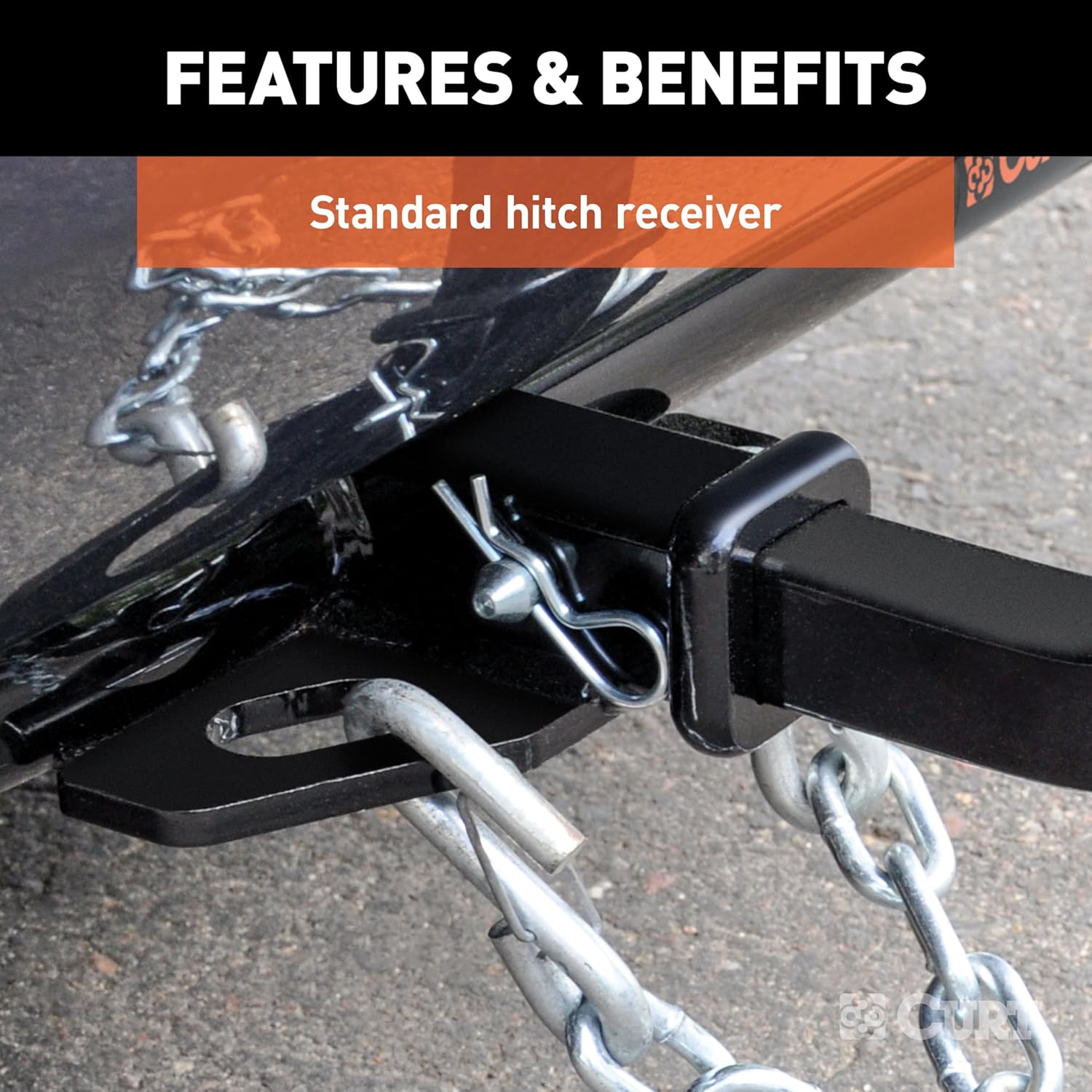

Image: A close-up of the standard hitch receiver with a ball mount and safety chains properly connected.

Image: Compatibility note illustrating that the hitch supports standard and tray-style bike racks, but not vertical hanging bike racks.

6. Penyelenggaraan

Proper maintenance will extend the life of your CURT trailer hitch.

• Pembersihan tetap: Clean the hitch periodically to remove dirt, salt, and road grime.
• Inspect Finish: The hitch features a dual-coat finish for rust and chip resistance. Inspect for any deep scratches or chips that could expose bare metal and lead to corrosion. Touch up as needed with appropriate paint.
• Periksa Pengikat: Periksa secara berkala semua bolt dan nat pelekap untuk memastikan ketat. Tukar tork mengikut spesifikasi jika perlu.
• Tiub Penerima: Keep the inside of the receiver tube clean and free of debris. Apply a light coat of grease to the inside surface to prevent rust and ease accessory insertion.

Image: The dual-coat finishing process, where hitch components are submerged in a liquid A-coat for enhanced rust and chip resistance.

7. Penyelesaian masalah

Bahagian ini menangani isu biasa yang mungkin anda hadapi.

• Kesukaran Memasukkan Aksesori: Ensure the receiver tube is clean and free of rust or debris. A light lubricant can help. Check that the accessory is indeed 1-1/4 inches.
• Retaining Pin Stuck: If a retaining pin on an accessory becomes difficult to remove due to alignment with an internal hole in the hitch, ensure the accessory is fully seated and try gently wiggling it while attempting to remove the pin. Avoid excessive force.
• Permainan/Gemeretak Berlebihan: Check that all mounting bolts are torqued to specification. Ensure the hitch pin and clip for your accessory are properly installed and snug. Anti-rattle devices can be used with some accessories.
• kakisan: If corrosion appears despite the dual-coat finish, clean the area thoroughly, remove any loose rust, and apply a rust-inhibiting primer followed by a durable topcoat.

8. Spesifikasi

Image: Visual representation of the 1-1/4 inch receiver tube size.

9. Waranti & Sokongan

CURT products are backed by a limited lifetime warranty. For specific warranty details, claims, or technical support, please refer to the official CURT website or contact their customer service department directly. Always provide your product model number (11465) when seeking support.

Maklumat Hubungan:

• Webtapak: www.curtmfg.com
• Perkhidmatan Pelanggan: Rujuk kepada webtapak untuk kaedah hubungan semasa (telefon, e-mel, sembang).

Image: CURT Genuine Parts logo, assuring product authenticity and quality.
