Produk Selesaiview
The Kolpin Stronghold Gun Boot L is designed to provide superior protection for your firearms during transport. It features a compact, low-profile design and includes a removable foam Impact liner for enhanced interior safeguarding. This gun boot is engineered for secure mounting on various ATV, SxS, or UTV vehicles using compatible Kolpin mounting brackets (sold separately).
Figure 1: Kolpin Stronghold Gun Boot (Model 20740) in its closed position.
Ciri-ciri Utama
- Compact, Low-Profile Reka bentuk: Optimized for minimal interference and sleek integration with vehicles.
- Firearm Capacity: Securely accommodates scoped rifles and shotguns up to 52 inches in length.
- Single-Handed Entry: Features an attached lid and an integrated rubber closure strap for quick and easy access.
- Superior Interior Protection: Equipped with a removable foam Impact liner to cushion and protect your firearm.
- Integrated Carrying Handle and Feet: Designed for convenient portability and stable placement when not mounted.
- Dimensi Dalaman: Measures 52" L x 4-3/4" W x 9-1/4" H, providing ample space for various firearms.
- Keserasian Pemasangan: Can be mounted to various ATV or UTV vehicles using specific Kolpin Gun Boot mounts (models 20710, 30810, 30815, 20000, 20035, 20350, and 20351), which are sold separately.
- Pembinaan Tahan Lama: Made from robust Kolpin Stronghold Gun Boot material for long-lasting performance.
Kandungan Pakej
Upon opening your Kolpin Stronghold Gun Boot package, please verify that all components are present and undamaged.
- 1 x Kolpin Stronghold Gun Boot (Model 20740)
- 1 x Removable Foam Impact Liner
Note: Mounting brackets for vehicle attachment are sold separately and are not included in this package.
Persediaan
1. Installing the Foam Impact Liner
The removable foam Impact liner provides crucial protection for your firearm. Ensure it is properly inserted before use.
- Open the Kolpin Stronghold Gun Boot by releasing the integrated rubber closure strap.
- Carefully slide the foam Impact liner into the main compartment of the gun boot. Ensure it fits snugly against all interior surfaces.
- Verify that the liner is not creased or folded, as this could compromise its protective capabilities.
Figure 2: The removable foam Impact liner, designed for superior interior protection.
2. Mounting to a Vehicle (Mounts Sold Separately)
The Kolpin Stronghold Gun Boot is designed to integrate with various Kolpin mounting systems for ATVs, SxSs, and UTVs. Refer to the instruction manual provided with your specific Kolpin mounting bracket for detailed installation steps. Compatible mounts include models 20710, 30810, 30815, 20000, 20035, 20350, and 20351.
Gambar 3: Cthample of the Kolpin Stronghold Gun Boot securely mounted on a UTV using a compatible Kolpin mounting system.
Figure 4: Another perspective showing the gun boot mounted, highlighting its low-profile reka bentuk.
Arahan Operasi
1. Opening the Gun Boot
To open the gun boot, locate the integrated rubber closure strap. Unlatch the strap from its securing point. The lid is attached and will swing open, providing access to the interior compartment.
Figure 5: The Kolpin Stronghold Gun Boot with its lid open, ready for firearm insertion or removal.
2. Inserting and Removing a Firearm
Always ensure the firearm is unloaded and the safety is engaged before placing it into or removing it from the gun boot.
- With the gun boot open, carefully slide your scoped rifle or shotgun into the foam-lined compartment. Ensure the firearm is positioned to fit within the internal dimensions (52" L x 4-3/4" W x 9-1/4" H).
- Gently push the firearm fully into the boot until it rests securely within the foam liner.
- To remove, simply pull the firearm out of the boot.

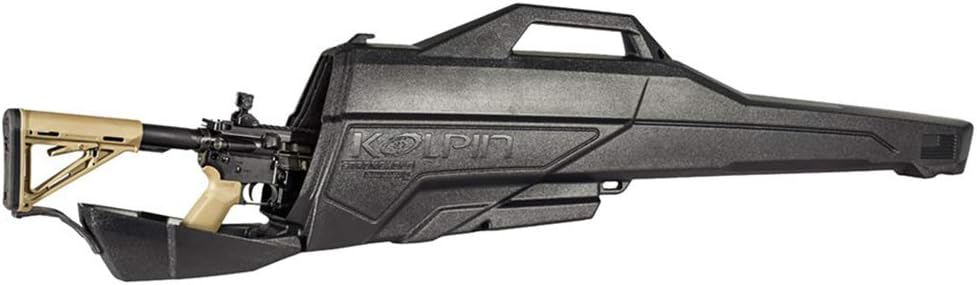

Figure 6: A rifle securely placed inside the Kolpin Stronghold Gun Boot, demonstrating the fit.
Figure 7: A user carefully inserting a rifle into the gun boot while it is mounted on a vehicle.
3. Closing and Securing the Gun Boot
Once the firearm is inside, close the lid and secure it using the integrated rubber closure strap. Ensure the strap is firmly latched to prevent accidental opening during transport.

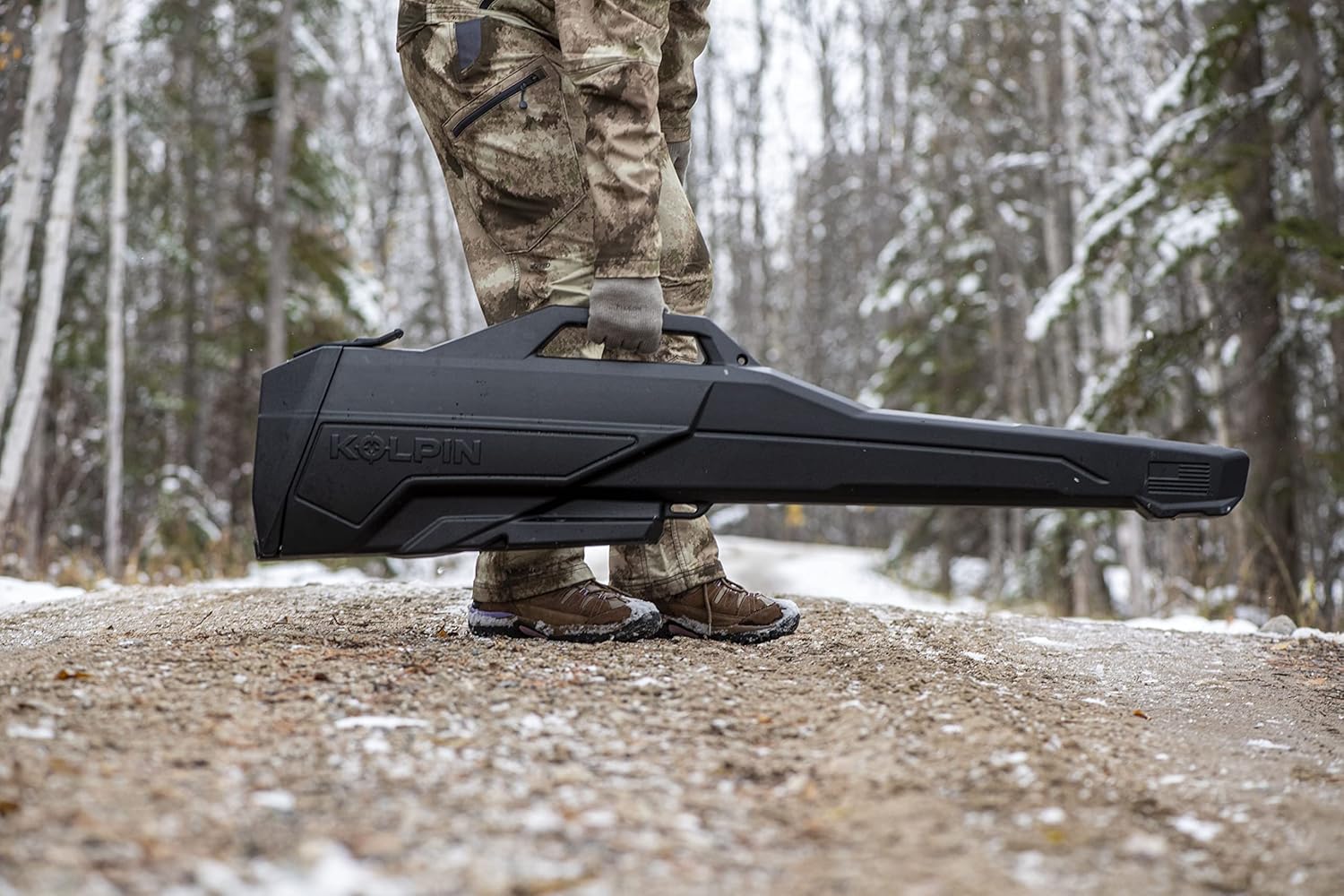

Figure 8: The integrated carrying handle allows for easy transport of the gun boot when not mounted.
Penyelenggaraan
Regular maintenance will ensure the longevity and optimal performance of your Kolpin Stronghold Gun Boot.
- Pembersihan: Wipe down the exterior of the gun boot with a damp cloth to remove dirt, mud, or debris. For stubborn stains, a mild soap solution can be used. Rinse thoroughly and allow to air dry completely before closing or storing.
- Penjagaan Pelapik: The foam Impact liner can be removed and cleaned separately. Hand wash with mild soap and water, then allow it to air dry completely before reinserting. Ensure no moisture is trapped inside the boot or liner, as this could lead to corrosion of your firearm.
- Pemeriksaan Tali: Periodically inspect the integrated rubber closure strap for any signs of wear, cracking, or damage. A damaged strap may compromise the security of the boot. Replace if necessary.
- Storan: When not in use, store the gun boot in a cool, dry place away from direct sunlight and extreme temperatures.
Menyelesaikan masalah
This section addresses common issues you might encounter with your Kolpin Stronghold Gun Boot.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Firearm does not fit inside the boot. | Firearm length or dimensions exceed the boot's internal capacity. | Verify your firearm's dimensions against the boot's internal dimensions (52" L x 4-3/4" W x 9-1/4" H). Ensure the foam liner is correctly seated and not obstructing space. |
| Tudung tidak ditutup dengan selamat. | Obstruction inside the boot; rubber closure strap is damaged or misaligned. | Check for any items preventing the lid from closing. Inspect the rubber strap for damage or proper alignment with the latching mechanism. |
| Boot feels loose on the vehicle mount. | Mounting hardware is loose or incorrectly installed. | Refer to your Kolpin mounting bracket's instruction manual. Tighten all mounting hardware according to the manufacturer's specifications. Ensure the boot is correctly seated in the mount. |
| Excessive rattling during transport. | Firearm is not snug within the foam liner; mounting issues. | Ensure the firearm is fully inserted and cushioned by the foam liner. If rattling persists, check the vehicle mount for looseness. |
Spesifikasi
| Atribut | Perincian |
|---|---|
| Jenama | Kolpin |
| Nombor Model | 20740 |
| Berat Barang | 6.8 paun |
| Dimensi Produk (Luaran) | 55 x 13.5 x 6.25 inci |
| Dimensi Dalaman | 52" L x 4-3/4" W x 9-1/4" H |
| bahan | Kolpin Stronghold Gun Boot Material |
| Kemasan Luaran | Dilukis |
| Nombor Bahagian Pengilang | 20740 |
| Nombor Bahagian OEM | 358001 |
| ASIN | B01NCJVYCK |
| Tarikh Mula-mula Tersedia | 8 Disember 2016 |
Maklumat Waranti
Kolpin products are manufactured to high standards and are backed by a limited warranty. For specific details regarding the warranty period and coverage for your Kolpin Stronghold Gun Boot (Model 20740), please refer to the warranty documentation included with your purchase or visit the official Kolpin webtapak. Simpan bukti pembelian anda untuk tuntutan waranti.
Sokongan
For technical assistance, replacement parts, or further inquiries regarding your Kolpin Stronghold Gun Boot, please contact Kolpin customer support. You can typically find contact information on the Kolpin webtapak atau dalam pembungkusan produk.
Sumber Dalam Talian: Visit the official Kolpin webtapak untuk Soalan Lazim, pendaftaran produk dan bahan sokongan tambahan.
Perkhidmatan Pelanggan: Refer to your product packaging or the Kolpin website for the most current customer service contact details (phone number, email address).
