Flushmate M-101526-F3H1 1.28 GPF Complete Replacement System

1. Pengenalan

This manual provides essential information for the installation, operation, and maintenance of your Flushmate M-101526-F3H1 1.28 GPF Complete Replacement System. This system is designed to replace or upgrade Flushmate-equipped 1.28 GPF pressure-assist toilets, offering efficient and powerful flushing performance. Please read all instructions carefully before proceeding with installation or use.

2. Maklumat Keselamatan

• Always turn off the water supply to the toilet before beginning any work.
• Pakai peralatan pelindung diri yang sesuai, seperti cermin mata keselamatan dan sarung tangan, semasa pemasangan.
• Pastikan kawasan kerja mempunyai pencahayaan yang baik dan bebas daripada halangan.
• Jika anda tidak pasti tentang sebarang langkah, rujuk kepada tukang paip yang berkelayakan.

3. Kandungan Pakej

The Flushmate M-101526-F3H1 Complete Replacement System includes:

• Flushmate M-101526-F3H1 Pressure-Assist System
• All required gaskets and seals
• Perkakasan pemasangan

Note: Additional tools for installation, such as a wrench, may be required and are not included.

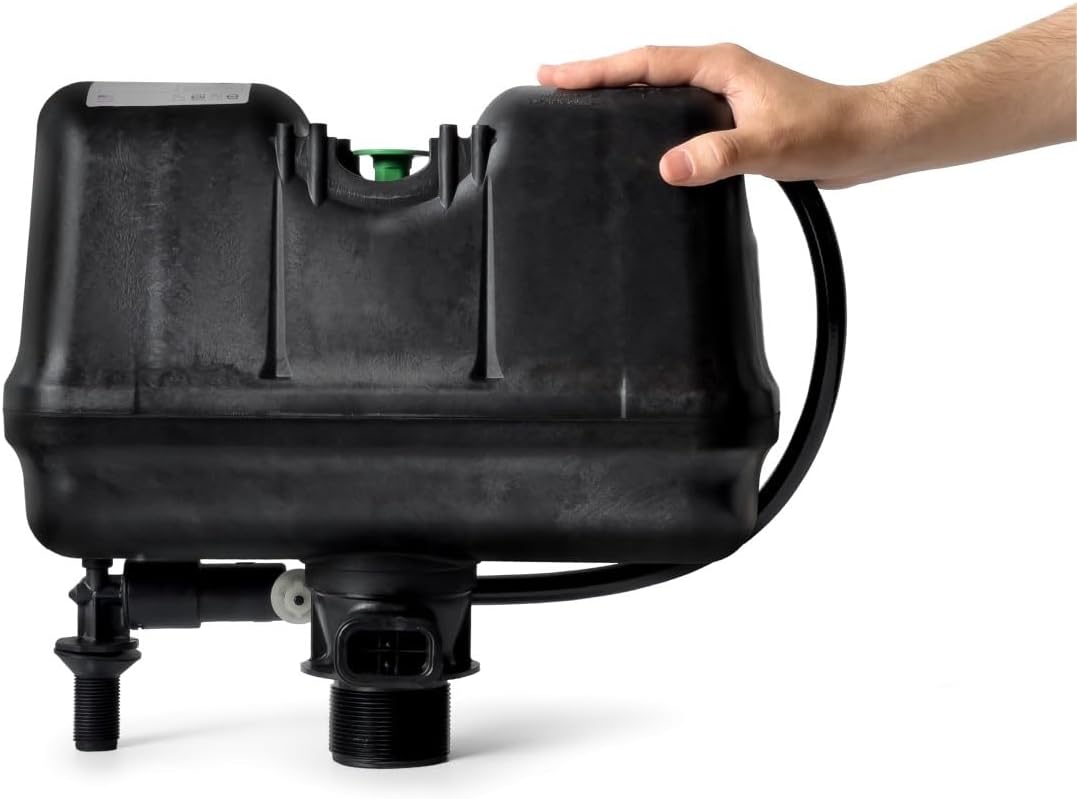

Image: The Flushmate M-101526-F3H1 Complete Replacement System, showing the main unit and associated components.

4. Keserasian

This Flushmate system is specifically designed for two-piece pressure-assist toilets. It is a genuine factory replacement for Flushmate Model 503H Series and Series III systems.

Identifying a Two-Piece Toilet:

A two-piece toilet has a separate tank and bowl, with a visible seam and gap between them. In contrast, a one-piece toilet has the tank and bowl molded together as a single unit.

Image: Illustration of a two-piece toilet, highlighting the separation between the tank and bowl.

Compatible OEMs:

This system is compatible with most Original Equipment Manufacturers (OEMs) including Gerber, Glacier Bay, Kohler, Mansfield, ProFlo, Seasons, and Western.

Pengecualian:

Sistem ini adalah tidak diniatkan for Kohler K4404 and Gerber 28-385 tanks. Additionally, ensure your toilet tank is at least 14 inches wide from side to side, as the Flushmate unit may be too wide for narrower tanks.

5. Persediaan dan Pemasangan

The Flushmate M-101526-F3H1 system is designed for quick installation by both plumbers and DIY enthusiasts. Detailed online instructions are available for specific steps. Below are general guidelines:

Pra-Pemasangan:

1. Turn off the water supply valve to the toilet.
2. Flush the toilet to drain the tank completely.
3. Putuskan sambungan talian bekalan air dari tangki tandas.
4. Remove the old Flushmate unit from the tank.

Langkah Pemasangan:

1. Clean the inside of the toilet tank thoroughly before installing the new unit.
2. Place the new Flushmate M-101526-F3H1 system into the toilet tank, ensuring all gaskets and seals are correctly seated.
3. Secure the unit according to the detailed online instructions.
4. Before reconnecting the water supply line to the Flushmate unit, place the end of the supply line into a two-gallon bucket. Turn on the water supply fully for a few seconds to flush out any debris or sediment from the supply line. Repeat if necessary until the water runs clear. This prevents potential damage to the new unit.
5. Reconnect the water supply line to the Flushmate unit.
6. Slowly turn on the main water supply to the toilet and check for leaks.
7. Test the flush mechanism several times to ensure proper operation.

Imej: Atas view of the Flushmate M-101526-F3H1 system, showing the internal components and connections.

6. Arahan Operasi

The Flushmate M-101526-F3H1 system utilizes pressure-assist technology for a powerful and efficient flush. Instead of relying on gravity, it uses compressed air to deliver a high-velocity, single flush.

• Membilas: Simply press the flush handle as you would with a standard toilet. The system will release the pressurized water, ensuring superior waste removal and a cleaner bowl.
• Operasi senyap: This system is designed for quiet operation while maintaining powerful flushing performance.
• Penjimatan Air: The 1.28 GPF (Gallons Per Flush) system provides consistent water savings compared to older, less efficient toilet systems.

7. Penyelenggaraan

To ensure the longevity and optimal performance of your Flushmate system, follow these maintenance guidelines:

• Alat Ganti Tulen: Always use Flushmate Genuine Parts for any replacements or repairs. These parts are manufactured and tested to Flushmate specifications for reliability.
• Consistent Water Savings: The flush volume remains constant over time, ensuring long-term efficiency. Unlike gravity systems that can degrade, this design delivers reliable performance and sustained water savings.
• Penyelenggaraan Kartrij: If your system includes a removable cartridge, refer to the specific online instructions for calibration and replacement frequency.

8. Penyelesaian masalah

If you encounter issues with your Flushmate M-101526-F3H1 system, consider the following common problems and solutions:

• Bunyi Berdecit: A squeaking noise, especially when the unit is shutting off, may indicate an issue with internal components. Check for debris or wear in the valve assembly.
• Slow Leak at Supply Valve: Ensure all connections are tight and that the gaskets and seals are properly seated. Inspect the supply valve for any visible damage or wear.
• Siram Lemah: Verify that the water supply is fully open and that there are no obstructions in the supply line or the Flushmate unit. Ensure the unit is correctly installed and sealed.
• Water Not Filling: Check the water supply connection and ensure the shut-off valve is completely open. Inspect the fill valve within the Flushmate unit for any blockages.

For persistent issues, refer to the detailed online troubleshooting guides or contact Flushmate customer support.

9. Spesifikasi

10. Waranti dan Sokongan

Waranti:

Flushmate systems are backed by a Waranti pengeluar terhad 5 tahun. This warranty provides reliable support and long-term peace of mind, covering defects in materials and workmanship under normal use.

Sokongan Pelanggan:

For technical assistance, troubleshooting, or warranty claims, please contact Flushmate customer support. Telephone support is available to assist with any questions or concerns you may have regarding your product.

Please visit the official Flushmate webtapak untuk maklumat hubungan dan sumber tambahan.
