pengenalan
This manual provides essential instructions for the safe and effective use of your ReTrak ETUADP Universal Travel Adapter with Built-in Dual USB Charger. Please read this manual thoroughly before using the device and retain it for future reference.
Maklumat Keselamatan Penting
- This product is an AC-AC adapter and does not convert voltage. Pastikan peranti anda serasi dengan vol tempatantage.
- Untuk kegunaan dalaman sahaja.
- The USB ports are for charging only and provide +5Vdc, 1000mA Max.
- Do not use with appliances requiring grounding. This adapter does not provide grounding.
- Jauhkan daripada kanak-kanak.
- Jangan terkena kelembapan atau suhu yang melampau.
- Jangan bongkar atau cuba membaiki unit.
- Always unplug the adapter from the wall outlet when not in use.
Produk Selesaiview
The ReTrak ETUADP is a universal travel adapter designed to provide power connectivity in various regions worldwide, featuring built-in dual USB charging ports.

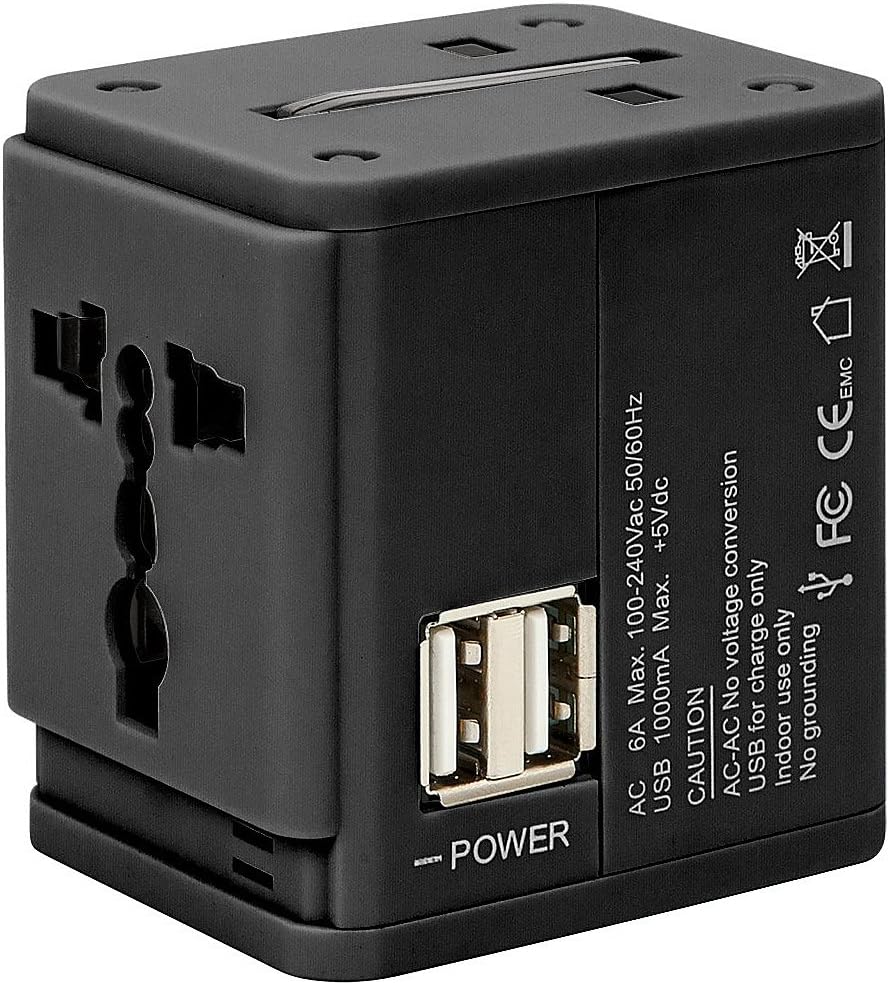

Imej: Depan view of the ReTrak ETUADP Universal Travel Adapter, showing the dual USB charging ports and printed power specifications (AC 6A Max. 100-240Vac 50/60Hz, USB 1000mA Max. +5Vdc).
Persediaan dan Konfigurasi
The adapter features retractable prongs for different regions. To use, select the appropriate plug type for your destination.
- Identify the correct plug type: The adapter supports UK, Europe, and USA/AUS plug standards.
- Extend the prongs:
- Untuk UK plugs, slide the lever labeled "U.K." to extend the three rectangular prongs.
- Untuk Eropah plugs, slide the lever labeled "EUROPE" to extend the two round prongs.
- Untuk USA/AUS plugs, slide the lever labeled "USA/AUS" to extend the two flat parallel prongs.

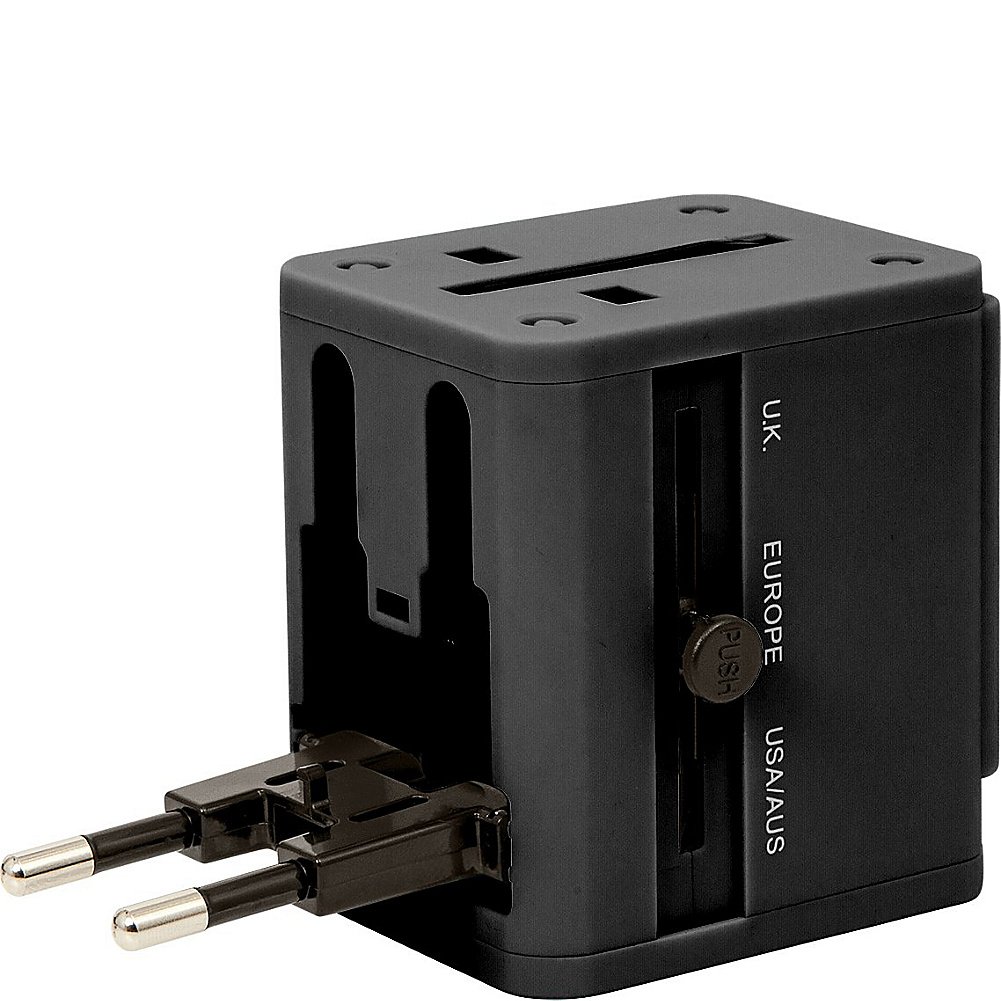

Imej: Sisi view of the adapter with the UK plug prongs extended, showing the "U.K.", "EUROPE", and "USA/AUS" labels and the "PUSH" button for retraction.
- Retract the prongs: After use, press the "PUSH" button and slide the lever back to retract the prongs into the adapter body.
- Connect to power outlet: Insert the extended prongs into the appropriate wall socket.
Arahan Operasi
Once the adapter is securely plugged into a wall outlet, you can connect your devices.
Menggunakan Outlet AC:
- Ensure your device's power plug matches the universal AC socket on the adapter.
- Insert your device's power plug into the universal AC socket on the adapter.
- Verify that your device's voltage requirements are compatible with the local power supply (100-240Vac). Penyesuai ini tidak menukar voltage.
Imej: Bersudut view of the adapter highlighting the universal AC input socket, ready to accept various plug types.
Using the Dual USB Charging Ports:
- Locate the two USB ports on the side of the adapter.
- Connect your USB charging cable to one of the USB ports.
- Connect the other end of the USB cable to your device (e.g., smartphone, tablet, power bank).
- The USB ports provide a maximum output of 5Vdc, 1000mA. Ensure your device is compatible with these charging specifications.
Imej: Sisi view of the adapter, clearly showing the two USB charging ports and the "POWER" indicator.
Penyelenggaraan dan Penjagaan
- Pembersihan: Disconnect the adapter from the power outlet before cleaning. Use a dry, soft cloth to wipe the surface. Do not use liquid cleaners or aerosols.
- Storan: When not in use, retract all prongs and store the adapter in a cool, dry place away from direct sunlight and moisture.
- Pemeriksaan: Periodically inspect the adapter for any signs of damage, such as frayed cables (if applicable), cracked casing, or loose prongs. Do not use if damaged.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| No power from AC outlet. | Adapter not fully plugged in; wall outlet is not active; device requires grounding. | Ensure adapter is fully inserted. Test wall outlet with another device. This adapter does not provide grounding. |
| Peranti tidak dicas melalui USB. | USB cable is faulty; device requires more than 1000mA; adapter not receiving power. | Try a different USB cable. Check device's charging requirements. Ensure adapter is plugged into a live outlet. |
| Prongs do not extend or retract smoothly. | Halangan atau kerosakan mekanisme. | Do not force. Ensure no debris is blocking the mechanism. If damaged, discontinue use. |
Spesifikasi
- model: ETUADP
- Input AC: 100-240Vac, 50 / 60Hz
- Keluaran AC: Maksimum 6A
- Output USB: +5Vdc, 1000mA Max. (Dual USB)
- Dimensi (L x W x H): 6.3 x 17 x 11.4 cm
- warna: Hitam
- Peranti Serasi: USB devices (for charging), various AC devices (voltage serasi)
- UPC: 816983016781
Waranti dan Sokongan
For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official ReTrak webtapak. Simpan bukti pembelian anda untuk tuntutan waranti.
Note: Spare parts availability and software updates are not specified by the manufacturer.
