pengenalan
This manual provides detailed instructions for the installation, operation, and maintenance of your Mars Gaming MPII850 850W ATX PC Power Supply. Please read this manual carefully before installation and use to ensure proper functionality and safety.
Arahan Keselamatan
- Always disconnect the power supply from the main power outlet before installation or maintenance.
- Jangan buka unit bekalan kuasa. vol tinggitagterdapat di dalam, yang boleh menyebabkan kejutan elektrik.
- Pastikan sistem komputer anda dibumikan dengan betul.
- Pasang bekalan kuasa di kawasan yang mempunyai pengudaraan yang baik untuk mengelakkan terlalu panas.
- Elakkan daripada mendedahkan unit kepada kelembapan atau suhu yang melampau.
- Gunakan hanya kabel yang disediakan bersama bekalan kuasa.
Kandungan Pakej
Sahkan bahawa semua item terdapat dalam pakej:
- Mars Gaming MPII850 850W ATX Power Supply Unit
- Modular Cable Set (PCI-E, SATA, PATA, FDD)
- Kord Kuasa AC
- Skru Pemasangan
- Manual Pengguna (dokumen ini)
Persediaan dan Pemasangan
Follow these steps to install your power supply unit:
1. Sediakan Sistem Anda
- Turn off your computer and disconnect the power cord from the wall outlet.
- Buka bekas komputer anda.
- Jika menggantikan bekalan kuasa sedia ada, putuskan sambungan semua kabel daripada PSU lama dan tanggalkannya daripada bekas.
2. Pasang Bekalan Kuasa
- Carefully place the Mars Gaming MPII850 into the power supply bay of your computer case.
- Selamatkan bekalan kuasa ke bekas menggunakan skru pelekap yang disediakan.
Image: Mars Gaming MPII850 Power Supply unit, showcasing its modular cable ports and fan grill. This view helps identify where to connect the modular cables.
3. Sambungkan Kabel
The MPII850 features a semi-modular cabling system. The main motherboard and CPU power cables are fixed, while other peripheral cables are modular.
- 20+4 Pin Main Power Connector: Connect this fixed cable to your motherboard's main power socket.
- 4+4 Pin 12V CPU Power Connector: Connect this fixed cable to your motherboard's CPU power socket.
- 6+2 Pin PCI-E Connectors (x2): For graphics cards. Connect these modular cables to your graphics card(s) as required.
- SATA Connectors (x6): For SATA hard drives, SSDs, and optical drives. Connect these modular cables to your storage devices.
- PATA Connectors (x4): For older IDE devices or case fans. Connect these modular cables as needed.
- FDD Connector (x1): For floppy disk drives or other legacy peripherals. Connect this modular cable if necessary.
Image: Mars Gaming MPII850 Power Supply unit, showing the fixed main power cables and the modular ports for additional components like graphics cards and storage drives.
Ensure all connections are secure. Utilize cable management features in your case to keep cables tidy and improve airflow.
4. Langkah Akhir
- Tutup casing komputer anda.
- Sambungkan kord kuasa AC ke bekalan kuasa dan kemudian ke alur keluar dinding.
- Flip the power switch on the back of the PSU to the "ON" position.
Arahan Operasi
The Mars Gaming MPII850 is designed for reliable and efficient operation. Once installed, it will provide stable power to your PC components.
- Hidupkan/Mati Kuasa: Use the power button on your computer case to turn the system on or off. The PSU's rear switch should remain in the "ON" position during normal operation.
- Operasi Kipas: The 12cm fan features intelligent speed control, adjusting its rotation based on temperature to maintain optimal cooling and minimize noise.
- Kecekapan: With an efficiency rating of up to 85% and Active Power Factor Correction (PFC), the MPII850 ensures stable power delivery and energy savings.

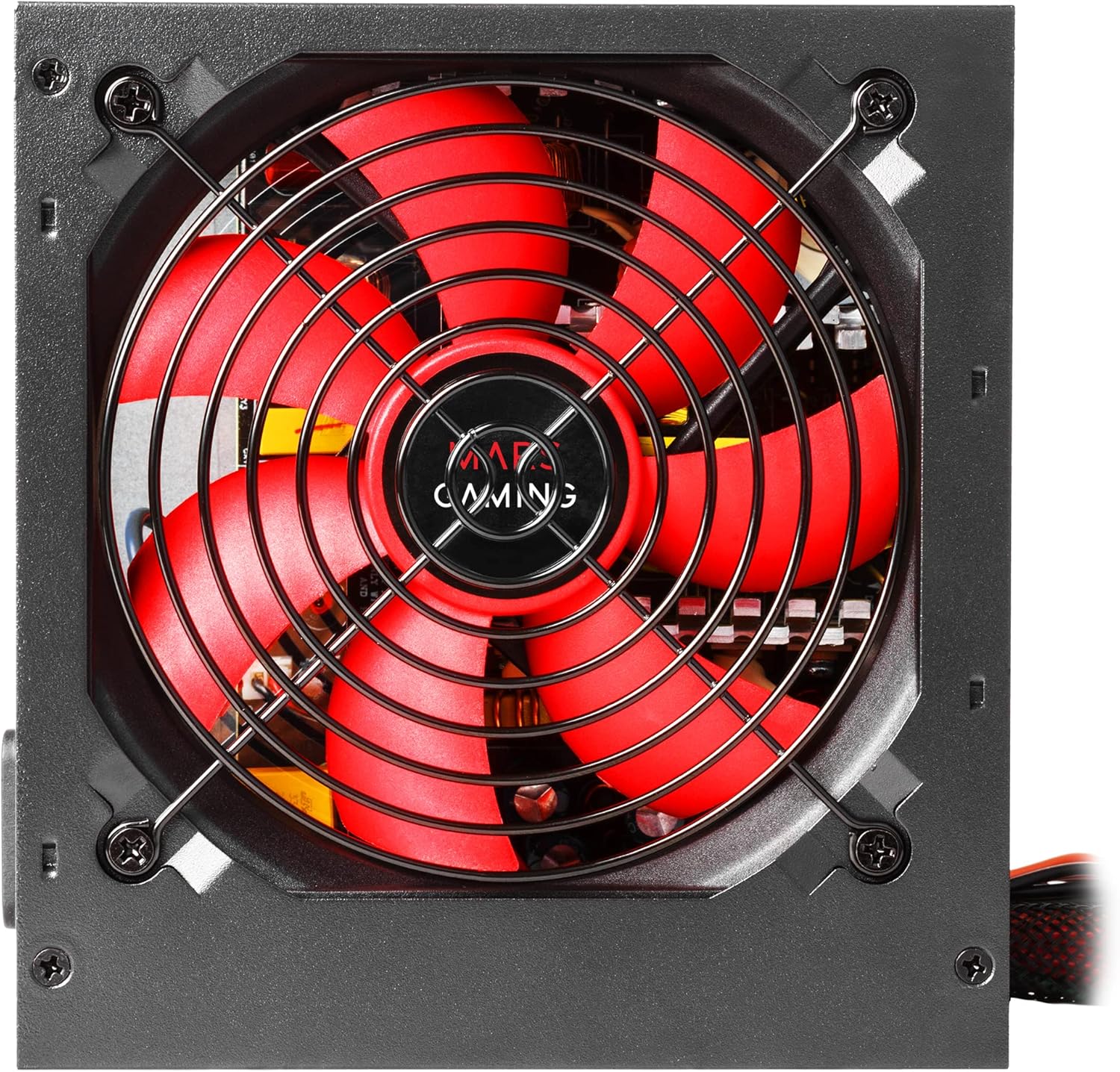

Imej: A terperinci view of the 12cm fan on the Mars Gaming MPII850 power supply, highlighting its red blades and protective grill, designed for quiet and efficient cooling.
Penyelenggaraan
To ensure the longevity and optimal performance of your power supply, follow these simple maintenance guidelines:
- Pembersihan Habuk: Periodically clean the fan and ventilation grilles of the power supply to prevent dust buildup, which can hinder airflow and lead to overheating. Use compressed air or a soft brush. Ensure the PSU is powered off and unplugged before cleaning.
- Pengurusan Kabel: Regularly check that all cables are securely connected and not obstructing airflow within the PC case.
- Persekitaran: Keep your computer in a clean, dry, and well-ventilated environment.
Menyelesaikan masalah
If you encounter issues with your Mars Gaming MPII850 power supply, refer to the following common problems and solutions:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Komputer tidak boleh dihidupkan. |
|
|
| Sistem but semula secara tidak dijangka. |
|
|
| Bunyi kipas yang kuat. |
|
|
If the problem persists after trying these solutions, please contact Mars Gaming customer support.
Spesifikasi
| Ciri | Perincian |
|---|---|
| Nombor Model | MPII850 |
| Jenama | Permainan Mars |
| Faktor Bentuk | ATX |
| Kuasa Keluaran | 850 Watt |
| Kecekapan | Sehingga 85% |
| PFC | PFC aktif |
| Kaedah Penyejukan | Air (12cm intelligent speed control fan) |
| Tahap Kebisingan | Approximately 14 dB (at low load) |
| Penyambung Kuasa Utama | 1x 20+4 Pin |
| Penyambung Kuasa CPU | 1x 12V 4+4 Pin |
| PCI-E Connectors | 2x 6+2 Pin |
| Penyambung SATA | 6x |
| PATA Connectors | 4x |
| Penyambung FDD | 1x |
| Peranti Serasi | Komputer Peribadi |
| Dimensi (L x W x H) | 188 x 90 x 275 mm (approximate, based on product data) |
| Berat badan | 1.3 Kilogram |
Waranti dan Sokongan
Mars Gaming products are designed for durability and performance. For warranty information and technical support, please refer to the official Mars Gaming webtapak atau hubungi peruncit tempatan anda.
Sokongan dalam talian: www.marsgaming.eu
Please have your product model number (MPII850) and purchase details ready when contacting support.
