pengenalan
Welcome to the user manual for your Viltrox VL-40T Professional Ultra-Thin LED Light. This manual provides essential information for the safe and effective operation, setup, and maintenance of your new lighting equipment. The VL-40T is designed for professional photographers and videographers, offering high brightness, adjustable color temperature, and a portable design. Please read this manual thoroughly before use to ensure optimal performance and longevity of your device.
Produk Selesaiview
Ciri-ciri Utama
- Superior Brightness Control: Easily adjust light intensity from 20% to 100% with the built-in dimmer.
- Ketepatan Warna Luar Biasa: High CRI of 95 ensures true-to-life colors.
- Suhu Warna Serbaguna: Seamlessly switch between 3300K and 5600K.
- Reka Bentuk Mudah Alih dan Ringan: Pro ultra nipisfile, weighing only 2.65 lbs, ideal for on-location shoots.
- Pilihan Kuasa Dwi: Can be powered by AC/DC adapter (included) or two NP mount rechargeable batteries (not included).
- Kawalan Jauh Wayarles: FSK 2.4GHz system allows wireless adjustment of brightness and group control.
- Pembinaan Tahan Lama: Crafted with a robust metal body for superior heat dissipation and longevity.
Komponen
The Viltrox VL-40T LED light includes the main light panel, barn doors, a mounting bracket, and a wireless remote control. The back panel features an LCD display, control knobs, and power input ports.
Rajah 1: Depan dan belakang view of the VL-40T LED light with its wireless remote control.
Rajah 2: Terperinci view of the 540 high-quality LED beads on the VL-40T panel.
Figure 3: The rear control panel of the VL-40T, featuring battery mounts, power switch, LCD display, and dimmer knob.
Persediaan
- Memasang Cahaya: Attach the VL-40T to a light stand using the integrated mounting bracket. Ensure it is securely fastened to prevent accidental falls.
- Mengkuasakan Peranti:
- Kuasa AC: Connect the included AC/DC adapter to the DC IN port on the back of the light and plug it into a wall outlet.
- Kuasa Bateri: For portable use, insert two compatible NP mount rechargeable batteries (not included) into the battery slots on the back panel. Ensure correct polarity.
Figure 4: The VL-40T light securely mounted on a standard light stand.
Arahan Operasi
Hidupkan/Mati Kuasa
Locate the power switch on the back panel of the light. Flip the switch to the 'ON' position to power on the device. The LCD display will illuminate. Flip to 'OFF' to power down.
Pelarasan Kecerahan
The VL-40T allows for stepless brightness adjustment from 20% to 100%. Use the 'DIMMER' knob on the back panel to increase or decrease the light intensity. The current brightness percentage akan dipaparkan pada skrin LCD.
Figure 5: Adjusting the brightness using the dimmer knob on the VL-40T's control panel.
Pelarasan Suhu Warna
The color temperature can be adjusted from 3300K (warm) to 5600K (cool). Rotate the 'COLOR TEMP' knob (often integrated with the dimmer or a separate knob) to select the desired color temperature. The selected Kelvin value will be shown on the LCD display.
Figure 6: Visual representation of the VL-40T's adjustable color temperature range, from warm to cool tones.
Kawalan Jauh Tanpa Wayar
The VL-40T comes with an FSK 2.4GHz wireless remote control, allowing you to adjust settings from a distance. The remote can control brightness, color temperature, and manage multiple groups of lights. Ensure the remote's channel matches the light's channel for proper communication.

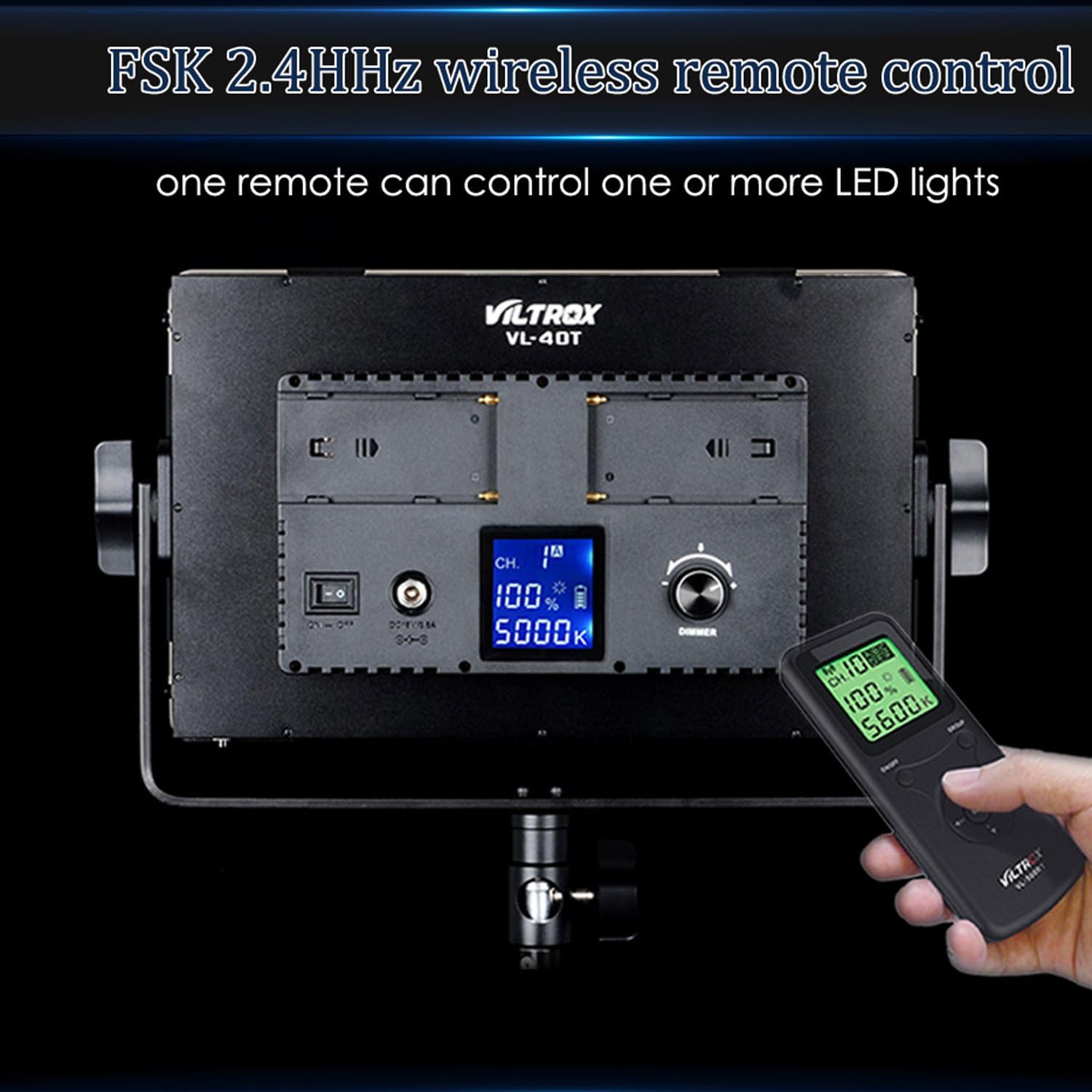

Figure 7: The wireless remote control for convenient adjustment of the VL-40T's settings.
Penyelenggaraan
- Pembersihan: Use a soft, dry cloth to clean the light panel and body. Do not use abrasive cleaners or solvents. For stubborn dirt, a slightly damp kain boleh digunakan, memastikan tiada kelembapan memasuki komponen dalaman.
- Storan: When not in use, store the VL-40T in a cool, dry place, away from direct sunlight and extreme temperatures. It is recommended to store it in its original packaging or a protective case.
- Penjagaan Bateri: If using batteries, remove them if the light will not be used for an extended period to prevent leakage. Recharge batteries regularly to maintain their lifespan.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Cahaya tidak menyala. | No power supply; batteries depleted or incorrectly inserted; power switch off. | Check AC adapter connection or battery charge/insertion. Ensure power switch is ON. |
| Alat kawalan jauh tidak berfungsi. | Remote batteries depleted; incorrect channel setting; obstruction between remote and light. | Replace remote batteries. Verify remote and light are on the same channel. Remove obstructions. |
| Kecerahan atau suhu warna tidak boleh dilaraskan. | Control knob malfunction; light in a locked mode. | Try adjusting directly on the light. If using remote, ensure it's paired correctly. Restart the light. |
Spesifikasi
Figure 8: Dimensions of the Viltrox VL-40T LED light.
| Ciri | Perincian |
|---|---|
| Nombor Model | VL 40T |
| Dimensi Produk | 12.48 x 1.89 x 9.8 inci |
| Berat Barang | 2.2 paun |
| LED Lamp manik | 540 |
| Julat Suhu Warna | 3300K - 5600K |
| Indeks Paparan Warna (CRI) | 95+ |
| Pelarasan Kecerahan | 20% - 100% (Tanpa Langkah) |
| Teknologi Ketersambungan | 2.4GHz Wireless (Remote Control) |
| Pilihan Kuasa | AC/DC Adapter, NP Mount Batteries (not included) |
| Pengeluar | Viltrox |
Waranti dan Sokongan
Viltrox products are manufactured to high-quality standards. For information regarding warranty coverage, technical support, or service, please refer to the warranty card included with your product or visit the official Viltrox webtapak.
rasmi Webtapak: www.viltrox.com
Figure 9: The product packaging, displaying the Viltrox brand and webtapak untuk sokongan.
