Amig DELTA Rosette Door Handle Instruction Manual

1. Produk Lebihview

The Amig DELTA Rosette Door Handle is designed for both interior and exterior doors, offering a blend of simple, modern aesthetics with ergonomic functionality. Crafted from durable aluminum, this handle ensures reliability and a comfortable grip for everyday use.

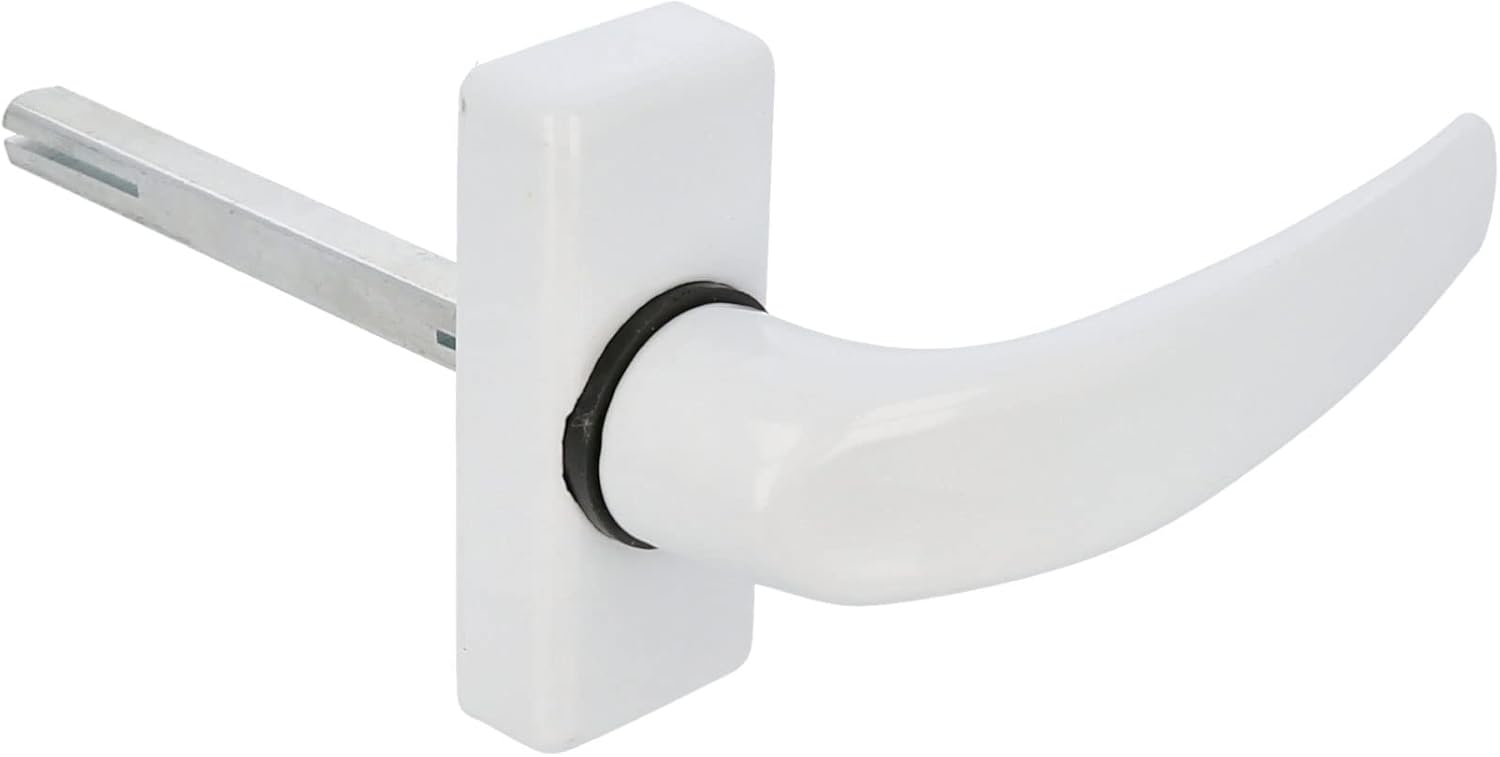

Depan view of the Amig DELTA Rosette Door Handle, showcasing its white aluminum finish and ergonomic design.

Ciri-ciri Utama:

• Bahan: Made from high-strength aluminum for durability.
• Reka bentuk: Simple and modern design with a comfortable, ergonomic grip.
• serba boleh: Suitable for interior or exterior doors, including passage or entry doors, bathrooms, bedrooms, and offices.
• Boleh diterbalikkan: Can be installed on both right and left-handed doors.
• Selesai: Elegant white finish.

2. Kandungan Pakej

Sebelum memulakan pemasangan, sila pastikan semua komponen ada dan tidak rosak.

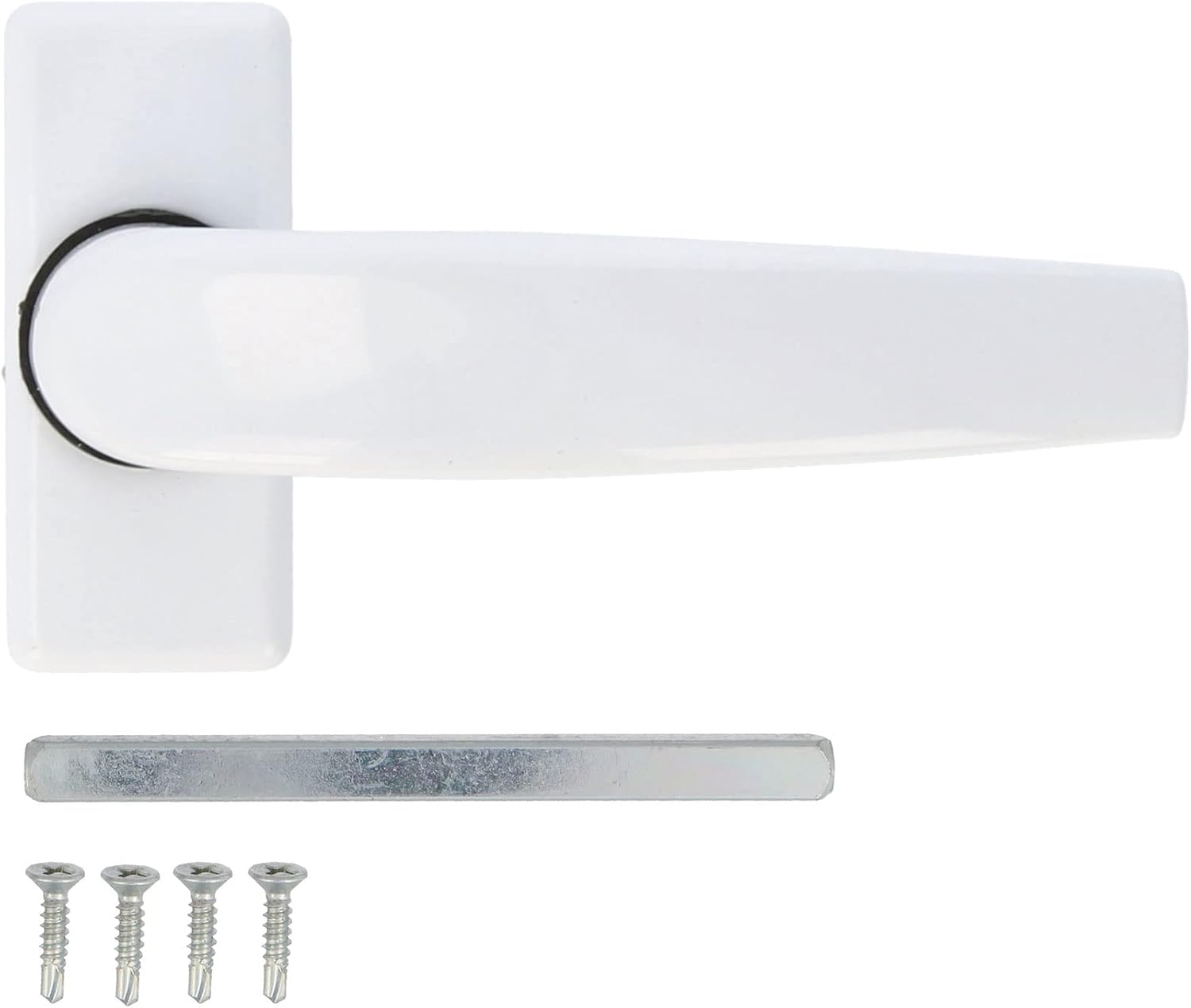

The Amig DELTA Rosette Door Handle components, including the handle, rosette, square spindle, and mounting screws.

Termasuk dalam Kotak:

• 1x Amig DELTA Rosette Door Handle (White Aluminium)
• 1x Square Spindle (8 mm)
• Skru Pemasangan

3. Spesifikasi

Detailed technical specifications for the Amig DELTA Rosette Door Handle.

Technical diagram illustrating the dimensions of the Amig DELTA Rosette Door Handle in millimeters, including plate size and handle projection.

4. Arahan Pemasangan

Follow these steps for proper installation of your Amig DELTA Rosette Door Handle. Basic tools such as a screwdriver and possibly a drill (if creating new holes) are required.

Sebuah meletup view diagram showing the assembly sequence of the Amig DELTA Rosette Door Handle, detailing how the handle, spindle, and rosette fit together.

1. Sediakan Pintu: Ensure your door has the necessary holes for a standard door handle and spindle. If replacing an existing handle, remove the old hardware.
2. Masukkan Spindle: Slide the square spindle through the latch mechanism in the door. Ensure it passes through cleanly.
3. Attach the First Handle: Place one handle assembly onto the spindle on one side of the door. Align the rosette plate with the pre-drilled screw holes.
4. Attach the Second Handle: On the opposite side of the door, slide the second handle assembly onto the spindle, ensuring it aligns with the first handle and the screw holes.
5. Selamat dengan Skru: Using the provided mounting screws, fasten both handle assemblies to the door. Tighten the screws evenly to ensure the handle is secure and flush against the door surface. Do not overtighten.
6. Operasi Ujian: Once secured, test the handle by pressing down and releasing it to ensure smooth operation of the latch mechanism. Check for any wobbling or stiffness.

Diagram illustrating the installation process of the Amig DELTA Rosette Door Handle, showing the placement of screws and the spindle.

The Amig DELTA Rosette Door Handle installed on a door, demonstrating its appearance and fit in a typical application.

5. Operasi

The Amig DELTA Rosette Door Handle is designed for straightforward operation. To open the door, simply press down on the handle. The ergonomic design ensures a comfortable and secure grip.

• Pembukaan: Apply downward pressure to the handle to retract the door latch.
• Penutup: Release the handle, and the latch will extend, securing the door.

6. Penyelenggaraan dan Penjagaan

To ensure the longevity and appearance of your Amig DELTA Rosette Door Handle, follow these simple maintenance guidelines:

• Pembersihan: Bersihkan pemegangnya secara berkala dengan kain lembut danamp kain. Elakkan menggunakan pembersih yang kasar, bahan kimia yang keras atau pelarut, kerana ini boleh merosakkan kemasan.
• Pemeriksaan: Periodically check the mounting screws for tightness. If the handle feels loose, gently tighten the screws.
• Pelinciran: If the handle mechanism becomes stiff over time, a small amount of silicone-based lubricant can be applied to the moving parts of the latch mechanism (not directly on the handle surface).

7. Penyelesaian masalah

If you encounter any issues with your Amig DELTA Rosette Door Handle, refer to the following common problems and solutions:

• Pemegang longgar:
  • Penyelesaian: Check and tighten the mounting screws on both sides of the door. Ensure the spindle is correctly seated.
• Handle is Stiff or Not Returning:
  • Penyelesaian: Ensure the spindle is not bent or obstructed. Apply a small amount of silicone lubricant to the latch mechanism inside the door. Check if the handle is rubbing against the door surface; adjust screws if necessary.
• Door Latch Not Retracting Fully:
  • Penyelesaian: Verify that the spindle is correctly engaging with the latch mechanism. Ensure the handle is fully depressed. If the issue persists, the latch mechanism itself might require inspection or replacement.

8. Manufacturer Commitment

At AMIG, we have been manufacturing and distributing high-quality, reliable products for over 80 years. Our commitment is to provide functional products that offer maximum confidence and variety. For any further assistance or inquiries, please refer to the official Amig webtapak atau hubungi sokongan pelanggan mereka.

Note: Specific warranty details may vary by region and retailer. Please retain your proof of purchase for any warranty claims.
