Stanley 17036 Delayed Egress Magnetic Lock Instruction Manual

pengenalan

This manual provides comprehensive instructions for the installation, operation, and maintenance of the Stanley 17036 Delayed Egress Magnetic Lock. This device is designed to enhance security on perimeter exit doors and internal fire doors by controlling unauthorized exit and entry, while ensuring a safe means of escape during emergencies.

Produk Selesaiview

The Stanley 17036 is an electromagnetic lock system featuring delayed egress functionality. It is engineered to provide controlled access and exit, integrating with fire alarm systems for immediate release during emergencies. Key features include:

• Watchdog circuitry for reliable operation.
• Lock status indicator for visual feedback.
• Proximity sensor technology for precise engagement.
• Multiple egress delay settings to comply with local codes.
• Simple screw-in installation.
• Fully self-contained circuitry.

The system consists of a main electromagnetic lock unit and an armature plate, which together secure the door.

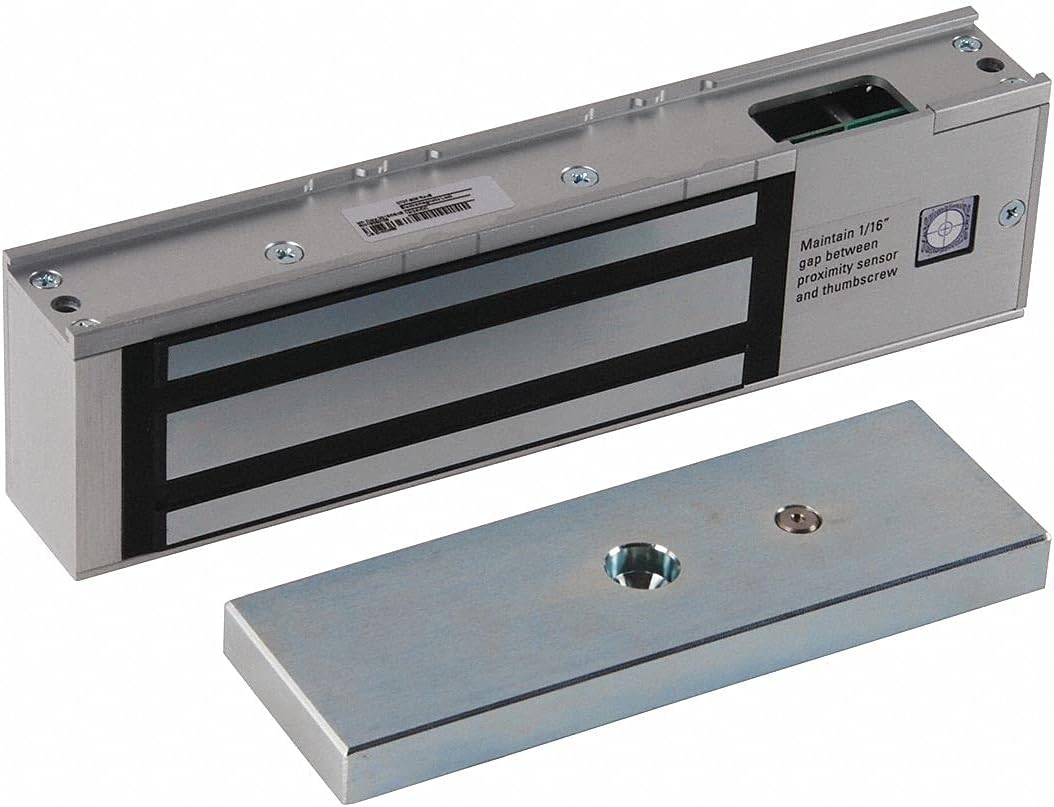

An image showing the main electromagnetic lock unit and its corresponding armature plate. The lock unit is silver-colored with black magnetic strips. A label on the side indicates a required 1/16 inch gap between the proximity sensor and thumbscrew.

Persediaan dan Pemasangan

Installation of the Stanley 17036 is designed to be straightforward, utilizing a screw-in method. Proper installation is crucial for optimal performance and compliance with safety regulations.

Langkah Pemasangan:

1. Penyediaan: Ensure the door frame and door are clean and free from obstructions. Identify the optimal mounting location for both the main lock unit and the armature plate to ensure proper alignment.
2. Mounting the Main Lock Unit: Secure the main electromagnetic lock unit to the door frame using appropriate screws. Ensure it is firmly attached and level.
3. Mounting the Armature Plate: Attach the armature plate to the door. It must align precisely with the main lock unit when the door is closed.
4. Pelarasan Jurang: A critical step is to maintain a 1/16 inch (approximately 1.6 mm) gap between the proximity sensor on the main lock unit and the thumbscrew on the armature plate. This gap is essential for the proper functioning of the proximity sensor technology.
5. Pendawaian: Connect the lock to the power supply and any integrated access control or fire alarm systems according to local electrical codes and the provided wiring diagram (not included in this manual, refer to product packaging for specific wiring instructions). Ensure all connections are secure and insulated.
6. Egress Delay Setting: Configure the desired egress delay time (15 to 30 seconds) as required by local fire and building codes. This setting determines how long the door remains locked after the egress cycle is activated.
7. Ujian: After installation, thoroughly test the lock's functionality, including the nuisance cycle, egress cycle, and fire alarm integration, to ensure it operates correctly and safely.

Arahan Operasi

The Stanley 17036 Delayed Egress Magnetic Lock operates with two distinct cycles to manage door access and emergency egress:

• Nuisance Cycle: When an attempt is made to exit through a protected door, the lock initiates a 'nuisance cycle'. This requires constant pressure on the door for a brief period (typically 0-3 seconds, depending on local fire and building codes). During this period, an alarm will sound, alerting staff to the attempted exit.
• Egress Cycle: If constant pressure is maintained on the door beyond the nuisance cycle duration, the 'egress cycle' is activated. The door will remain locked for a predetermined period (15 to 30 seconds, based on local codes), allowing staff time to respond to the unauthorized exit attempt. After this delay, the door will unlock, and the alarm will continue to sound until reset.
• Fire Alarm Integration: In the event of a fire alarm activation, the lock will immediately unlock and sound an alarm. The door will remain unlocked and in alarm mode as long as the fire alarm signal is present, ensuring unimpeded emergency egress.

To reset the lock after an alarm, follow the specific instructions provided with your access control system. No keyfob is required for reset.

Penyelenggaraan

Regular maintenance ensures the longevity and reliable operation of your Stanley 17036 Delayed Egress Magnetic Lock.

• Pembersihan: Periodically clean the surfaces of the electromagnetic lock and armature plate with a soft, dry cloth. Avoid abrasive cleaners or solvents that could damage the finish or internal components.
• Pemeriksaan: Regularly inspect the lock for any signs of wear, damage, or loose connections. Check that all mounting screws are tight.
• Ujian Kefungsian: Conduct routine tests of the lock's operation, including the nuisance and egress cycles, and its integration with the fire alarm system, to confirm proper functionality.
• Gap Verification: Periodically verify that the 1/16 inch gap between the proximity sensor and thumbscrew is maintained. Adjust if necessary.

Menyelesaikan masalah

If you encounter issues with your Stanley 17036 Delayed Egress Magnetic Lock, consider the following common troubleshooting steps:

• Kunci Tidak Terkunci:
  • Check power supply to the lock.
  • Ensure the armature plate is correctly aligned with the main lock unit.
  • Verify the 1/16 inch gap between the proximity sensor and thumbscrew.
  • Inspect wiring for loose or damaged connections.
• Lock Not Releasing:
  • Confirm that the egress delay timer has completed its cycle.
  • Check for any active fire alarm signals that might be preventing release.
  • Ensure the door is not binding or obstructed.
• Alarm Malfunctions:
  • Verify connections to the alarm system.
  • Check the lock status indicator for diagnostic information.

For persistent issues or complex problems, it is recommended to contact a qualified technician or Stanley Healthcare Solutions customer support.

Spesifikasi

Waranti dan Sokongan

For information regarding product warranty, technical support, or service, please contact Stanley Healthcare Solutions directly. You can visit the official STANLEY store for more product information and support resources.
