maXpeedingrods CO-SUBGDB-R-LC-AMUS

maXpeedingrods Coilover Suspension Kit Instruction Manual

Model: CO-SUBGDB-R-LC-AMUS

For Subaru Impreza WRX (2000-2007), WRX STI GDB (2000-2004), and Forester (2003-2008)

pengenalan

This manual provides detailed instructions for the installation, adjustment, maintenance, and troubleshooting of your maXpeedingrods Coilover Suspension Kit. Please read this manual thoroughly before installation and use to ensure proper function and safety. This kit is designed to enhance vehicle performance and adjustability for specific Subaru models.

Kandungan Pakej:

2 x Front Coilover Struts
2 x Rear Coilover Struts
1 x Wrench for Height Adjustment
Arahan Pemasangan (manual ini)

Image: Complete maXpeedingrods Coilover Suspension Kit, including front and rear struts, adjustment wrenches, and instruction manuals.

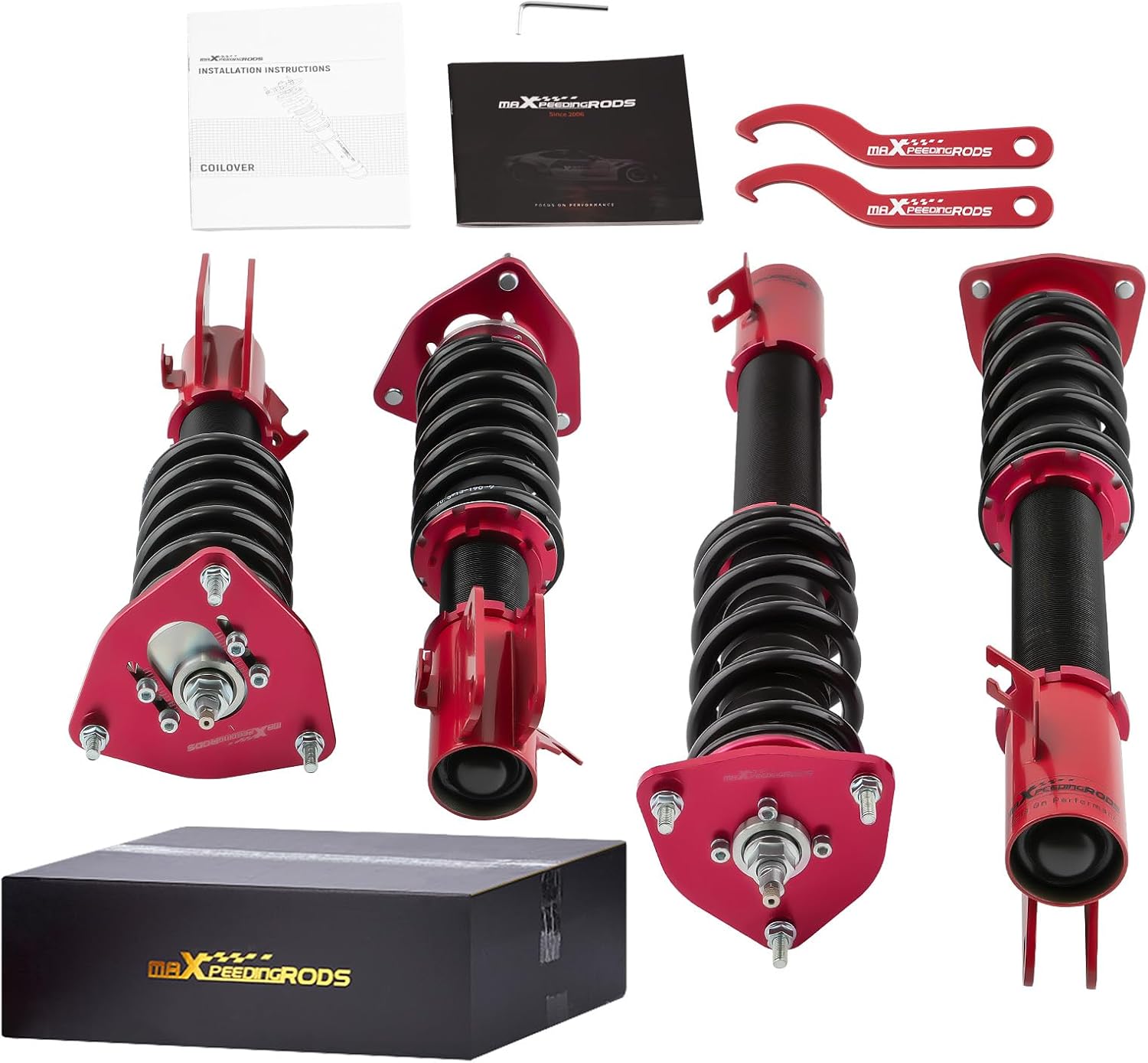

maXpeedingrods Coilover Kit contents with packaging — Image: Contents of the maXpeedingrods Coilover kit, showing the four struts, adjustment tools, and product packaging.

Keserasian Kenderaan

This maXpeedingrods Coilover Suspension Kit is compatible with the following vehicle models:

Subaru Impreza WRX: 2000.08 - 2007.06 (GDA, GD9, GGA chassis codes)
Subaru Impreza WRX STI: 2000.10 - 2004.06 (GDB chassis code, with RIM P.C.D.=100)
Subaru Forester SG: 2003 - 2008
SAAB 9-2X: 2005 - 2007 (GGA, GGE chassis codes)

Nota: This kit is designed to lower the vehicle's ride height and will bukan maintain original factory ride height.

Persediaan dan Pemasangan

Professional installation is highly recommended. Improper installation can lead to vehicle damage or unsafe driving conditions. Ensure all components are present and undamaged before beginning installation.

Pemeriksaan Prapemasangan:

Sahkan bahawa semua bahagian yang disenaraikan dalam kandungan pakej ada.
Inspect coilovers for any shipping damage.
Ensure the vehicle is on a level surface and properly supported with jack stands.
Putuskan sambungan bateri jika bekerja berhampiran komponen elektrik.

General Installation Steps (Consult a service manual for vehicle-specific details):

Safely lift the vehicle and remove the wheels.
Remove the original suspension components (struts, springs, mounts).
Install the new maXpeedingrods coilover units. Ensure correct orientation for front and rear units.
Secure all mounting bolts to the manufacturer's torque specifications.
Laraskan ketinggian tunggangan awal dan damping settings as desired (refer to the "Operating and Adjustment" section).
Pasang semula roda dan turunkan kenderaan.
Perform a full vehicle alignment after installation to ensure proper handling and tire wear.

Penting: Some users have reported that the bottom parts that bolt to the front spindles may be on the wrong sides from the factory. Verify the 'L' (Left) and 'R' (Right) markings on the top mounting plates and ensure brake cable and speed sensor brackets align correctly. If necessary, unscrew and swap the lower mounts.

Pramuat Musim Bunga: The springs are high tensile with a recommended preload of 7-10 mm. Ensure the center bolt up top is tightened and spring tension is set uniformly before installation.

Diagram showing internal components of a maXpeedingrods coilover — Imej: Meletup view of a coilover unit, highlighting the camber plate top mount (6061-T6 AL), upper spring seat with radial bearing, full-length dust boot, high tensile spring, and 6061-T6 AL perch.

Pengendalian dan Pelarasan

Pelarasan Ketinggian:

The coilover kit allows for 1-3 inches of height adjustment. Use the provided wrench to adjust the ride height.

Loosen the lower mount (A) and locking ring (B).
Rotate the coilover body to increase or decrease the threaded distance (D) to change the ride height.
Once the desired height is achieved, tighten the lower mount (A) and locking ring (B) securely.

Diagram illustrating how to adjust coilover height — Image: Diagram showing the components involved in height adjustment: lower mount (A), locking ring for height adjustable (B), lock ring for preload adjustment (C), and the adjustable distance (D).

Comparison of coilover height adjustment — Image: Visual representation of full-length height adjustment, showing two coilovers at different heights and a schematic diagram of the adjustment mechanism.

Damping Adjustment (24 Levels):

The coilovers feature 24 levels of rebound force adjustment, allowing you to fine-tune your suspension for various driving conditions. The adjustment knob is typically located at the top of the coilover shaft.

Tahap 0-8: Recommended for street use, providing a more comfortable ride.
Tahap 9-16: Suggested for mountain roads or spirited driving, offering a balance of comfort and performance.
Tahap 17-24: Sesuai untuk trek perlumbaan, memberikan kekakuan dan kawalan maksimum.

Turn the adjustment knob clockwise for stiffer damping and counter-clockwise for softer damping. Adjust all four coilovers equally for balanced handling.

Diagram showing 24-level damping adjustment and thread-type height adjustment — Image: Illustration detailing the 24-level basic damping force adjustment via a screw adjuster and thread-type ride height adjustment.

Gambar dekat pelekap atas coilover dengan damppelarasan — Image: Close-up of the coilover's top mount, showing the 24-way damping adjustment knob, radial bearing, and camber plate with pillow ball.

Camber Adjustment:

The coilovers feature adjustable camber plates, allowing for fine-tuning of wheel alignment. This adjustment should be performed by a qualified technician during a full vehicle alignment.

Close-up of adjustable camber plate — Imej: Terperinci view of the camber plate, showing the adjustment bolts for modifying wheel camber.

Penyelenggaraan

Penyelenggaraan tetap memastikan jangka hayat dan prestasi optimum coilovers anda.

Pemeriksaan Berkala: Periodically inspect coilovers for signs of wear, damage, or leaks. Check for loose bolts or nuts.
Pembersihan: Keep the coilover bodies and threads clean from dirt, salt, and debris. The full-length dust boots help protect the piston shafts, but external cleaning is still important.
Pelinciran: Apply a suitable lubricant to the threads if adjusting height frequently to prevent seizing.
Penjajaran: After any significant height or camber adjustment, a professional wheel alignment is crucial.

Image showing durable TPV full length dust boots and powder-coated lower mount — Image: Features of the coilover, including durable TPV full-length dust boots for piston shaft protection and a powder-coated lower mount for anti-rust and anti-corrosion performance.

Menyelesaikan masalah

Masalah	Kemungkinan Punca	Penyelesaian
Bunyi-bunyi Luar Biasa (berdentum, berdecit)	Bolt pemasangan longgar Improperly set spring preload Damaged pillow ball mounts Components rubbing	Check and tighten all mounting hardware. Verify spring preload is within 7-10 mm. Inspect pillow ball mounts for wear; replace if necessary. Pastikan kelegaan yang mencukupi antara komponen.
Ketinggian Tunggangan Tidak Sekata	Pelarasan ketinggian yang salah Uneven spring preload	Measure and adjust height on all four corners evenly. Ensure spring preload is consistent across all coilovers.
Pengendalian / Ketidakstabilan yang Lemah	salah damptetapan Improper wheel alignment (camber/toe) Komponen longgar	Laraskan damping settings according to driving conditions. Lakukan penjajaran roda profesional. Check all installation points for tightness.
Stiffness / Harsh Ride	Damping set too stiff Spring preload too high	Reduce damping force (turn counter-clockwise). Verify spring preload is within recommended range.

Spesifikasi

Jenama	maXpeedingrods
Nombor Model	CO-SUBGDB-R-LC-AMUS
Kedudukan Bahagian Auto	Depan, Belakang
Gaya	Boleh laras
Jenis Perkhidmatan Kenderaan	kereta
Kemasan Luaran	Black (Springs), Red (Components)
bahan	Aluminum (6061-T6 AL for top mount/perch), 55CrSi Steel (Springs)
Panjang Diperpanjang	14.17 Inches (approximate)
Kadar Spring Depan	9 kg/mm (504 lbs/in)
Kadar Spring Belakang	7 kg/mm (392 lbs/in)
Pramuat Musim Bunga	7-10 mm (recommended)
Damping Levels	24-level Rebound Force Adjustable
Julat Pelarasan Tinggi	1-3 inches lowering
Jenis Struktur	Tiub berkembar
Berat Barang	64.3 paun
Dimensi Produk	27.95 x 19.69 x 7.87 inci (pembungkusan)

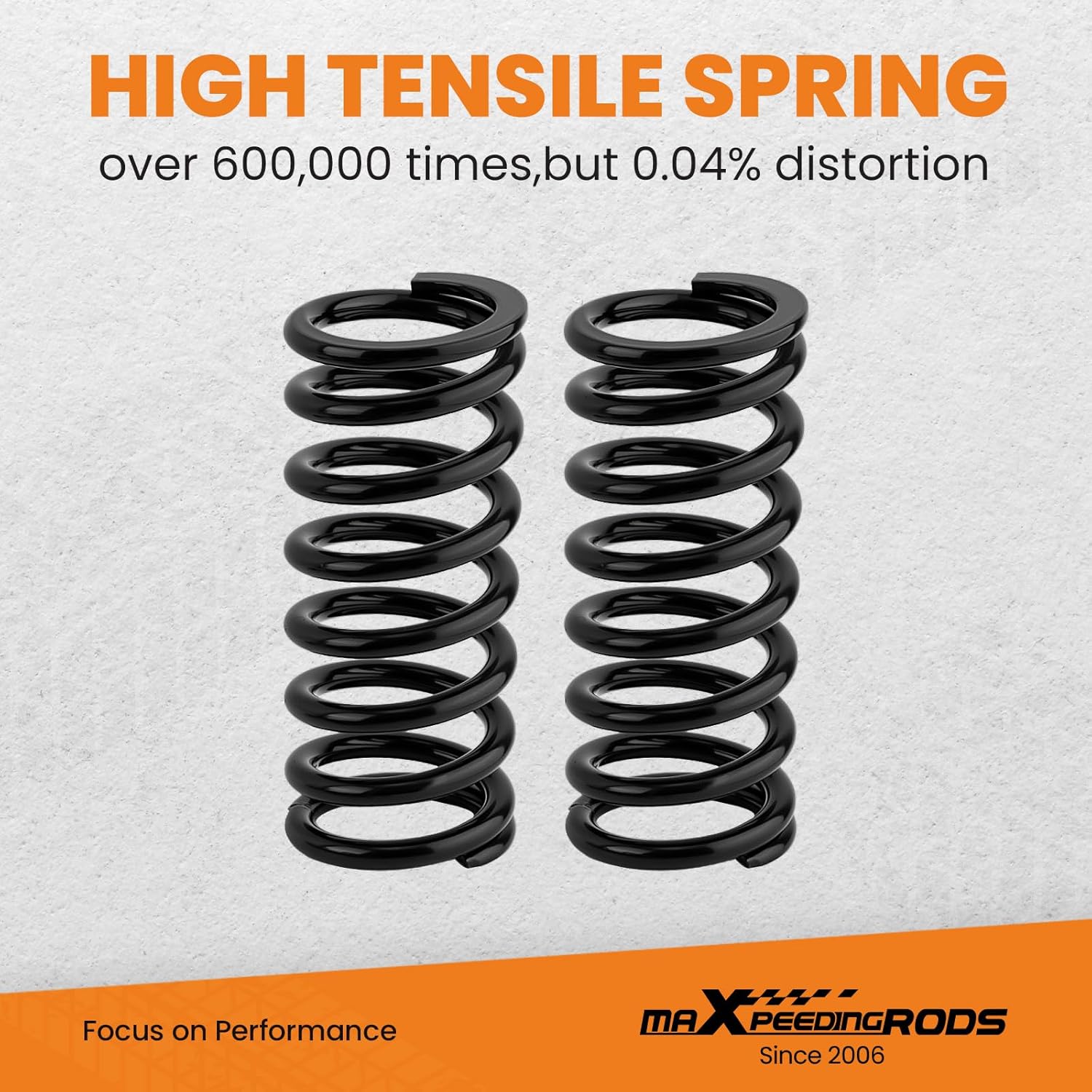

Close-up of high tensile springs — Image: High tensile springs, tested for durability with less than 0.04% distortion after 600,000 continuous cycles.

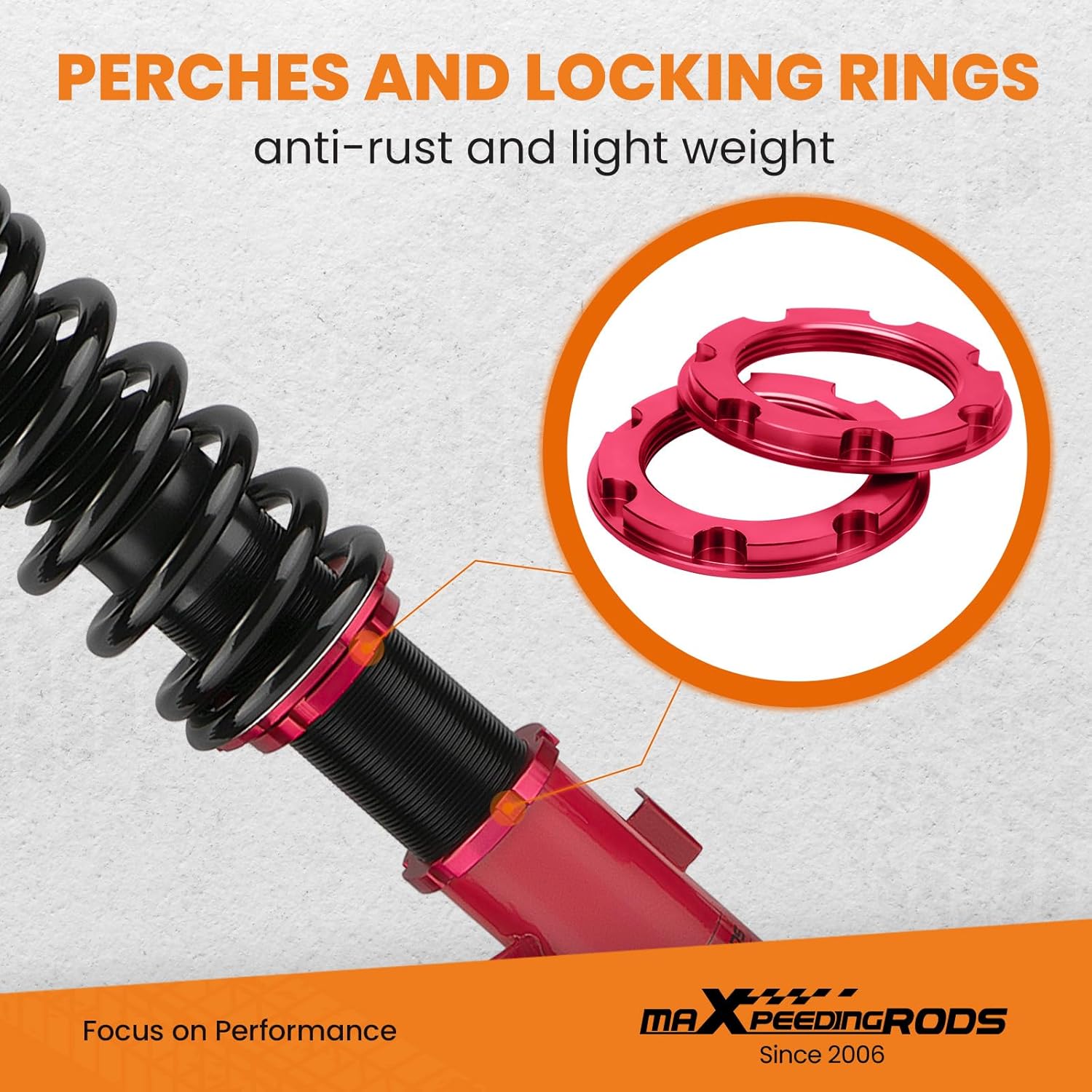

Close-up of anti-rust and lightweight perches and locking rings — Imej: Terperinci view of the anti-rust and lightweight perches and locking rings, essential for height adjustment.

Image showing forged T6061 Aluminum Top Mount and 55CrSi Steel Springs — Image: Features of the coilover, including a forged T6061 Aluminum top mount for reduced weight and increased hardness, and 55CrSi Steel springs for sag-free performance.

Waranti dan Sokongan

Maklumat Waranti:

Please refer to the warranty card included with your product or visit the official maXpeedingrods website for detailed warranty terms and conditions. Warranty coverage typically addresses manufacturing defects.

Sokongan Pelanggan:

For technical assistance, installation questions, or warranty claims, please contact maXpeedingrods customer support. You can find contact information on the official maXpeedingrods webtapak atau melalui platform pembelian anda.

Sumber Dalam Talian:

Official maXpeedingrods Webtapak: www.maxpeedingrods.com
Kedai Amazon: Visit maXpeedingrods Store on Amazon
