EasySMX 9013PRO Wireless Game Controller User Manual

1. Produk Lebihview

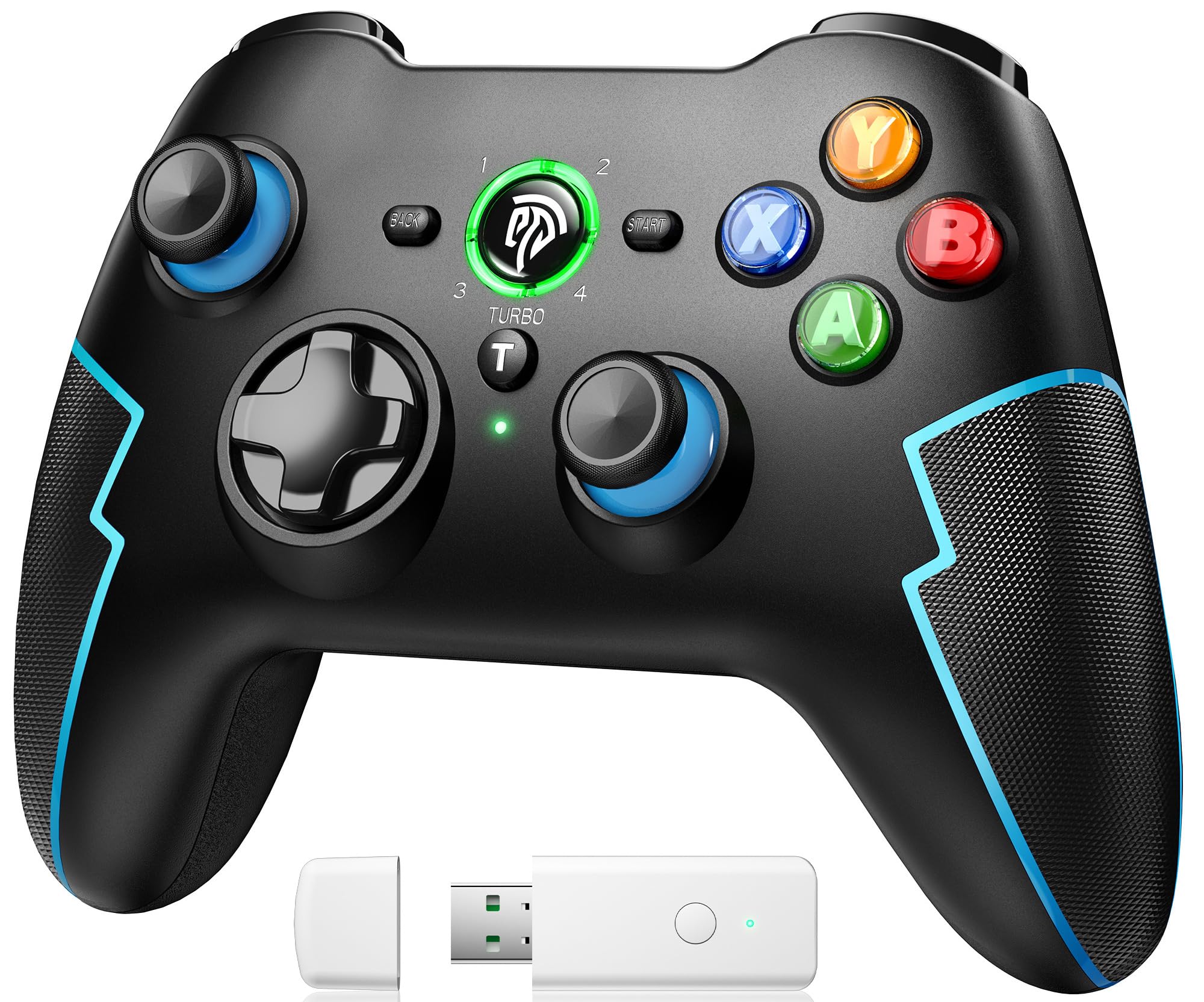

The EasySMX 9013PRO is a versatile wireless game controller designed for a superior gaming experience across multiple platforms. It features advanced Hall effect triggers, a customizable Turbo function, and dual vibration motors for immersive feedback. Its ergonomic design ensures comfort during extended gaming sessions.

Ciri-ciri Utama:

• Keserasian Pelbagai Platform: Supports PC, PS3, Nintendo Switch, Android TV Box, mobile phones, tablets, and laptops.
• Tiga Mod Sambungan: Offers flexible connectivity via Bluetooth, 2.4 GHz wireless dongle, or wired USB.
• High-Quality Hall Linear Triggers: Provides precise and responsive control with zero dead zones and a smooth, realistic feel, enhancing accuracy in various game genres.
• Fungsi Turbo: Customize the Turbo button for rapid-fire actions, reducing finger fatigue and giving a competitive edge in action and arcade games.
• Dual Vibration: Built-in dual electric motors deliver realistic haptic feedback, making in-game actions like slides and shots more immersive.
• Bateri boleh dicas semula: Equipped with a 600mAh rechargeable battery, offering up to 8 hours of continuous gameplay on a 2-hour charge. Includes an automatic power-off function to conserve energy.
• Reka bentuk ergonomik: Asymmetrical joystick layout and a soft, non-slip grip area ensure optimal comfort and secure handling.

2. Persediaan

2.1 Mengecas Pengawal

Before first use, fully charge the controller. Connect the provided USB cable to the controller's charging port and the other end to a USB power source (e.g., PC, USB wall adapter). The indicator lights will show charging status and turn solid when fully charged. A full charge takes approximately 2 hours.

2.2 Mod Sambungan

The EasySMX 9013PRO offers three ways to connect to your devices:

• 2.4 GHz Wireless (USB Dongle):

  For PC, PS3, and Android TV Box. Insert the 2.4 GHz USB dongle into an available USB port on your device. The controller will automatically connect, providing an ultra-low latency gaming experience.



• Sambungan Bluetooth:

  Compatible with Nintendo Switch, mobile phones, tablets, and laptops. Enable Bluetooth on your device. On the controller, press and hold the RUMAH button until the indicator lights flash rapidly, indicating pairing mode. Select "EasySMX 9013PRO" from your device's Bluetooth settings to connect.



• Sambungan Berwayar:

  For PC, PS3, and Android TV. Connect the controller directly to your device using a USB cable. The controller will be recognized automatically.



3. Arahan Operasi

3.1 Fungsi Turbo

The Turbo function allows for rapid, continuous input of a button press. To activate, press and hold the TURBO button, then press the desired action button (e.g., A, B, X, Y). To deactivate, repeat the process.

3.2 Dual Vibration

The controller features dual vibration motors that provide tactile feedback during gameplay. The intensity of the vibration can be adjusted to suit your preference. Refer to your device's or game's settings for vibration intensity adjustments, if available.

3.3 Hall Linear Triggers

The Hall effect linear triggers offer precise and smooth input, ideal for racing games where subtle acceleration and braking are crucial, or for action games requiring accurate skill deployment. These triggers provide a longer lifespan due to their non-contact electromagnetic induction mechanism.

3.4 Butang Boleh Aturcara

The controller may feature programmable buttons (often located on the back) that allow you to map complex commands or frequently used actions for quick access. Refer to the specific instructions for programming these buttons, usually involving a 'Macro' button or a combination of button presses.

3.5 Fungsi Tangkapan Skrin

For compatible devices like the Nintendo Switch, the controller includes a dedicated screenshot button to capture in-game moments. Press the screenshot button (often located near the HOME button) to save an image of your screen.

4. Penyelenggaraan

• Pembersihan: Gunakan kain lembut dan kering untuk membersihkan pengawal. Elakkan menggunakan bahan kimia yang keras atau bahan yang melelas.
• Storan: Simpan pengawal di tempat yang sejuk dan kering jauh dari cahaya matahari langsung dan suhu yang melampau.
• Penjagaan Bateri: To prolong battery life, avoid fully discharging the controller frequently. Charge it regularly, even if not in use for extended periods. The automatic power-off feature helps conserve battery when idle.
• Elakkan Kerosakan Fizikal: Do not drop, disassemble, or apply excessive force to the controller.

5. Penyelesaian masalah

• Pengawal Tidak Bersambung:
  • Pastikan pengawal dicas.
  • For 2.4 GHz, verify the USB dongle is properly inserted and recognized by the device.
  • For Bluetooth, ensure Bluetooth is enabled on your device and the controller is in pairing mode. Try re-pairing.
  • For wired, ensure the USB cable is securely connected to both the controller and the device.
  • Restart both the controller and the device.
• Buttons or Joysticks Unresponsive/Drifting:
  • Pastikan pengawal dicas sepenuhnya.
  • Calibrate the joysticks and triggers through your device's system settings (e.g., Windows Control Panel for game controllers, Nintendo Switch system settings).
  • Clean around the buttons and joysticks to remove any debris.
• Hayat Bateri Pendek:
  • Pastikan pengawal dicas sepenuhnya sebelum digunakan.
  • Reduce vibration intensity if possible, as it consumes more power.
  • The battery may degrade over time with extensive use.
• Turbo Function Not Working:
  • Pastikan anda menekan butang TURBO button simultaneously with the desired action button.
  • Some games or platforms may not fully support the Turbo function.

6. Spesifikasi

7. Waranti dan Sokongan

For warranty information, technical support, or further assistance, please refer to the official EasySMX website or the documentation provided with your purchase. Keep your proof of purchase for warranty claims.
