1. Pengenalan
This manual provides essential information for the installation, operation, and maintenance of your TYC 2-11301 Replacement Alternator. Please read this manual thoroughly before proceeding with installation or use to ensure proper function and safety.
The TYC 2-11301 Alternator is engineered to meet Original Equipment (OE) specifications, ensuring compatibility and reliable performance for your vehicle's electrical system. It features 100% new components, including bearings, brushes, rotor, stator, rectifier, and regulator, designed for extended service life.
2. Maklumat Keselamatan
Sentiasa patuhi langkah keselamatan berikut semasa pemasangan dan penyelenggaraan:
- Disconnect the vehicle's battery before beginning any work on the electrical system to prevent electrical shock or short circuits.
- Pakai peralatan pelindung diri (PPE) yang sesuai, termasuk cermin mata keselamatan dan sarung tangan.
- Ensure the vehicle is securely supported on jack stands if working underneath.
- Rujuk manual servis khusus kenderaan anda untuk arahan terperinci dan spesifikasi tork.
- Do not attempt to repair a damaged alternator. Replace it with a new unit.
- Jauhkan kanak-kanak dan orang ramai dari kawasan kerja.
3. Produk Lebihview
The TYC 2-11301 is a direct replacement alternator designed to restore your vehicle's charging system to optimal performance. It converts mechanical energy from the engine into electrical energy to power the vehicle's electrical components and recharge the battery.
Rajah 1: Depan view of the TYC 2-11301 Replacement Alternator, showing the pulley and main housing.
Rajah 2: Bersudut view of the TYC 2-11301 Replacement Alternator, highlighting the cooling fins and electrical connections.
4. Persediaan dan Pemasangan
Installation of an alternator typically involves several steps. If you are not experienced with automotive electrical systems, it is recommended to seek professional assistance.
4.1 Alat Diperlukan
- Set Soket/Sepana
- Sepana Terminal Bateri
- Serpentine Belt Tool (if applicable)
- Sepana Tork
- Cermin Mata dan Sarung Tangan Keselamatan
4.2 Langkah Pemasangan
- Sediakan Kenderaan: Park the vehicle on a level surface, engage the parking brake, and turn off the engine. Disconnect the negative (-) battery terminal first, followed by the positive (+) terminal.
- Access the Alternator: Depending on your vehicle model, you may need to remove other components (e.g., air intake, engine cover) to gain access to the alternator.
- Remove the Serpentine Belt: Use a serpentine belt tool to release tension on the belt and carefully remove it from the alternator pulley.
- Putuskan Sambungan Elektrik: Disconnect all electrical wiring from the old alternator. This typically includes the main power cable and a multi-pin connector. Note their positions for reinstallation.
- Keluarkan Bolt Pemasangan: Unbolt the old alternator from its mounting brackets. Be aware that alternators can be heavy.
- Install New Alternator: Carefully position the new TYC 2-11301 alternator into place and secure it with the mounting bolts. Tighten to the vehicle manufacturer's specified torque.
- Reconnect Electrical Connections: Reattach all electrical wiring to the new alternator, ensuring secure connections.
- Reinstall Serpentine Belt: Route the serpentine belt correctly over all pulleys and apply tension.
- Sambung semula Bateri: Sambungkan semula terminal bateri positif (+) dahulu, kemudian terminal negatif (-).
- Sistem Ujian: Start the vehicle and check the dashboard for any battery or charging system warning lights. Use a voltmeter to confirm proper charging voltage (typically 13.5-14.8 volts).

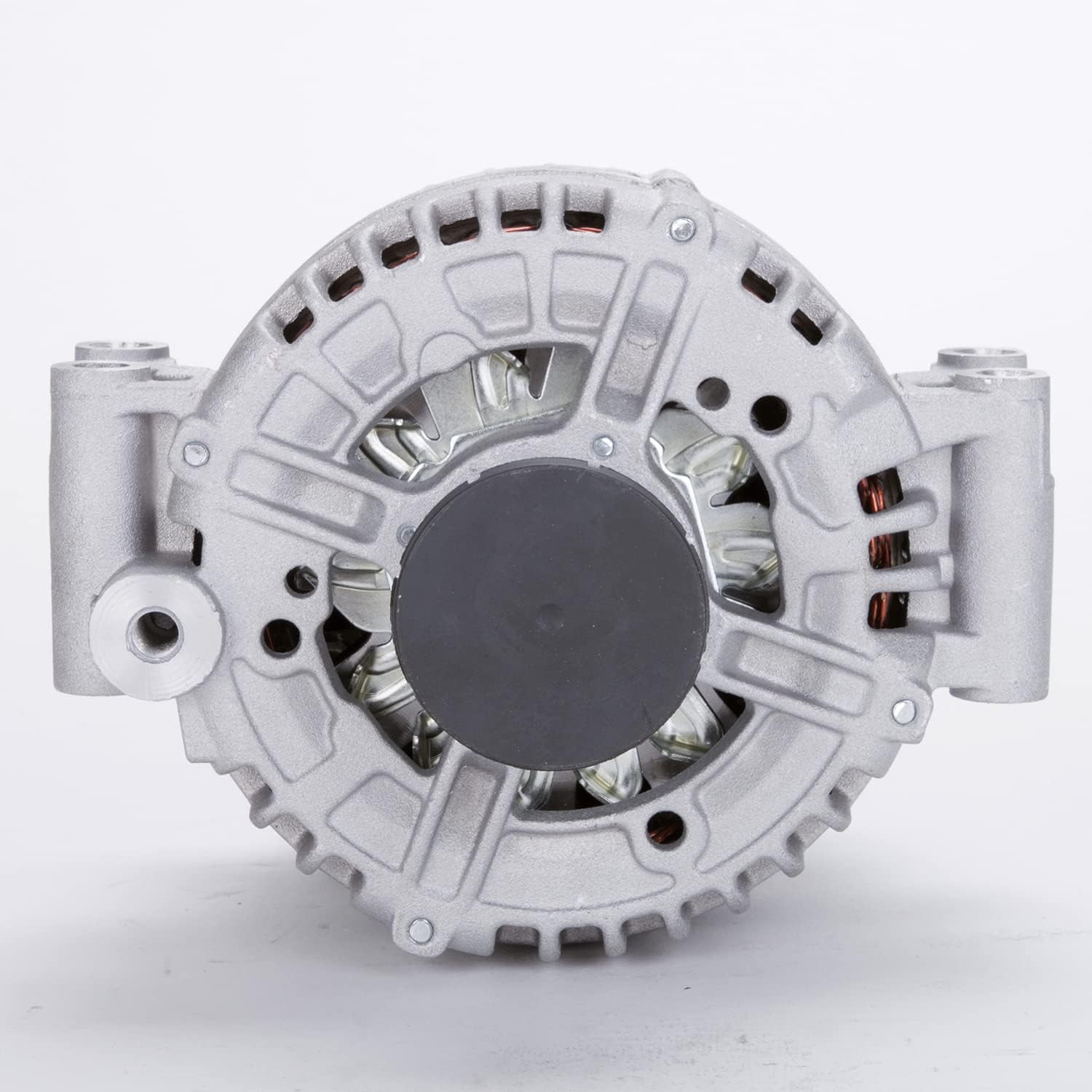

Rajah 3: Belakang view of the TYC 2-11301 Alternator, showing the mounting points and internal components.
5. Prinsip Operasi
The alternator is a key component of your vehicle's charging system. Once the engine starts, the serpentine belt drives the alternator pulley, which in turn spins the rotor inside the stator. This rotation generates an alternating current (AC) through electromagnetic induction. The AC is then converted into direct current (DC) by the rectifier and regulated to a stable voltage oleh voltage regulator before being supplied to the vehicle's electrical system and battery.
A properly functioning alternator ensures that your vehicle's battery remains charged and all electrical accessories (lights, radio, air conditioning, etc.) receive adequate power while the engine is running.
6. Penyelenggaraan
The TYC 2-11301 Alternator is designed for long-term, maintenance-free operation. However, regular inspection of related components can help ensure its longevity and proper function:
- Serpentine Belt: Periodically inspect the serpentine belt for cracks, fraying, or excessive wear. Replace it according to your vehicle manufacturer's recommendations. A worn belt can slip, reducing alternator output.
- Terminal Bateri: Ensure battery terminals are clean and free of corrosion. Loose or corroded terminals can hinder proper charging.
- Sambungan Pendawaian: Check all electrical connections to the alternator for tightness and corrosion.
- Keadaan Bateri: A weak or failing battery can put undue strain on the alternator. Ensure your battery is in good condition.
7. Penyelesaian masalah
If you experience issues with your vehicle's charging system after installing the TYC 2-11301 Alternator, consider the following common problems and solutions:
| simptom | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Battery warning light on dashboard | Loose or corroded battery/alternator connections, faulty serpentine belt, discharged battery. | Check and clean all connections. Inspect and replace serpentine belt if necessary. Test battery charge. |
| Dim headlights or interior lights | Low alternator output, weak battery. | Semak pengecasan voltage with a voltmeter. Test battery. |
| Squealing noise from engine bay | Loose or worn serpentine belt, misaligned pulley. | Inspect and adjust/replace serpentine belt. Check pulley alignment. |
| Bateri tidak dicas | Faulty alternator, open circuit in wiring, blown fuse. | Verify all connections. Check relevant fuses. Test alternator output. |
Jika langkah penyelesaian masalah tidak menyelesaikan isu tersebut, adalah disyorkan untuk berunding dengan juruteknik automotif yang bertauliah.
8. Spesifikasi
Refer to the following specifications for the TYC 2-11301 Replacement Alternator:
- Nombor Model: 2-11301
- Jenama: TYC
- Jenis Produk: AUTO_PART (Alternator)
- Pembinaan: 100% New Components (bearings, brushes, rotor, stator, rectifier, regulator)
- Dimensi: Kira-kira 22.86 x 22.86 x 20.32 cm (8.7 x 7.5 x 8.0 inci)
- Berat: Kira-kira 7.3 kg (16.1 lbs)
- Negara Asal: Taiwan
- OEM Part Number Cross-Reference: 12-31-7-555-926 (Verify compatibility with your vehicle's specific OEM part number)
Rajah 4: Sisi view of the TYC 2-11301 Alternator, showing the main electrical connector and mounting points.
Rajah 5: Jarak dekat view of the electrical connector on the TYC 2-11301 Alternator, indicating connection points.
9. Waranti dan Sokongan
For warranty information and customer support regarding your TYC 2-11301 Replacement Alternator, please refer to the documentation provided with your purchase or contact TYC directly through their official website. Warranty terms and conditions may vary based on the retailer and region of purchase.
Adalah penting untuk mengekalkan bukti pembelian anda untuk sebarang tuntutan waranti.
