Rowin Digital Slow Hand Guitar Pedal Instruction Manual

1. Pengenalan

The Rowin Digital Slow Hand Guitar Pedal (Model LEF-326) is designed to create a unique volume swell effect, mimicking the sound of a violin or a controlled volume knob manipulation. This compact and durable pedal offers true bypass functionality and two distinct modes for versatile sound shaping.

Rajah 1: Depan view of the Rowin Digital Slow Hand Guitar Pedal.

2. Ciri-ciri Utama

• Slow Gear Effect: Emulates the controlled volume knob effect, creating violin-like sound swells by cutting off the sound head.
• Dua Mod: Features Normal mode for real-time parameter adjustment and Fixed mode for storing personalized settings.
• Pembinaan Pepejal: Built with durable zinc alloy for longevity and reliability.
• Pintasan Benar: Ensures transparent tone when the effect is disengaged, preserving your guitar's natural sound.
• Saiz Mini: Compact design saves space on your pedalboard.
• Penunjuk LED: Clearly shows the working state of the pedal.

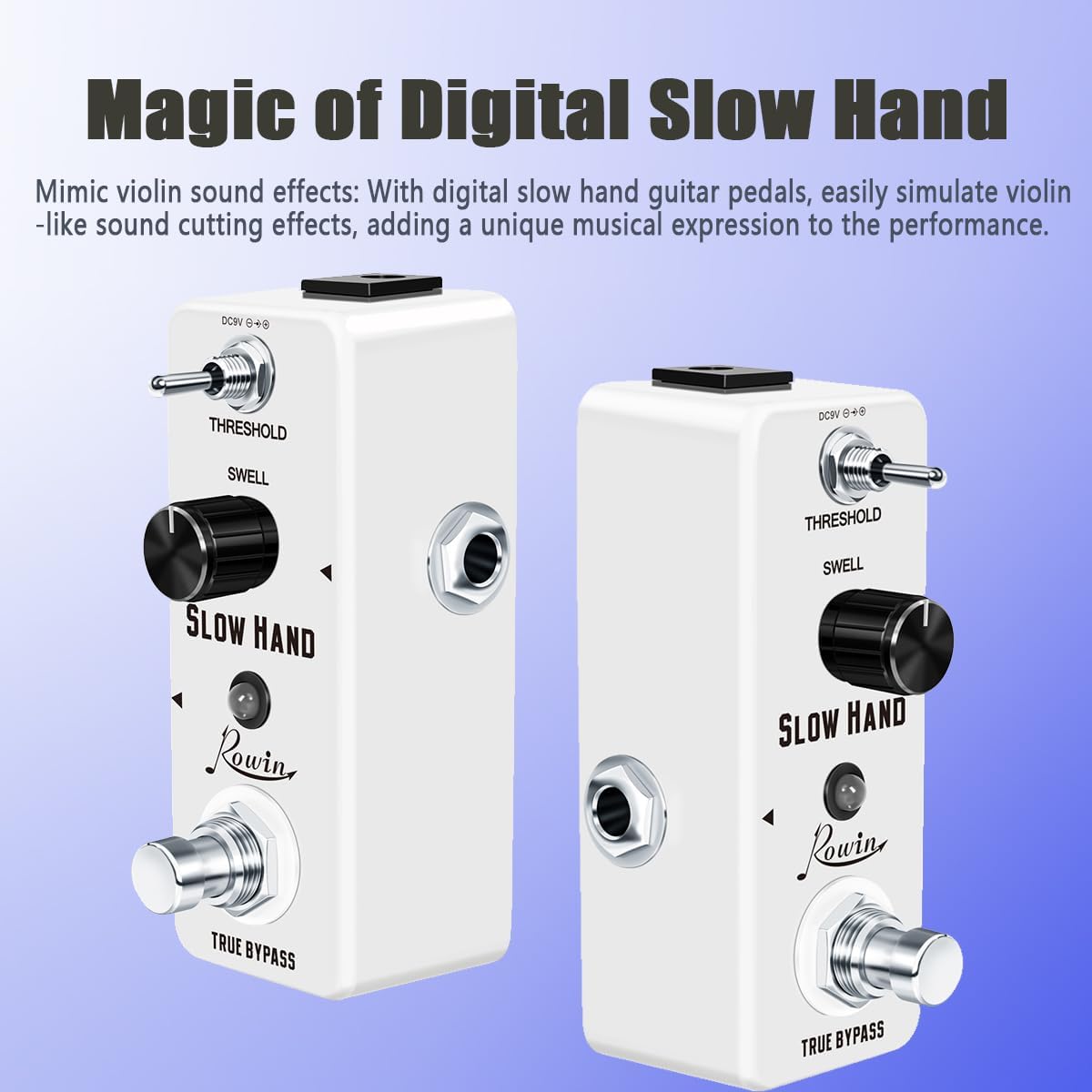

Figure 2: The "Magic of Digital Slow Hand" effect, mimicking violin sounds.

3. Persediaan

3.1 Bekalan Kuasa

The Rowin Slow Hand pedal requires a DC 9V power supply with a central negative polarity. Ensure your power supply meets these specifications to prevent damage to the unit.

NOTICE: DC 9V Power supply is not included with the pedal.

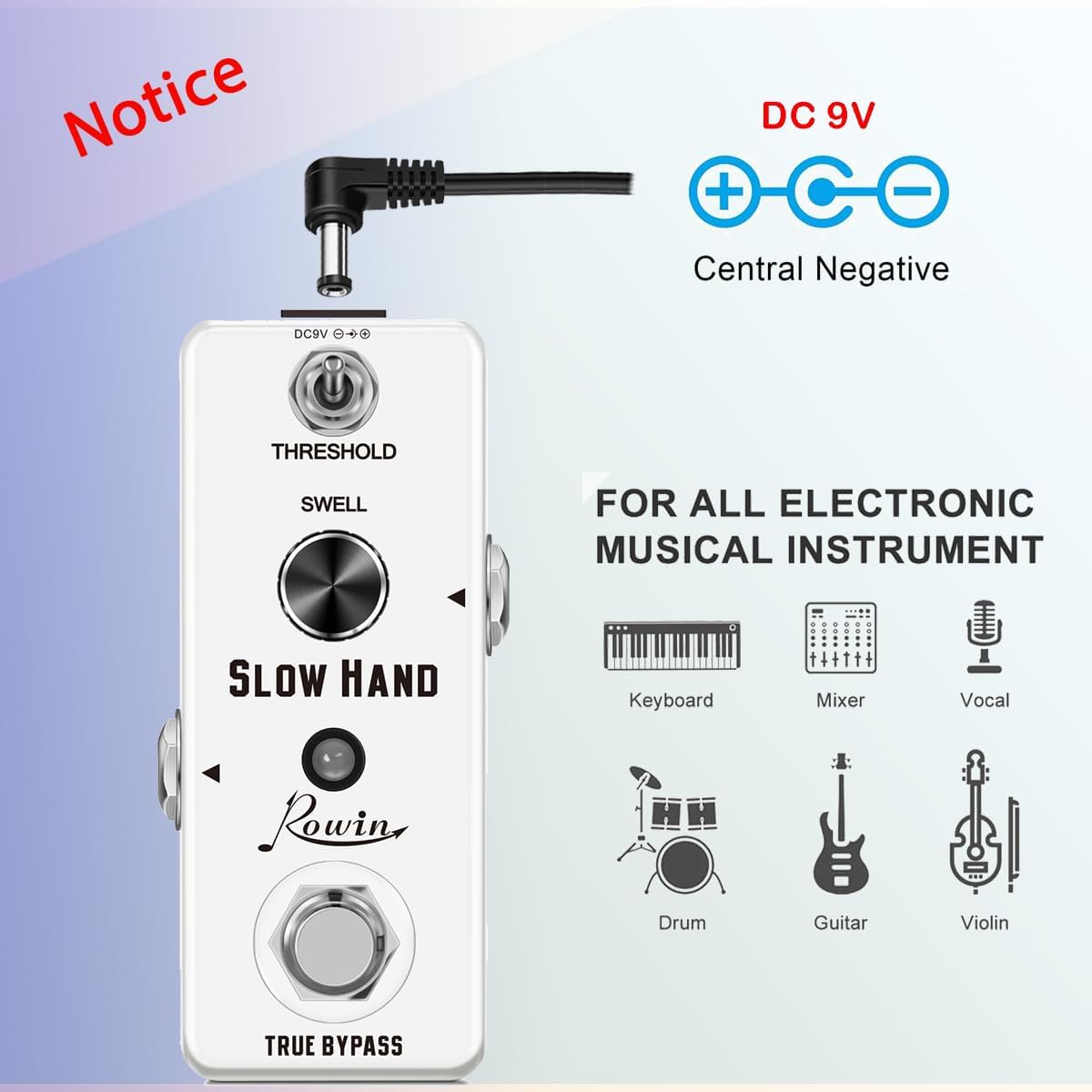

Figure 3: Power supply requirements for the pedal.

3.2 Menyambungkan Pedal

Connect your guitar to the input jack (right side of the pedal) and your amplifier or other effects pedals to the output jack (left side of the pedal). Use standard 1/4-inch instrument cables.

• Jack Input: Sambungkan instrumen anda di sini.
• Jack Output: Sambung ke anda amplampu isyarat atau pedal seterusnya dalam rantai isyarat anda.

4. Mengendalikan Pedal

The Rowin Slow Hand pedal features intuitive controls for shaping your sound.

Figure 4: Intuitive control interface of the pedal.

4.1 Kawalan

• Tombol Ambang: Adjusts the sensitivity of the volume swell effect. A higher threshold requires a stronger input signal to trigger the swell.
• SWELL Knob: Controls the attack time of the volume swell. Turning it clockwise increases the time it takes for the sound to reach full volume, creating a slower swell effect.
• BYPASS BENAR Suis Kaki: Engages or disengages the effect. When disengaged, the signal passes through the pedal without alteration. The LED indicator illuminates when the effect is active.

4.2 Mod

• Mod Biasa: Allows for real-time adjustment of sound parameters using the THRESHOLD and SWELL knobs.
• Mod Tetap: Enables the storage of a set of preferred parameters, providing consistent performance. Refer to the included owner's manual for specific instructions on saving settings in Fixed Mode.

5. Penyelenggaraan

• Keep the pedal clean by wiping it with a soft, dry cloth.
• Elakkan mendedahkan pedal kepada suhu, kelembapan atau cahaya matahari langsung yang melampau.
• Do not attempt to disassemble or modify the pedal, as this will void the warranty.
• Apabila tidak digunakan untuk tempoh yang lama, putuskan bekalan kuasa.

6. Penyelesaian masalah

7. Spesifikasi

• model: LEF-326
• Jenama: Rowin
• warna: Slow Hand
• Format Isyarat: Analog
• Sumber Kuasa: Elektrik
• Voltage: 9 Volt DC
• Amppemadaman: 100 Miliamps
• Berat Barang: 7.4 auns
• Dimensi Produk: 3.74 x 1.77 x 1.89 inci
• Pintasan: Bypass Betul

Figure 5: Compact dimensions and weight of the pedal.

8. Waranti dan Sokongan

For warranty information and technical support, please refer to the official Rowin weblaman web atau hubungi peruncit tempat anda membeli produk tersebut. Simpan bukti pembelian anda untuk sebarang tuntutan jaminan.

Untuk sumber tambahan dan maklumat produk, lawati laman web Rowin Brand Store on Amazon.
