EVGA GeForce GTX 1080 Founders Edition User Manual

1. Pengenalan

This manual provides comprehensive instructions for the installation, operation, and maintenance of your EVGA GeForce GTX 1080 Founders Edition graphics card. Please read this manual thoroughly before proceeding with installation to ensure proper setup and optimal performance.

Figure 1.1: The EVGA GeForce GTX 1080 Founders Edition graphics card alongside its packaging.

2. Maklumat Keselamatan

Always observe the following safety precautions to prevent damage to the graphics card, your computer system, or personal injury:

• Pastikan sistem komputer anda dimatikan dan dicabut dari soket dinding sebelum memasang atau mengeluarkan kad grafik.
• Discharge any static electricity from your body by touching a grounded metal object (e.g., the computer chassis) before handling the graphics card.
• Handle the graphics card by its edges. Avoid touching the gold-plated PCI Express connector or the components on the circuit board.
• Jangan dedahkan kad grafik kepada kelembapan atau suhu yang melampau.
• Pastikan aliran udara yang mencukupi dalam bekas komputer anda untuk mengelakkan terlalu panas.
• Jika anda tidak pasti tentang sebarang langkah pemasangan, rujuk juruteknik bertauliah.

3. Kandungan Pakej

Verify that all items are present in your EVGA GeForce GTX 1080 Founders Edition package:

• EVGA GeForce GTX 1080 Founders Edition Graphics Card
• Driver CD / DVD (or link to driver download)
• Quick Installation Guide / User Manual
• Power Adapter Cable (if applicable, e.g., 6-pin to 8-pin PCIe power adapter)
• EVGA Case Badge

Gambar 3.1: Cthamples of EVGA documentation and branding materials that may be included.

Figure 3.2: A PCIe power adapter cable, which may be necessary for some power supply configurations.

4. Keperluan Sistem

Sebelum pemasangan, pastikan sistem anda memenuhi keperluan minimum berikut:

• Papan induk yang mematuhi PCI Express dengan satu slot grafik x16 dwi-lebar.
• Minimum 500W or greater power supply with one 8-pin PCI Express power connector. (Consult your power supply manufacturer for specific details).
• 300MB of available hard-disk space.
• 4GB system memory (8GB or more recommended).
• Microsoft Windows 10, Windows 8.1, Windows 8, Windows 7, or Linux operating system.
• CD-ROM or DVD-ROM drive (for driver installation) or internet connection.

5. Persediaan dan Pemasangan

Follow these steps to install your EVGA GeForce GTX 1080 Founders Edition graphics card:

1. Sediakan Sistem Anda: Power off your computer and unplug the power cord from the wall outlet. Open your computer case.
2. Cari Slot PCI Express: Identify an available PCI Express x16 slot on your motherboard. This card requires a dual-width slot, meaning it will occupy two expansion slots on your case.
3. Tanggalkan Penutup Slot: Remove the two metal slot covers from the back of your computer case corresponding to the chosen PCI Express slot.
4. Pasang Kad Grafik: Carefully align the graphics card with the PCI Express slot. Apply even pressure to both ends of the card until it is fully seated in the slot. A click may be heard when it is properly seated.

Figure 5.1: The EVGA GeForce GTX 1080 Founders Edition graphics card, ready for installation into a PCI Express slot.
5. Selamatkan Kad: Secure the graphics card to the computer case using the screws from the removed slot covers.
6. Sambungkan Kuasa: Connect the 8-pin PCI Express power connector from your power supply to the corresponding port on the graphics card. If your power supply does not have an 8-pin connector, use the included 6-pin to 8-pin adapter cable.
7. Tutup Kes dan Sambung Peranti: Close your computer case. Reconnect the power cord, monitor cables, and any other peripherals.


Figure 5.2: The rear I/O panel of the graphics card, featuring DisplayPort, HDMI, and DVI connectors for display output.

6. Mengendalikan Kad Grafik

6.1 Pemasangan Pemandu

After physical installation, you must install the graphics drivers for proper functionality:

1. But Sistem Anda: Power on your computer. Windows will detect new hardware and may attempt to install generic drivers.
2. Pasang Pemacu:
   • From CD/DVD: Insert the included driver CD/DVD into your optical drive and follow the on-screen instructions.
   • From Internet: Visit the official EVGA webtapak (www.evga.com/drivers/) atau pegawai NVIDIA webtapak (www.nvidia.com/drivers) to download the latest drivers for your GeForce GTX 1080. Run the downloaded installer and follow the prompts.
3. Mulakan semula Sistem: After the driver installation is complete, restart your computer when prompted.

6.2 Software and Utilities

EVGA provides additional software to enhance your experience:

• EVGA Precision XOC: This utility allows for monitoring, overclocking, and fan control of your graphics card. It can be downloaded from the EVGA webtapak.
• Pengalaman NVIDIA GeForce: This software optimizes game settings, updates drivers, and provides features like ShadowPlay for recording gameplay.

7. Penyelenggaraan

Proper maintenance ensures the longevity and performance of your graphics card:

• Pastikan Pemacu Kemas Kini: Regularly check for and install the latest graphics drivers from EVGA or NVIDIA to ensure optimal performance and compatibility with new games and applications.
• Habuk Bersih: Periodically clean dust from the graphics card's heatsink and fans using compressed air. Ensure the system is powered off and unplugged before cleaning. Hold the fan blades gently to prevent them from spinning rapidly during cleaning.
• Pantau Suhu: Use monitoring software (e.g., EVGA Precision XOC) to keep an eye on GPU temperatures, especially during heavy loads. Ensure temperatures remain within safe operating limits.
• Pastikan Aliran Udara yang Betul: Verify that your computer case has adequate ventilation and that case fans are functioning correctly to facilitate proper airflow around the graphics card.

8. Penyelesaian masalah

Jika anda menghadapi masalah dengan kad grafik anda, rujuk langkah penyelesaian masalah biasa berikut:

For further assistance, refer to the EVGA support webtapak atau hubungi sokongan teknikal mereka.

9. Spesifikasi

Rajah 9.1: Atas view daripada kad grafik, tunjukkancasing its cooling solution.

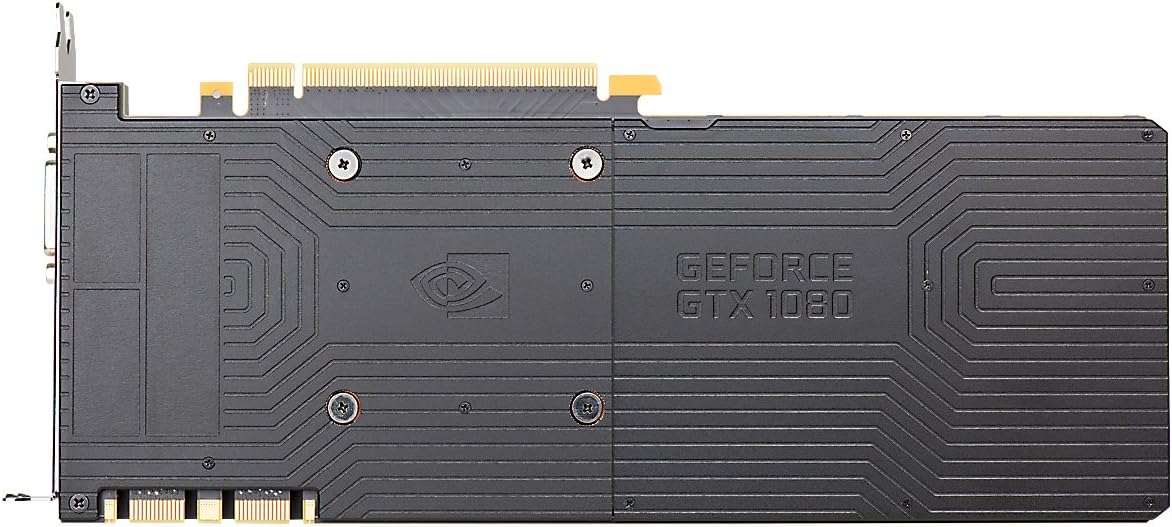

Figure 9.2: The backplate of the graphics card, providing structural support and heat dissipation.

10. Waranti dan Sokongan

EVGA products are backed by a limited warranty. For detailed warranty information, including terms, conditions, and registration, please visit the official EVGA webtapak:

EVGA Warranty Information

For technical support, driver downloads, FAQs, and community forums, please visit:

EVGA Support Center

When contacting support, please have your product model number (08G-P4-6180-KR) and serial number ready.
