Manual Arahan Karburetor Briggs & Stratton 799583

Produk Selesaiview

The Briggs & Stratton 799583 Carburetor is a genuine Original Equipment Manufacturer (OEM) authorized replacement part designed for various Briggs & Stratton engine models. This carburetor is manufactured in the United States and ensures proper fuel-air mixture for optimal engine performance.

Imej 1: Depan view of the Briggs & Stratton 799583 Carburetor, showing the main intake and fuel line connection.

Maklumat Keselamatan

AMARAN: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Always wear appropriate personal protective equipment (PPE) when handling fuel system components. Ensure proper ventilation and avoid prolonged skin contact with fuel or carburetor cleaning agents.

• Always disconnect the spark plug wire before performing any maintenance or installation.
• Ensure the engine is cool before working on the carburetor.
• Bekerja di kawasan pengudaraan yang baik.
• Keep open flames and sparks away from fuel and fuel system components.
• Lupuskan bahan api dan alat ganti lama mengikut peraturan tempatan.

Persediaan dan Pemasangan

Replacing the carburetor requires basic mechanical skills. Refer to your engine's specific service manual for detailed instructions on removing the old carburetor and installing the new one. The following steps provide a general overview:

1. Sediakan Enjin: Ensure the engine is off and cool. Disconnect the spark plug wire. Drain the fuel tank or pinch off the fuel line to prevent fuel leakage.
2. Keluarkan Pemasangan Penapis Udara: Carefully remove the air filter housing and air filter.
3. Disconnect Linkages and Fuel Line: Disconnect the throttle and choke linkages from the old carburetor. Detach the fuel line.
4. Keluarkan Karburator Lama: Unbolt the old carburetor from the engine. Note the orientation of any gaskets or spacers.
5. Transfer Components (if necessary): Some carburetors may require transferring specific components, such as throttle linkages or springs, from the old unit to the new one. The Briggs & Stratton 799583 typically comes ready for installation, but always compare with the old unit.

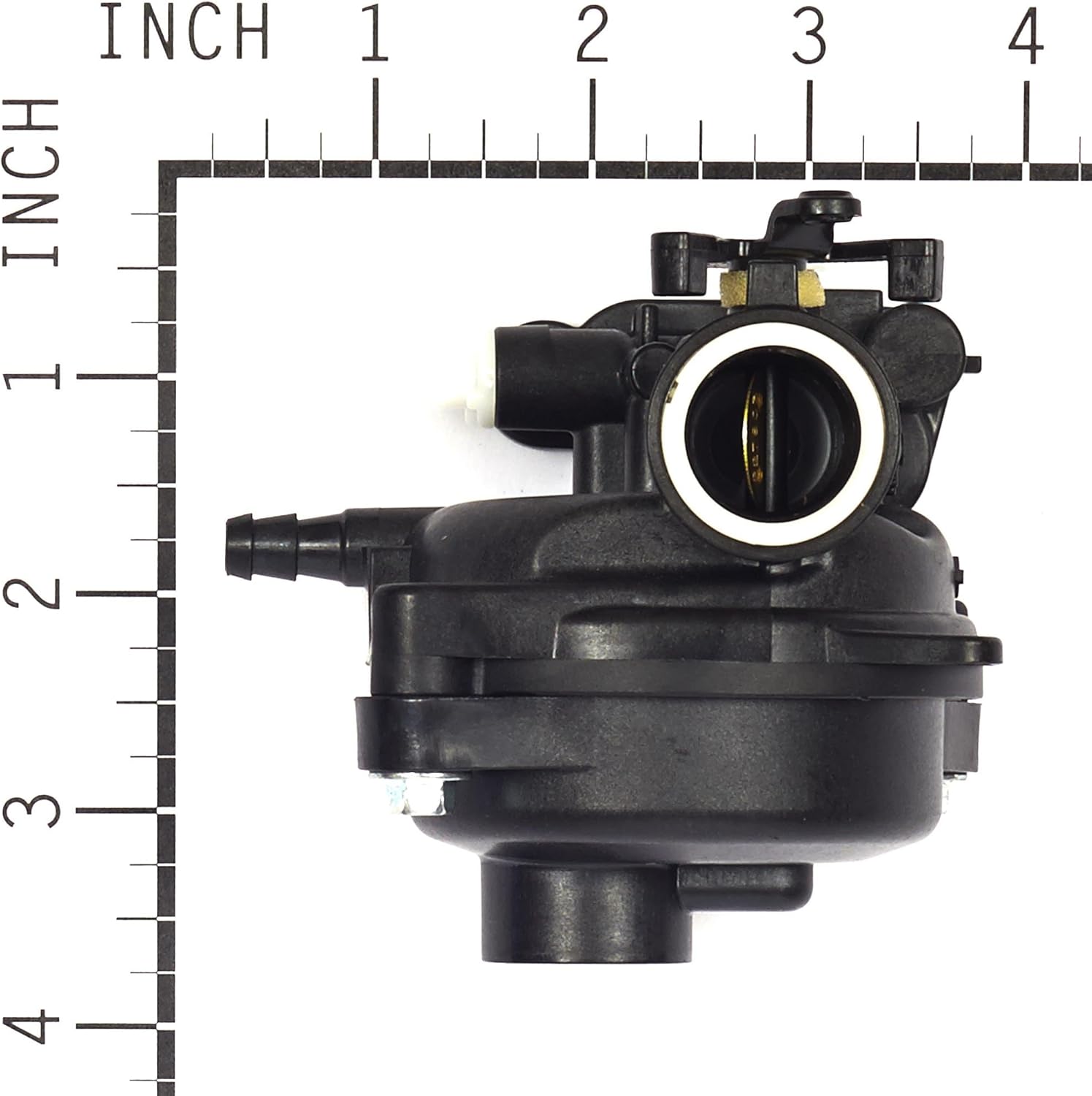

Imej 2: Sisi view of the carburetor, showing the throttle and choke linkages. Ensure these are correctly connected during installation.
6. Pasang Karburator Baru: Place new gaskets (if supplied or required) and mount the new Briggs & Stratton 799583 Carburetor onto the engine. Secure it with the appropriate bolts.
7. Reconnect Linkages and Fuel Line: Reattach the throttle and choke linkages. Connect the fuel line securely.
8. Pasang semula Pemasangan Penapis Udara: Reinstall the air filter and its housing.
9. Isi Semula Bahan Api: Add fresh, clean fuel to the tank.

Arahan Operasi

Once the new carburetor is installed, the engine should start and run smoothly. Follow your engine's specific starting procedures.

• Memulakan Enjin:
  1. Ensure the fuel tank has fresh, clean fuel.
  2. Sambung wayar palam pencucuh.
  3. If your engine has a primer bulb, press it 3-5 times until fuel is visible.
  4. Set the throttle to the "Fast" or "Start" position.
  5. Tarik tali penghidup dengan kuat sehingga enjin dihidupkan.
• Operasi Enjin: Allow the engine to warm up for a few minutes before engaging any attachments or beginning work. The carburetor automatically adjusts the fuel-air mixture for optimal performance under various loads.
• Tutup: To stop the engine, move the throttle to the "Stop" position or engage the engine kill switch.

Penyelenggaraan

Regular maintenance helps prolong the life of your engine and carburetor. While the 799583 is a replacement part, proper care of the fuel system is crucial.

• Kualiti Bahan Api: Always use fresh, clean, unleaded gasoline with an octane rating of 87 or higher. Avoid using old or stale fuel, as it can lead to carburetor clogging.
• Penstabil Bahan Api: If storing the engine for more than 30 days, add a fuel stabilizer to the fuel tank to prevent fuel degradation and gum formation in the carburetor.
• Penapis Udara: Regularly inspect and clean or replace the air filter according to your engine's maintenance schedule. A dirty air filter can restrict airflow and affect carburetor performance.
• Palam Pencucuh: Check and replace the spark plug as recommended by your engine manufacturer. A fouled spark plug can lead to poor combustion and affect engine starting and running.

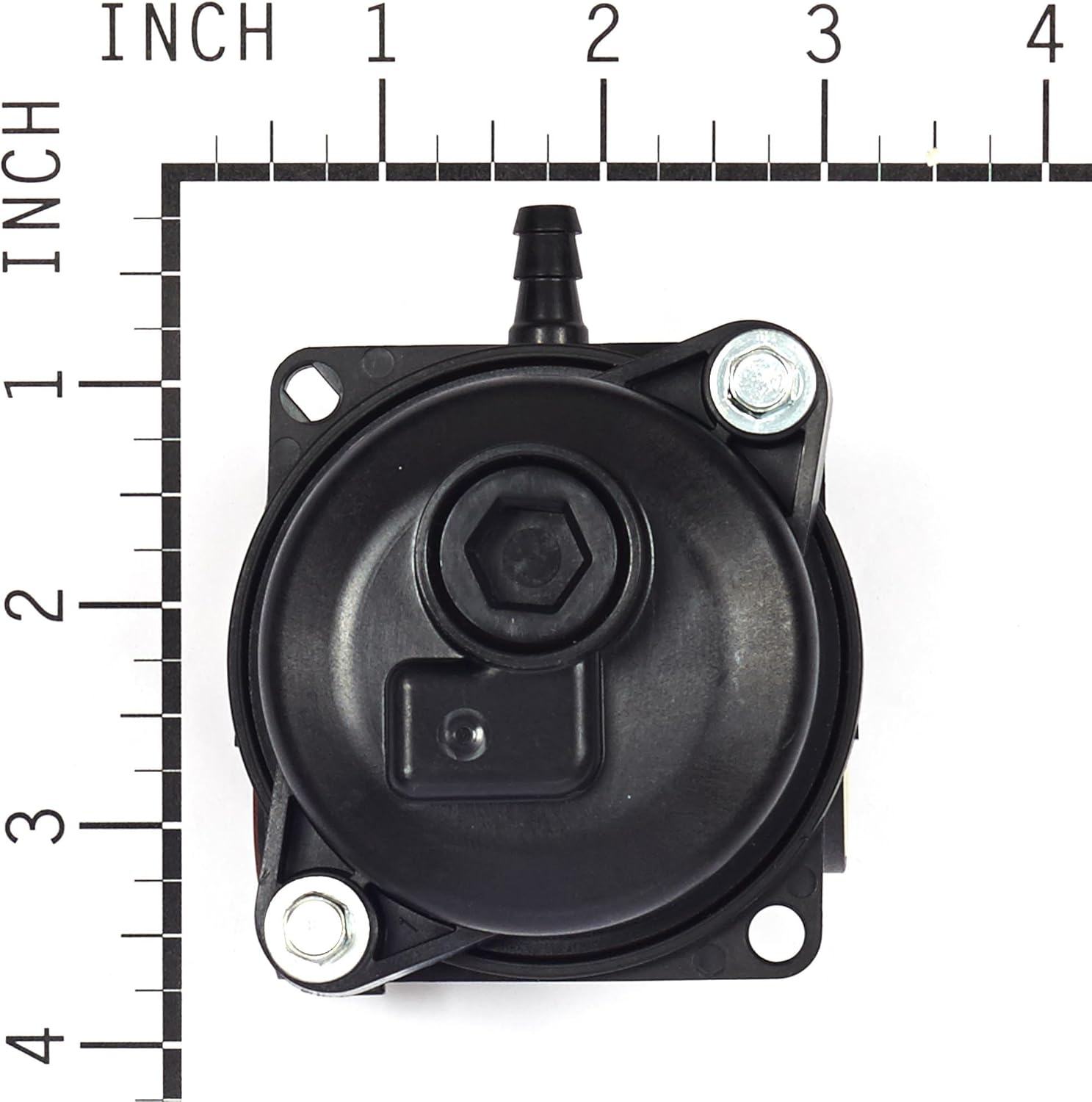

Imej 3: Bawah view of the carburetor, showing the fuel bowl and mounting points. Regular inspection for leaks is recommended.

Menyelesaikan masalah

If your engine experiences issues after carburetor replacement, consider the following common problems:

If issues persist, consult a qualified service technician or refer to your engine's comprehensive service manual.

Spesifikasi

• Nombor Bahagian: 799583
• Pengeluar: Briggs dan Stratton
• Dimensi Produk: Kira-kira 1 x 1 x 1 inci
• Berat Barang: Kira-kira 4.8 auns
• Keserasian: Fits various Briggs & Stratton models (refer to your engine's manual for specific compatibility)
• Jenis: OEM Authorized Replacement Carburetor

Imej 4: Atas view of the carburetor, showing the primer bulb and various ports.

Waranti dan Sokongan

For warranty information and technical support regarding your Briggs & Stratton 799583 Carburetor, please contact Briggs & Stratton directly or refer to the warranty documentation included with your engine or product purchase.

You can visit the official Briggs & Stratton website for service locator tools, parts diagrams, and contact information: www.briggsandstratton.com
