UST GG900 900W Generator User Manual

pengenalan

This manual provides comprehensive instructions for the safe and efficient operation, maintenance, and troubleshooting of your UST GG900 900W Gasoline Generator. Please read this manual thoroughly before operating the generator to ensure proper use and to prevent injury or damage.

The UST GG900 is a compact and portable gasoline generator designed to provide reliable power. It features a 2-stroke engine, 900W surge power, and 700W continuous output, making it suitable for various applications including camping and light commercial use.

Maklumat Keselamatan Penting

Always follow these safety precautions to prevent serious injury or death. Failure to do so may result in electric shock, fire, or carbon monoxide poisoning.

• Bahaya Karbon Monoksida: Generators produce carbon monoxide, a colorless, odorless, poisonous gas. Operate the generator outdoors in a well-ventilated area, far away from windows, doors, and vents. Never operate indoors or in enclosed spaces.
• Bahaya Kejutan Elektrik: Do not operate the generator in wet conditions. Ensure all connections are dry and secure. Use ground fault circuit interrupter (GFCI) protected extension cords when operating in damp persekitaran.
• Bahaya Kebakaran: Petrol sangat mudah terbakar. Isi minyak di kawasan pengudaraan yang baik dengan enjin dimatikan dan sejuk. Jangan merokok atau biarkan api terbuka berhampiran penjana. Simpan bahan api dalam bekas yang diluluskan.
• Permukaan Panas: The generator's engine and muffler become very hot during operation and remain hot for a period after shutdown. Avoid contact with hot surfaces to prevent burns.
• Kanak-kanak dan Haiwan Kesayangan: Keep children and pets away from the generator, especially during operation.

Komponen Produk

Familiarize yourself with the main components of your UST GG900 generator:

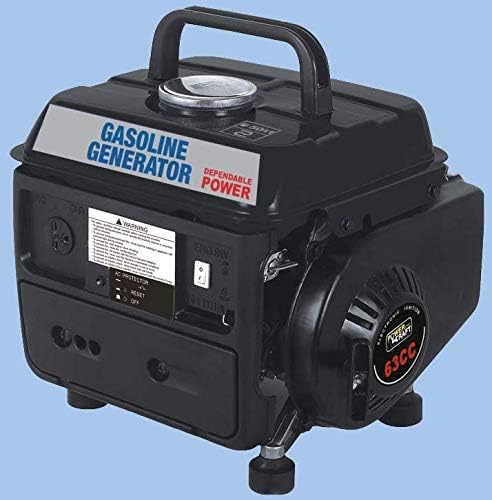

Rajah 1: Berakhirview of the UST GG900 900W Gasoline Generator. This image displays the compact black generator unit with a top handle, fuel cap, control panel on the front, and the engine housing on the side. The label "GASOLINE GENERATOR DEPENDABLE POWER" is visible on the top.

• Penutup Tangki Bahan Api: Located on top, for adding gasoline.
• Panel Kawalan: Includes the 120V AC outlet, warning labels, and AC protector/reset switch.
• Engine On/Off Switch: Controls the power to the engine.
• Pemula Recoil: Digunakan untuk menghidupkan enjin secara manual.
• Peredam Ekzos: Located on the side, expels exhaust gases.
• Membawa pemegang: Untuk mudah dibawa.

Persediaan dan Penyediaan

Before starting the generator, ensure it is placed on a firm, level surface outdoors, away from any combustible materials and at least 20 feet from any building openings.

1. Fueling the Generator

The UST GG900 uses a 2-stroke engine, which requires a gasoline-oil mixture. Refer to the engine specifications for the correct mixing ratio (typically 50:1 or 40:1, check engine label if available). Use fresh, unleaded gasoline with an octane rating of 87 or higher.

1. Pastikan penjana dimatikan dan sejuk.
2. Mix the appropriate ratio of 2-stroke engine oil with gasoline in a separate, approved fuel container.
3. Carefully open the fuel tank cap.
4. Pour the fuel mixture into the fuel tank, being careful not to overfill. The tank capacity is 1.1 liters.
5. Tutup penutup tangki bahan api dengan kemas.

2. Pemeriksaan Awal

• Verify that the spark plug wire is securely attached.
• Pastikan penapis udara bersih dan dipasang dengan betul.
• Check for any loose connections or visible damage.

Arahan Operasi

Memulakan Penjana

1. Place the generator on a level, outdoor surface, away from any obstructions.
2. Ensure the engine on/off switch is in the "ON" position.
3. If the engine is cold, apply choke as per the instructions on the generator (if applicable).
4. Pegang pemegang starter sentakan dengan kuat dan tariknya dengan cepat dan lancar sehingga enjin dihidupkan. Jangan biarkan tali itu patah ke belakang.
5. Once the engine starts, gradually open the choke (if used) until the engine runs smoothly.

Menyambung Peranti Elektrik

The generator provides one 120V AC outlet.

• Allow the generator to run for a few minutes to warm up before connecting any devices.
• Pastikan jumlah wattage of connected devices does not exceed the continuous output of 700W. The generator can handle a surge of up to 900W for a short period.
• Plug your 120V AC devices into the outlet.
• If the generator overloads, the AC protector may trip. Reset it by pressing the "RESET" button on the control panel. Reduce the load before restarting.

Menghentikan Penjana

1. Putuskan sambungan semua peranti elektrik daripada penjana.
2. Move the engine on/off switch to the "OFF" position.
3. Biarkan penjana sejuk sepenuhnya sebelum disimpan.

Penyelenggaraan

Regular maintenance is crucial for the longevity and reliable operation of your generator. Always perform maintenance with the engine off and cool, and the spark plug wire disconnected.

Jadual Penyelenggaraan

Penyimpanan

Jika menyimpan penjana selama lebih daripada 30 hari:

• Drain all fuel from the fuel tank and carburetor. Run the engine until it stops from lack of fuel.
• Remove the spark plug and pour a small amount of 2-stroke oil into the cylinder. Pull the recoil starter a few times to distribute the oil, then reinstall the spark plug.
• Store the generator in a clean, dry, well-ventilated area, away from direct sunlight and extreme temperatures.

Menyelesaikan masalah

This section provides solutions to common issues you might encounter with your UST GG900 generator.

Spesifikasi

Waranti dan Sokongan

For warranty information or technical support regarding your UST GG900 generator, please contact UST customer service. Keep your purchase receipt as proof of purchase for any warranty claims.

Contact information for UST Tools can typically be found on their official website or on the product packaging. Please refer to the manufacturer's official channels for the most up-to-date support details.
