1. Pengenalan
This document provides essential instructions for the installation, operation, and maintenance of the Master-Bilt 03-14980 Compressor Relay. This relay is designed for use with AWA2460ZXD compressor systems. Please read this manual thoroughly before attempting any installation or service to ensure proper function and safety.
2. Maklumat Keselamatan
AMARAN: Electrical shock hazard. Disconnect power before servicing. Installation and maintenance should only be performed by qualified personnel.
- Always disconnect power to the compressor unit before installing, removing, or servicing the relay.
- Pastikan semua sambungan pendawaian selamat dan mematuhi kod elektrik tempatan.
- Do not operate the compressor system with a damaged or improperly installed relay.
- Pakai peralatan perlindungan diri (PPE) yang sesuai, seperti sarung tangan berpenebat dan cermin mata keselamatan.
3. Produk Lebihview
The Master-Bilt 03-14980 is a compressor relay designed to manage the electrical current to the compressor motor, facilitating its start and stop cycles. It features a Normally Open contact type and is rated for 3 Amps. This component is crucial for the automatic operation of compatible refrigeration systems.

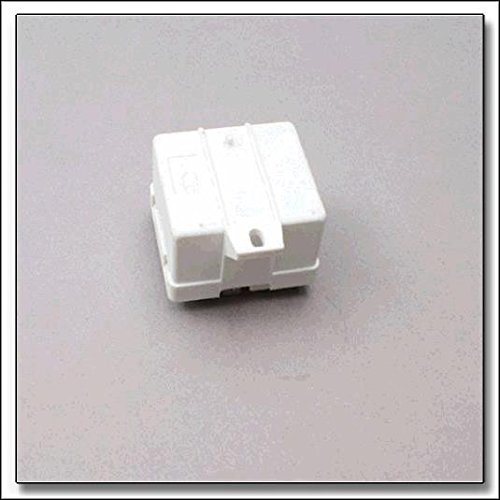

Figure 1: Master-Bilt 03-14980 Compressor Relay. This image shows the compact, white plastic housing of the relay, designed for electrical control within a compressor system.
4. Persediaan dan Pemasangan
Installation of the compressor relay should only be performed by a certified technician. Incorrect installation can lead to equipment damage or personal injury.
- Pemutusan Kuasa: Ensure the main power supply to the refrigeration unit is completely disconnected and locked out.
- Locate Old Relay: Identify the existing compressor relay within the control panel or compressor housing.
- Putuskan Sambungan Pendawaian: Carefully label and disconnect all wires from the old relay. Note their positions.
- Keluarkan Geganti Lama: Detach the old relay from its mounting.
- Pasang Geganti Baharu: Mount the Master-Bilt 03-14980 relay in the same position as the old one.
- Sambungan Pendawaian: Reconnect the labeled wires to the corresponding terminals on the new relay. Double-check all connections for security and correctness.
- Komponen Selamat: Ensure all covers and panels are securely reinstalled.
- Pulihkan Kuasa: Restore power to the unit and observe for proper operation.
5. Arahan Operasi
The Master-Bilt 03-14980 Compressor Relay operates automatically as part of the refrigeration system's control circuit. Once properly installed, it will engage and disengage the compressor motor based on the signals received from the system's thermostat or other control devices.
- Ensure the refrigeration unit is powered on.
- The relay will automatically activate the compressor when cooling is required and deactivate it when the desired temperature is reached.
- No manual intervention is typically required for the relay's operation.
6. Penyelenggaraan
The Master-Bilt 03-14980 Compressor Relay is designed for reliable, long-term operation with minimal maintenance. However, periodic inspection is recommended.
- Pemeriksaan Visual: Annually inspect the relay for any signs of physical damage, discoloration, or loose connections.
- Semakan Sambungan: Ensure all electrical connections to the relay are tight and free from corrosion.
- Pembersihan: If necessary, gently clean the exterior of the relay with a dry, soft cloth to remove dust or debris. Do not use liquids.
- Penggantian: If the relay shows signs of malfunction or damage, it should be replaced by a qualified technician.
7. Penyelesaian masalah
If the compressor system is not functioning correctly, consider the following troubleshooting steps related to the relay. Always disconnect power before inspecting components.
- Pemampat Tidak Bermula:
- Check if the main power supply to the unit is active.
- Verify that the thermostat or control system is calling for cooling.
- Inspect the relay for visible damage or burnt contacts.
- Ensure all wiring connections to the relay are secure.
- Compressor Cycling Rapidly:
- This could indicate an issue with the relay, thermostat, or other system components. Consult a technician.
- Unusual Noises from Relay:
- A buzzing or clicking sound might indicate a faulty relay or an issue with the power supply.
Jika langkah penyelesaian masalah tidak menyelesaikan isu, hubungi juruteknik perkhidmatan yang berkelayakan.
8. Spesifikasi
| Ciri | Perincian |
|---|---|
| Jenama | Master-Bilt |
| Nombor Model | MSB03-14980 (03-14980) |
| Serasi Dengan | GE 3ARR3-K3P4 for AWA2460ZXD Compressor |
| Jenis Kenalan | Biasa Terbuka |
| Penilaian Semasa | 3 Amps |
| Mod Operasi | Automatik |
| Dimensi Produk | 7 x 7 x 7 inci |
| Berat badan | 3.2 auns |
| UPC | 220215085368, 046843106196 |
9. Maklumat Waranti
For specific warranty details regarding the Master-Bilt 03-14980 Compressor Relay, please refer to the documentation provided by the original manufacturer or contact Master-Bilt directly. Warranty terms may vary based on purchase location and date.
10. Sokongan Pelanggan
If you require further assistance, technical support, or replacement parts, please contact Master-Bilt customer service or your authorized distributor. Provide your product model number (MSB03-14980) when seeking support.
