1. Produk Lebihview
The Nova 180150 Digital Aerofryer XL 3.2L is designed for healthy cooking, allowing you to fry, roast, and bake your favorite foods with minimal oil. Its high-speed hot air circulation technology ensures even cooking and crispy results, similar to conventional frying but with fewer calories. This appliance features a digital interface for easy control and removable, dishwasher-safe parts for convenient cleaning.
Ciri-ciri Utama:
- Memasak yang sihat: Fry, roast, and bake with less oil, maintaining flavor and texture.
- Peredaran Udara Pantas: High-speed hot air technology for efficient and even cooking.
- Kawalan Mesra Pengguna: Adjustable temperature control, integrated timer, and digital control panel with LCD screen.
- Kapasiti Murah: 3.2-liter volume, suitable for preparing up to 5 portions in one go.
- Mudah dibersihkan: Removable, dishwasher-safe parts for hassle-free maintenance.
- Ciri-ciri Keselamatan: Overheat protection and non-slip feet for stable operation.
- Kemudahan: Removable frying basket with handle and end-of-cooking signal.
Rajah 1.1: Depan view of the Nova XL 180150 Digital Aerofryer, showcasinreka bentuk putih yang anggun dan panel kawalan digitalnya.
2. Arahan Keselamatan Penting
Sila baca semua arahan dengan teliti sebelum menggunakan perkakas dan simpannya untuk rujukan masa hadapan. Kegagalan mematuhi arahan ini boleh mengakibatkan renjatan elektrik, kebakaran atau kecederaan serius.
- Sentiasa letakkan perkakas di atas permukaan yang stabil dan tahan haba, jauh dari dinding atau peralatan lain untuk membolehkan peredaran udara yang betul.
- Jangan rendam unit utama, kord, atau palam ke dalam air atau cecair lain.
- Pastikan voltage yang ditunjukkan pada perkakas sepadan vol utama tempatan andatage sebelum menyambung.
- Jangan kendalikan perkakas jika palam, kord kuasa, atau perkakas itu sendiri rosak.
- Keep children and pets away from the appliance during operation. The surface can become very hot.
- Never fill the basket with oil or other liquids, as this could cause a fire hazard.
- Jangan sekat lubang masuk atau keluar udara semasa operasi.
- Sentiasa cabut plag perkakas selepas digunakan dan sebelum membersihkan. Biarkan ia sejuk sepenuhnya sebelum dikendalikan.
- Gunakan hanya aksesori yang disyorkan oleh pengilang.
- Exercise extreme caution when removing the hot air fryer basket, as hot steam may escape.
3. Komponen dan Kawalan
Familiarize yourself with the different parts of your Aerofryer and its digital control panel.
- Unit Utama: menempatkan elemen pemanas dan kipas.
- Bakul Menggoreng: Bakul boleh tanggal untuk menyimpan makanan.
- Pemegang Bakul: For safe insertion and removal of the basket.
- Panel Kawalan Digital: LCD screen with touch controls for time, temperature, and preset programs.
- Lubang Masuk/Saluran Udara: Untuk peredaran udara yang betul semasa memasak.
Rajah 3.1: Jarak dekat view of the digital control panel, showing the LCD screen and touch buttons for operation.
Figure 3.2: The Nova Aerofryer with its removable frying basket and outer pan, demonstrating ease of access for cleaning and loading.
4. Persediaan dan Penggunaan Pertama
Before using your Aerofryer for the first time, follow these steps:
- Bongkar: Keluarkan semua bahan pembungkusan dan pelekat dari perkakas.
- Bersih: Wash the frying basket and outer pan thoroughly with hot water, dish soap, and a non-abrasive sponge. Wipe the inside and outside of the main unit with a damp kain.
- kering: Pastikan semua bahagian kering sepenuhnya sebelum pemasangan.
- penempatan: Place the Aerofryer on a stable, level, and heat-resistant surface. Ensure there is at least 10 cm of free space on the back and sides, and 10 cm above the appliance for proper ventilation.
- Pra-panas (Pilihan): For the first use, it is recommended to run the appliance empty for about 10-15 minutes at 200°C to eliminate any manufacturing odors. Ensure the area is well-ventilated during this process.
5. Panduan Operasi
Operasi Am:
- Menyediakan makanan: Place your ingredients into the frying basket. Do not overfill the basket; ensure there is enough space for air circulation.
- Masukkan Bakul: Luncurkan bakul goreng kembali ke dalam unit utama sehingga ia berbunyi klik pada tempatnya.
- Hidupkan kuasa: Plug the power cord into a grounded wall outlet. The digital display will light up.
- Tetapkan Suhu dan Masa: Use the temperature and time control buttons (+ dan -) to adjust to your desired settings. The temperature is adjustable, and the timer can be set for up to 60 minutes.
- Mula Memasak: Press the "START" button to begin the cooking process. The fan and heating element will activate.
- Shake/Turn Food (Optional): For even cooking, especially with fries or smaller items, pull out the basket halfway through the cooking time and shake it gently. Then, reinsert the basket. The appliance will resume cooking automatically.
- Tamat Memasak: The timer will sound a signal when the cooking time is complete.
- Keluarkan Makanan: Carefully pull out the basket using the handle. Place it on a heat-resistant surface. Use tongs to remove the cooked food.
- Matikan: Cabut plag perkakas dari soket dinding.
Cooking Guide (Approximate Values):
The following table provides general guidelines. Cooking times and temperatures may vary based on food quantity, thickness, and desired crispiness. Always ensure food is cooked thoroughly.
| Item Makanan | Kuantiti | Suhu | Masa | Goncang / Putar |
|---|---|---|---|---|
| Kentang Beku (nipis) | 300-500g | 180-200°C | 15-25 min | Yes (2-3 times) |
| Kentang goreng segar | 300-500g | 180°C | 20-30 min | Yes (2-3 times) |
| Batang Drum Ayam | 2-4 keping | 180°C | 20-25 min | Yes (once) |
| Steak/Pork Chops | 1-2 keping | 180-200°C | 10-18 min | Yes (once) |
| Gulung bunga | 4-6 keping | 200°C | 8-12 min | Yes (once) |
| Muffin/Cupcakes | 4-6 keping | 160°C | 15-20 min | Tidak |
Figure 5.1: The Aerofryer in operation, with the basket pulled out to show perfectly cooked fries inside.

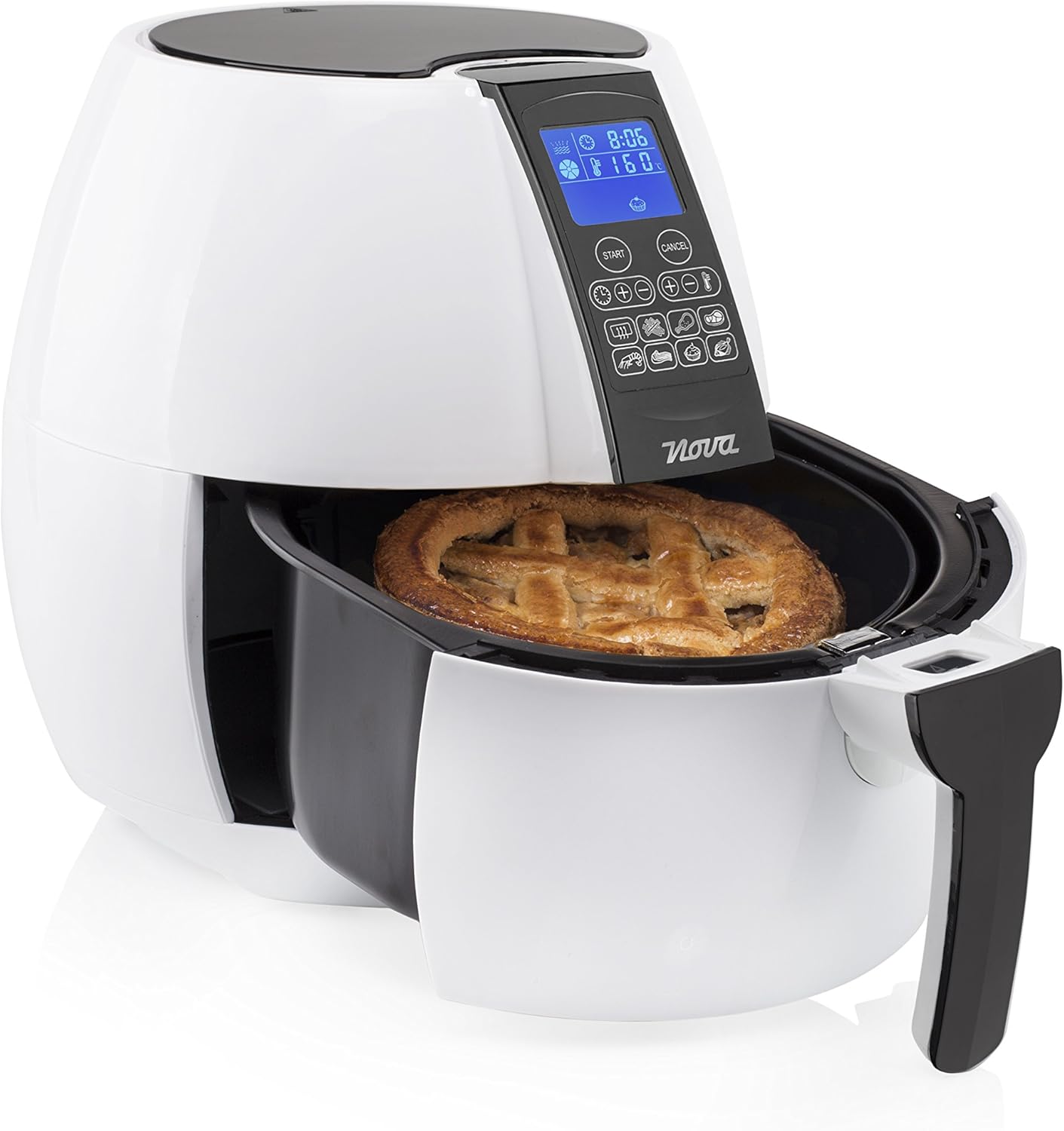

Figure 5.2: The Aerofryer demonstrating its versatility by cooking a pie, highlighting its baking capabilities.
6. Pembersihan dan Penyelenggaraan
Regular cleaning of your Aerofryer will ensure optimal performance and extend its lifespan. Always unplug the appliance and allow it to cool completely before cleaning.
- Frying Basket and Outer Pan: These parts are dishwasher-safe. Alternatively, they can be washed by hand with hot water, dish soap, and a non-abrasive sponge. For stubborn residue, soak them in hot water with dish soap for about 10 minutes.
- Di dalam Perkakas: Lap bahagian dalam dengan iklanamp kain dan detergen lembut. Jangan gunakan pembersih yang melelas atau bulu keluli.
- Elemen Pemanas: Gunakan berus pembersih untuk mengeluarkan sebarang sisa makanan daripada elemen pemanas.
- Outside of the Appliance: Lap bahagian luar dengan iklanamp kain.
- Storan: Once clean and dry, store the appliance in a cool, dry place.
Figure 6.1: The removable frying basket and outer pan, ready for easy cleaning by hand or in a dishwasher.
7. Penyelesaian masalah
If you encounter any issues with your Aerofryer, refer to the table below for common problems and their solutions.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Perkakas tidak dihidupkan. | Not plugged in; power outlet not working; basket not inserted correctly. | Ensure the plug is securely in the outlet; check the outlet with another appliance; push the basket fully into the unit until it clicks. |
| Makanan tidak dimasak sekata. | Bakul terlebih isi; makanan tidak digoncang/dibalikkan. | Kurangkan kuantiti makanan; goncang atau balikkan makanan pada separuh masa memasak. |
| Asap putih datang dari perkakas. | Sisa gris daripada penggunaan sebelumnya; bahan-bahan berlemak. | Clean the basket and outer pan thoroughly; remove excess oil from ingredients before cooking. |
| Kentang goreng tidak rangup. | Too much moisture; not enough oil (for fresh fries); temperature too low. | Pat fresh potatoes dry; add a tablespoon of oil for fresh fries; increase temperature or cooking time. |
| Perkakas berbau semasa penggunaan pertama. | Normal for new appliances due to protective coatings. | Run the appliance empty for 10-15 minutes at 200°C in a well-ventilated area. The smell will dissipate. |
8. Spesifikasi Teknikal
| Spesifikasi | Nilai |
|---|---|
| Nombor Model | 180150 |
| Jenama | NOVA |
| Kapasiti | 3.2 Liter |
| kuasa | 1500 Watt |
| Voltage | 220-240 Volt (AC) |
| bahan | plastik |
| warna | putih |
| Berat badan | 4.82 Kilogram |
| Kaedah Kawalan | Sentuh |
| Ciri Khas | Removable oil pan (basket) |
9. Waranti dan Sokongan
Information regarding the specific warranty period and terms for your Nova XL 180150 Digital Aerofryer is typically provided with your purchase documentation or on the manufacturer's official website. Please refer to these sources for detailed warranty coverage.
For technical support, spare parts, or service inquiries, please contact Nova customer service through their official website or the contact information provided in your product packaging. Always have your model number (180150) and purchase date ready when contacting support.
Nota: Ketersediaan maklumat alat ganti tidak disediakan dalam data produk.
