1. Pengenalan
Thank you for choosing the Morphy Richards Chef Xpress 400I Induction Cooker. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before first use and keep it for future reference.

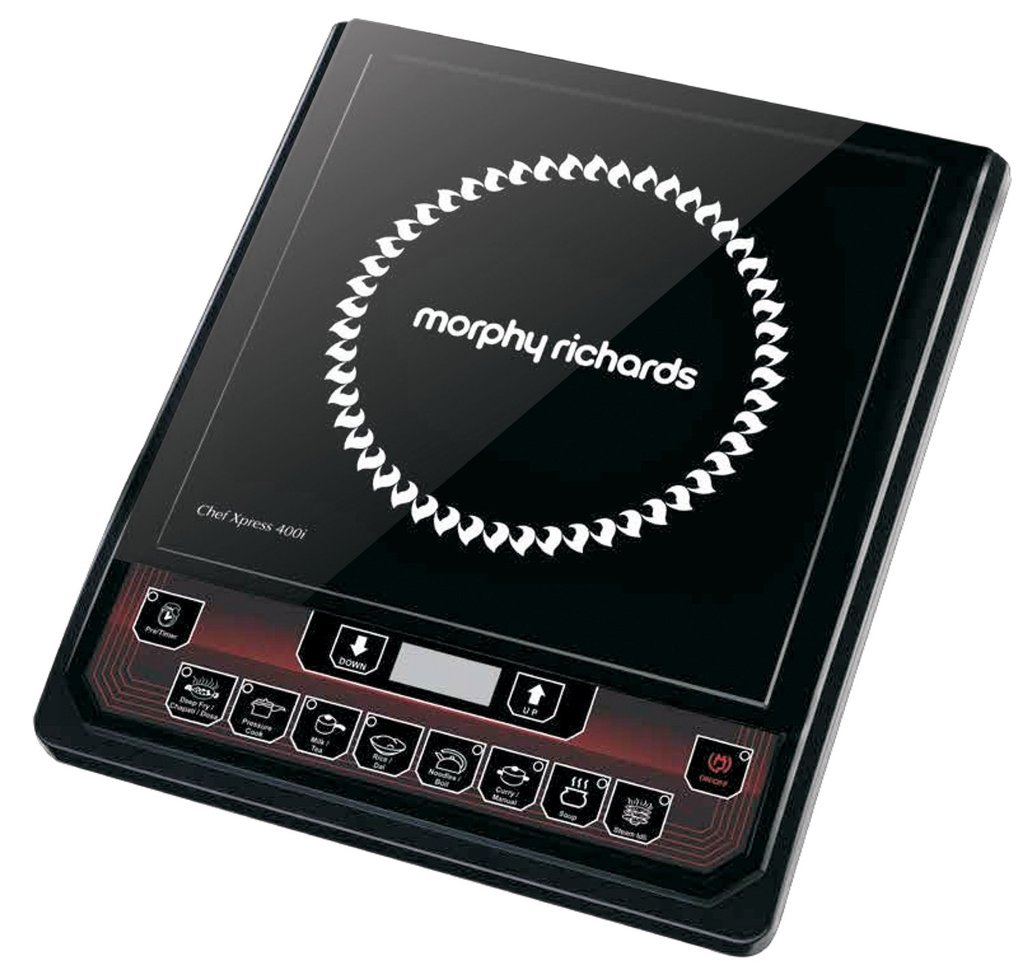

Rajah 1: Morphy Richards Chef Xpress 400I Induction Cooker. This image shows the sleek black design of the induction cooktop with its control panel.
2. Arahan Keselamatan Penting
Sentiasa ikuti langkah berjaga-jaga keselamatan asas apabila menggunakan peralatan elektrik untuk mengurangkan risiko kebakaran, renjatan elektrik dan kecederaan.
- Baca semua arahan dengan teliti sebelum mengendalikan perkakas.
- Jangan rendam perkakas, kord, atau palam ke dalam air atau cecair lain.
- Jauhkan perkakas daripada kanak-kanak.
- Pastikan voltage yang ditunjukkan pada perkakas sesuai dengan sumber listrik tempatan andatage sebelum menyambung.
- Jangan kendalikan perkakas dengan kord atau palam yang rosak.
- Gunakan hanya alat memasak yang serasi induksi.
- Do not place metallic objects like knives, forks, spoons, or lids on the induction surface as they can become hot.
- Allow sufficient ventilation around the appliance during use.
- Cabut plag perkakas dari outlet ketika tidak digunakan dan sebelum membersihkan.
- Jangan cuba membaiki perkakas ini sendiri. Hubungi kakitangan servis yang berkelayakan.
3. Komponen Produk
The Morphy Richards Chef Xpress 400I Induction Cooker package includes:
- 1 Unit Induction Cooker
- Manual Pengguna (dokumen ini)
4. Persediaan
- Membongkar: Carefully remove the induction cooker from its packaging. Retain the packaging for future storage or transport.
- penempatan: Place the induction cooker on a stable, flat, heat-resistant surface. Ensure there is adequate space (at least 10-15 cm) around the appliance for proper ventilation. Do not place it near heat sources or on metallic surfaces.
- Sambungan Kuasa: Pasangkan kord kuasa ke soket elektrik yang dibumikan. Pastikan volum sokettage matches the appliance's requirements (220-240V AC, 50Hz).
- Alat memasak: Use only induction-compatible cookware. These typically have a flat bottom and are made of magnetic materials like cast iron or stainless steel. A magnet will stick to the bottom of compatible cookware.
5. Arahan Operasi
The Morphy Richards Chef Xpress 400I features a user-friendly control panel with a knob for power adjustment.
- Hidupkan kuasa: Place an induction-compatible pot or pan centrally on the cooking surface. Plug the appliance into the power outlet. The display will illuminate.
- Select Power/Temperature: Turn the control knob to select the desired power level or temperature setting. The 400I model typically offers various pre-set cooking functions or a manual power adjustment up to 1400 Watts.
- Memasak: The induction cooker will begin heating the cookware. The cooking surface itself does not generate heat directly but heats the cookware through electromagnetic induction.
- Laraskan Tetapan: Adjust the power level as needed during cooking by turning the control knob.
- Matikan: After cooking, turn the control knob to the 'OFF' position or press the power button (if available) to switch off the appliance. Remove the cookware. The fan may continue to run for a short period to cool down internal components.
- Cabut plag: Unplug the appliance from the mains socket when not in use.
Nota: The induction cooker will automatically shut off if no compatible cookware is detected or if the cookware is removed from the surface.
6. Penjagaan dan Penyelenggaraan
Proper care ensures the longevity and optimal performance of your induction cooker.
- Pembersihan:
- Sentiasa cabut plag perkakas dan biarkan ia sejuk sepenuhnya sebelum dibersihkan.
- Wipe the ceramic glass surface with a soft, damp cloth and mild detergent. For stubborn stains, use a non-abrasive cleaner specifically designed for ceramic cooktops.
- Jangan gunakan pad kasar, bahan kimia yang keras atau bulu keluli, kerana ia boleh menggaru permukaannya.
- Clean the exterior body with a soft, damp kain.
- Pastikan tiada air memasuki komponen dalaman.
- Storan: Store the induction cooker in a dry, cool place when not in use. Protect it from dust and moisture.
- Pengudaraan: Keep the air inlet and outlet vents clear of obstructions to ensure proper airflow and prevent overheating.
7. Penyelesaian masalah
Sebelum menghubungi perkhidmatan pelanggan, sila rujuk isu dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Perkakas tidak dihidupkan. | No power supply; loose plug; power outage. | Check power cord connection; check household fuse/circuit breaker; try another outlet. |
| Alat memasak tidak dipanaskan. | Cookware is not induction-compatible; cookware is too small or too large; cookware not centered. | Use induction-compatible cookware; ensure cookware base covers at least 80% of the cooking zone; center the cookware. |
| Paparan menunjukkan kod ralat. | Specific error (e.g., overheating, sensor fault). | Refer to the specific error code in the full manual (if available) or contact customer support. Often, unplugging and replugging after a few minutes can reset the unit. |
| Bunyi kipas yang kuat. | Normal operation for cooling; obstructed vents. | This is normal. Ensure vents are not blocked. |
8. Spesifikasi
- model: Chef Xpress 400I
- Nombor Model Item: 820017
- Jenama: Morphy Richards
- Wattage: 1400 Watt
- Sumber Kuasa: Elektrik
- Jenis kawalan: Tombol
- warna: Hitam
- Dimensi Produk: 40.5D x 31W x 10.5H Sentimeter
- Berat Barang: 2 kg 280 g (approx. 5.03 Pounds)
- Komponen yang Disertakan: 1 Unit Induction Cooker
- Negara Asal: India
9. Waranti dan Sokongan Pelanggan
For warranty claims, service, or technical assistance, please contact Morphy Richards customer support.
- Nombor Talian Bantuan: 18-13-5963
- Maklumat Waranti: A 6-month extended warranty may be applicable on this product for purchases made between 1st Oct-21 to 3rd Nov-21. To avail this, please register the product on the Product Registration section of the morphyrichardsindia website between 1st Oct-21 to 7th Dec-21. Terms and Conditions apply. Standard warranty details should be available with your purchase documentation.
- Pengeluar: Canabara Industries Private Limited
- Pengimport: Imported and Marketed by Bajaj Electricals Ltd 45/47, Veer Nariman Road, Mumbai, 400001
