1. Pengenalan
This manual provides essential instructions for the installation, operation, and maintenance of the Cisco DS-C9124-K9 MDS 9124 24-Port Fabric Switch. Please read this manual thoroughly before using the device to ensure proper functionality and safety.
2. Maklumat Keselamatan
Arahan Keselamatan Penting:
- Pastikan pembumian yang betul untuk peranti.
- Do not operate the switch in wet or humid conditions.
- Putuskan sambungan kuasa sebelum melakukan sebarang prosedur penyelenggaraan atau pemasangan.
- This unit is suitable for an IT power system connection of max 230 V Phase-Phase.
- Observe all warning labels on the device.
Penerangan Imej: A close-up of a warning label on the switch, indicating "Class 1 Laser" and stating that "This unit is suitable for an IT power system connection of max 230 V Phase-Phase."
3. Produk Lebihview
The Cisco DS-C9124-K9 MDS 9124 is a 24-port Multilayer Fabric Switch designed for high-performance storage area networks (SANs).
3.1 Panel Depan

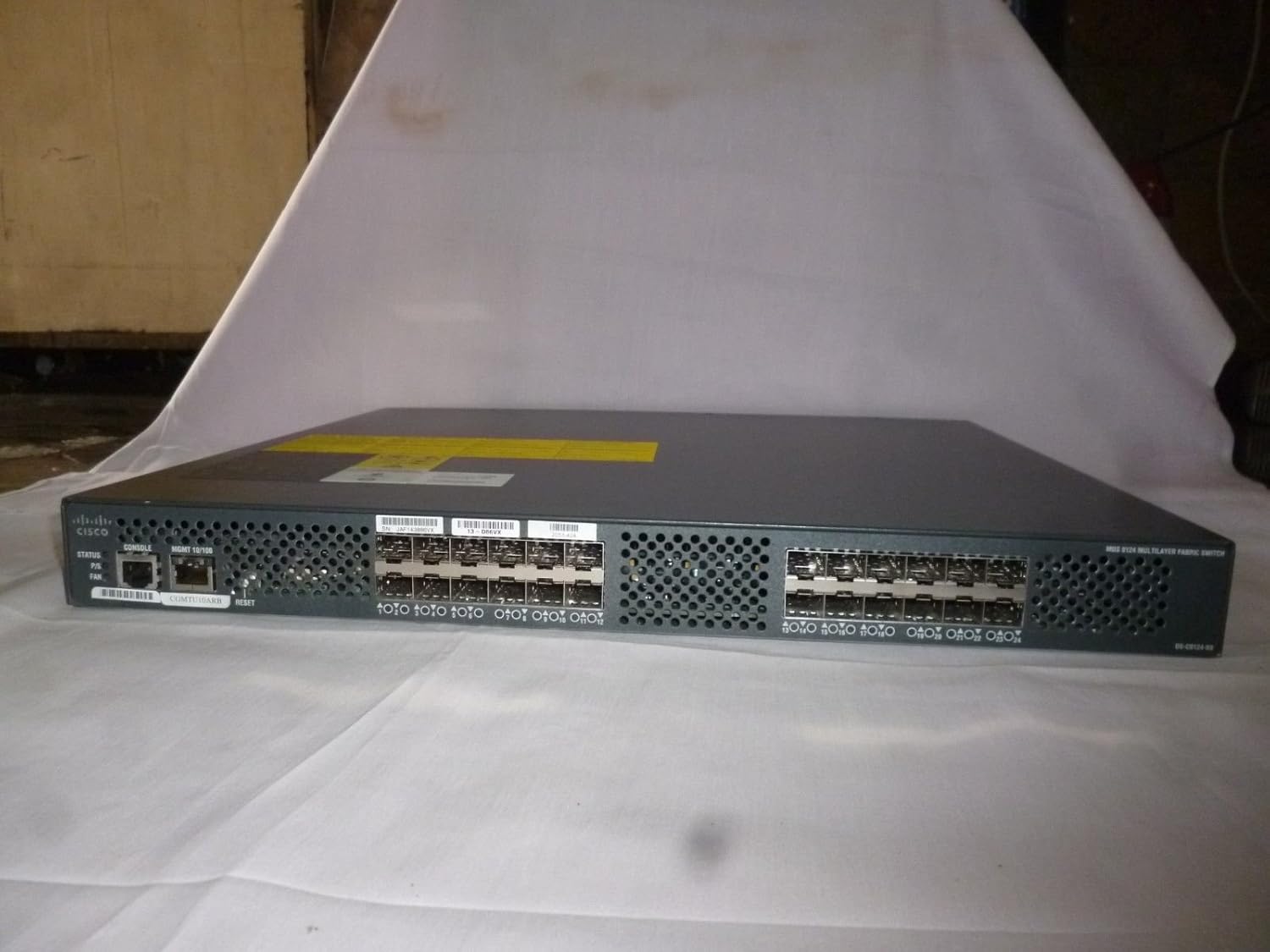

Penerangan Imej: Bahagian hadapan yang penuh view of the Cisco DS-C9124-K9 switch, showing the 24 SFP ports, console port, management port, status LEDs, and reset button on the left side. The right side shows the 24 SFP ports.
- 24 Port SFP: For fiber channel connectivity.
- Pelabuhan Konsol: RJ-45 serial console for local management.
- MGMT 10/100 Port: RJ-45 Ethernet port for out-of-band management.
- LED status: Indicators for power, system status, and fan operation.
- Butang Tetapkan Semula: For restarting the device.
Penerangan Imej: A close-up of the left side of the switch's front panel, highlighting the CONSOLE port, MGMT 10/100 port, STATUS, P/S (Power Supply), and FAN LEDs, along with the RESET button.
Penerangan Imej: Satu jarak dekat view of the 24 SFP (Small Form-Factor Pluggable) ports on the front panel of the switch, labeled 1 through 24.
Penerangan Imej: A terperinci view of the first 12 SFP ports (1-12) on the front panel of the Cisco switch, showing the empty slots for transceivers.
3.2 Panel Belakang
Penerangan Imej: A full rear view of the Cisco DS-C9124-K9 switch, displaying the power input module with an AC inlet and power switch, along with multiple fan exhaust vents.
- Input Kuasa: AC power connector with an on/off switch.
- Modul Kipas: Integrated cooling fans for heat dissipation.
Penerangan Imej: A close-up of the power input module on the rear panel, showing the AC power inlet, the power switch, and the "DS-C24-300AC" label, along with input/output OK LEDs.
4. Persediaan dan Pemasangan
Follow these steps to properly install your Cisco DS-C9124-K9 switch.
- Membongkar: Carefully remove the switch from its packaging. Inspect for any physical damage.
- Pemasangan: The switch can be rack-mounted. Secure it using appropriate rack-mounting hardware (not included). Ensure adequate airflow around the unit.
- Sambungan Kuasa:
- Connect the provided AC power cord to the power input on the rear panel.
- Palamkan hujung kord kuasa yang lain ke dalam salur keluar elektrik yang dibumikan.
- Ensure the power switch on the rear panel is in the OFF position before connecting.
- Jaringan rangkaian:
- Insert SFP transceivers into the desired fiber channel ports on the front panel.
- Connect fiber optic cables from your SAN devices to the SFP transceivers.
- For management, connect an Ethernet cable from your management workstation to the MGMT 10/100 port.
- For console access, connect a serial cable from your workstation to the CONSOLE port.
- Hidupkan kuasa: Flip the power switch on the rear panel to the ON position. Observe the STATUS LEDs on the front panel.
5. Arahan Operasi
Once the switch is powered on and connected, you can begin configuration and operation.
- Konfigurasi Awal: Access the switch via the console port or the management Ethernet port using a terminal emulator (e.g., PuTTY) and the appropriate IP address. Refer to Cisco documentation for detailed command-line interface (CLI) configuration.
- Status Pemantauan: The front panel LEDs provide a quick visual status:
- STATUS: Menunjukkan kesihatan sistem secara keseluruhan.
- P/S: Menunjukkan status bekalan kuasa.
- PEMINAT: Indicates fan operation status.
- Port Activity: Each SFP port typically has an LED to indicate link status and activity.
6. Penyelenggaraan
Penyelenggaraan berkala memastikan prestasi optimum dan jangka hayat suis anda.
- Pembersihan: Periodically clean the exterior of the switch with a soft, dry cloth. Ensure ventilation openings are free from dust and debris. Do not use liquid cleaners.
- Kemas kini Firmware: Semak sokongan Cisco secara berkala website for the latest firmware updates. Follow Cisco's instructions for firmware upgrade procedures.
- Kawalan Alam Sekitar: Maintain the operating environment within specified temperature and humidity ranges to prevent overheating and component damage.
7. Penyelesaian masalah
Bahagian ini menyediakan penyelesaian kepada isu biasa yang mungkin anda hadapi.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Suis tidak dihidupkan. | No power, faulty power cord, power switch off. | Check power cord connection, ensure power outlet is active, verify power switch is ON. |
| No link light on SFP port. | Faulty SFP transceiver, incorrect fiber cable, remote device off. | Verify SFP transceiver is properly seated, check fiber cable integrity, ensure connected device is powered on and configured. |
| Tidak dapat mengakses antara muka pengurusan. | Incorrect IP address, network cable issue, firewall. | Verify IP configuration, check Ethernet cable, temporarily disable local firewall for testing. Try console access. |
8. Spesifikasi
Technical specifications for the Cisco DS-C9124-K9 MDS 9124 24-Port Fabric Switch.
- model: DS-C9124-K9
- Pelabuhan: 24 x SFP Fiber Channel ports
- Pelabuhan Pengurusan: 1 x Console (RJ-45), 1 x MGMT 10/100 (RJ-45)
- Input Kuasa: 100-240 VAC, 4-2 A, 50-60 Hz (as seen on power supply label DS-C24-300AC)
- Pengeluar: SISTEM CISCO - PERUSAHAAN
- ASIN: B011YZLTO0
- Tarikh Mula-mula Tersedia: 18 Julai 2015
- Nombor Siri Cthample: JAF143886VX
- Nombor Bahagian Cthample: 68-2714-06 D0
- Product ID Example: DS-C9124-K9 V04
Penerangan Imej: A close-up of a product label on the switch, displaying manufacturing date (2010-09), "MADE IN CHINA", a barcode, part number "68-2714-06 D0", and product ID "DS-C9124-K9 V04".
9. Waranti dan Sokongan
For warranty information and technical support, please refer to the official Cisco website or contact Cisco customer service directly. Keep your purchase receipt and product serial number (e.g., JAF143886VX) readily available when seeking support.
Penerangan Imej: A close-up of a product label on the switch, showing a serial number (SN: JAF143886VX) and other identification codes.
