pengenalan
The Superior Electronics Freedom 2in1 is a universal programmable remote control designed to operate up to two different audio/video devices. This manual provides comprehensive instructions for setup, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your device.
Maklumat Keselamatan
- Do not expose the remote control to direct sunlight, heat sources, or extreme temperatures.
- Elakkan daripada menjatuhkan alat kawalan jauh atau mendedahkannya kepada hentaman yang kuat.
- Do not immerse the remote control in water or any other liquid.
- Jauhkan bateri daripada kanak-kanak. Jika tertelan, dapatkan rawatan perubatan segera.
- Buang bateri terpakai mengikut peraturan tempatan.
Kandungan Pakej
Sila sahkan bahawa semua item terdapat dalam pakej:
- Superior Electronics Freedom 2in1 Universal Remote Control

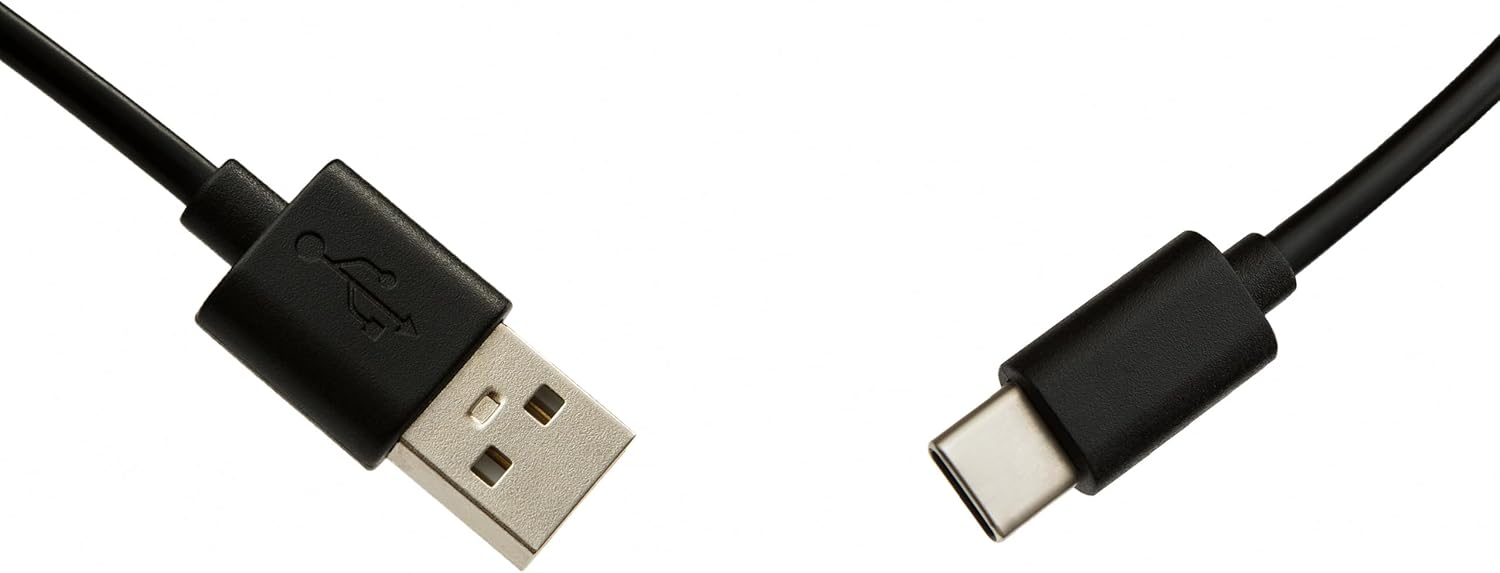

- USB-C Cable for programming
- Manual Pengguna (dokumen ini)
Persediaan
1. Pemasangan Bateri
Alat kawalan jauh memerlukan dua bateri AAA (tidak disertakan). Untuk memasang:
- Buka penutup petak bateri di bahagian belakang alat kawalan jauh.
- Masukkan dua bateri AAA, pastikan kekutuban (+ dan -) betul.
- Tutup penutup petak bateri dengan selamat.
2. Mengaturcara Alat Kawalan Jauh Anda
The Superior Electronics Freedom 2in1 remote control is programmable via a computer using the included USB-C cable and Superior's dedicated software. This allows for quick and accurate setup for a wide range of devices.
- Muat turun Perisian: Visit the official Superior Electronics website to download the latest programming software for your Freedom 2in1 remote.
- Sambung Jauh: Connect the remote control to your computer using the provided USB-C cable.
- Pelancaran Perisian: Open the Superior programming software on your computer.
- Pilih Peranti: Follow the on-screen instructions to select the brand and model of the device you wish to control (e.g., TV, SAT, DVD, Soundbar). The software utilizes a leading European database with over 260,000 compatible devices.
- Program: Initiate the programming process. Programming is typically completed in less than one minute by double-clicking the desired brand and model within the software.
- MAP Function: The dedicated MAP function allows you to recover the original remote control functions on the Superior Freedom keypad, ensuring all original functionalities are available.


Arahan Operasi
Once programmed, your Superior Electronics Freedom 2in1 remote control is ready for use. It can control up to two devices, such as TVs, Smart TVs, decoders, DVD players, projectors, and soundbars.

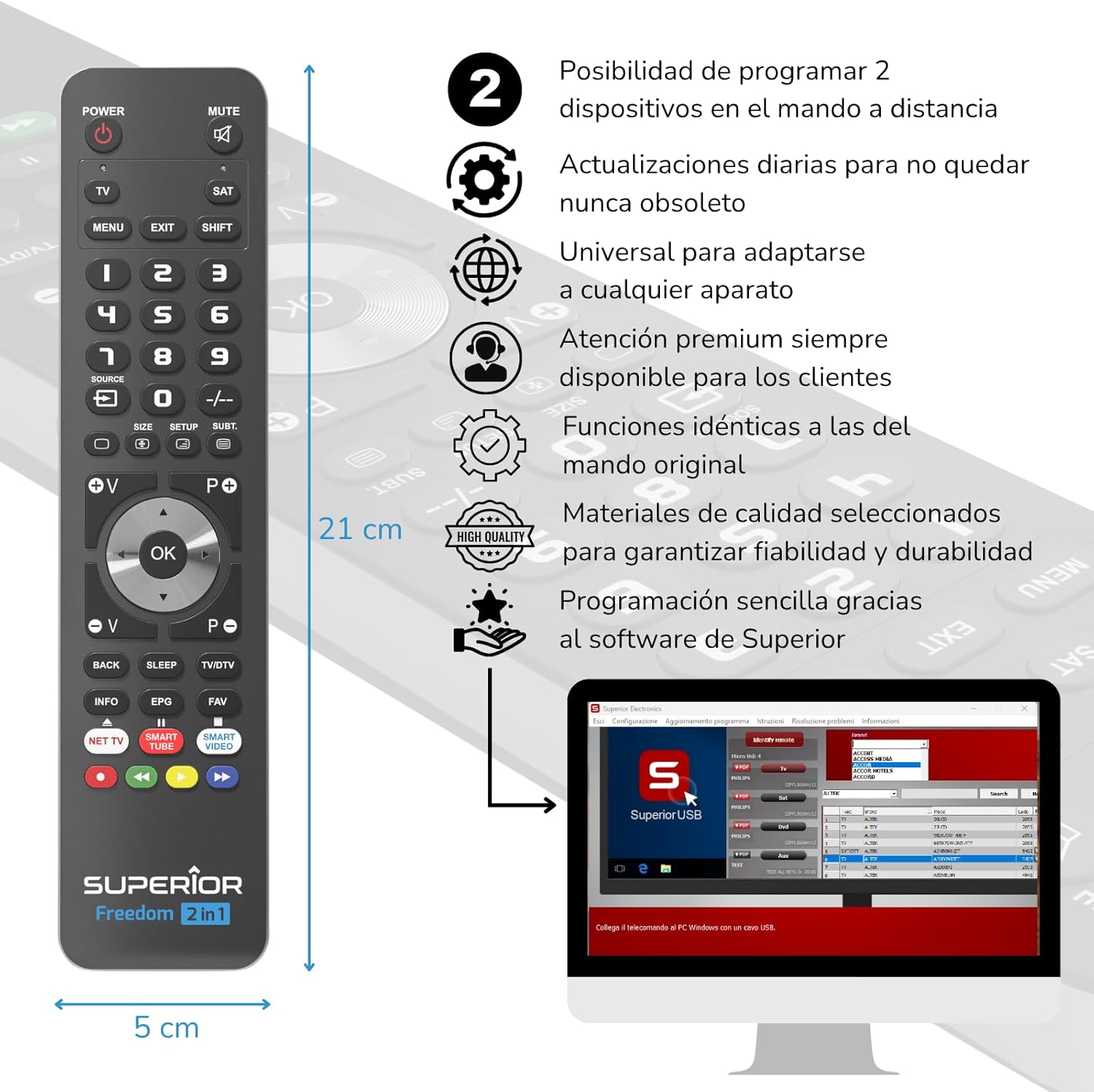

Butang Berfungsi Overview:
- KUASA: Menghidupkan atau mematikan peranti yang dipilih.
- MATI: Membisukan atau menyahredamkan audio.
- TV / SAT: Selects the device to be controlled (e.g., TV or Satellite receiver).
- MENU / EXIT: Accesses or exits the device's menu.
- SHIFT: Activates secondary functions of certain buttons.
- 0-9: Number buttons for direct channel input.
- SUMBER: Menukar sumber input pada TV anda.
- , Adjusts channel up/down or navigates through menus.
- SIZE / SETUP / SUBT.: Specific functions depending on the device.
- Volume (V+/-) / Channel (P+/-): Adjusts volume and changes channels.
- Navigation (Up, Down, Left, Right, OK): Menavigasi melalui menu dan mengesahkan pilihan.
- BACK / SLEEP / TV/DTV: Returns to previous screen, sets sleep timer, or switches between TV/Digital TV modes.
- INFO / EPG / FAV: Displays information, Electronic Program Guide, or Favorite channels.
- NET TV / SMART TUBE / SMART VIDEO: Dedicated buttons for smart TV applications.
- Butang Warna (Merah, Hijau, Kuning, Biru): Used for specific functions within menus or smart TV apps.
The maximum operating range of the remote control is 10 meters.
Penyelenggaraan
Pembersihan
To clean the remote control, use a soft, dry cloth. Do not use abrasive cleaners, solvents, or chemical agents, as these may damage the surface or internal components.
Penggantian Bateri
When the remote control's performance diminishes or it stops responding, it is likely time to replace the batteries. Follow the battery installation steps outlined in the Setup section.
Menyelesaikan masalah
- Jauh tidak bertindak balas: Ensure batteries are correctly inserted and not depleted. Replace batteries if necessary.
- Device not controlling: Verify that the remote is pointed directly at the device's IR receiver. Ensure there are no obstructions between the remote and the device.
- Incorrect functions: The remote may not be programmed correctly for your specific device model. Re-program the remote using the Superior Electronics software and ensure you select the correct brand and model.
- Fungsi terhad: If some functions are missing, use the MAP function in the programming software to ensure all original remote functions are mapped to the Freedom 2in1.
If issues persist after following these steps, please contact Superior Electronics customer support.
Spesifikasi
| Nombor Model | SUPTUB002 |
| Jenama | Superior Electronics |
| Dimensi | 23 x 5 x 1.5 cm |
| Berat badan | 80 g |
| Bateri Diperlukan | 2 x AAA (tidak termasuk) |
| Ketersambungan | USB-C (for programming) |
| Maximum Devices Supported | 2 |
| Julat Maksimum | 10 Meter |
| Peranti Serasi | TVs, Smart TVs, Decoders, DVD players, Projectors, Soundbars, Hi-Fi systems |

Waranti dan Sokongan
Superior Electronics is committed to providing high-quality products and excellent customer service.
- Kemas Kini Perisian: Enjoy free and constant updates for your remote control's programming database, ensuring compatibility with new devices.
- Bantuan Pelanggan: Premium customer assistance is available 7 days a week to address any questions or issues you may encounter.
For further assistance, please visit the official Superior Electronics webtapak atau hubungi sokongan pelanggan mereka secara langsung.
