1. Pengenalan
This manual provides essential information for the safe and efficient operation of your Godrej GSC 12 FG 8 MOG Split Air Conditioner. Please read these instructions thoroughly before installing or using your appliance and retain them for future reference. This 1-ton, 3-star rated AC is designed for effective cooling in Indian households, featuring a rotary compressor, multiple operating modes, and advanced filtration systems.
2. Maklumat Keselamatan
Arahan Keselamatan Penting:
- Always ensure the power supply matches the specifications of the unit.
- Do not attempt to install or repair the unit yourself. Always contact qualified service personnel for installation, maintenance, and repairs.
- Jauhkan unit daripada gas mudah terbakar atau bahan mudah terbakar.
- Jangan masukkan jari atau objek ke dalam saluran masuk/keluar udara.
- Pastikan pembumian yang betul untuk mengelakkan kejutan elektrik.
- Clean the air filters regularly to maintain optimal performance and air quality.
- If any abnormal operation or sound occurs, immediately turn off the unit and disconnect the power supply.
3. Kandungan Pakej
Setelah membuka bungkusan, pastikan item berikut disertakan:
- Unit Dalaman (Penyejat)
- Unit Luaran (Kondenser)
- Alat Kawalan Jauh
- Manual Pengguna
- Kad Waranti
- Installation Kit (Piping, wiring, drain hose, etc. - may vary)
4. Persediaan dan Pemasangan
Installation of this split air conditioner requires specialized tools and knowledge. It is strongly recommended to have the unit installed by a certified technician to ensure proper functioning and safety.
4.1. Penempatan Unit Dalaman
The indoor unit should be mounted on a wall, ensuring sufficient space around it for proper airflow and maintenance. Avoid direct sunlight and heat sources. Ensure the wall is strong enough to support the unit's weight.

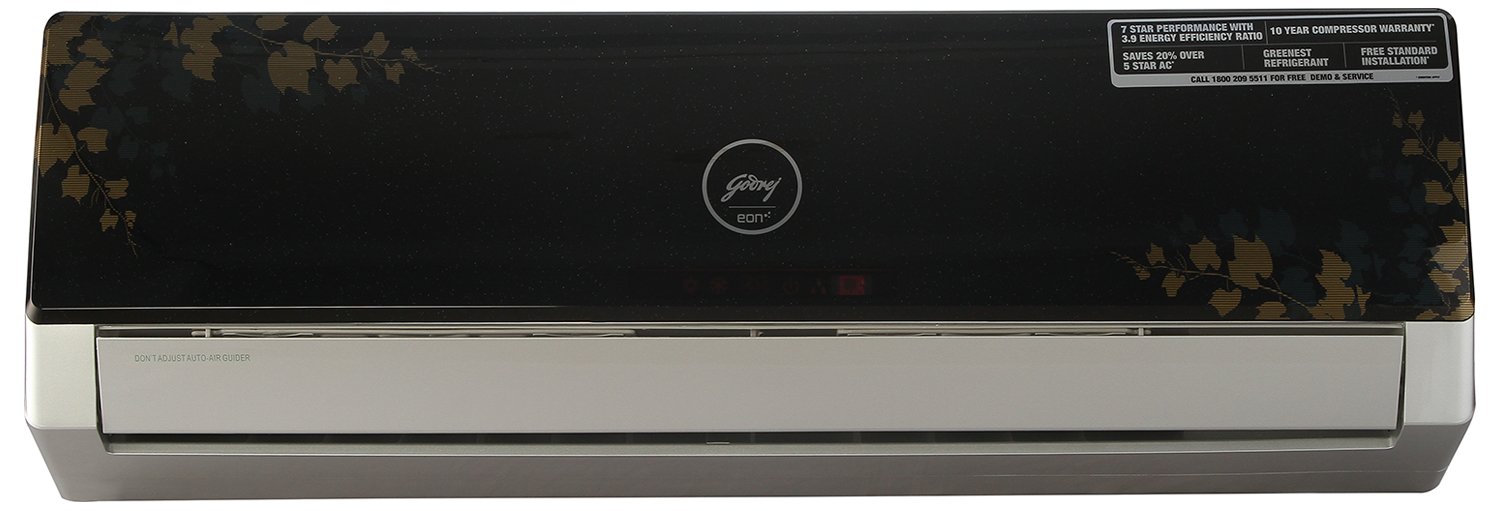

Figure 1: Godrej GSC 12 FG 8 MOG Split AC Indoor Unit. This image displays the elegant design of the indoor unit, featuring a dark panel with a subtle leaf pattern and the Godrej logo.
4.2. Outdoor Unit Placement
The outdoor unit should be placed in a well-ventilated area, away from direct sunlight and obstructions. Ensure it is on a stable, level surface to minimize vibration and noise. Maintain adequate clearance around the unit for heat dissipation.
4.3. Sambungan Elektrik
All electrical wiring must comply with local regulations and be performed by a qualified electrician. Ensure the correct voltage (230 V/50Hz) and a dedicated circuit breaker are used. The unit must be properly grounded.
4.4. Refrigerant Piping and Drain Hose
The refrigerant lines and drain hose connect the indoor and outdoor units. These connections must be sealed properly to prevent leaks. The drain hose should be sloped downwards to allow for proper water drainage.
5. Arahan Operasi
Your Godrej GSC 12 FG 8 MOG Split AC comes with a remote control for convenient operation. The remote features an LCD screen to display current settings.
5.1. Fungsi Alat Kawalan Jauh
The remote control allows you to adjust temperature, select operating modes, set timers, and access special features. Refer to the remote control diagram (if provided separately) for button layout.
5.2. Mod Operasi
- Mod Auto: The AC automatically selects the appropriate operating mode (Cool, Fan) based on the room temperature.
- Mod Sejuk: Provides cooling to lower the room temperature to the set level.
- Mod Kering: Mengurangkan kelembapan di dalam bilik tanpa penyejukan yang ketara.
- Mod Kipas: Mengedarkan udara tanpa penyejukan atau pemanasan.
- Mod tidur: Adjusts temperature gradually during sleep for comfort and energy saving.
- Mod Turbo: Provides rapid cooling to reach the desired temperature quickly.
5.3. Ciri-ciri Lain
- Auto Clean/Blow Function: Helps to dry the indoor coil after operation, preventing mold and odor.
- Fungsi Memori: Retains previous settings after a power interruption.
- Auto-Restart Option: Automatically restarts the AC with previous settings after a power outage.
- Stepped Louvers: Allows for precise control of airflow direction.
6. Penyelenggaraan
Regular maintenance ensures optimal performance, energy efficiency, and longevity of your air conditioner.
6.1. Pembersihan Penapis Udara
The AC is equipped with a dust filter and a silver ion filter. Clean the dust filter every two weeks or more frequently if used in dusty environments. The silver ion filter helps to remove bacteria.
- Turn off the AC and disconnect the power supply.
- Buka panel hadapan unit dalaman.
- Keluarkan penapis udara.
- Clean the dust filter with a vacuum cleaner or wash it with lukewarm water and mild detergent. Rinse thoroughly and dry completely before reinstallation.
- Pasang semula penapis dan tutup panel hadapan.
6.2. Pembersihan Unit Luar
Periodically check the outdoor unit for any obstructions (leaves, debris) around the condenser coils. Gently clean with a soft brush or vacuum. Ensure the area around the outdoor unit remains clear for proper airflow.
6.3. Perkhidmatan Profesional
It is recommended to have your AC professionally serviced at least once a year by a qualified technician. This includes checking refrigerant levels, cleaning coils, and inspecting electrical connections.
7. Penyelesaian masalah
Sebelum menghubungi sokongan pelanggan, rujuk isu dan penyelesaian biasa berikut:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| AC tidak menyala | Tiada bekalan kuasa; Bateri kawalan jauh rendah; Pemutus litar tersandung. | Periksa sambungan kuasa; Gantikan bateri alat kawalan jauh; Tetapkan semula pemutus litar. |
| Penyejukan yang tidak mencukupi | Dirty air filters; Blocked outdoor unit; Room too large; Doors/windows open; Refrigerant leak. | Clean air filters; Clear obstructions from outdoor unit; Close doors/windows; Contact service for refrigerant check. |
| Bunyi yang tidak biasa | Bahagian longgar; Unit bukan aras; Penghalang kipas. | Check for loose parts; Ensure unit is level; Remove any obstructions; Contact service if noise persists. |
| Kebocoran air dari unit dalaman | Hos longkang tersumbat; Pemasangan yang tidak betul. | Clear drain hose; Contact service for inspection. |
8. Spesifikasi
Detailed technical specifications for the Godrej GSC 12 FG 8 MOG Split AC:
Figure 2: Energy Efficiency Guide for Godrej GSC 12 FG 8 MOG Split AC. This label provides details on energy rating, power consumption, and cooling capacity.
| Ciri | Perincian |
|---|---|
| Nombor Model | GSC 12 FG 8 MOG |
| taip | Non Inverter Split AC |
| Kapasiti | 1 Tan |
| Peringkat Tenaga | 3 Star Rating (2018) |
| Kuasa Penyejukan | 3325 Watt |
| Penggunaan Kuasa | Approx. 241 Watts (as per description, label shows 841W for cooling capacity) |
| Bahan penyejuk | R290 (Greenest Refrigerant) |
| Ciri Khas | Anti Bacterial Filter, Silver Ion Filter, Auto Clean/Blow Function, Turbo Mode |
| Dimensi Unit Dalaman (LxWxH) | 84.5 x 27.5 x 18 cm (33.3 x 10.8 x 7.1 inci) |
| Berat Unit Dalaman | 10 kg |
| Berat Unit Luar | 30 kg |
| Jumlah Berat Item | 45 kg |
| warna | Black (Maple Aluminium finish) |
Figure 3: Dimensions of the Godrej GSC 12 FG 8 MOG Split AC Indoor Unit. This image illustrates the length, height, and depth of the indoor unit in inches.
9. Maklumat Waranti
Your Godrej GSC 12 FG 8 MOG Split AC comes with the following warranty:
- Overall Product: Waranti 1 Tahun dari tarikh pembelian.
- Pemampat: 10 Years Warranty from the date of purchase.
Please retain your purchase invoice and warranty card for any warranty claims. The warranty covers manufacturing defects under normal use conditions. Terms and conditions apply as per the warranty card.
10. Sokongan Pelanggan
For any queries regarding product availability, exchanges, service requests, or other issues, please contact Godrej customer support:
Nombor Bebas Tol: 1800-3000-9027
Availability: 8 AM to 11 PM, Seven days a week.
