Smartwares SH5-TSM-A Smarthome Transmitter Indoor User Manual

1. Pengenalan

The Smartwares SH5-TSM-A Smarthome Transmitter Indoor is a wireless magnetic contact designed to detect the opening and closing of doors and windows. This device integrates seamlessly with Homewizard and Smartwares home automation systems, allowing you to trigger actions such as turning lights on or off, or activating other connected devices based on the status of your doors and windows. It features a single channel for controlling individual or groups of devices and helps ensure that lights do not remain on unnecessarily.

2. Maklumat Keselamatan

• Produk ini bertujuan untuk kegunaan dalaman sahaja.
• Jangan dedahkan peranti kepada kelembapan, suhu melampau atau cahaya matahari langsung.
• Jauhkan bateri daripada kanak-kanak. Jika tertelan, dapatkan rawatan perubatan segera.
• Jangan cuba membuka atau mengubah suai peranti. Ini akan membatalkan jaminan dan boleh menyebabkan kerosakan atau kecederaan.
• Dispose of used batteries and the device according to local regulations.

3. Kandungan Pakej

Pastikan semua item ada dalam pakej:

• Smartwares SH5-TSM-A Smarthome Transmitter Indoor (Main Unit)
• Sentuhan Magnet
• 1 x Bateri Litium CR2
• Mounting Materials (e.g., screws, adhesive tape)

4. Produk Lebihview

The Smartwares SH5-TSM-A consists of two main parts: the transmitter unit and a magnetic contact. When these two parts are separated (e.g., a door opens), the transmitter sends a signal. A small button on the side of the main unit is used for pairing with your home automation system.

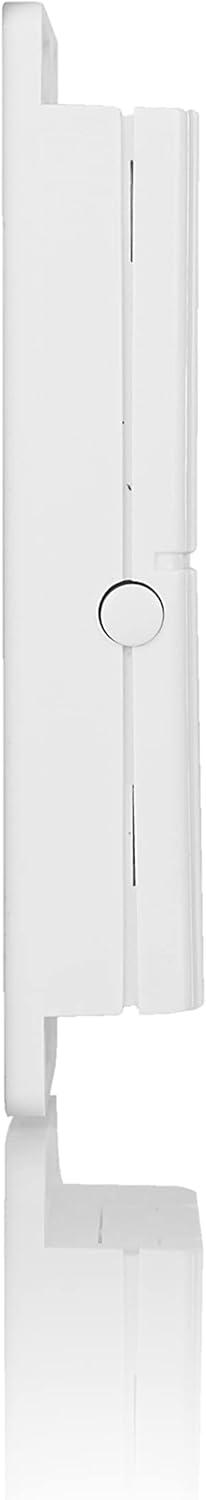

Rajah 1: Sisi view of the transmitter unit, highlighting the pairing button.

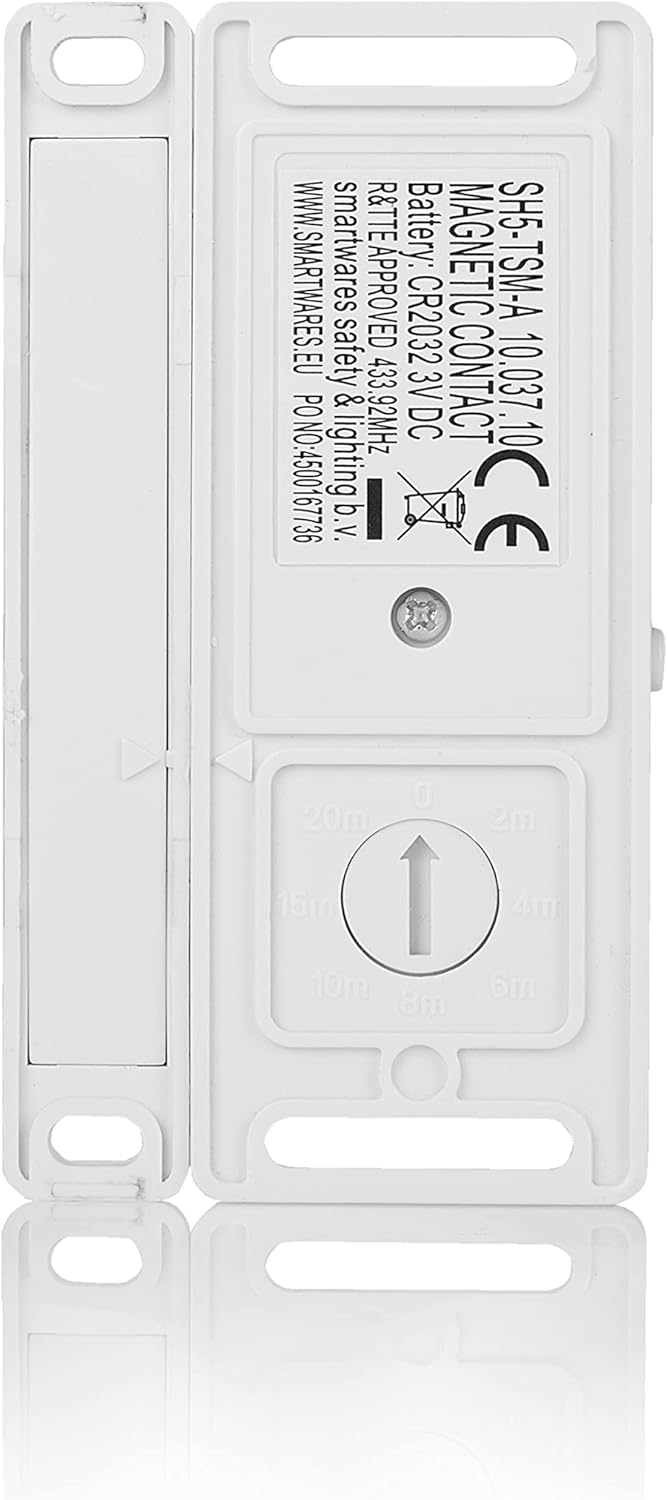

Rajah 2: Belakang view of the transmitter unit with the battery compartment and product information label.

5. Pemasangan dan Persediaan

5.1. Pemasangan Bateri

1. Carefully open the main transmitter unit.
2. Insert the provided CR2 Lithium battery into the battery compartment, ensuring correct polarity (+/-). Refer to Figure 2 for the battery compartment location.
3. Close the unit securely.

5.2. Memasang Penderia

Choose a suitable location on a door or window frame where the main unit and the magnetic contact can be mounted parallel to each other and are in close proximity (within 1 cm) when the door/window is closed.

1. Clean the mounting surface thoroughly to ensure good adhesion if using adhesive tape.
2. Attach the main transmitter unit to the fixed part of the door/window frame.
3. Attach the magnetic contact to the moving part of the door/window, ensuring it aligns with the main unit when closed.
4. You can use the included adhesive tape for easy installation or screws for a more permanent fixture.

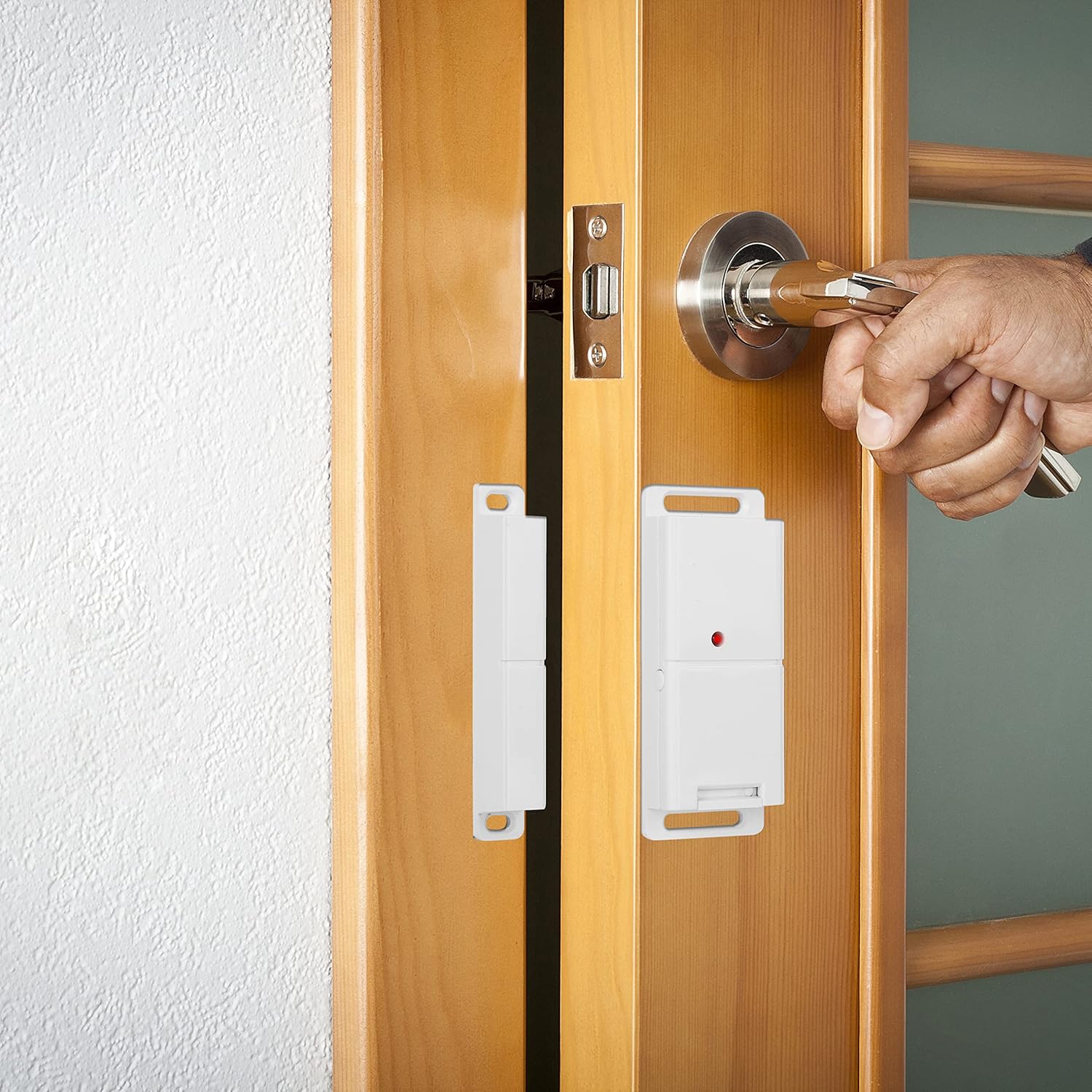

Gambar 3: Cthample installation of the magnetic contact on a door.

5.3. Berpasangan dengan Penerima

To integrate the SH5-TSM-A with your home automation system, it must be paired with a compatible Smartwares or Homewizard receiver/controller.

1. Put your Smartwares or Homewizard receiver into pairing mode. Refer to your receiver's manual for specific instructions.
2. On the SH5-TSM-A transmitter, press the small pairing button (refer to Figure 1) for approximately 3 seconds. The LED indicator on the transmitter should start blinking, indicating it is in pairing mode.
3. Once successfully paired, the receiver will confirm the connection (e.g., via an LED indicator or app notification).
4. Test the connection by opening and closing the door/window to ensure the receiver registers the status changes.

6. Operasi

Once installed and paired, the Smartwares SH5-TSM-A operates automatically. When the magnetic contact separates (door/window opens), the transmitter sends a wireless signal to the paired receiver. When the contact closes, another signal is sent. Your home automation system can then be configured to perform specific actions based on these signals, such as:

• Turning on or off lights.
• Activating an alarm or siren.
• Sending notifications to your smartphone.

The system allows you to easily adjust the duration for which the receiver remains activated after a signal is received, providing flexibility for various automation scenarios.

7. Penyelenggaraan

7.1. Penggantian Bateri

The SH5-TSM-A uses one CR2 Lithium battery. When the battery level is low, the device may exhibit reduced range or stop functioning. Replace the battery as follows:

1. Open the main transmitter unit.
2. Keluarkan bateri CR2 lama.
3. Insert a new CR2 Lithium battery, observing correct polarity.
4. Close the unit securely.
5. Lupuskan bateri lama secara bertanggungjawab mengikut peraturan tempatan.

7.2. Pembersihan

Lap peranti dengan kain lembut dan kering. Jangan gunakan pembersih atau pelarut yang melelas.

8. Penyelesaian masalah

9. Spesifikasi

• Nombor Model: BYRSH5TSMA
• Voltage: 3 Volt (DC)
• Jenis Bateri: 1 x CR2 Lithium (included)
• Bateri boleh dicas semula: Tidak
• Julat Tanpa Wayar: Sehingga 30 meter (padang terbuka)
• warna: putih
• Peranti Serasi: Home security systems, Smartwares and Homewizard systems
• Pengeluar: Perisian pintar
• Kod Artikel Antarabangsa: 08711658044712

10. Waranti

This Smartwares SH5-TSM-A Smarthome Transmitter Indoor comes with a 2-year manufacturer's warranty from the date of purchase. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or improper installation.

11. Sokongan

For technical support, troubleshooting assistance, or warranty claims, please visit the official Smartwares website or contact their customer service department. Please have your model number (BYRSH5TSMA) and proof of purchase available when contacting support.

Perisian pintar Webtapak: www.smartwares.eu
