1. Pengenalan dan Lebihview
The Autonics ENC-1-1-T-24 is an incremental wheel type rotary encoder designed for precise measurement of length or speed of continuously moving objects. This encoder provides an output waveform proportional to the measured distance, calibrated to international measurement units (meters or inches). It operates on a 12-24VDC power supply and features a totem pole output.
This manual provides essential information for the safe and effective installation, operation, and maintenance of your ENC-1-1-T-24 encoder.

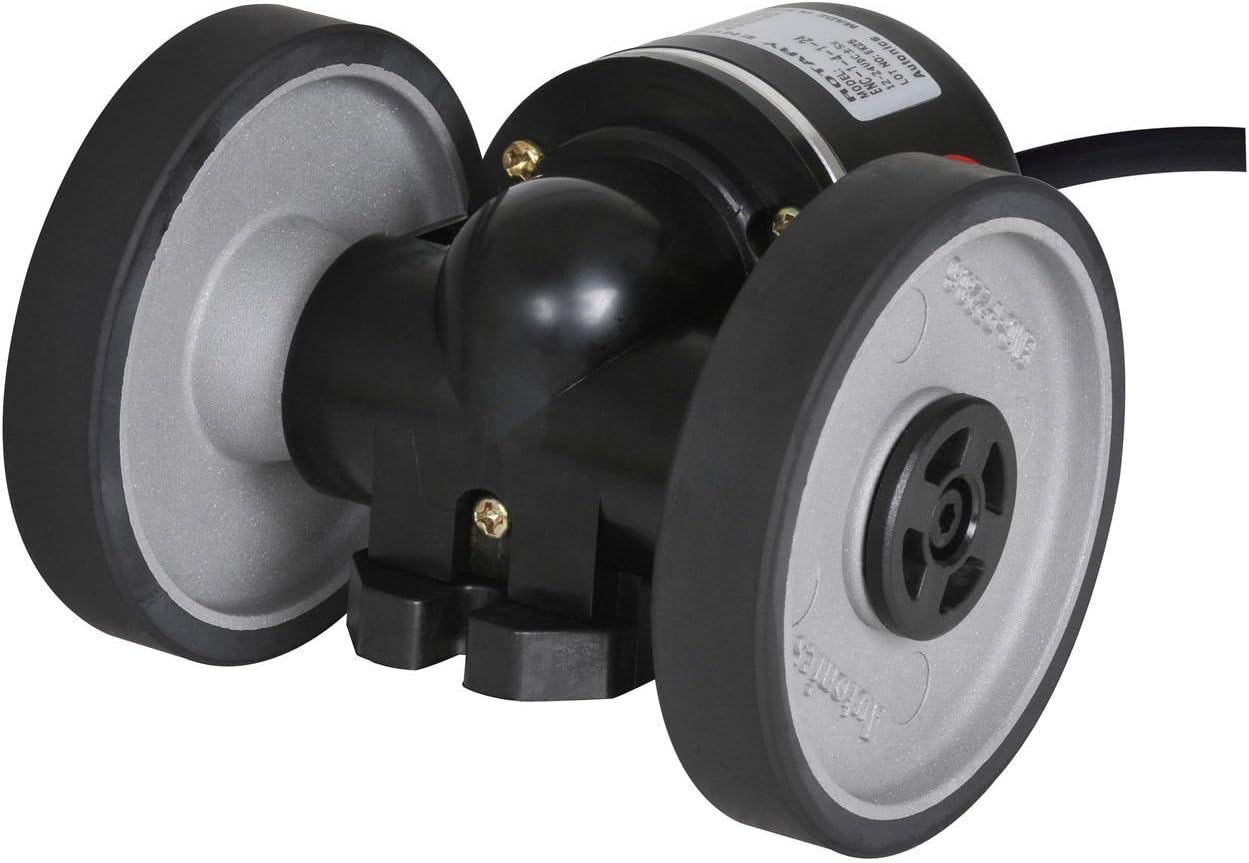

Rajah 1: Autonics ENC-1-1-T-24 Incremental Wheel Type Encoder. This image shows the black encoder unit with two grey wheels attached, designed for surface contact measurement. The wheels have black rubberized treads for grip.
2. Maklumat Keselamatan
Please read and understand all safety precautions before installing or operating the device. Failure to follow these instructions may result in injury or damage to the product.
- Pastikan bekalan kuasa diputuskan sebelum melakukan sebarang pendawaian atau penyelenggaraan.
- Sahkan bekalan kuasa voltage is within the specified range (12-24VDC ±5%).
- Do not disassemble or modify the product. Unauthorized modifications may lead to malfunction or safety hazards.
- Install the device in an environment free from excessive vibration, dust, moisture, and corrosive gases.
- Ground the product properly to prevent electrical shock and ensure stable operation.
3. Ciri-ciri Produk
The ENC-1-1-T-24 encoder offers several key features:
- Wheel Type Design: Ideal for measuring length or speed of continuously moving objects by direct contact.
- Resolusi Tinggi: Provides 1 pulse per 1mm of movement, ensuring precise measurement.
- Totem Pole Output: Offers a robust output signal suitable for various industrial control systems.
- Lebar Voltage Julat: Operates reliably with a 12-24VDC ±5% power supply.
- Aplikasi Serbaguna: Suitable for use in packaging machinery, rolling machinery, textile machinery, and other industrial automation systems.
4. Kandungan Pakej
Selepas membuka bungkusan, sila sahkan bahawa semua komponen ada dan tidak rosak:
- Autonics ENC-1-1-T-24 Incremental Wheel Type Encoder Unit
- Manual Pengguna (dokumen ini)
- Mounting accessories (if applicable, check packaging for specifics)
Jika terdapat sebarang barang yang hilang atau rosak, sila hubungi pembekal anda dengan segera.
5. Persediaan dan Pemasangan
5.1 Pemasangan
Mount the encoder securely to a stable surface, ensuring that the wheels make firm and consistent contact with the object to be measured. The mounting position should allow for proper alignment and prevent slippage during operation. Consider the direction of movement and the desired measurement axis when positioning the encoder.
5.2 Pendawaian
The ENC-1-1-T-24 features a totem pole output. Refer to the following general wiring guidelines. Always consult the specific wiring diagram provided with your unit for precise connections, as color codes may vary.
| Wire Color (Typical) | Fungsi | Penerangan |
|---|---|---|
| coklat | +V (Power Supply) | Connect to 12-24VDC power source. |
| Biru | 0V (Tanah) | Berhubung dengan titik persamaan. |
| Hitam | Keluaran A | Phase A signal output. |
| putih | Keluaran B | Phase B signal output (90° phase shift from A). |
| Jingga | Output Z (Index) | Reference pulse output (one pulse per revolution). |
Penting: Ensure all connections are secure and insulated to prevent short circuits. Incorrect wiring can damage the encoder or connected equipment.
6. Arahan Operasi
Once properly installed and wired, the ENC-1-1-T-24 encoder will generate pulse signals corresponding to the movement of the object it is measuring. These pulses can be fed into a counter, PLC, or other control system to determine length, speed, or position.
- Direction Detection: The phase difference between Output A and Output B allows for detection of the direction of rotation or movement.
- Pulse per Millimeter: The encoder generates 1 pulse for every 1mm of linear movement of the measured surface.
- Pengukuran Kelajuan: By counting pulses over a specific time interval, the speed of the object can be calculated.
- Pengukuran Panjang: By accumulating the total number of pulses, the total length of the object can be determined.
Refer to the documentation of your connected control system (e.g., PLC, counter) for specific programming and configuration details to interpret the encoder's output signals.
7. Penyelenggaraan
The Autonics ENC-1-1-T-24 encoder is designed for reliable operation with minimal maintenance. However, periodic checks can help ensure its longevity and accuracy.
- Pembersihan: Regularly clean the encoder wheels and the surface they contact to prevent accumulation of dust, debris, or oil, which can affect measurement accuracy. Use a soft, dry cloth. Do not use harsh chemicals or abrasive materials.
- Pemeriksaan: Periodically inspect the mounting for tightness and ensure the wheels are making proper contact with the measured surface. Check the cable for any signs of wear or damage.
- Persekitaran: Ensure the operating environment remains within the specified conditions (temperature, humidity, vibration).
8. Penyelesaian masalah
If you encounter issues with your ENC-1-1-T-24 encoder, refer to the following common troubleshooting steps:
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada isyarat keluaran | Tiada kuasa atau pendawaian yang salah. | Check power supply connections (+V and 0V). Verify wiring against the diagram. |
| Pengukuran yang tidak tepat | Slippage of wheels, debris on wheels/surface, or incorrect mounting pressure. | Ensure firm contact between wheels and surface. Clean wheels and surface. Adjust mounting pressure if possible. |
| Isyarat terputus-putus | Loose connections, damaged cable, or electrical noise. | Check all wiring connections for tightness. Inspect cable for damage. Consider shielding or grounding improvements if electrical noise is suspected. |
| Incorrect direction detection | Output A and B signals are swapped or misinterpreted by the control system. | Verify A and B wiring. Check control system's configuration for quadrature decoding. |
If the problem persists after attempting these solutions, contact Autonics technical support or your local distributor for further assistance.
9. Spesifikasi
Key technical specifications for the Autonics ENC-1-1-T-24 encoder:
- model: ENC-1-1-T-24
- Jenis: Incremental Wheel Type Encoder
- Pulses Per Unit: 1 Pulse Per 1mm
- Jenis Output: Totem Pole Output
- Bekalan Kuasa: 12-24VDC ±5%
- Bahan: Copper (internal components, as per product data)
- Dimensi: Approximately 1 x 1 x 1 inches (Product dimensions, refer to detailed drawings for exact measurements)
- Berat: Kira-kira 1.09 paun
- penggunaan: Professional Industrial Applications
Nota: Spesifikasi boleh berubah tanpa notis terlebih dahulu untuk penambahbaikan produk.
10. Waranti dan Sokongan
For warranty information, please refer to the warranty card included with your product or visit the official Autonics website. Autonics provides technical support and customer service to assist with any inquiries regarding product installation, operation, or troubleshooting.
Autonics Official Webtapak: www.autonics.com
Please have your product model number (ENC-1-1-T-24) and serial number ready when contacting support.
