pengenalan
This manual provides comprehensive instructions for the setup, operation, and maintenance of your Clarity D702 Cordless Phone system. Designed for individuals with moderate hearing loss, this phone utilizes DECT 6.0 technology to deliver clear, interference-free communication. Please read this manual thoroughly before using your phone.
Kandungan Pakej
Sahkan bahawa semua item terdapat dalam pakej anda:
- Unit Asas Clarity D702
- Clarity D702 Handset
- Clarity D702HS Expandable Handset (if included in your package)
- Penyesuai Kuasa AC
- Tali Talian Telefon
- Rechargeable Batteries (for handset)
- Manual Pengguna (dokumen ini)
Persediaan
1. Memasang Bateri
The handset requires 4 AA batteries (included). Ensure correct polarity when inserting the batteries into the handset's battery compartment.
2. Menyambung Unit Pangkalan
- Connect one end of the telephone line cord to the TEL LINE jack on the base unit.
- Sambungkan hujung satu lagi kord talian telefon ke bicu dinding telefon.
- Connect the AC power adapter to the POWER jack on the base unit.
- Pasangkan penyesuai kuasa AC ke soket elektrik standard.

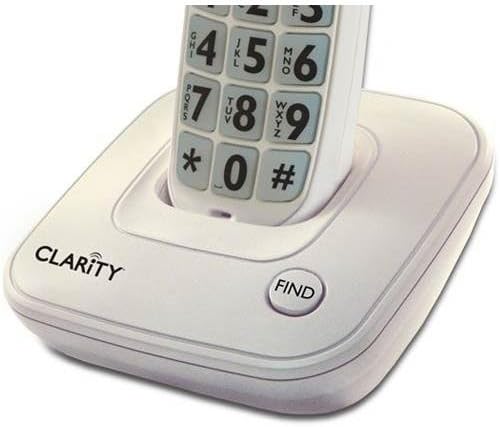

Image: The Clarity D702 cordless phone handset resting in its charging base. The base features the "CLARITY" brand logo and a "FIND" button. The handset displays large, easy-to-read numeric keypad buttons.
3. Mengecas Telefon bimbit
Place the handset in the base unit. The charge indicator light on the handset should illuminate, indicating that it is charging. Allow the handset to charge for at least 12 hours before initial use to ensure optimal battery performance.
Arahan Operasi
Membuat Panggilan
- Angkat telefon bimbit atau tekan CAKAP butang.
- Dial the desired phone number using the large, backlit keypad.
- Tekan ke CAKAP button again or place the handset back in the base to end the call.
Menjawab Panggilan
Apabila telefon berdering, angkat telefon bimbit atau tekan butang CAKAP butang.
Melaraskan Kelantangan dan Nada
During a call, use the volume control buttons on the side of the handset to adjust the listening volume. The phone offers four (4) tone settings to customize your listening experience. Refer to the handset's menu for tone adjustment options.
Menggunakan Telefon Pembesar suara
Untuk mengaktifkan pembesar suara telefon semasa panggilan, tekan PENCERAMAH button. Press it again to return to handset mode.
ID pemanggil
The large font and high contrast caller ID screen displays incoming call information. The keypad and CID display also light up as a super bright visual ringer.
Finding a Lost Handset
If you misplace your handset, press the CARI button on the base unit. The handset will emit a paging tone.
Penyelenggaraan
- Clean the phone surfaces with a soft, damp kain. Jangan gunakan pembersih atau pelarut yang melelas.
- Avoid exposing the phone to excessive moisture, direct sunlight, or extreme temperatures.
- Ensure the handset's charging contacts are clean for proper charging.
Menyelesaikan masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Tiada nada dail | Telephone line cord is disconnected. | Pastikan kord talian telefon disambungkan dengan selamat ke unit asas dan bicu dinding. |
| Telefon bimbit tidak dicas | Handset not properly seated in base; dirty charging contacts. | Reseat the handset in the base. Clean the charging contacts on both the handset and base with a dry cloth. |
| Kualiti bunyi kurang baik / Statik | Interference from other electronic devices; handset too far from base. | Move the base unit away from other electronic devices. Ensure the handset is within range of the base. |
| Handset not ringing | Ringer volume is off or set too low. | Adjust the ringer volume setting on the handset. |
Spesifikasi
- model: D702 + (1) D702HS
- Jenama: Kejelasan
- Dimensi (Unit Asas): 9.1 x 7.7 x 5.8 inci
- Berat Barang: 2.6 paun
- Jenis Telefon: Tanpa wayar
- Teknologi: DECT 6.0
- Sumber Kuasa: Elektrik Bertali
- Bateri: 4 AA batteries (for handset)
- warna: Putih-Putih
- Bahan: plastik
- Sistem Menjawab: digital
