Master & Dynamic MH40 Over-Ear Headphones User Manual

1. Pengenalan

The Master & Dynamic MH40 Over-Ear Headphones are engineered for a superior audio experience, combining high-quality sound with premium design and comfort. These headphones feature noise isolation, making them suitable for various environments, from studio recording to casual listening. Constructed with durable materials such as aluminum, stainless steel, cowhide, and lambskin leathers, the MH40 headphones are designed for longevity and aesthetic appeal.

Equipped with custom 45mm neodymium high-performance drivers, interchangeable lambskin ear pads, and oxygen-free copper cables, the MH40 delivers a rich, warm sound profile. They support both wired and wireless Bluetooth connectivity, featuring an omni-directional microphone and an easy-to-use mute button for communication.

2. Kandungan Pakej

Sahkan bahawa semua item terdapat dalam pakej anda:

• Master & Dynamic MH40 Over-Ear Headphones
• 1.25m Audio Cable with Remote and Microphone
• 2.00m Standard Audio Cable
• Leather Cable Box
• Canvas Carrying Case

3. Produk Lebihview

Familiarize yourself with the components of your MH40 headphones.

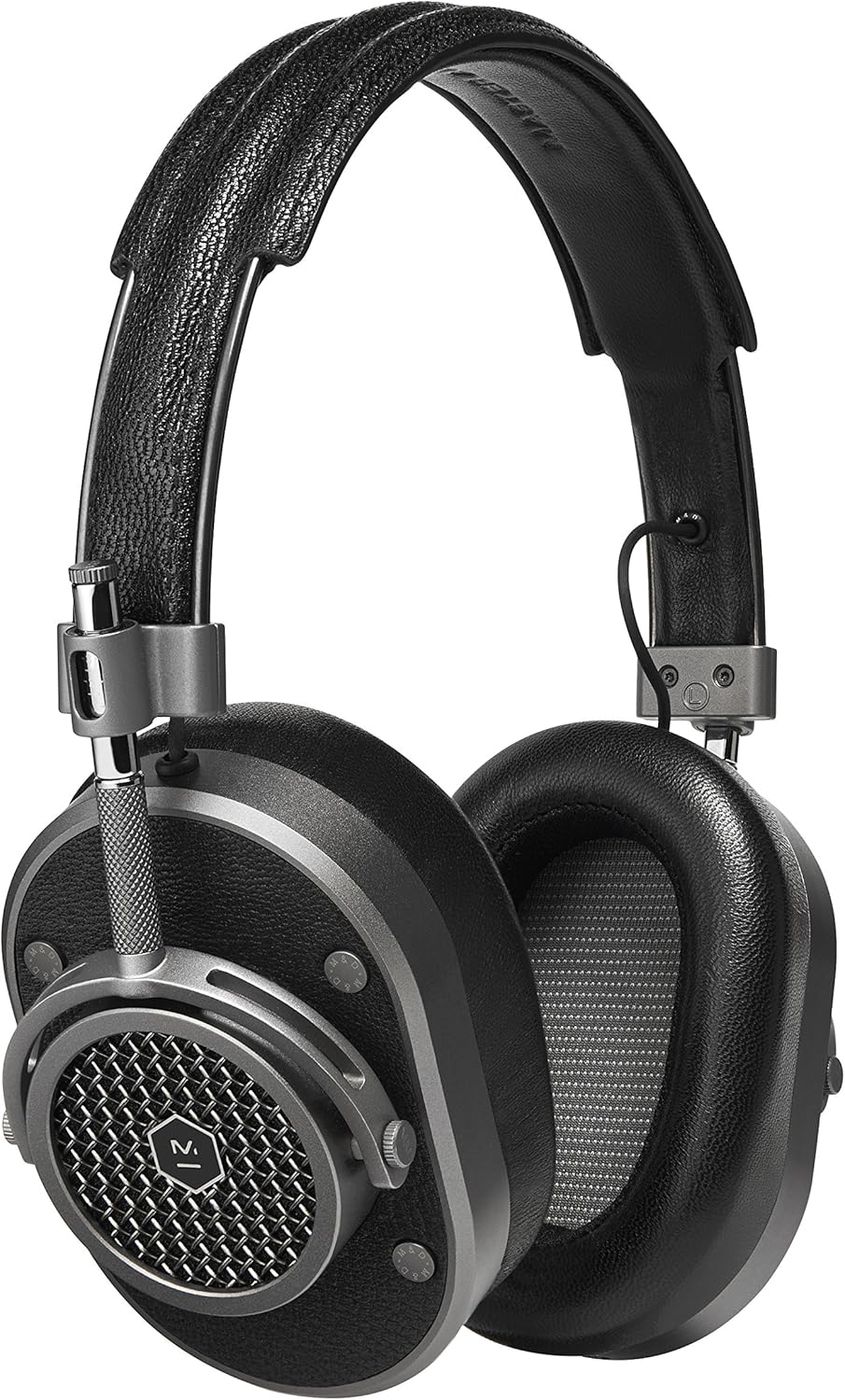

Rajah 1: Secara keseluruhan view of the Master & Dynamic MH40 Over-Ear Headphones. This image displays the headphones in a gunmetal and black leather finish, highlighting the premium materials and design.

Rajah 2: Jarak dekat view of an MH40 earcup, showcasing the distinctive grille design and the durable metal construction. The earcups are designed for comfort and sound isolation.

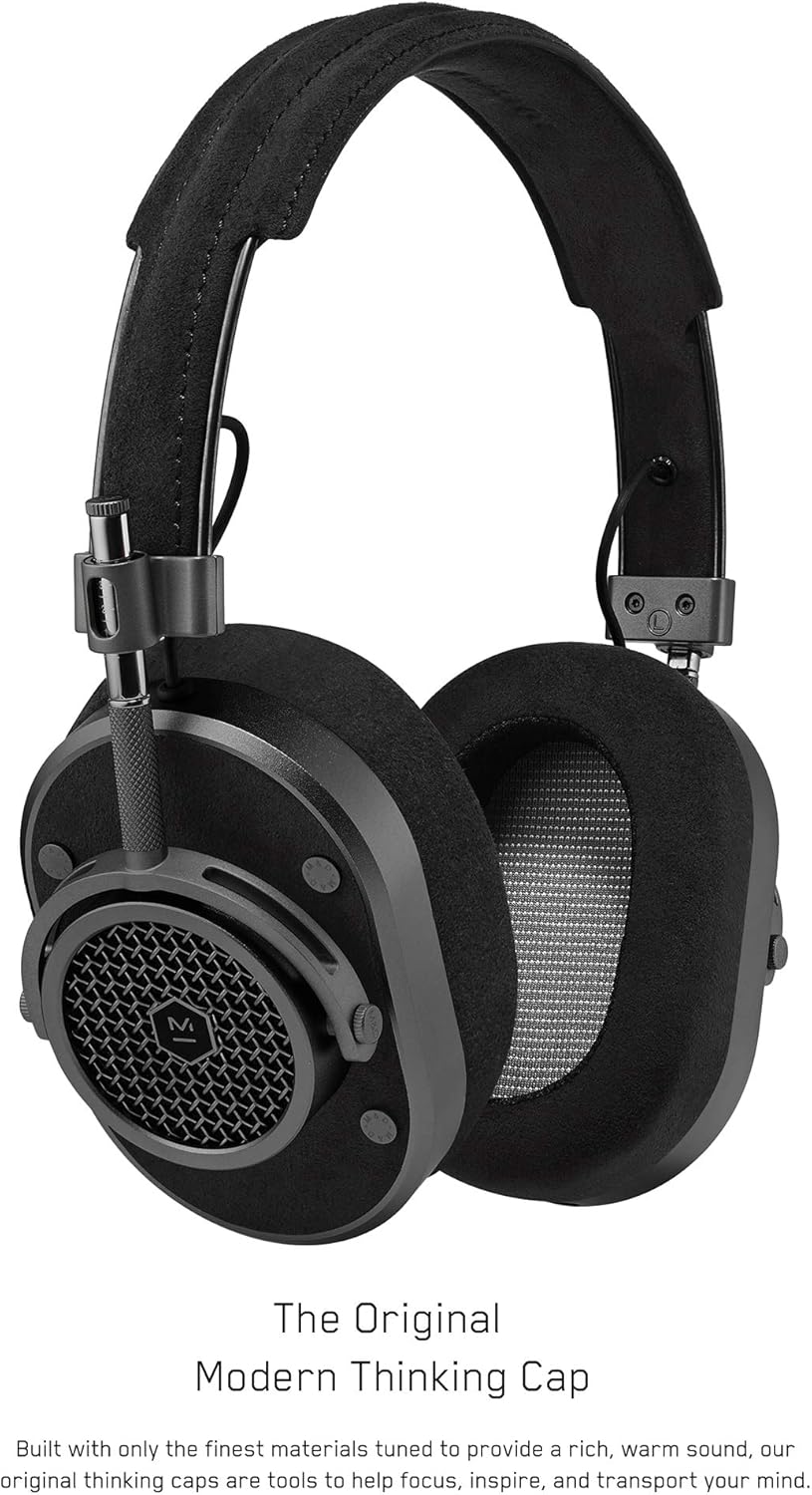

Rajah 3: Pro sampinganfile of the MH40 headphones, illustrating the adjustable headband mechanism and the connection points for the audio cables. The design emphasizes both functionality and robust construction.

4. Persediaan

4.1 Sambungan Berwayar

1. Identify the audio input jack on either earcup of your MH40 headphones.
2. Select either the 1.25m cable with remote and mic or the 2.00m standard cable.
3. Insert one end of the chosen audio cable firmly into the headphone jack.
4. Connect the other end of the cable to your audio source (e.g., smartphone, computer, audio interface).

4.2 Berpasangan Bluetooth

The MH40 headphones also support wireless Bluetooth connectivity (Bluetooth Version 5.2).

1. Pastikan fon kepala dicas.
2. Press and hold the power/pairing button (refer to Figure 3 for location) on the earcup until the indicator light begins to flash, indicating pairing mode.
3. Pada peranti anda (telefon pintar, tablet, komputer), navigasi ke tetapan Bluetooth.
4. Select "MH40" from the list of available devices.
5. Once connected, the indicator light on the headphones will turn solid.

4.3 Melaraskan Padanan

For optimal comfort and sound performance, adjust the headphones to fit your head:

• Gently slide the earcups up or down along the headband until they rest comfortably over your ears.
• Ensure the ear pads fully enclose your ears to maximize noise isolation and sound quality.
• The headband should rest lightly on the top of your head without excessive pressure.

5. Arahan Operasi

5.1 Audio Playback (Wired & Bluetooth)

• Main/Jeda: Press the multi-function button (on the remote for wired cable, or designated button on earcup for Bluetooth) once.
• Lagu Seterusnya: Tekan butang berbilang fungsi dua kali.
• Trek Sebelumnya: Tekan butang berbilang fungsi tiga kali.
• Kawalan Kelantangan: Use the volume up/down buttons on the remote (wired) or the dedicated volume control on the earcup (Bluetooth).

5.2 Phone Calls (Wired & Bluetooth)

• Jawab/Tamatkan Panggilan: Tekan butang pelbagai fungsi sekali.
• Tolak Panggilan: Tekan dan tahan butang pelbagai fungsi selama 2 saat.
• Redam Mikrofon: Use the dedicated mute button on the earcup or remote.

6. Penyelenggaraan

Proper care will ensure the longevity and performance of your MH40 headphones.

• Pembersihan: Use a soft, dry cloth to clean the earcups and headband. For leather parts, use a specialized leather cleaner or conditioner as needed. Avoid harsh chemicals or abrasive materials.
• Storan: When not in use, store your headphones in the provided canvas carrying case to protect them from dust and damage.
• Alas Telinga: The lambskin ear pads are interchangeable. If replacement is needed, contact Master & Dynamic support for genuine parts and instructions.
• Kabel: Handle audio cables with care. Avoid sharp bends or excessive pulling. Store them neatly in the leather cable box.

7. Penyelesaian masalah

If you encounter issues with your MH40 headphones, refer to the following common solutions:

• Tiada Bunyi:
  • Pastikan kabel audio disambungkan dengan selamat pada fon kepala dan sumber audio.
  • Check the volume levels on both the headphones and your audio source.
  • If using Bluetooth, ensure the headphones are paired and connected, and the device's volume is up.
  • Try a different audio cable or audio source to rule out component failure.
• Isu Berpasangan Bluetooth:
  • Make sure the headphones are in pairing mode (flashing indicator light).
  • Lumpuhkan dan dayakan semula Bluetooth pada peranti anda.
  • Move the headphones closer to your device (within 100 feet Bluetooth range).
  • Forget the "MH40" device in your device's Bluetooth settings and attempt to re-pair.
• Kualiti Audio Lemah:
  • Ensure ear pads are properly seated and creating a good seal around your ears.
  • If wired, check the cable for damage or loose connections.
  • If Bluetooth, ensure there are no obstructions between the headphones and your device, and that you are within range.
  • Try playing audio from a different source or with a different file kualiti.

8. Spesifikasi

9. Waranti dan Sokongan

The Master & Dynamic MH40 Over-Ear Headphones come with a Waranti terhad 2 Tahun dari tarikh pembelian. Waranti ini meliputi kecacatan pembuatan dan mutu kerja di bawah penggunaan biasa.

For warranty claims, technical support, or inquiries regarding replacement parts (such as ear pads or cables), please visit the official Master & Dynamic webtapak atau hubungi bahagian perkhidmatan pelanggan mereka. Simpan bukti pembelian anda untuk pengesahan waranti.

Untuk maklumat lanjut, anda boleh melawati Master & Dynamic Store on Amazon.
