D-Link DCS-8635LH mydlink 2K QHD Outdoor Wi-Fi Camera User Manual

1. Produk Lebihview

The D-Link DCS-8635LH is an outdoor Wi-Fi camera designed for surveillance, offering 2K QHD (1440p) video resolution. It features night vision capabilities, a motorized pan function for wide area coverage, and advanced AI-based detection for persons, vehicles, and glass breaks. The camera is equipped with a 90 dB siren for deterrence and boasts an IP65 rating for outdoor weather resistance. Video can be recorded to cloud storage or a local SD card.

Rajah 1: Depan view of the D-Link DCS-8635LH camera, showing the lens and indicator light.

2. Persediaan dan Pemasangan

2.1 Kandungan Pakej

Sahkan bahawa semua komponen terdapat dalam pakej:

• D-Link DCS-8635LH Camera
• Penyesuai Kuasa (Elektrik Berwayar)
• Kit Pemasangan (skru, palam dinding)
• Panduan Pemasangan Pantas

2.2 Sambungan Kuasa

Connect the provided power adapter to the camera's power input and then to a suitable electrical outlet. Ensure the connection is secure and protected from weather elements if installed outdoors.

2.3 Pemasangan Aplikasi mydlink

1. Muat turun mydlink apl daripada Apple App Store atau Google Play Store.
2. Create a new mydlink account or log in with an existing one.
3. Ikut arahan dalam aplikasi untuk menambah kamera DCS-8635LH anda. Ini biasanya melibatkan pengimbasan kod QR pada kamera atau pembungkusannya.
4. Connect the camera to your home Wi-Fi network as prompted by the app. The camera supports Wi-Fi connectivity.

2.4 Memasang Kamera

The DCS-8635LH is designed for wall mounting. Choose a location that provides the desired field of view and has access to a power source. Ensure the mounting surface is stable and can support the camera's weight.

1. Use the mounting plate as a template to mark screw holes on the wall.
2. Gerudi lubang pandu dan masukkan palam dinding jika perlu.
3. Pasangkan plat pelekap pada dinding menggunakan skru yang disediakan.
4. Attach the camera to the mounting plate and adjust its angle as needed.

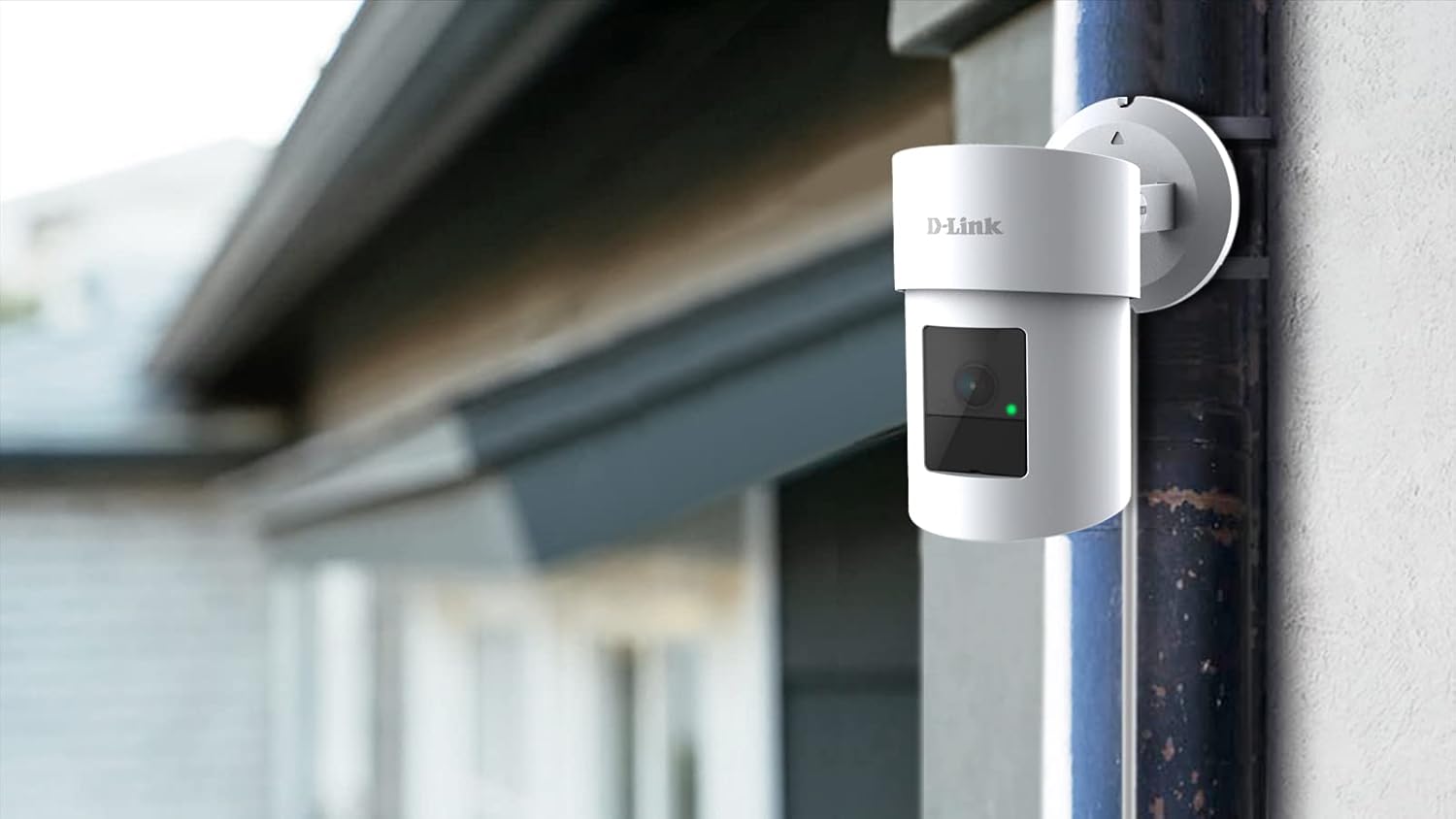

Figure 2: The D-Link DCS-8635LH camera mounted on an exterior wall, demonstrating typical installation.

3. Mengendalikan Kamera

3.1 Langsung View and Pan/Zoom Control

Open the mydlink app and select your DCS-8635LH camera to access the live video feed. Use the on-screen controls to pan the camera horizontally and digitally zoom into the image. The camera offers a 360-degree field of view.

3.2 Penglihatan Malam

The camera automatically switches to night vision mode in low-light conditions, providing clear surveillance footage even in darkness. The low light technology is Night Color.

3.3 Pilihan Rakaman

The DCS-8635LH supports two primary recording methods:

• Rakaman Awan: Subscribe to a mydlink cloud recording plan for secure off-site storage of video events.
• Rakaman Kad SD: Insert a microSD card (up to 128 GB) into the camera's slot for local storage. The camera will record events directly to the card.

Rajah 3: Bawah view of the camera showing the microSD card slot and reset button, typically protected by a cover.

3.4 AI-Based Detection and Siren

Configure AI detection settings within the mydlink app. The camera can detect:

• Pengesanan Orang: Mengenal pasti figura manusia.
• Pengesanan Kenderaan: Mengenal pasti kenderaan.
• Glass Break Detection: Alerts you to the sound of breaking glass.

Upon detection, the camera can send notifications to your device and activate its integrated 90 dB siren to deter intruders. Siren activation can be automated or manually triggered via the app.

4. Penyelenggaraan

4.1 Pembersihan

Periodically clean the camera lens and exterior housing with a soft, damp cloth. Avoid using harsh chemicals or abrasive materials that could damage the camera's finish or lens coating.

4.2 Kemas Kini Perisian Tegar

Ensure your camera's firmware is up to date for optimal performance and security. Firmware updates are typically managed through the mydlink app. Follow the app's prompts to install any available updates.

4.3 Pengurusan Kad SD

If using local storage, regularly check the status of your microSD card via the mydlink app. Format the card periodically to maintain performance or replace it if it becomes full or corrupted. The camera supports up to 128 GB flash memory.

5. Penyelesaian masalah

5.1 Kamera Tidak Menyambung ke Wi-Fi

• Pastikan rangkaian Wi-Fi anda aktif dan kamera berada dalam julat penghala anda.
• Verify that the Wi-Fi password entered in the mydlink app is correct.
• Try restarting your Wi-Fi router and the camera.
• If the issue persists, perform a factory reset using the reset button (refer to Figure 3) and attempt the setup process again.

5.2 Kualiti Imej Lemah

• Bersihkan lensa kamera untuk menghilangkan sebarang kotoran atau kesan.
• Pastikan tiada halangan dalam bidang kamera view.
• Periksa kelajuan sambungan internet anda; sambungan yang perlahan boleh menjejaskan kualiti penstriman.
• Verify that the camera's resolution settings in the mydlink app are set to 2K QHD (1440p).

5.3 False AI Detections

• Adjust the sensitivity settings for person, vehicle, or glass break detection within the mydlink app.
• Define specific detection zones to exclude areas with frequent irrelevant motion (e.g., busy roads, swaying trees).

6. Spesifikasi

7. Maklumat Waranti

Produk D-Link dilindungi oleh jaminan terhad. Untuk terma dan syarat jaminan khusus yang terpakai untuk rantau dan produk anda, sila rujuk kad jaminan yang disertakan dengan produk anda atau lawati laman web rasmi D-Link. webtapak.

8. Sokongan

For technical assistance, product inquiries, or further support, please visit the official D-Link support website or contact D-Link customer service. Support resources typically include FAQs, troubleshooting guides, and contact information for regional support teams.
