1. Pengenalan
This manual provides essential information for the proper installation, operation, and maintenance of your Kidde i9040 Battery-Operated Ionization Smoke Alarm. Please read it thoroughly before installation and retain it for future reference. This device is designed to detect smoke and alert occupants to potential fire hazards.
2. Maklumat Keselamatan Penting
- This smoke alarm is designed for residential use only.
- Do not paint the smoke alarm. Paint can clog the sensing chamber and prevent the alarm from operating correctly.
- Test the smoke alarm weekly to ensure proper function.
- Gantikan bateri dengan segera apabila amaran bateri rendah berbunyi.
- Jangan sekali-kali mengabaikan penggera asap. Siasat puncanya dan ambil tindakan yang sewajarnya.
- This alarm is not intended to replace proper fire safety practices, including regular fire drills and escape plans.
3. Produk Lebihview
The Kidde i9040 is a compact, battery-operated ionization smoke alarm. Ionization smoke alarms are generally more effective at detecting fast-flaming fires.
Rajah 1: Depan view of the Kidde i9040 smoke alarm, showing the test button and alarm grille. The text "PUSH AND HOLD TO TEST WEEKLY" and "DO NOT PAINT" are visible.
Key features include a test/hush button, a loud alarm, and a battery compartment for easy replacement.
Rajah 2: Belakang view of the Kidde i9040 smoke alarm with the mounting bracket and battery compartment visible. A 9V battery is shown installed, along with mounting hardware.
4. Persediaan dan Pemasangan
4.1 Memilih Lokasi
For optimal protection, install smoke alarms in every sleeping room and on every level of your home, including the basement.
Figure 3: Recommended placement diagram for smoke alarms, heat alarms, carbon monoxide alarms, and fire extinguishers within a typical home structure. Ionization smoke alarms are indicated by red dots.
4.2 Arahan Pemasangan
- Twist the mounting bracket counter-clockwise to separate it from the alarm unit.
- Position the mounting bracket on the ceiling or wall at your chosen location. Mark the two mounting holes.
- Drill two 3/16 inch (5 mm) holes at the marked locations. Insert the plastic screw anchors (if applicable).
- Selamatkan pendakap pelekap menggunakan skru yang disediakan.
- Install the 9V battery into the battery compartment. Ensure correct polarity (+ to + and - to -).
- Align the alarm unit with the mounting bracket and twist clockwise until it locks into place.
- Test the alarm immediately after installation.

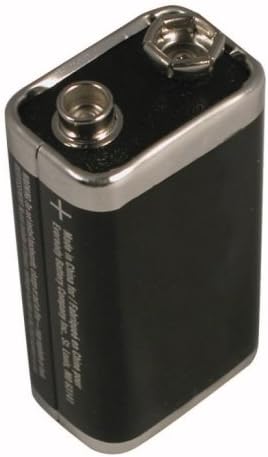

Figure 4: A standard 9V battery, required for operation of the Kidde i9040 smoke alarm.
5. Arahan Operasi
5.1 Operasi Biasa
The smoke alarm is continuously monitoring for smoke. A red LED indicator will flash approximately once every 30-40 seconds to confirm it is operating correctly.
5.2 Menguji Penggera
Press and hold the test button on the front cover for a few seconds. The alarm will sound a loud, pulsating horn. Release the button to stop the alarm. Test weekly.
5.3 Keadaan Penggera
When smoke is detected, the alarm will sound a loud, pulsating horn. The red LED will flash rapidly.
5.4 Hush Feature
If a nuisance alarm occurs (e.g., from cooking fumes), press the test/hush button. This will silence the alarm for approximately 7-10 minutes. The red LED will flash every 10 seconds during the hush period. The alarm will automatically reset after the hush period, or sooner if smoke density increases.
6. Penyelenggaraan
6.1 Penggantian Bateri
The smoke alarm requires one 9V battery. When the battery is low, the alarm will "chirp" approximately once every 30-40 seconds. Replace the battery immediately.
- Twist the alarm counter-clockwise to remove it from the mounting bracket.
- Buka petak bateri.
- Keluarkan bateri lama dan buang dengan betul.
- Install a new 9V battery, ensuring correct polarity.
- Close the battery compartment and re-attach the alarm to the mounting bracket.
- Test the alarm after battery replacement.
6.2 Membersihkan Penggera Anda
Clean your smoke alarm at least once a month.
- Tanggalkan penggera dari pendakap pelekap.
- Use a soft brush attachment on your vacuum cleaner to remove dust and debris from the alarm's cover and vents.
- Do not use water, cleaners, or solvents, as they may damage the unit.
- Re-install the alarm and test it.
7. Penyelesaian masalah
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Kicauan penggera setiap 30-40 saat | Bateri lemah | Ganti bateri 9V. |
| Penggera berbunyi kerap tanpa asap | Nuisance alarm (cooking fumes, steam), dust in sensing chamber, improper placement. | Use hush feature. Clean the alarm. Relocate if consistently triggered by non-fire sources. |
| Penggera tidak berbunyi semasa ujian | Dead or improperly installed battery, faulty unit. | Periksa pemasangan bateri dan ganti jika perlu. Jika masalah berterusan, gantikan penggera. |
| LED merah tidak berkelip | No power, faulty unit. | Check battery. Replace alarm if LED still does not flash. |
8. Spesifikasi
- model: Kidde i9040
- Jenis Sensor: Pengionan
- Sumber Kuasa: 9V Battery (1 required)
- Kekuatan Penggera: 85 dB pada 10 kaki
- Suhu Operasi: 40°F (4.4°C) hingga 100°F (37.8°C)
- Kelembapan Operasi: 10% - 95% relative humidity, non-condensing
- Dimensi: Approximately 4.2 x 4.2 x 3.2 inches (package dimensions, actual unit is slightly smaller)
- Berat: Approximately 8 ounces (with battery)
- UPC: 635231841780
9. Waranti dan Sokongan
For warranty information or technical support, please refer to the contact information provided on the product packaging or visit the official Kidde webtapak. Simpan resit pembelian anda sebagai bukti pembelian.
Pengeluar: Kidde
Webtapak: www.kidde.com
