1. Pengenalan
This manual provides essential information for the proper installation, operation, maintenance, and troubleshooting of your Beverage-Air WTR72AHC Commercial Worktop Refrigerator. Please read this manual thoroughly before operating the unit to ensure safe and efficient performance. Retain this manual for future reference.
2. Maklumat Keselamatan
Your safety and the safety of others are paramount. This section outlines important safety precautions. Always follow these guidelines to reduce the risk of injury, electric shock, fire, or damage to the unit.
- Keselamatan Elektrik: Pastikan unit disambungkan ke soket elektrik yang dibumikan dengan betul dengan volum yang betultage as specified on the rating plate. Do not use extension cords or adapter plugs. Disconnect power before any service or cleaning.
- Penyejuk: This unit uses R290 Hydrocarbon refrigerant. R290 is flammable. Only qualified service personnel should handle refrigerant. Do not puncture the refrigerant lines.
- Pemasangan: Install the unit on a level, stable surface capable of supporting its weight. Maintain adequate clearance around the unit for proper ventilation.
- Pembersihan: Always use non-abrasive cleaners. Avoid spraying water directly onto electrical components.
- Bahagian bergerak: Keep hands and clothing clear of moving parts, especially during maintenance.
3. Kandungan Pakej
Upon unpacking, verify that all components are present and undamaged. If any items are missing or damaged, contact your supplier immediately.
- Beverage-Air WTR72AHC Commercial Worktop Refrigerator unit
- Three (3) solid doors
- Six (6) wire shelves
- Four (4) casters (pre-installed or included for installation)
- Removable 4-inch backsplash
- Manual Pengguna (dokumen ini)
4. Persediaan
4.1 Membongkar dan Pemeriksaan
Carefully remove all packaging materials. Inspect the unit for any shipping damage. Report any damage to the carrier and your supplier immediately.
4.2 Penempatan
Choose a location that is level, dry, and well-ventilated. Avoid direct sunlight or proximity to heat-generating equipment. Ensure adequate clearance (at least 6 inches) around the back and sides for proper airflow and condenser operation. The unit is equipped with casters for easy positioning.
4.3 Sambungan Elektrik
Connect the unit to a dedicated, grounded electrical outlet. Refer to the unit's rating plate for specific voltage dan amperage requirements. Do not overload the circuit.
4.4 Pembersihan Awal
Before first use, clean the interior and exterior surfaces with a mild soap and water solution. Rinse thoroughly and dry completely.
4.5 Backsplash Installation
The 4-inch backsplash is removable. If not pre-installed, attach it to the rear of the worktop using the provided hardware.

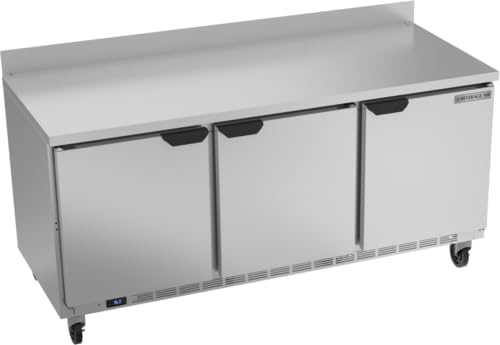

Rajah 1: Depan view of the Beverage-Air WTR72AHC Commercial Worktop Refrigerator. This image shows the stainless steel exterior, three solid doors, and the overall design of the unit.
Rajah 2: Dimensi view of the Beverage-Air WTR72AHC Commercial Worktop Refrigerator. This image illustrates the unit's width (72"), depth (32"), and height (39.63"), providing critical measurements for installation planning.
5. Arahan Operasi
5.1 Menghidupkan
After connecting the unit to power, the compressor will start automatically. Allow the unit to run for several hours empty to reach the desired temperature before loading products.
5.2 Kawalan Suhu
The unit features an electronic temperature control system. Refer to the digital display and control panel, typically located on the front or side, to adjust the set temperature. Consult the specific control panel instructions for detailed programming.
5.3 Garis Panduan Pemuatan
- Do not block the internal air circulation vents.
- Distribute products evenly on the shelves.
- Avoid overloading the shelves.
- Ensure doors are closed completely after each use to maintain temperature and energy efficiency.
6. Penyelenggaraan
Regular maintenance ensures optimal performance and extends the lifespan of your refrigerator. Always disconnect power before performing any maintenance.
6.1 Pembersihan Dalaman
Clean the interior regularly with a mild, non-abrasive cleaner and warm water. Rinse with clean water and dry thoroughly. Remove shelves and shelf supports for easier cleaning.
6.2 Pembersihan Luaran
Wipe down the stainless steel exterior with a soft cloth and a mild cleaner. For stubborn stains, use a stainless steel cleaner. Always wipe in the direction of the grain.
6.3 Pembersihan Gegelung Kondenser
The condenser coil, located at the rear of the unit, should be cleaned every 30-90 days, depending on the operating environment. A dirty coil reduces efficiency and can lead to compressor failure. Use a stiff brush or vacuum cleaner to remove dust and debris.
6.4 Door Gasket Inspection
Inspect door gaskets regularly for cracks, tears, or stiffness. Damaged gaskets compromise sealing and energy efficiency. Replace worn gaskets promptly.
6.5 Nyahbeku Automatik
This unit features an automatic defrost system, eliminating the need for manual defrosting. Ensure the drain pan and drain line are clear to prevent water accumulation.
7. Penyelesaian masalah
Sebelum menghubungi perkhidmatan, semulaview isu dan penyelesaian biasa ini.
| Masalah | Kemungkinan Punca | Penyelesaian |
|---|---|---|
| Unit tidak berjalan | Tiada kuasa; pemutus litar terpelantik; unit dicabut | Check power supply, circuit breaker, and plug connection. |
| Penyejukan yang tidak mencukupi | Dirty condenser coil; blocked airflow; door left open; excessive product load; high ambient temperature | Clean condenser coil; ensure proper clearance; check door seals; reduce product load; relocate unit if ambient temperature is too high. |
| Kebisingan yang berlebihan | Loose components; unit not level; fan obstruction | Check for loose parts; level the unit; inspect fan for obstructions. |
| Air di atas lantai | Clogged drain line; drain pan overflow | Clear drain line; ensure drain pan is correctly positioned. |
Jika masalah berterusan selepas mencuba penyelesaian ini, hubungi juruteknik servis yang berkelayakan.
8. Spesifikasi
| Ciri | Spesifikasi |
|---|---|
| Model | WTR72AHC |
| Jenama | Minuman-Udara |
| Dimensi (D x W x H) | 32" x 72" x 39.63" |
| Kapasiti | 17.88 cu. kaki |
| Bilangan Pintu | 3 (Solid) |
| rak | 6 (Wire) |
| Bahan penyejuk | Hidrokarbon R290 |
| Pemampat HP | 1 / 5 HP |
| Jenis Pemasangan | Pasangkan |
| Sistem Pencairan | Automatik |
| Bahan Luaran | Keluli Tahan Karat |
| Bahan Dalaman | aluminium |
| Pensijilan | cULus, UL EPH Classified, UL-Sanitation, Energy Star |
9. Waranti dan Sokongan
For warranty information and technical support, please refer to the documentation provided with your purchase or visit the official Beverage-Air website. Keep your purchase receipt and model/serial number readily available when contacting support.
Beverage-Air Contact Information:
- Webtapak: www.beverage-air.com (Note: This is a placeholder link, please verify the actual manufacturer's webtapak.)
- Customer Service: Refer to the weblaman web untuk nombor telefon semasa dan pilihan sokongan.
